Spare Parts Anti-Fall Safety Device For Construction elevator,Passenger Hoist
- 200 Set / Sets per Month
- qingdao or tianjin
- T/T
Product Details
Condition: | New | Place of Origin: | Shandong, China | Brand Name: | Jiuhong |
Model Number: | SC100/100 | Rated Loading Capacity(kg): | 1000kg-2000kg | Hoisting Speed: | 33m/min |
Max Lifting Height: | 150m | Dimension(L*W*H): | 3m*1.5m*2.5m | Loder Weight: | 1-2t |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Spare Parts Anti-Fall Safety Device For Construction elevator,Passenger Hoist
Shandong Jiuhong Heavy Industries Co.,Ltd.Which is the largest Construction Machinery Manufacturer Company in the North of China for 15 years with CE ISO GOST approved .Main Products include,Suspended Platform,Construction Elevator,Tower Crane,Building Hoist,Material Hoist,Concrete Spreader and all Parts for the above machines.
In the field of construction machinery,JIUHONG brand products have entered the international market,exported to West Europe,Americas, Eastern Europe,the Middle East,South east,South east Asia etc.
Jiuhong Group now has three major manufacturers:
I.Shandong Jiuhong
II.Beijing Jiuhong
III.Shandong Jiuyi Elevator(new projects and main investment in 2015)

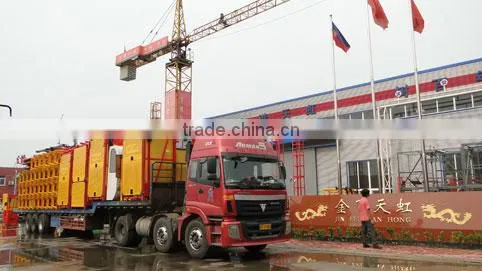

Factory Image,Welcome to Visit Our factory
Anti-Fall safety device
For safety device is one of the important safety device on the construction lifter, after the hoisting cage brakes brake failure due to various reasons, for safety device of construction hoist the safe use of significant, as a way to determine for performance. Hanging basket accelerated decline, speed increases to a certain degree, which play a role for safety device will be hanging basket braking, prevents the hoisting cage fall accidents, ensure the life safety of the crew for safety device on the action itself will be hanging basket to stop on the rail, then used to determine its stopping distance, may cause for safety device testing qualified safety device in excessive technical parameters in the process of drop test
specifications
All kinds of hoist spare parts: GJJ, BAODA, ZOOMLION, TIGER,CPTC | |
Driving device | With 2-motors / 3-motors |
Motor | 11kw, 14.5kw,18kw |
Motor spare parts | Braking system; brake sheet, motor adjustor, electromagnet, motor fan |
Safety device | 30KN, 40KN, 50KN, 60KN |
Gearbox | 16:1,14:1,12:1;10:1 |
Coupling with rubber |
|

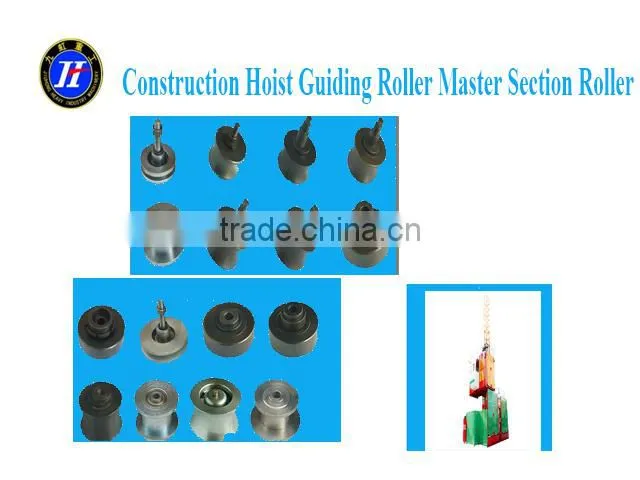

Master rollers | For 76 tube and 89 tube |
Gear rack | M8 40x60x1508mm |
Gear pinion | M8, 15teeth |
Limit switch |
|
Gate rollers |
|
Counter rollers |
|
Transformer |
|
Overload protects system |
|
Cable | 3x16+2x6, 3x16+2x10 |
Technical Parameter
Type | SAJ30-1.2 | SAJ40-1.2 |
Brake load rating
| 30 | 40 |
Rated brake speed m/s | 1.2 | |
Calibration movement speed m/s | Accord to customer | |
Braking distance m | 0.3~1.2 | |
Weight Kg | 35 | 56 |

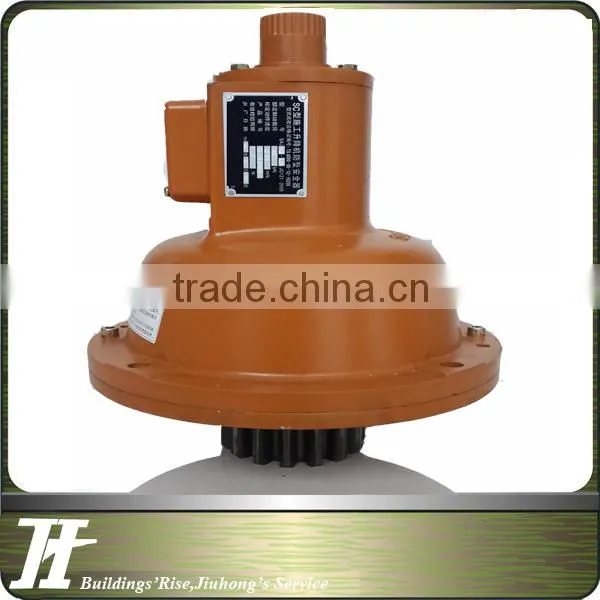

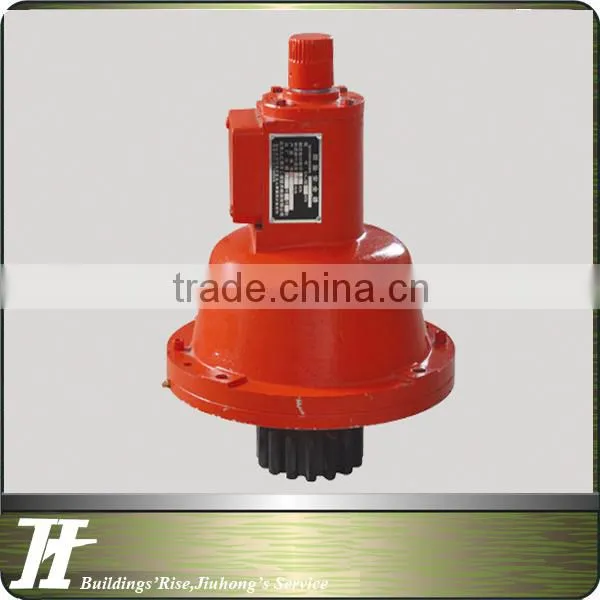

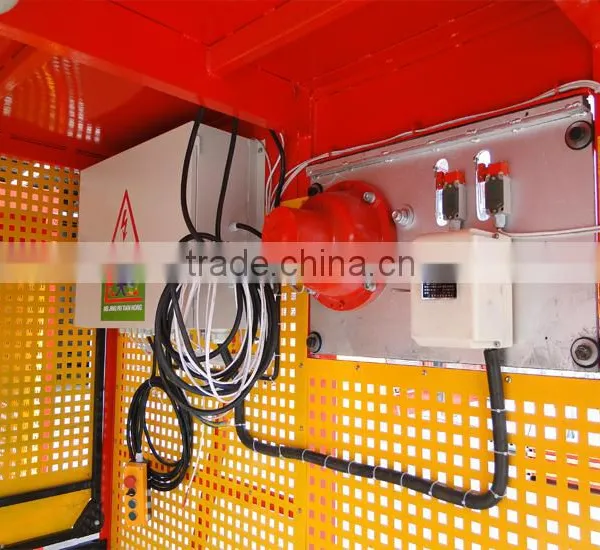

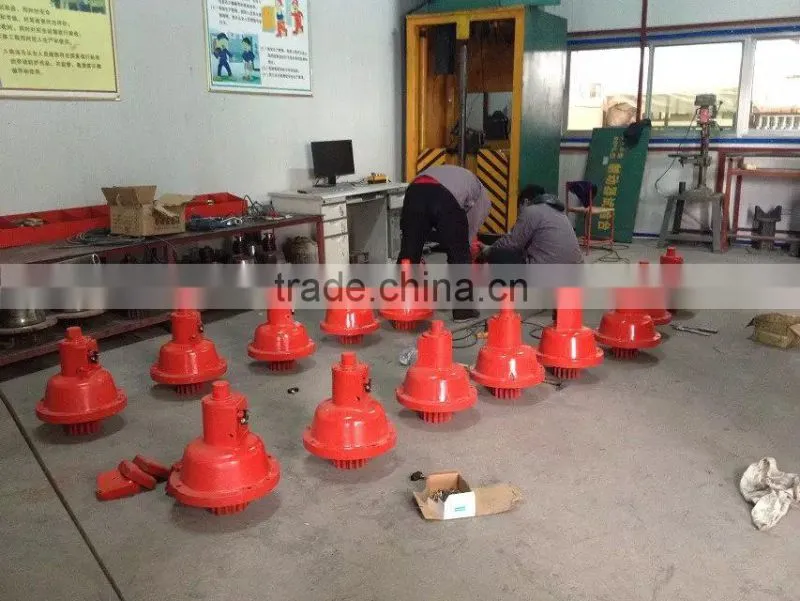

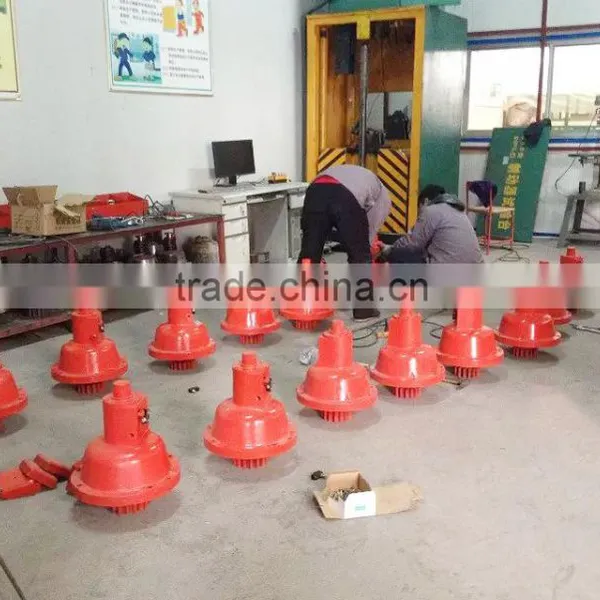

Anti-Fall Safety Device

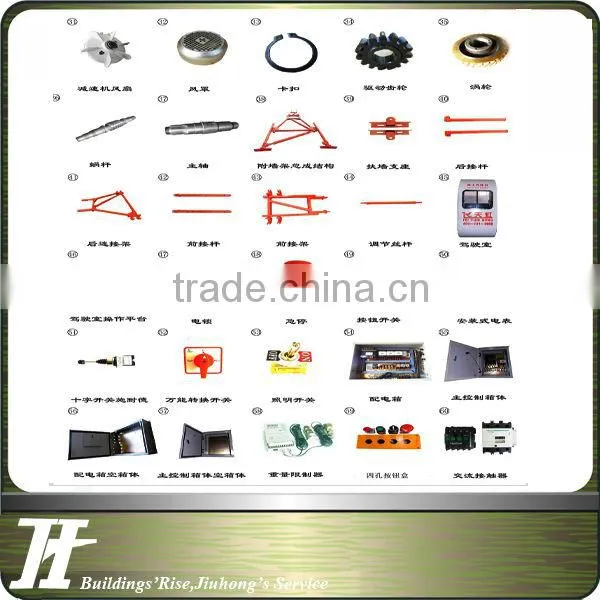

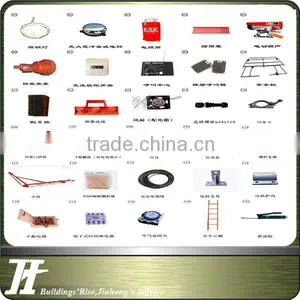

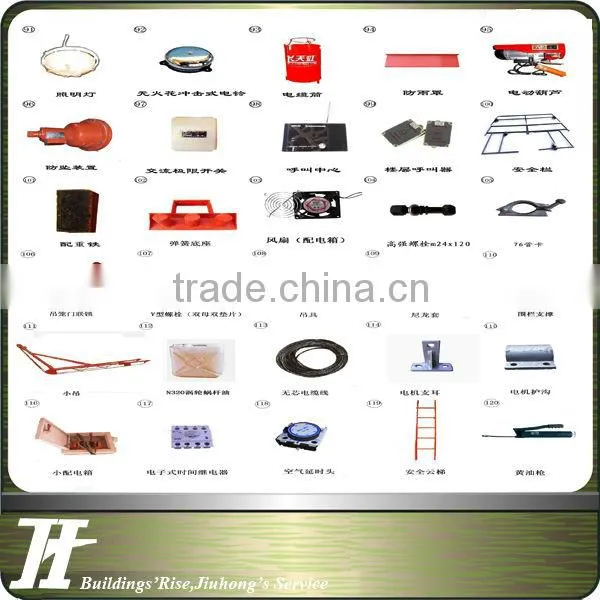

All kinds of parts for construction hoist

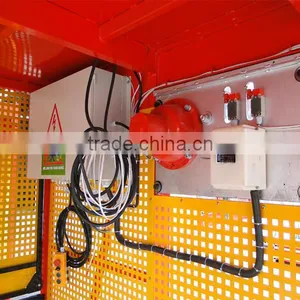

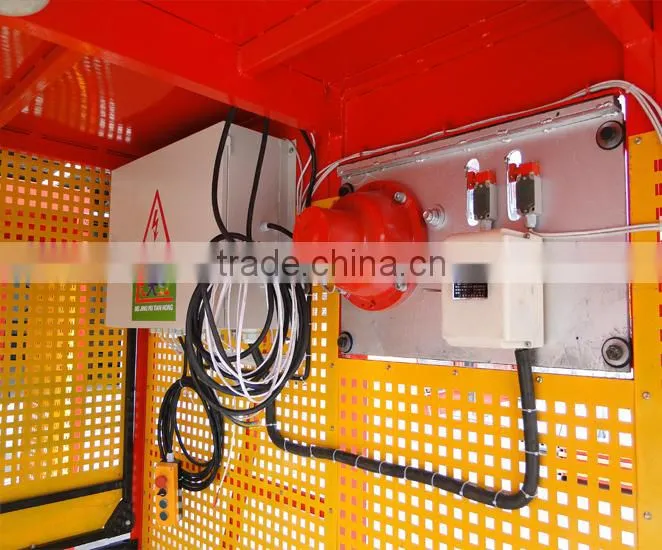

The cage for construction elevator

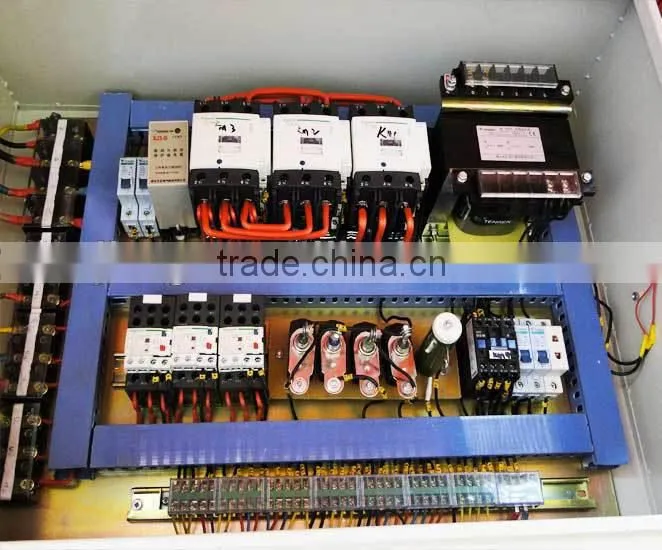

Electric control cabinet

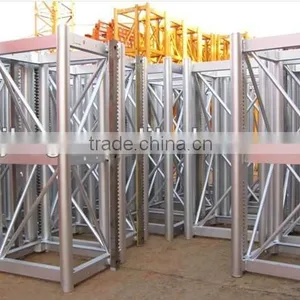

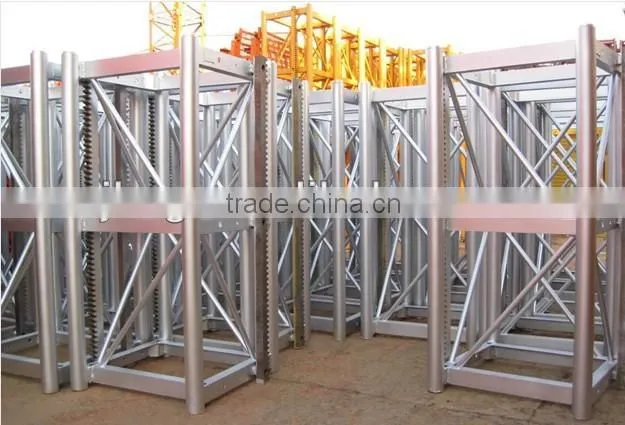

Mast section introduction
1. Mast section welded by welding Robot ensures reliable quality and elegant appearance.
2. All the steel structures are processed with blasting technology to remove rust. The adhesion of surface painting is outstanding.
3. Suspension cage guarding board adopts figured aluminum plate and numerical control punched aluminum plate. The suspension cage is lightweight and artistic in appearance.
4. Transmission mechanism supplied by the professional manufacturer has high efficiency, long service life and stability in performance.
5. Complete set of overload protection devices, variety of limiters and mechanical chain devices ensure its reliability. Anti-falling safety device adopts SAJ401.2, which restricts the excessive downward movement of the cage, preventing and eliminating accidents.
6. Frequency conversation construction elevator is safe, stable and comfortable. Starting electricity is smaller than working electricity, energy-saving and high efficient.
7. The product can be customized according to customers 'requirements (drawing, specifications
and so on).

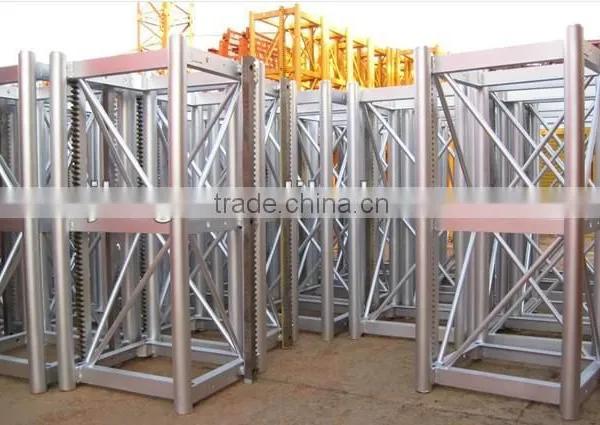

Hot dipping Zinc Mast section
Painting mast section
Packaging Details: | wooden box and standard seaworthy packing |
Delivery Detail: | 15 days after receive T/T deposit |
We have one year guarantee
Good after sale service
Engineer available to service machinery overseas
1, Repair and maintenance
Anti-fall safety device Must be done once a year overhaul and maintenance, even you did not use it in last year.
2, Service life
In the standard maintenance and repair case, ourl safety device is service life of 5 years, Even though it can also be used 5 years later, in order to guarantee the safety, you must also replace it.
