Vertical Rotary Parking system
- 100 Set / Sets per Month
- Qingdao
- T/T L/C D/P D/A Credit Card PayPal
Product Details
| Type: | Carport | Height (mm): | 6800mm | Width (mm): | 5200mm |
| Place of Origin: | Shandong, China | Brand Name: | Jiulu(JL) | Model Number: | PCX |
| Warranty: | 1 Years |
Product Description
Vertical Rotary Parking system
Features and advantage:
1. Easy to operate (parking and retrieve car), easy for maintainence
2. Easy to relocate and reinstall,Very small footprint
3. Least noise and vibration(60-75 decibel)
4. Rarely trouble
5.Low runing cost
6.Low power consumption
7.Small land coverage, high space utilization ratio
8.15-20years useful life
9.Rotates both directions for optimal efficiency
10.Independent operation & multiple enteries in series.
11.ISO 9001:2008 certificates, ISO14001:2004
Operating Principle

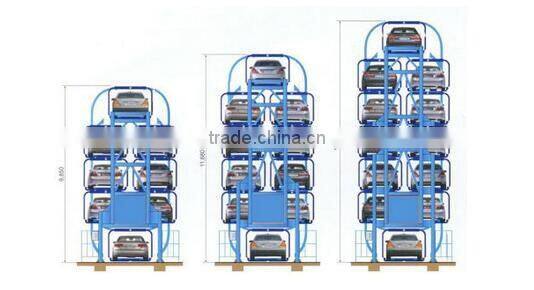

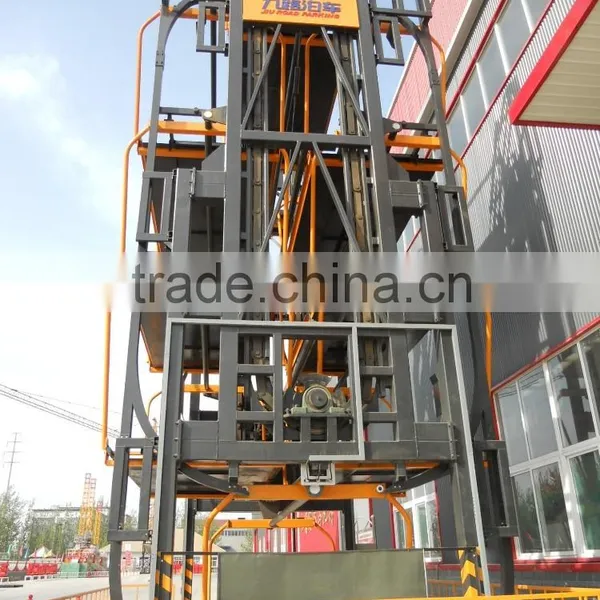

The rotary parking system consists of one automated mechanical system, which rotates at an angle of being perpendicular to the ground. It is driven by the motor+chain+chain wheel and runs in a rotating way. When someone wants to park or retrieve car, the needed parking pallet will be rotated to the ground level. Then the car can be parked or retrieved directly.
Safety device:
1. Anti-fall device
2. Alarm device for preventing people or vehicle from entering when the machinery is running
3. Alarm device for prevention of exceeding height and length of vehicles
4. Low-voltage, lack-phase, over-current and overload protection device
5. Power-off self-locking protection device
6. Emergency stop button device.
Technical Parameters:
No. | Name | Instruction | |
1 | Vehicle Size | Length(mm) | 5000 |
Width(mm) | 1850 | ||
Height(mm) | 1550 | ||
2 | Vehicle Weight(Kg) | 1850 | |
3 | Max number | 8/10/12/14/16 | |
4 | Driven Mode | Motor+Chain | |
5 | Operation Mode | Manual button or ID card | |
6 | Power Supply | AC380v/220v 50Hz | |

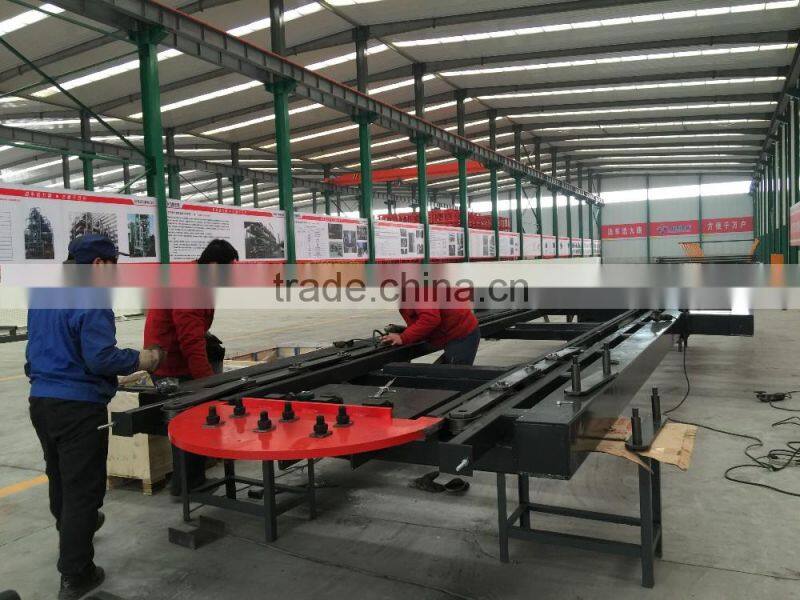

Workshop picture show
Customer Visit:
Shandong Jiulu Parking Equipment CO.,LTD
Registered capital of RMB50 million.Work shop space covering 9600 square meters. Company has more than 500 staffs, senior engineer 8 persons, engineer 23 persons. With professional advanced manufacturing machine: NC Gantry Milling machine, CNC machining, Robot welding machine,Plasma cutting machine,advanced testing equipment,shot blasting machine, wave plate molding machining, Automatic spray line, car frame testing machine, finished products testing machine, full set of machinery.
Jiulu parking mechanical cubic parking equipment integrated research and development, design, manufacture, installation and after-sale service.
Parking equipment Main products:
vertical Rotary automated parking system, vertical lift parking lift(Tower parking system)
Lift-sliding parking system,simple lifting parking device,Car elevator,Plane moving stacker and other parking facilities.
We insist on market-oriented, technology support, advanced performance and reliable quality products, provide first-class after-sales service, supply customers a full range of parking management system,supporting warehouse and parking equipment, intelligent storage-related products,service and technical support.
"Patriotic, dedicated, honesty, and trustworthy" is the purpose of the Jiulu. Shandong Jiulu parking equipment Co., LTD., look forward to working with you and win-win "Parking choose Jiulu,Convenient to every parker .”
For further information needed, please feel free to contact me as the following information:
Contact Us
- Shandong Jiuhong Heavy Industries Co., Ltd.
- Contact nameSOPHIA XIA
- Phone86-635-3672889
- AddressSouth Of Xiangzhuang Village, Renhe Office, Gaotang County
-
