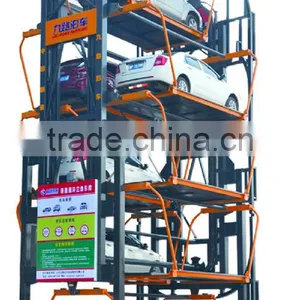

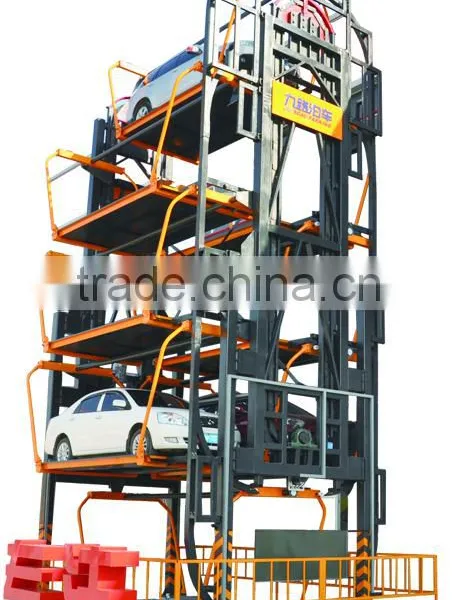

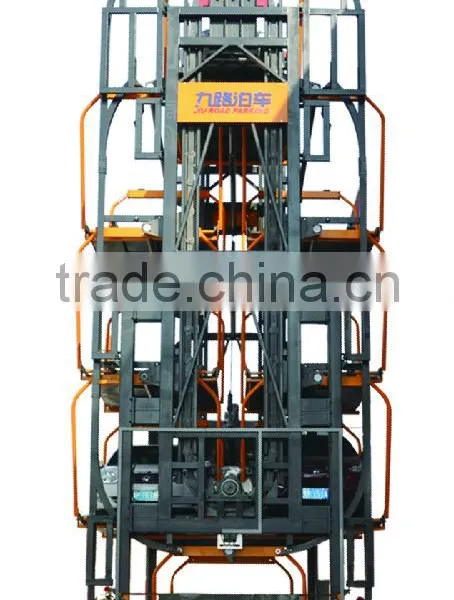

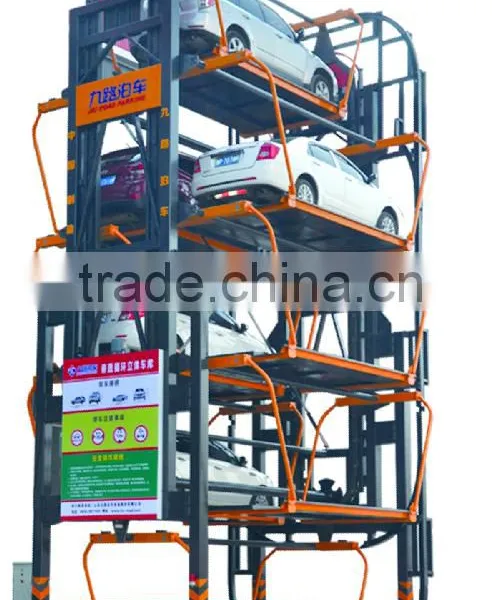

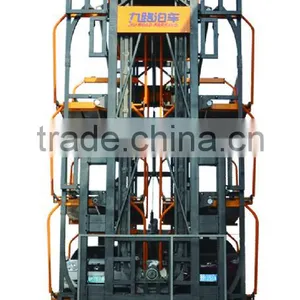

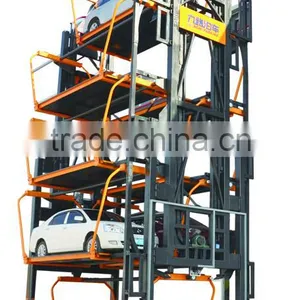

8-14 Cars Smart Vertical Rotary Car Parking Lift System

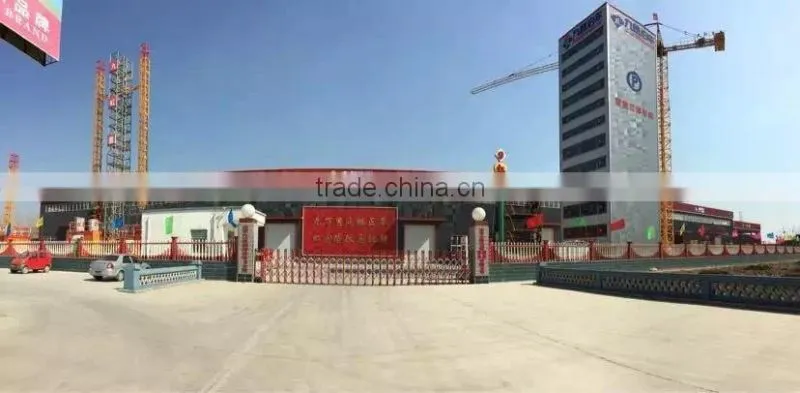

Shandong Jiu Road Parking Equipment Co.,ltd. Company Introduction
Jiuhong Group which have subsidiary called Shandong Jiu Road Parking Equipment Co.,LTD Which is professional Vertical Rotary Parking System in the north of China.
Vertical Automatic Car Parking System Working Principle
Vertical cycle series cubic parking garage which is a mechanical vehicle parking equipment that adopt parking system doing vertical cycle movement equipment.
Which working principle is the motor drive the transmission mechanism through gear.In the traction chain,install a parking car frame each certain distance,when the motor starts,the car parking frame doing cycle movement along with the chain.which achieve car parking purpose.
The vertical cycle series parking equipment features:
Smart Parking is an Automated Mechanized Parking system that can be ideally installed in condensed urban areas to provide a quick and reliable solution to parking problems. It's ease of use and convenient space preserving makes it a handy solution. Smart Parking? is very flexible and can be installed in multiple layouts entirely defendant on site location and requirement. Not only does provide a solution, but is also a great way of generating revenue whether it being from Rental or Advertisement.
In a footprint area of just 2 Traditional Car Spaces, you can fit up to 16 Cars with a maximum height of approximately 21.4Meters.
Smart Parking requires a footprint of only 2 parking lots
Expandable up to 8 times of parking capacity Max. 16 cars can be parked in a space of 2 cars
Easy to operate By pressing on the touch screen or by contacting an RFID card
Safety devices:Four photo sensors at front, rear and both sides. Warning lamp, overrun stopper and falling prevention device by double guide mechanism

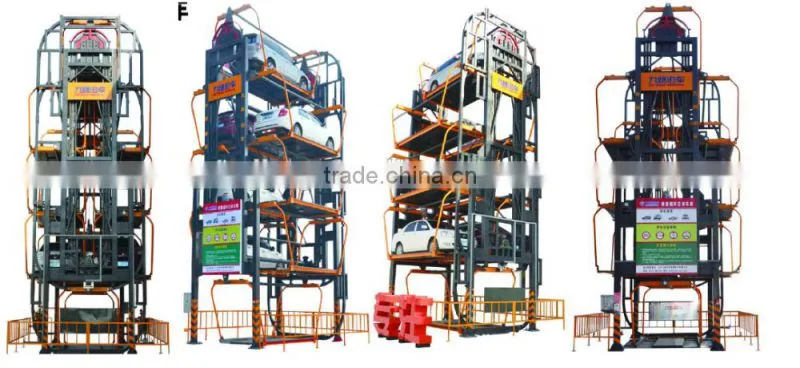

Various configurations: Smart Parking is available in many configurations and sizes to accommodate 4 to 16 cars
Long service life Over 15 years of useful life
Low noise and very low vibration Low noise level (65 ~ 75 dB). Smart Parking runs more silently and smoothly than any other type of parking equipment.
Low running cost Due to the straightforward design and rotational motion only.
Simple Periodic Maintenance.
Low power consumption
Quick installation (3-5 days).
No need of underground pit for installation
No attendant operator is required
Smart Parking can be Relocated.
Vertical rotary parking equipment Parameter
Item |
Specifications |
Parking capacity |
8 ~ 14 car places |
Max. car size |
Sedan: 5000*1850*1550mm |
S U V : 5300*1950*2050mm | |
Load : 2300kg | |
Operation modes |
Button+IC Card |
Average vehicle access time |
40s |
Motor |
9.2KW |
Driving mode |
motor driven chain |
Noise |
≤ 60db |
Power supply |
3 phase 5 line (AC 380V/415V) |
Electric capacity |
|
Safety devices |
Emergency stop switch |
Overrun preventing device | |
Car length, width, height limiting device | |
Overload preventing device | |
Anti falling safety device | |
Vehicle blocking device | |
Human & vehicle detection device | |
Vehicle position detection device in parking place | |
Operation modes |
Key +IC card |
Working temperature |
0 ~ 42℃,the average temperature less than 35℃ within 24h |
Relative humidity |
≤ 90%. |

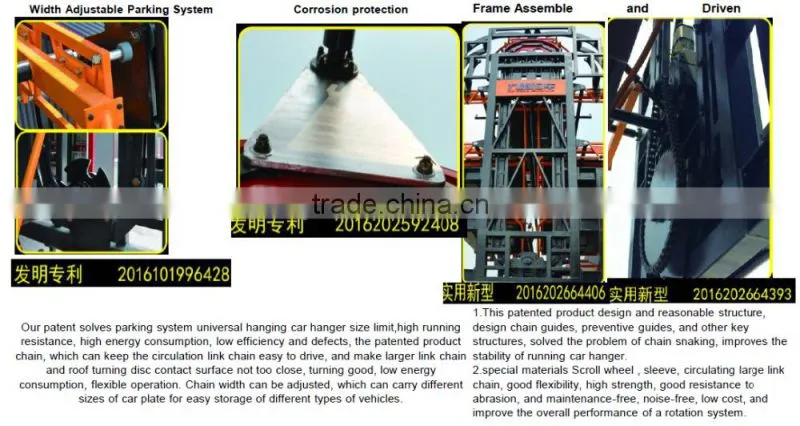

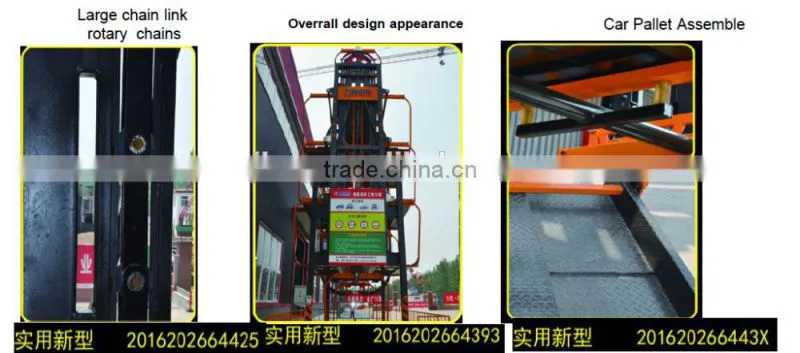

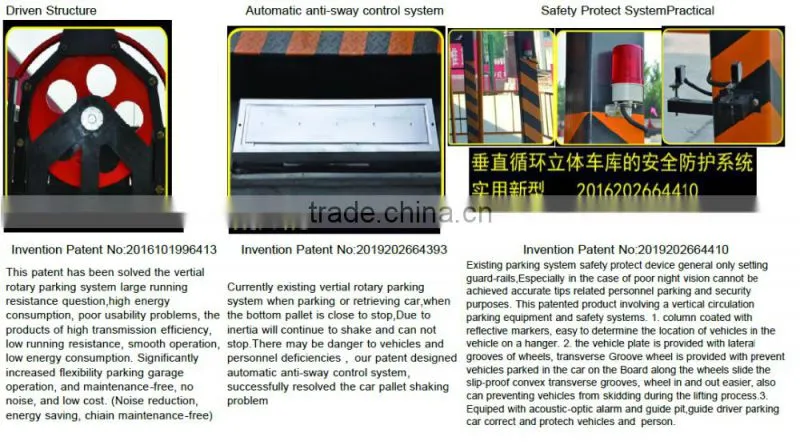

China Invention Patent and Practical Patent

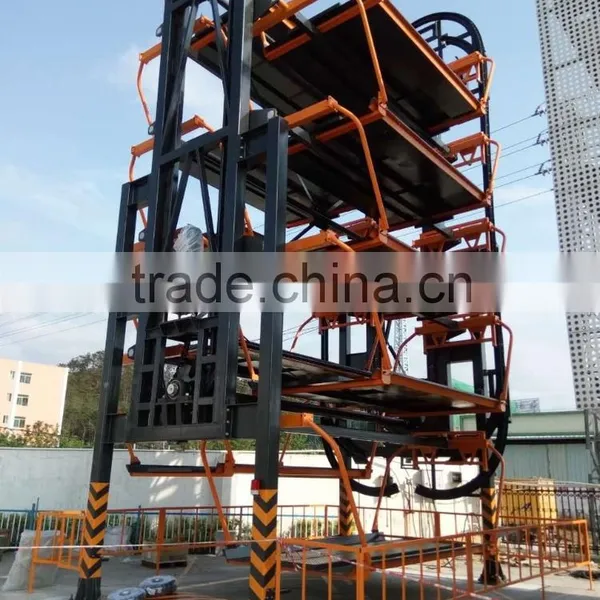

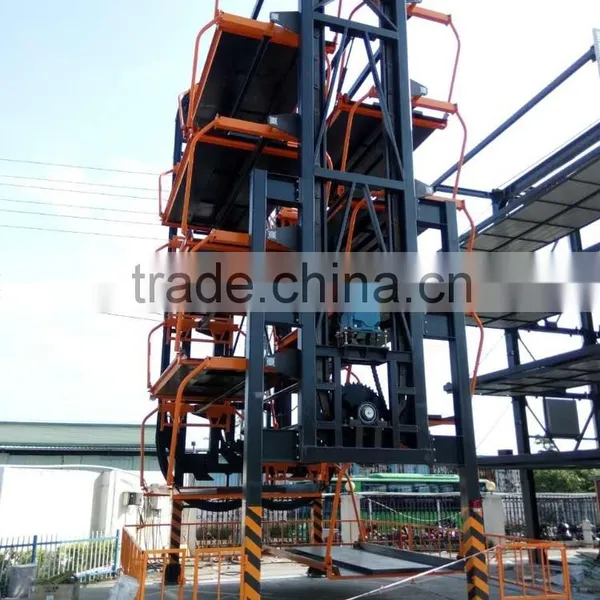

Our Project

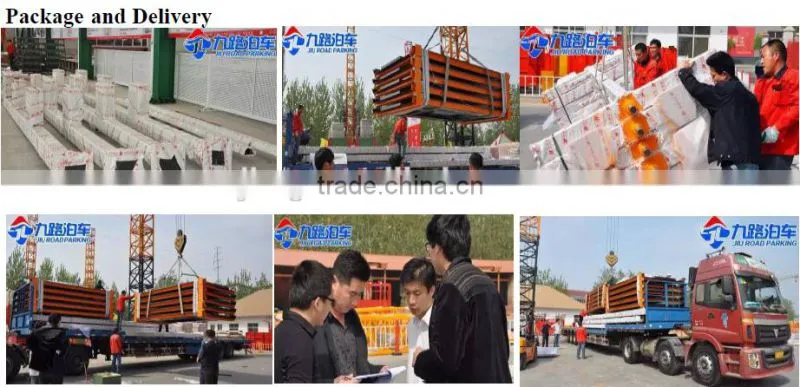

Packaging:standard seaworthy packing
Shipping:With 35 days after deposit

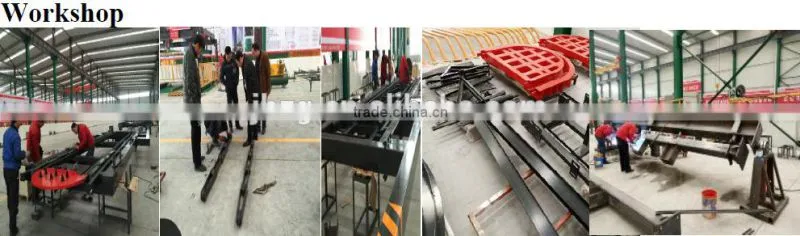

Vertical Rotary Parking System Workshop
Service Features
I-"Complete & Integrated park solutions"
1.Excellent before-sales services
2.Flexiable garage design
3.Customized solutions
4.Manufacturing reliable products
5.Fast delivery-quick installation-final test
6.Trustworthy support and maintenance
II- "One to one lifetime close service"
1. "One to one"--Provide every customer 1 service consultant, through 12 service stations.
2. "Lifetime"--To the equipments, to the customers.
3. "Close"--Besides the related affairs, concerned about lives of customers,to form "close friend"
relationship.
III-"Long term win-win corporation"
1.With exceptional quality,win the customer's credit & reliablity.
2.Offer customers all-around tailor-made solutions to satisfy user's diverse requirements, build
long-term corporation,accumulate rich experience.
Training Measures
For every project, we provide Corresponding training:
I-With the combination of theory and practice, we provide training during on-site installation and
commissioning period.
II-Customers should arrange full-time person to be trained. There are two types of the training:
1. Operation training—we ensure that workers can operate the garage systems correctly, use
various functions of the garage, and could deal with various emergency situations.
2. Repair training—we ensure that the workers know how to carry out regular maintenance, can
handle some common breakdowns.
III-The training includes the structure & electrical principle, usage and repair, daily management
etc. Teaching materials include construction layout, component assembly drawing, after-sales
service specifications etc.
IV-Arrange workers to participate in the test to ensure their skills.
Installation
If necessary,we will send our engineer oversea to help you install.You need pay for the round
trip ticket fee,accomodation and visa fee.and also need to pay USD100/man/day for the engineer as labour fee.
