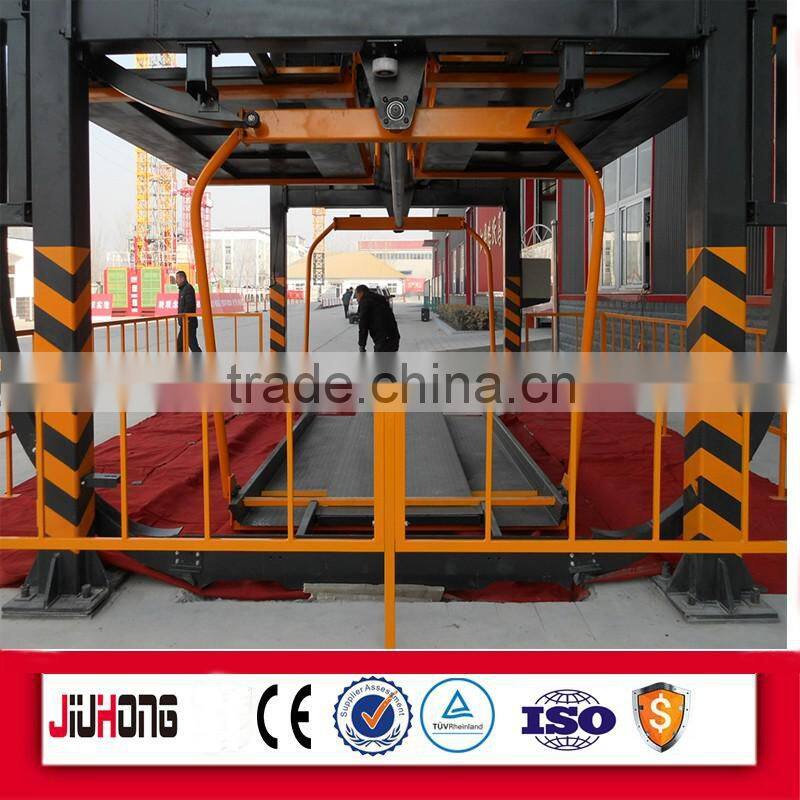

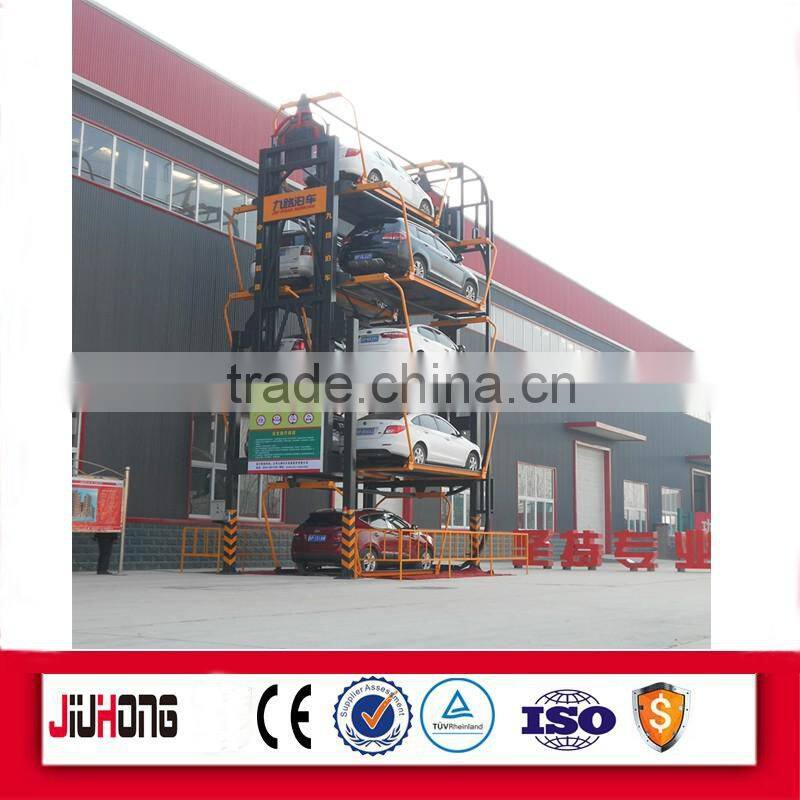

7 layers Vertical Parking system from China
Automatic Smart Vertical Rotary type cubic packing garage Description
Vertical cycle series cubic parking garage which is a mechanical vehicle parking equipment that adopt parking system doing vertical cycle movement equipment.
Which working principle is the motor drive the transmission mechanism through gear.In the traction chain,install a parking car frame each certain distance,when the motor starts,the car parking frame doing cycle movement along with the chain.which achieve car parking purpose.
Advantage of vertical rotary parking system
1 Flexible, vertical cycle series parking system covers small area, flexible, and can be set up independently,
also can be attached into building, also can be more than one combination,small vertical cycle series parking equipment can be Installed in the living area, beside the building, save the land space.
2) Rapidly, parking car and taking car out in short time.
3)Economically,build vertical type parking system can save the considerable cost of purchasing land, conductive to the rational planning and optimize the design,improve the comprehensive economic benefit.
4) Save electric power, vertical circulating mechanical parking system typically does not require forced ventilation, no large-area lighting, power consumption only 35% of the common underground parking garage.
Structure and sizes
Item |
Specifications |
Parking capacity |
6 ~ 14 car places |
Max. car size |
Sedan: 5000*1850*1550mm |
S U V : 5300*2050*2050mm | |
Load : 2500kg | |
Operation modes |
RFID card / Digit key |
Average vehicle access time |
40s |
Motor |
9.2KW |
Driving mode |
motor driven chain |
Noise |
≤ 60db |
Power supply |
3 phase 5 line (AC 380V, 50Hz) |
Electric capacity |
12KW / unit |
Safety devices |
Emergency stop switch |
Overrun preventing device | |
Car length, width, height limiting device | |
Overload preventing device | |
Anti falling safety device | |
Vehicle blocking device | |
Human & vehicle detection device | |
Vehicle position detection device in parking place | |
Operation modes |
Key +IC card |
Working temperature |
0 ~ 42℃,the average temperature less than 35℃ within 24h |
Relative humidity |
≤ 90%. |
Safety Feature
1. Photoelectric detection device for car over height and accidentally entrance of the people and cars.
2. Fixed style anti-falling frame device
3. Sound and light warning device
4. Electromagnetic style anti-falling device
5. Safety warning plate
6. Oil cylinder top limit switch device
7. Car blocking device on platform
8. Phase order protection device
9. Limit switch device
10.Sudden stop device
11.Grounding protection device of over currency,over loading, over or under voltage.
12.Lifting and sliding combined locking device
13.Hydraulic protection device
The Elevator System:
The elevator is in charged of the lifting movement of the vehicles,which mainly composed by steel structure,carriage,counter weight,drive system,guide devices,safety protection devices.
The Entrance & Exit System:
It mainly includes automatic door, turn table, scanning device, voice prompts etc, that ensure the safety of users and cars, and fast accurately find the vehicle.

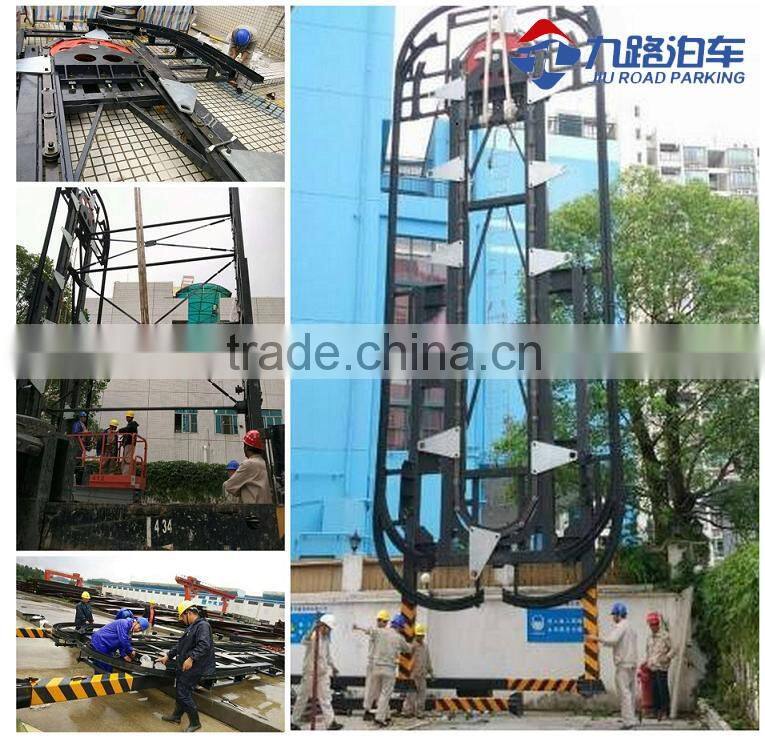

Vertical cycle series parking testing

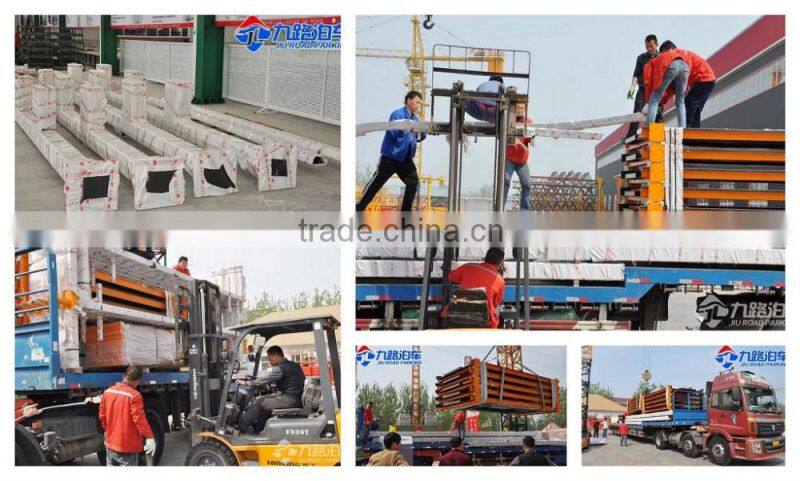

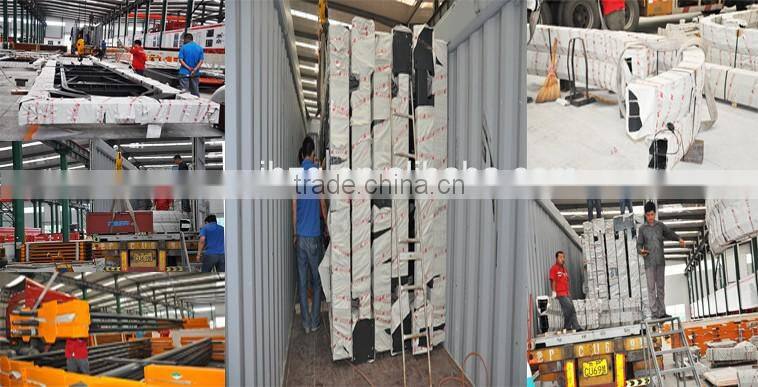

Packaging:steel frame with plastic wrap cover
Shipping:With 1-2monthes after deposit
Warranty:2years
Within 2years,we will send the spare parts to u for free once sothing wrong with parking system.
Service Features
I-"Complete & Integrated park solutions"
1.Excellent before-sales services
2.Flexiable garage design
3.Customized solutions
4.Manufacturing reliable products
5.Fast delivery-quick installation-final test
6.Trustworthy support and maintenance
II- "One to one lifetime close service"
1. "One to one"--Provide every customer 1 service consultant, through 12 service stations.
2. "Lifetime"--To the equipments, to the customers.
3. "Close"--Besides the related affairs, concerned about lives of customers,to form "close friend"
relationship.
III-"Long term win-win corporation"
1.With exceptional quality,win the customer's credit & reliablity.
2.Offer customers all-around tailor-made solutions to satisfy user's diverse requirements, build
long-term corporation,accumulate rich experience.
Installation
If necessary,we will send our engineer oversea to help you install.You need pay for the round
trip ticket fee,and also need to pay USD50/man/day for the engineer as labour fee.
Shandong Jiulu Parking Equipment Co.,ltd. Company Introduction
Shandong Jiulu Parking Equipment Co.,ltd.Mainly engaged in:”QTZ series tower crane,SC construction elevator,
passenger elevator,material hoist,Intelligent cubic parking garage, ZLP series suspended platform as well as
other construction machinery products,include R & D, manufacturing, sales and service.
