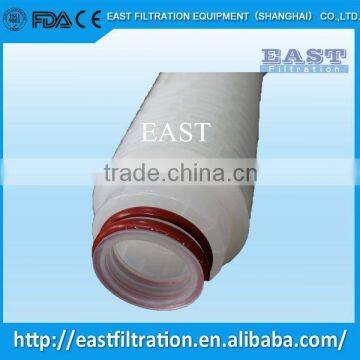

PP Pleated Water Filter Cartridge 226 Connect 30'' Length
1.Water filter cartridge
2.Low pressure drop
3.High flow rate
4.Made in a clean room
5.Experiencing 100% integrity test
6.Food grade
PP Pleated Water Filter Cartridge 226 Connect 30'' Length
Material |
Membrane |
PP fibre membrane |
Core |
Polypropylene |
|
O ring/Gasket |
PP |
|
Specifications |
Pore size (um) |
0.1 / 0.2 / 0.45 / 0.65 / 1 / 3 / 5 / 10 / 20 / 30 / 60 |
Outer Diameter (OD) |
69mm |
|
Length (inch) |
4,5,10,20,30,40,50 |
|
End cap |
DOE(decided by client) |
|
Technical data |
Effective filtration area |
0.40-0.70 M2 |
Max. back pressure |
0.28Mpa 60°C |
|
Max. working temperature |
80°C, 0.28MP |
|
Max. differential pressure |
0.42Mpa 25°C |
|
Max. bear temperature |
140°C,0.28Mpa |
|
Sterilization method |
121°C 30min |
PP Pleated Water Filter Cartridge 226 Connect 30'' Length
Excellent performance of chemical compatibility
Better performance removal rating meets all-purpose application
Hot melting seal enhances the strength and reduce the dissolved matter
Pleated design provides high dirt holding and suspended solids capture
PP Pleated Water Filter Cartridge 226 Connect 30'' Length
General purpose:R.O. system pre-filtration, Deionized water pre-filtration.
Food and Beverage:Drinking water, Beer, Mineral water, Wines, Beverage.
Chemical: Filtration of Solvent, Acid, Alkali, Amine and etc.
Pharmaceutical: Filtration of Medicine, Biology, Plasma, Compressed Air and Gas.
General Industries:Filtration of Electroplate liquid, Metal machining liquid and Magnetism medium.
Model information
| Cartridge Type | Micron Ratings | Filter Media | Length | Gasket/ O-ring | End Cap |
| 1. PPMP:PP Membrane pleated filter cartridge | 0.1um | 1.PP Polypropylene | 5" | S:Silicone | A:Flat Gasket Double Open End |
| 0.22um | 10" | E:EPDM | B:222 O-rings/ Flat End | ||
| 0.45um | 20" | N:NBR | C:226 O-rings/ Flat End | ||
| 0.65um | 30" | V:Viton | D:222 O-rings/ Fin | ||
| 1um | 40" | E:226 O-rings/ Fin | |||
| 3um | Other Customized Sizes | ||||
| 5um | |||||
| 10um | |||||
| 30um | |||||
| 60um | |||||
6.Food grade
PP Pleated Water Filter Cartridge 226 Connect 30'' Length
