Zlp800 Zlp630 Suspended Platform,window Cleaning Suspended Platform Supplier's Choice

FOB Price

US$ 2,000 - 4,000 / Set

1 Set(Min. Order)

Port TIANJIN Rope Suspended Platform
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Beijing, China		Brand Name	Suspended Platform Cradle Gondola
Model Number	ZLP500/630/800/1000

Product Description

china supply zlp800 zlp1630 suspended platform,window cleaning suspended platform ,rope suspended platform

Company Information

OUR STRONG AND PROFESSIONAL TEAM OFFER THE BEST SERVICE FOR YOUR ORDER- JIUHONG

A, General Introduction for Suspended Platform:
ZLP series Suspended Platform Gondola is a substitute of traditional scaffold ,it belongs to electrical-driven climbing and decorating machinery.

B, Structure for Suspended Platform:
It assembled by mudular plates, hoist and frame, safety lock, electrical controlbox, wire rope, cable, safety rope and lock assembly, suspension mechanism, counterweight, heavy hammer and caster wheel etc. Wall roller is optional.

C,Application for Suspended Platform:
It mainly used to maintain and clean the external walls of high-rise buildings and exterior construction such as cement coating, veneer, paints, installing the glass curtain walls, painting as well as cleaning and maintainence. Also can be applied to

the operating of big vessels and bridges dams etc.

D, Safety devices for Suspended Cradle Platform:
Safety lock, top limit switch, emergency manual descent,speed reducere,Electric Suspended Cradle Platform VS Scaffolding:

Applying the suspended platform can release scaffold free, reduce the construction cost and the efficiency will be greatly increase. Mean while, the platform is simple, safe, easy transfer & operate.

F, Simple tech. info. for Jiuhong Regular Suspended Cradle Platform

Model	ZLP1000	ZLP800	ZLP630	ZLP500	ZLP250
Rated Load (kg)	1000	800	630	500	250
Lifting Speed (m/ min)	8.3+0.5	8.3+0.5	8.3+0.5	8.3+0.5	8.3+0.5
Platform Length (m)	7.5	7.5	6	5	2.5
Standard lifting height (m)	100	100	100	100	100

G,Detail parameter for Jiuhong Regular Suspended Cradle Platform

Name			Technical parameter
Model			ZLP800	ZLP630
Platform Rated load			800Kg	630Kg
Lifting speed			8-10m/min	8-10m/min
Platform Dimension L×W×H(mm)Spray plastics corrosion-resistant			7500(2.5m*3)×720×1300	6000(1+2+3m)×720×1300
Lifting Height			100 m	100 m
Cable			100 m	100 m
Steel rope (specially-made)			9.1mm	8.3mm
Platform Hoist	Pulling power		7.84KN	6.17KN
	electric motor	model	YEJ100L-4	YEJ90L-4
		Power	1.8KW*2	1.5KW*2
		Voltage	380V	380V
		Rotational speed	1420rpm	1420rpm
		Braking moment	15Nm	15Nm
Safety lock	Permission force of impact		30KN	30KN
	Locking Cable Angle		3°~8°	3°~8°
Suspension mechanism(Galvanized )	Front beam overhang		1.3~1.5m	1.3~1.5m
	Support adjustable height		1.44~2.14m	1.44~2.14m
Counterweight			1000kg	800kg
20’ft container can load Platform qty			8sets	9sets
40’ft container can load Platform qty			13sets	14sets

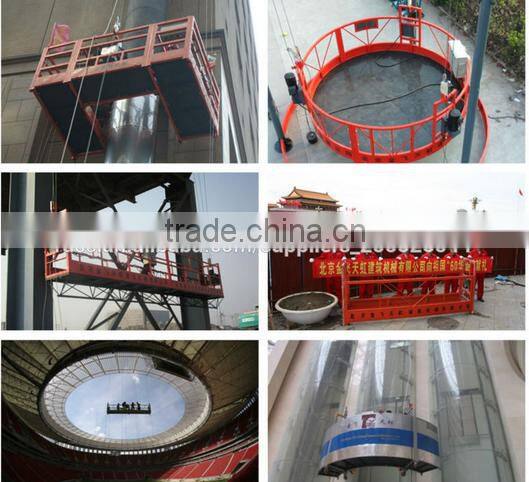

H. Different Cradle platform shape for special building:

Fan shape suspended platform;

Round shape suspended platform;

90 degree angle shape suspended platform;

Aluminum Alloy material suspended platform;

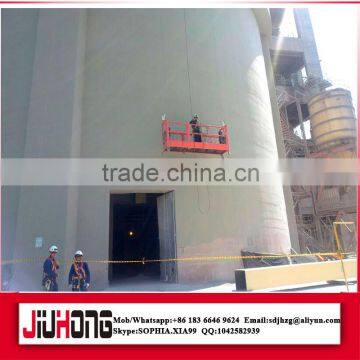

Project photo for suspended platform.

Suspended Platform Parts Components

Client Visit our factory

LTD Hoist,Electric Winch,Cable Climer ,Electric Motor,Electric Hoist LTD630

Safety Lock,Safety Brake, for Suspended Platform

Electric Control Box

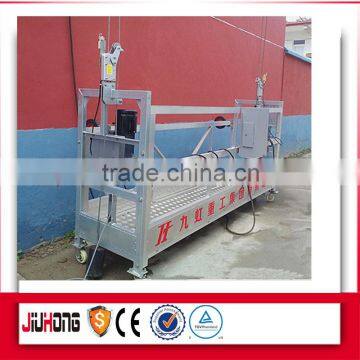

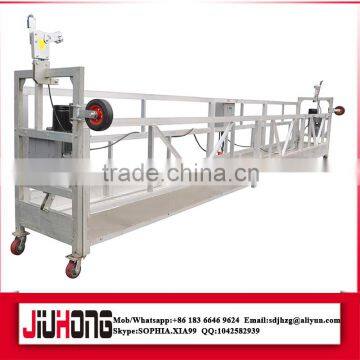

Platform body

ALL TYPE COUNTERWEIGHT

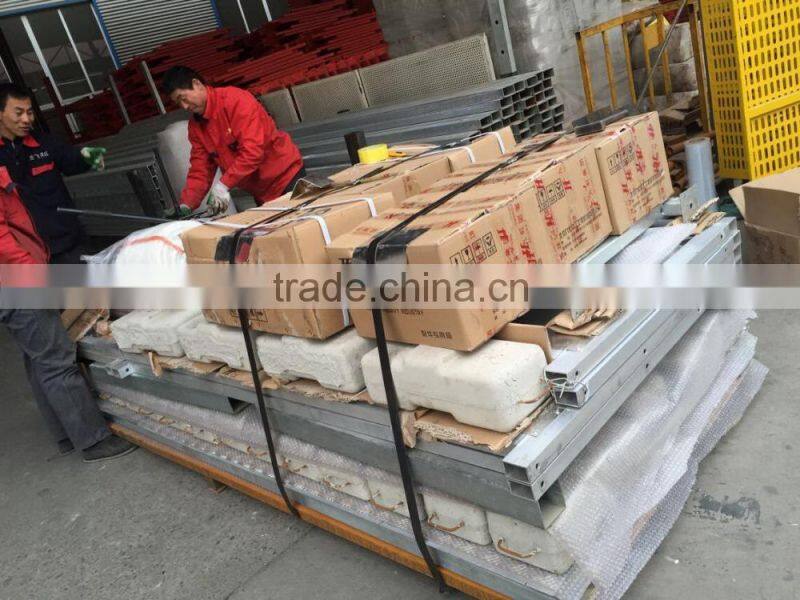

Packaging Photo Open Package

Finish Installation,we have installation CD along with goods ship to you.

Our Services

One year warranty

Good after services

Approved CE ISO GOST cetificates

Contact:

I know you suspended platform aslo buy from China, Why don't you compare the quality and let's discuss the possibility of getting the business work ?

Waiting for your call or Email.

Mob/Whatsapp:+86 18346849412

Thanks for your visiting!
