Specifications
Supplier of SS series building material hoist1)Complete safe device
2)Famous brand motor & electrical elements.
3) Remote
Description:
Construction Passenger Hoist SS series passenger & material hoist&lifting equipment

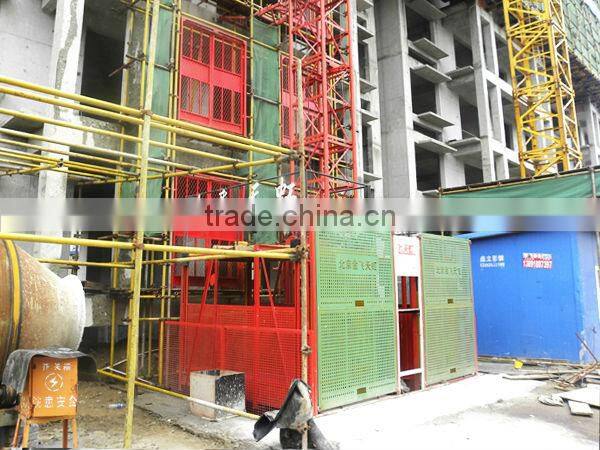

SS100/100 Material Hoist is a vertical handling machine dedicated for materials widely applied in building
construction,industrial and mining, multistorey workshop, warehouse, station, wharf, etc. It is convenient,
efficient, and secure. SS100/100 is set up with safety multiple protection measures like Floor-selecting
and Leveling Device, Elevating Limiter, Rope Protection Device, Parking Safety Device, Bumper, Upper
and Lower Height Restrictor, Anti Rope-breaking Equipment, among which, the brakeperformance and brake
slide distance of the Rope Protector are above national standards. It is safe, reliable, and harmless to rail-track.
There are two accesses for Floor Selecting and Leveling:
1. Manual Control, which is direct control by the operator.
2. Computer Automatic Positioning System (Optional for order), which can easily realize floorselecting and leveling
without manual stop or point car leveling, reducing the difficulty of manipulation, convenient and precise.
SS100/100 adopts Wall-attaching Device instead of Wind Rope, along with self-erection and dismantling unit
(Derrick), easy for handling and transportation.
SS100/100 has 2 types: Single-caged and Double-caged, optional for users. The standard sections of Double-caged are 4 pieces of ø76 * 4 seamless steel pipes, which can also be taken as guide rail, while those the Single-caged are 2 ø51 * 4 pipes.
Applications:
Construction Passenger Hoist SS series passenger & material hoist&lifting equipment SS100/100 Material Hoist is a vertical handling machine dedicated for materials widely applied in building
construction, industrial and mining, multi-storey workshop, warehouse, station, wharf, etc.
It is convenient, efficient, and secure.
Specifications:
Construction Passenger Hoist SS series passenger & material hoist&lifting equipment
Technical Parameter of SS100/100 Material Hoist | |||
Item |
Unit |
Parameter |
|
Basic Installation Height |
m |
24 |
|
Attachment Installation Height |
m |
80 |
|
Rated Lifting Capacity |
Kg |
1000/1000 |
|
Lifting Speed |
m/min |
23.5 |
|
Cage Dimension (L*W*H) |
m |
2.8*1.5*1.9 |
|
Sectional Dimension Of Bracket |
m |
0.85*0.85 |
|
Motor Power |
Kw |
Single-cage 11 Double-cage 22 |
|
Steel Rope Model |
6*37+1-12-170-Right |
||
Steel Rope Length(Typical) |
m |
150 |
|
Total Weight |
Single-cage (at 24m) |
Kg |
3760 |
Double-cage (at 24m) |
Kg |
5450 |
|
Competitive Advantage:

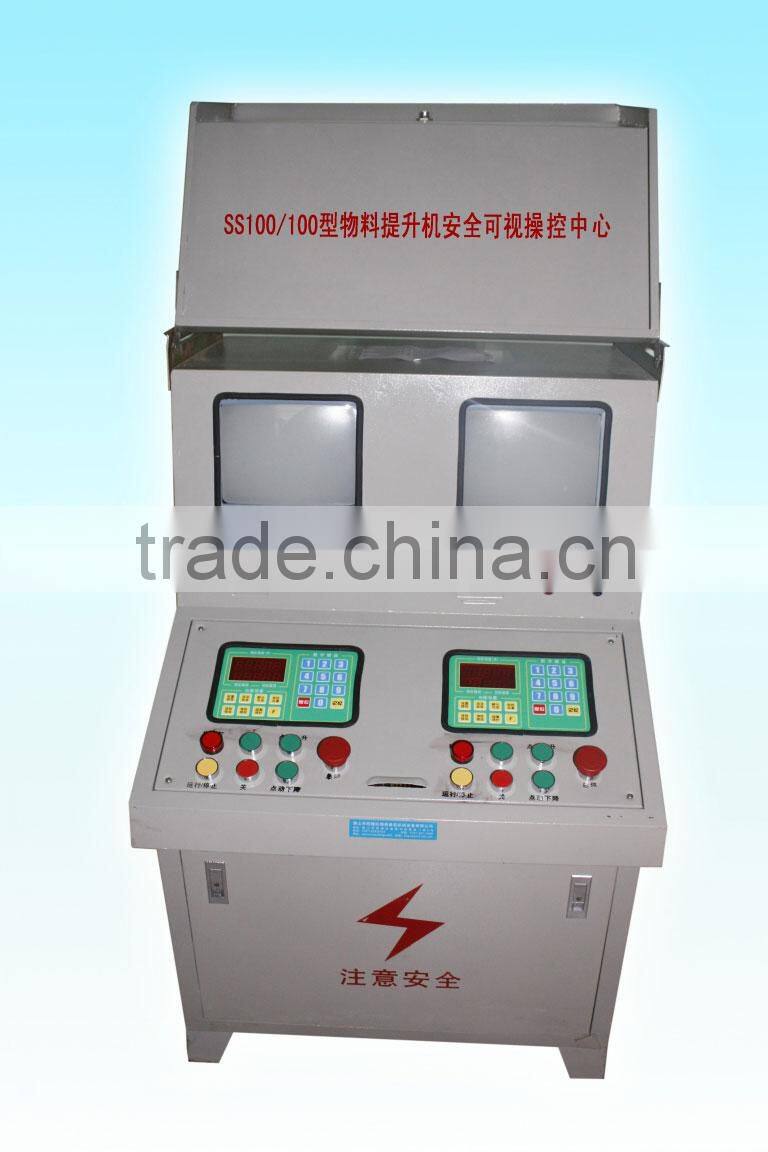

Construction Passenger Hoist SS series passenger & material hoist&lifting equipment SS100/100 secure and visible control center is a new designed product according to the construction
industry special requirement,which adopt the latest computer chip technology, Compared with the previous
generation products,its function,safety and usability and stability have been greatly improved.
High Security
1.Overload protection 2. Losting-phase protection
3.Safety door protection 4. Interlayer door protection
5. Motor reversal protection 6. Mechanical crash roof protection
7.Sensor fault protection 8.Motor cutting-out or overload protection.
9. Alarm bell output protection 10.Data protection
Advanced control performance
1. Four rope machinery prepare for leveling
2. Straight type function setting
3. Direct-reading height Electronic Ruler
4. Automatic identification floor
5. Built-in interphone
6. Intellectualized correction deflection function
7. Automatic resetting target floor function
8. Simplicity of operation
9.Computer tips function
10. Password Protection Function
Reliable,durable and easy to maintenance
1.Fast maintenance
2.High reliable manual function
3.Dust proof
4.Anti-jamming
Perfectly control
