SS100 /100 Material Hoist/Construction Lift/Building Elevator Approved CE ISO
Specifications
1.Adjustable working height
2.Approved CE&ISO&GOST
3.easy to assemble, operate
4.widely applicable
Jiuhong Heavy Industy Group(Beijing and Shandong) manily engaged in:”QTZ series of tower crane, SC series of construction hoist, SS series material hoist,ZLP series suspended platform,concrete placing boom”as well as other construction machinery products,integrated R&D,production,sales & after-sale service.Widely used in the construction filed,and has been exported to the "South-east Asia,Centeral Asia,South Asia,Middle East,South America,Africa,Europe“more than 50 countries and region.Jiuhong Heavy Industry has become a famous brand in domestic and abroad.

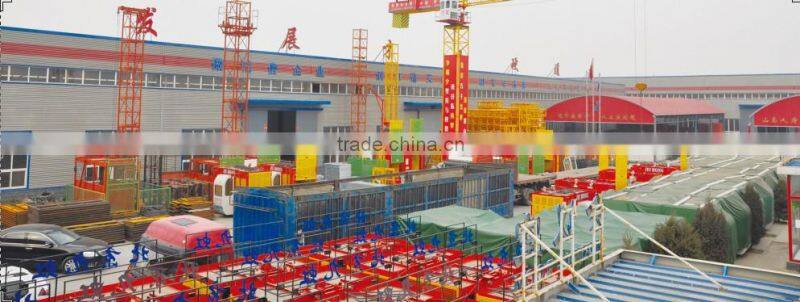

Jiuhong Group now has three major manufacturers:
I.Shandong Jiuhong
Location: Gaotang,Shandong Province
Area: 95,000 square meters
Main Products: tower crane,construction elevator,material hoist,suspended platform
Annual production capacity: 5,000sets
II.Beijing Jiuhong
Location: Changping District,Beijing
Area:35,000 square meters
Main Products: tower crane,construction elevator,material hoist,suspended platform
Annual production capacity:5,000sets
III.Shandong Jiuyi Elevator(new projects and main investment in 2015)
Location: Gaotang,Shandong Province
Area:55,000 square meters
Main buiding:33-storey,110m high elevator testing tower, dust-free workshop,
multifunctinal exhibition hall etc.
Main products: passenger lifts, escalator,cargo lifts,tourism lift
Annual production capacity:2,000s
Material Hoist feature
SS100/100 series Material Hoist Equipped with a national patent approved progressive safety device,can brake automatically when falling situation occurs.And the drive system is on the top of the cage,reliable and easy to operate and maintenance.The highest working lifting height can up to 80 m.It is widely used in Construction Projects,such as industrial and residential building projects,bridge construction ,underground construction,large chimney construction building and shipping building industry and other place,also can be used for warehouse and high towers building projects.
SS100/100 type construction lifter/material hoist is the special machine for vertical lifting materials, it is widely used in building construction, industrial and mining enterprises, multi-layer workshop, warehouse, dock, station and other places, have a smooth efficient convenience, safety, etc.
This construction lifter/material hoist set broken rope dock safety device, safety device, the buffer device, height and up and down limit stop, rope locking device safety protection devices, etc.
There are two accesses for floor selecting and leveling:
1.Manual control, which is dirct control by the operator.
2. computer automatic positing system,which can easliy realize floor-selecting and leveling without manual stop or point car leveling,reduce the difficulty of manipulation,convenient and precise.SS100/100 adopts wall-attaching device instead of wind rope along with self-erection and dismantling init ,easy to handling and transportation.
High security
1.Overload protection
2. Losting-phase protection
3.Safety door protection
4.Interlayer door protection
5.Motor reversal protection
6.Mechanical crash roof protecton
7.Sensor fault protection
8.Motor cutting-out or overload protection.
9. Alarm bell output protection
10.Data protection

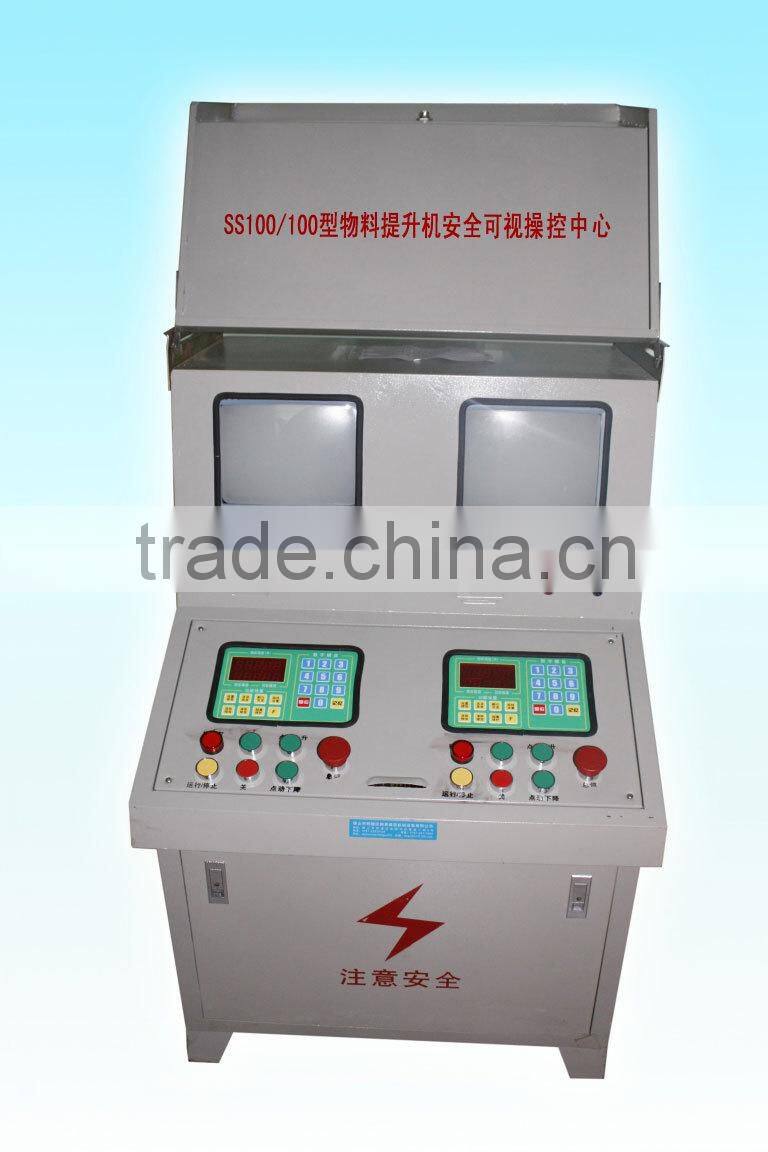

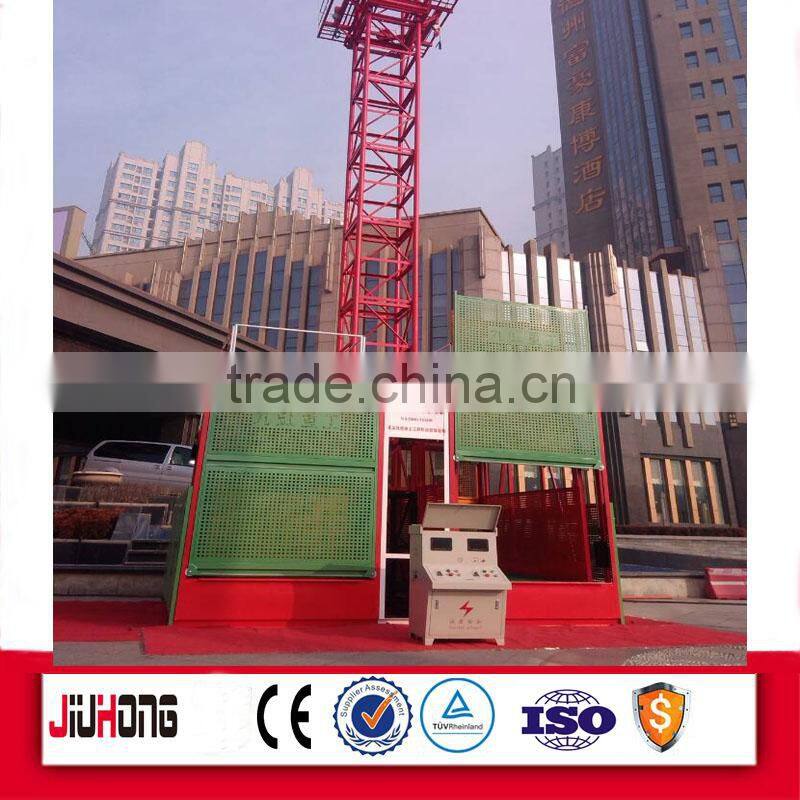

Secure and visible control center for material hoist
Advanced control performance
1.Four rope machinery prepare for leveling
2.Straight type function setting
3.Direct-reading height Electronic Ruler
4.Automatic identification floor
5. Built-in interphone
6. Intellectualized correction deflection function
7. Automatic resetting target floor function
8.Simplicity of operation
9.Computer tips function
10.Password Protection Function
Reliable, durable and easy to maintenance
1.Fast maintenance
2.High reliable manual function
3.Dust proof
4.Anti-jamming
Main Usage
Building Hoist is widely used in the field of industrial and civil residential construction, bridge construction, underground construction, large chimney construction, ship industry, etc. Being suitable for the vertical transport of materials and people, they can also be used as permanent permanent electric elevators in various environments like warehouses and high towers.
Parmeter
model |
|
SS100/100 |
SS100/100B |
Item |
unit |
Parameter |
Parameter |
Basic installation height |
m |
30-60 |
30-60 |
Attachment installation height |
m |
80 |
80 |
Rated lifting capacity |
kg |
1000/1000kg |
1000/1000 |
Lifting speed |
M/min |
23.5 |
23.5 |
Cage dimension |
m |
2.8*1.5*1.9 |
2.8*1.5*1.9 |
Section dimension of bracket |
m |
0.8*0.8*1.5 |
1.0*1.0*2.0 |
Motor power |
kw |
7.5/15 |
7.5/15 |
Steel rope length |
m |
150 |
150 |
Single-cage |
kg |
3860 |
4360 |
Double-cage |
kg |
5280 |
5780 |

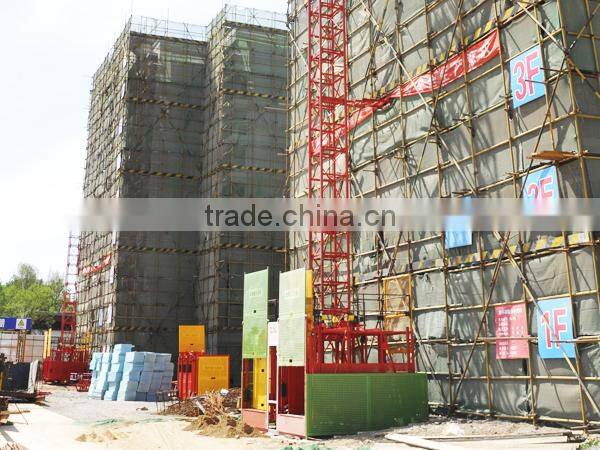

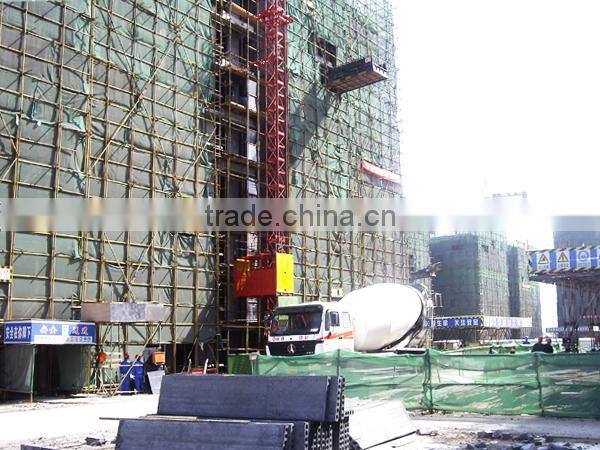

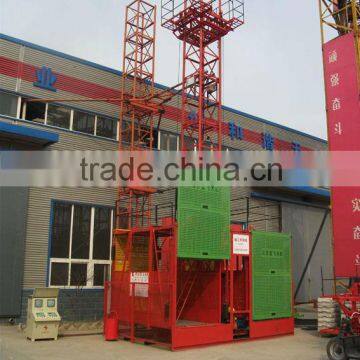

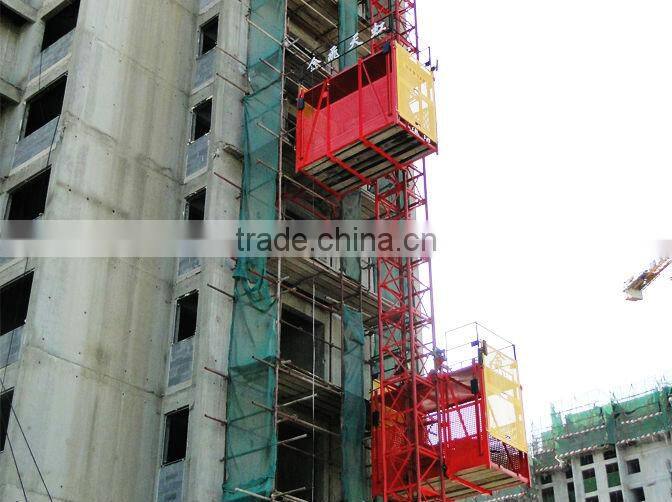

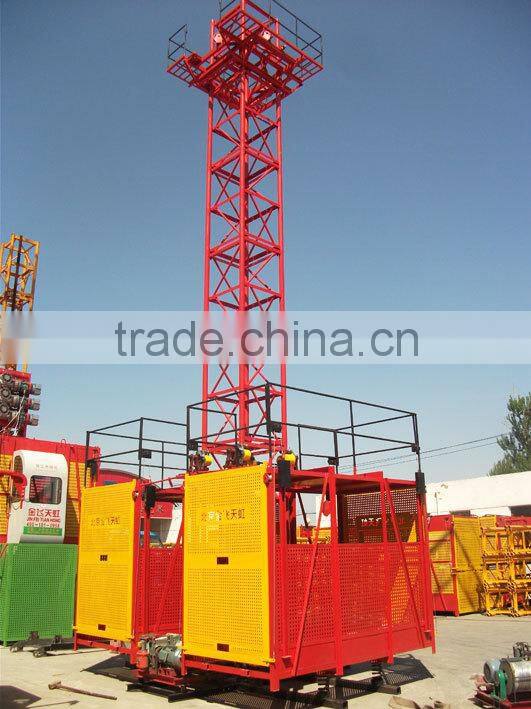

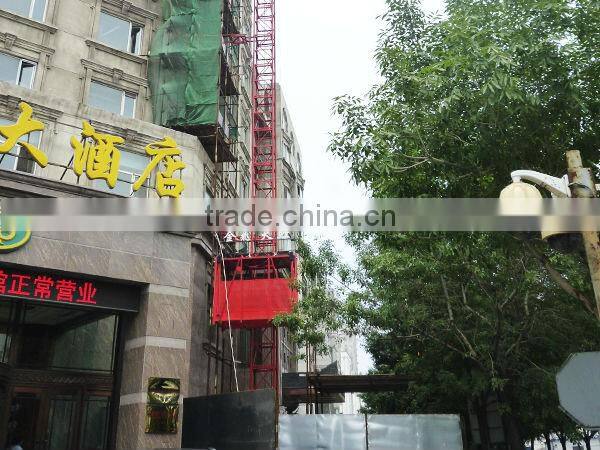

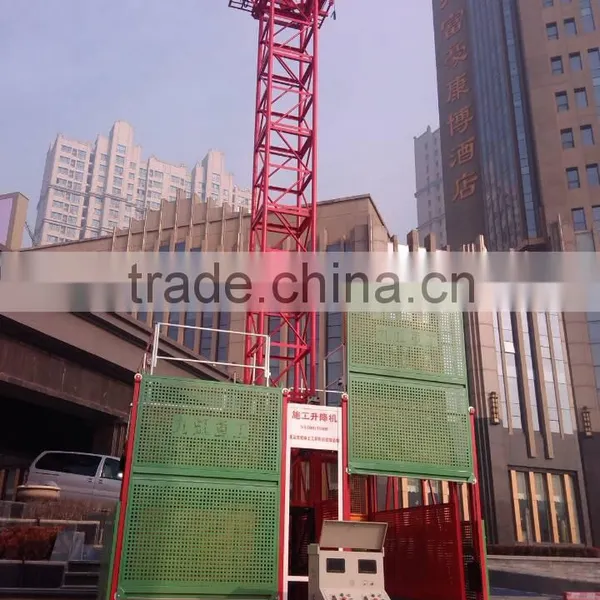

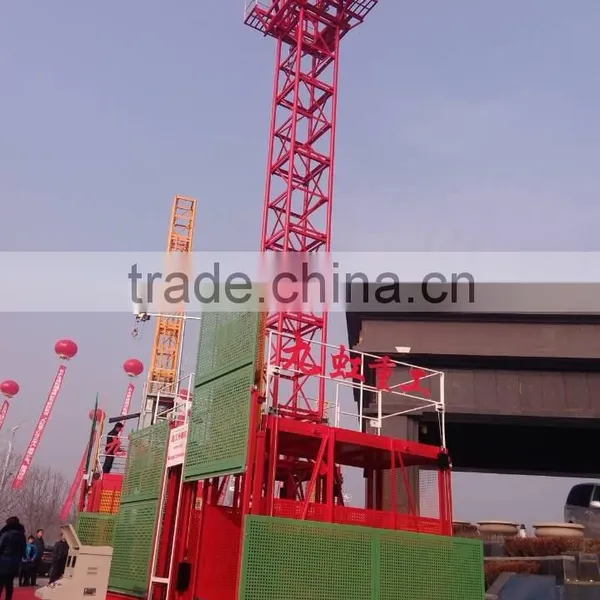

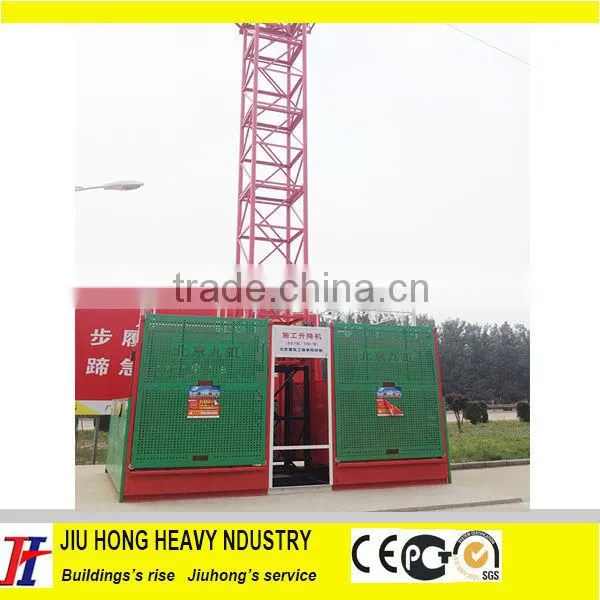

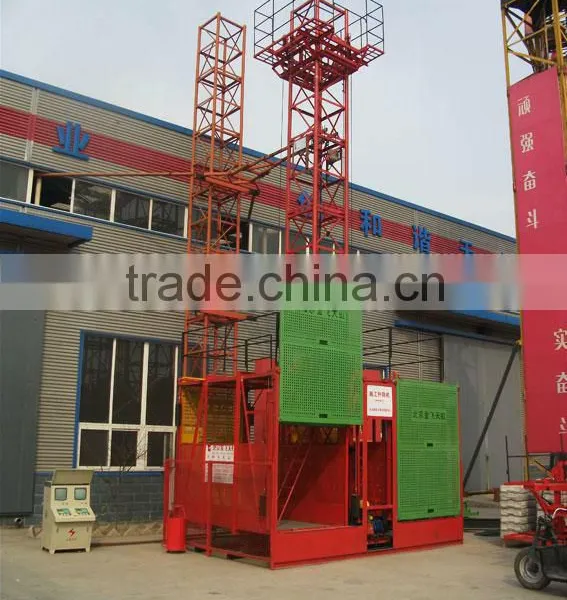

The picture of Material Hoist

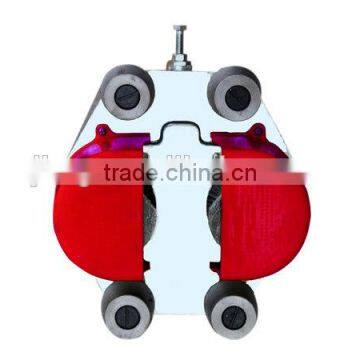

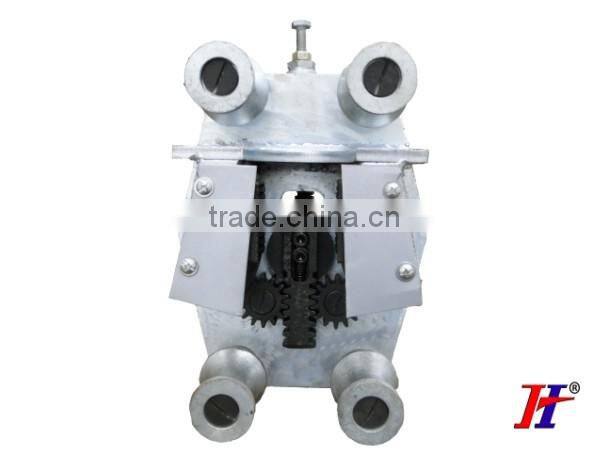

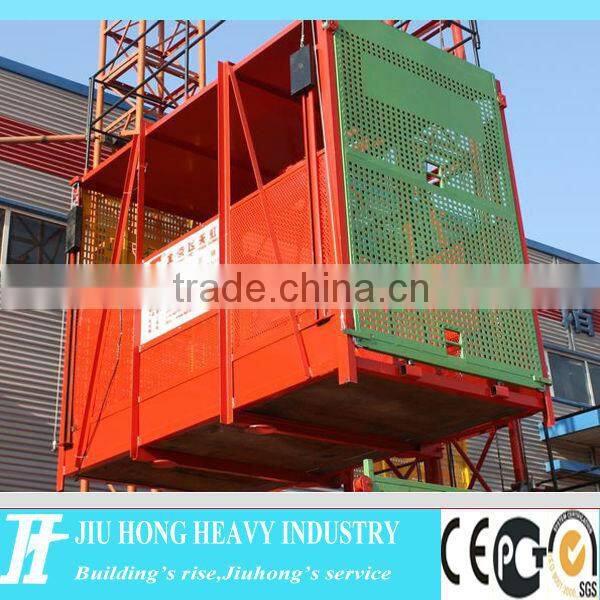

The cage of Construction elevator Anti-fall safety device

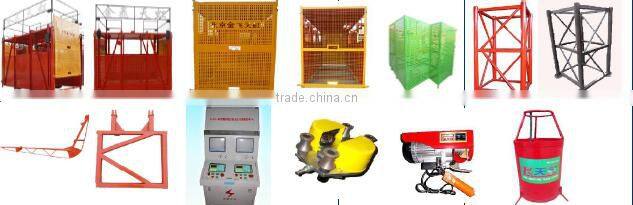

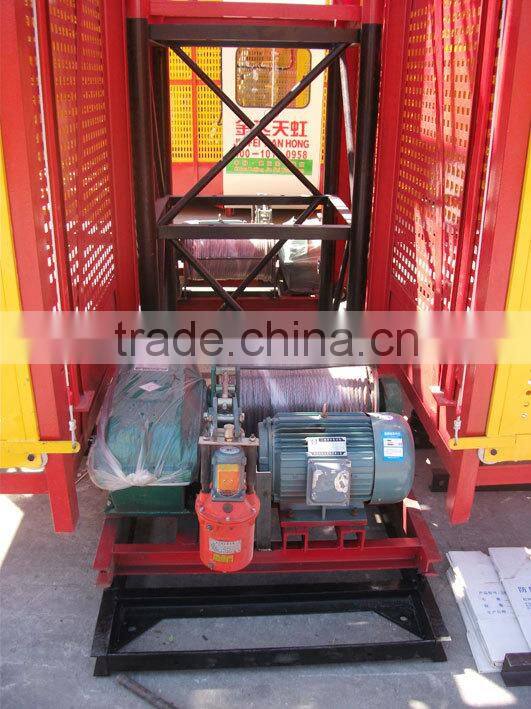

Hoist for material hoist
C. Advantages of JIUHONG SC Construction Hoist
1. CE, ISO, GOST certificates
2. SC construction elevator have one year guarantee
3. Special made can be accepted
4. Good after sale service.
1.Standard container
2. 7-10 days after recevied deposit
We have one year guarantee
Good after sale service
Engineer available to service machinery overseas
