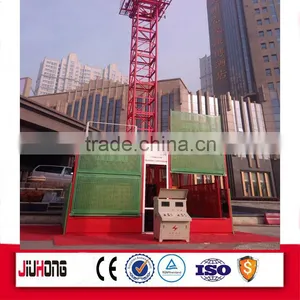

China Manufacturer SS100/100 Material Elevator/Material Hoist/Material Lifter For Lifting Materials
Jiuhong Heavy Industy Group(Beijing and Shandong) manily engaged in:”QTZ series of
tower crane, SC series of construction hoist, SS series material hoist,ZLP series suspended platform,
concrete placing boom”as well as other construction machinery products,integrated R&D,production,
sales & after-sale service.

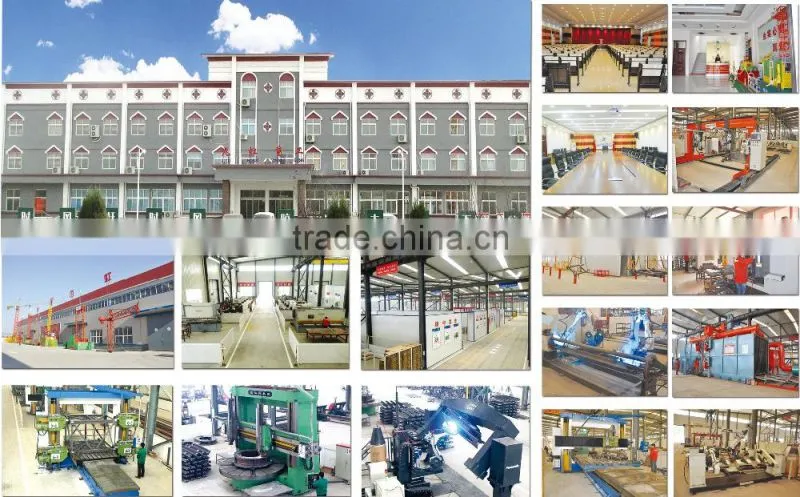

Jiuhong Group now has three major manufacturers:
I.Shandong Jiuhong
Location: Gaotang,Shandong Province
Area: 95,000 square meters
Main Products: tower crane,construction elevator,material hoist,suspended platform
Annual production capacity: 5,000sets
II.Beijing Jiuhong
Location: Changping District,Beijing
Area:35,000 square meters
Main Products: tower crane,construction elevator,material hoist,suspended platform
Annual production capacity:5,000sets
III.Shandong Jiuyi Elevator(new projects and main investment in 2015)
Location: Gaotang,Shandong Province
Area:55,000 square meters
Main buiding:33-storey,110m high elevator testing tower, dust-free workshop,
multifunctinal exhibition hall etc.
Main products: passenger lifts, escalator,cargo lifts,tourism lift
Annual production capacity:2,000s
Material Hoist feature

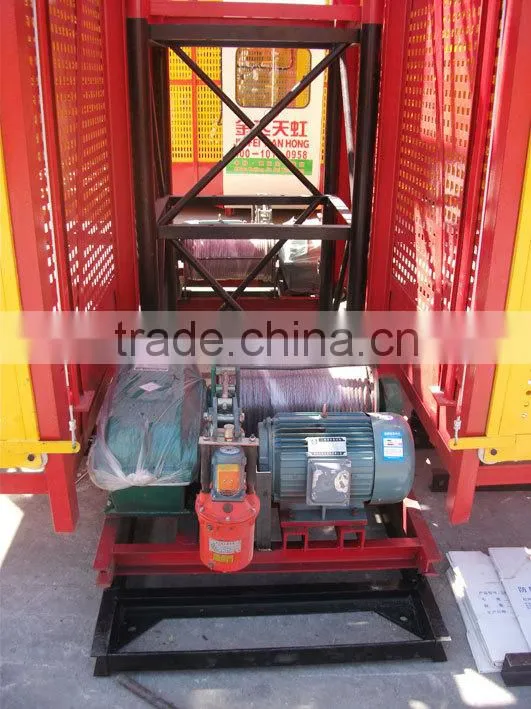

SS100/100B series Material Hoist,adopt external setting meshing rack and pinion type design,rated load is 1t,rated lifting height is 150m.Equipped with a national patent approved progressive safety device,can brake automatically when falling situation occurs.And the drive system is on the top of the cage,reliable and easy to operate and maintenance.The highest working lifting height can up to 300m.It is widely used in Construction Projects,such as industrial and residential building projects,bridge construction ,underground construction,large chimney construction building and shipping building industry and other place,also can be used for warehouse and high towers building projects.
High security
SS Series Material Hoist is set up with safety multiple protection measures like Floor-selecting and Leveling Device, Elevating Limiter, Rope Protection Device, Parking Safety Device, Bumper, Upper and Lower Height Restrictor, Anti Rope-breaking Equipment, among which, the brake performance and brake slide distance of the Rope Protector are above national standards. It is safe, reliable, and harmless to rail-track.
Technical parameter
model |
|
SS100/100 |
SS100/100B |
Item |
unit |
Parameter |
Parameter |
Basic installation height |
m |
30-60 |
30-60 |
Attachment installation height |
m |
80 |
80 |
Rated lifting capacity |
kg |
1000/1000kg |
1000/1000 |
Lifting speed |
M/min |
23.5 |
23.5 |
Cage dimension |
m |
2.8*1.5*1.9 |
2.8*1.5*1.9 |
Section dimension of bracket |
m |
0.8*0.8*1.5 |
1.0*1.0*2.0 |
Motor power |
kw |
7.5/15 |
7.5/15 |
Steel rope length |
m |
150 |
150 |
Single-cage |
kg |
3860 |
4360 |
Double-cage |
kg |
5280 |
5780 |

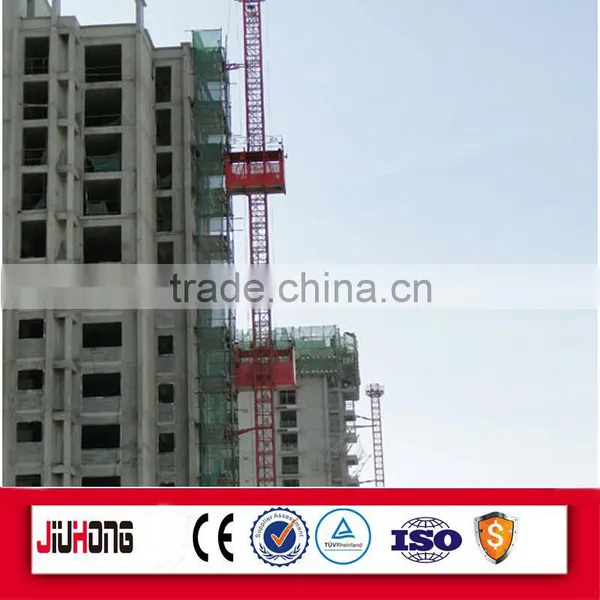

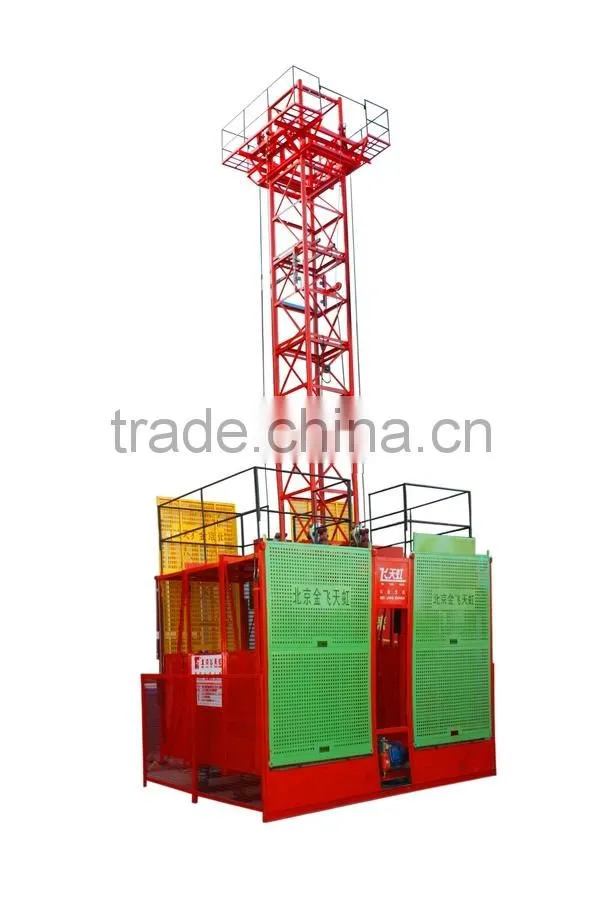

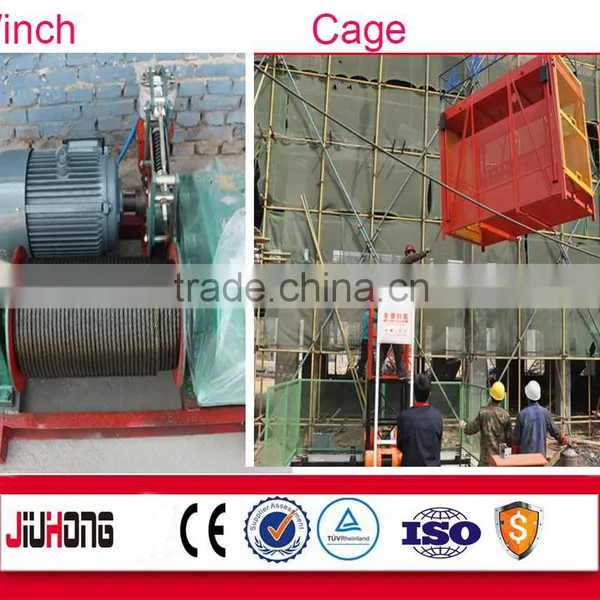

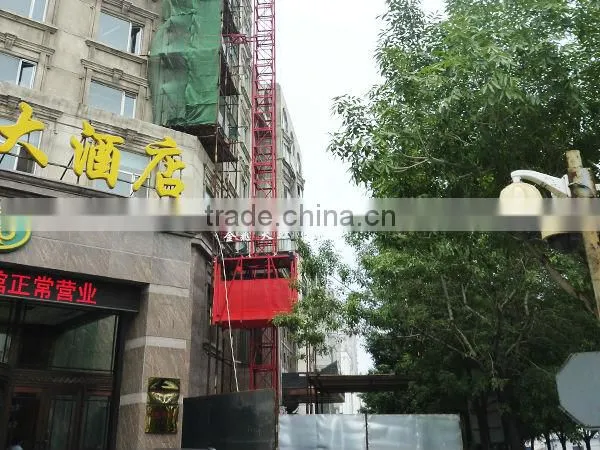

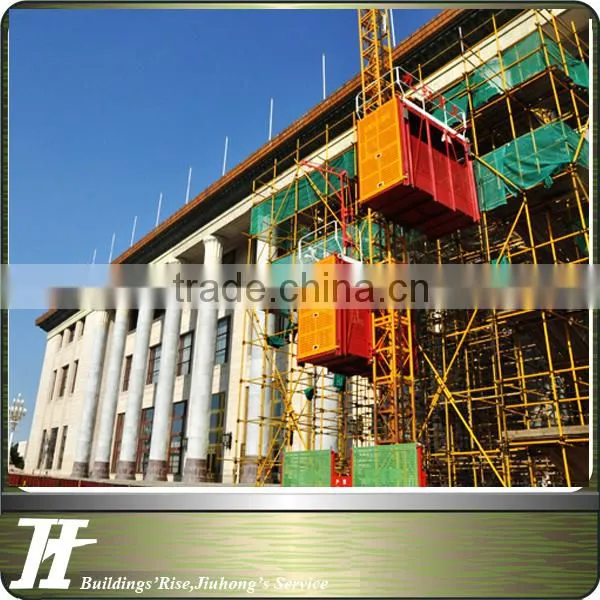

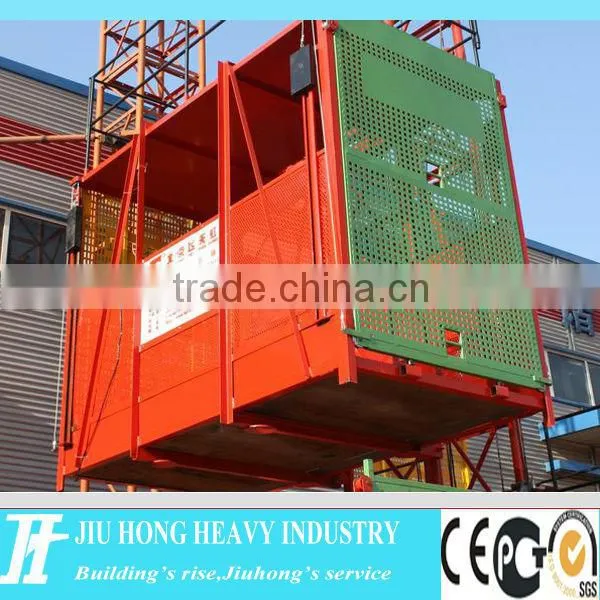

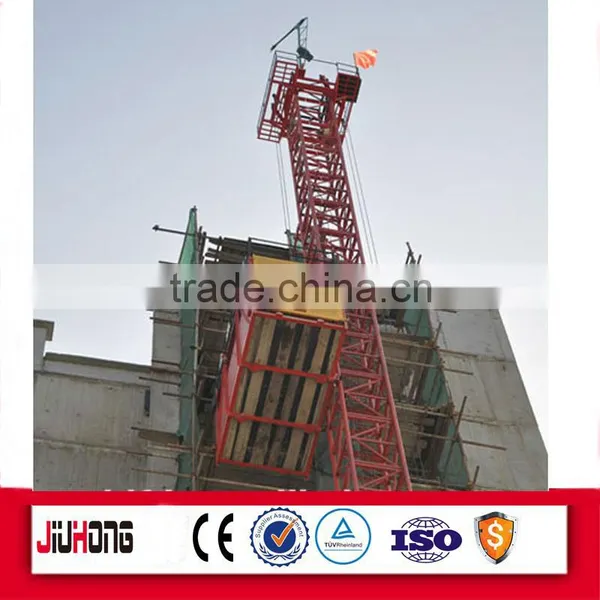

The picture of Material Hoist

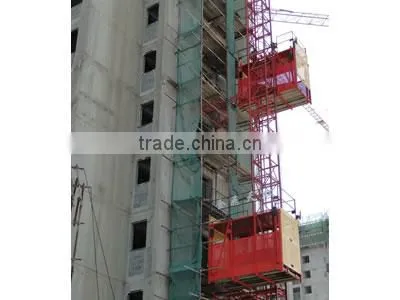

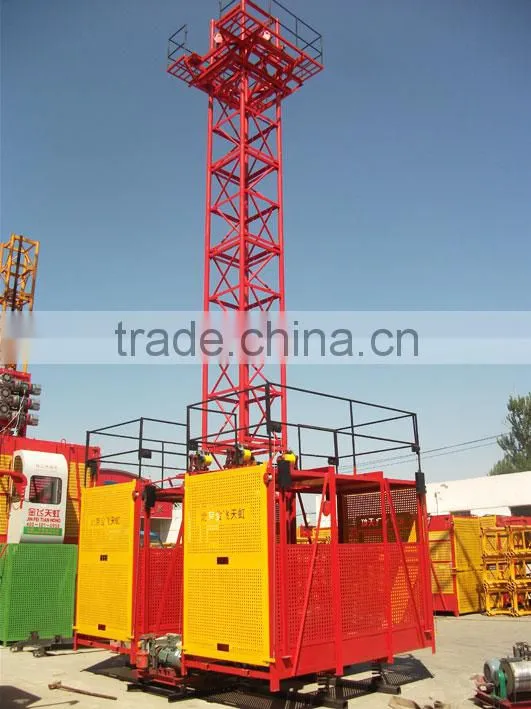

Material Lifter in the test
C. Advantages of JIUHONG SC Construction Hoist

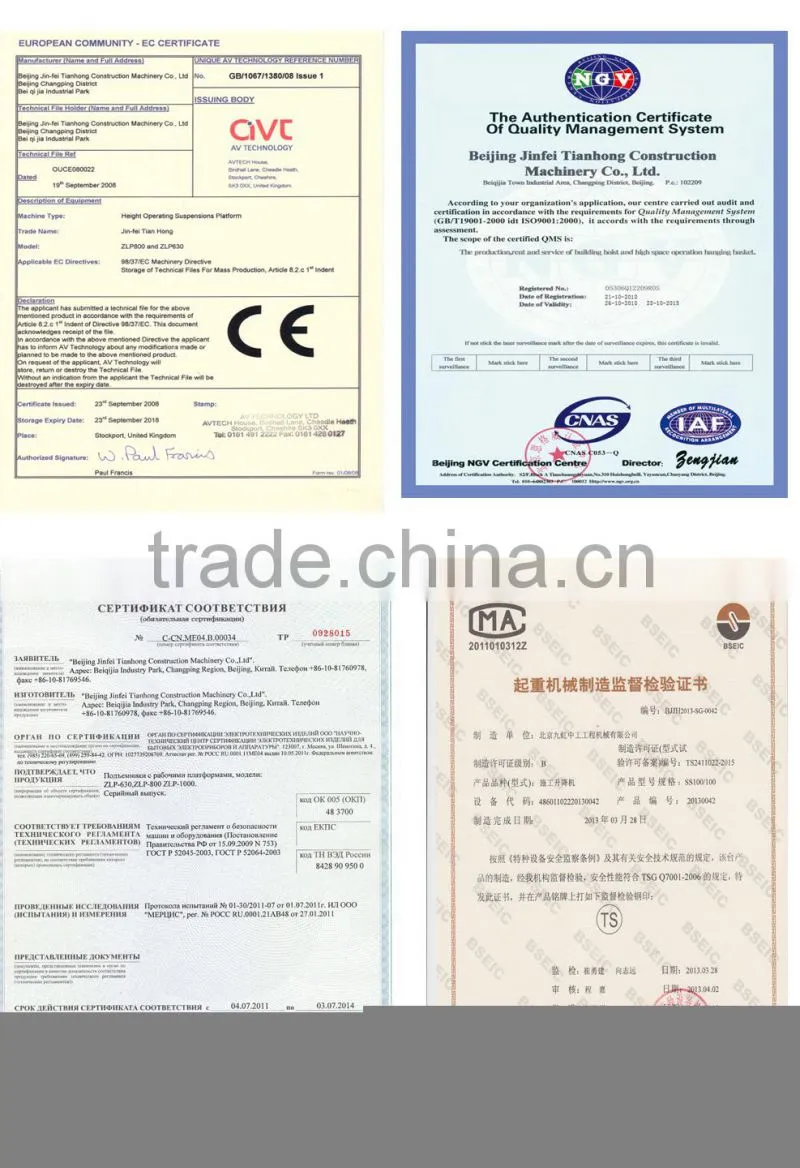

1. CE, ISO, GOST certificates
2. SC construction elevator have one year guarantee
3. Special made can be accepted
4. Good after sale service.
Packaging & Shipping
1.7-10 days after received payment
2.Plastic film,wooden case,Carton or according to your requirement
Why Choose US?
1. Experience.
15years of experience in manufacturing construction machinery, assured good quality.
2. Services.
Professional service team can give powerful support for our products
3. Innovation.
Technical and management innovation guarantee our quality to be in top position in our industry.
4. Marketing.
Our products have been exported to more than 50 countries, enjoying a good reputation.
Our Services
We have one year guarantee
Good after sale service
Engineer available to service machinery overseas
If you have any question please contact me
