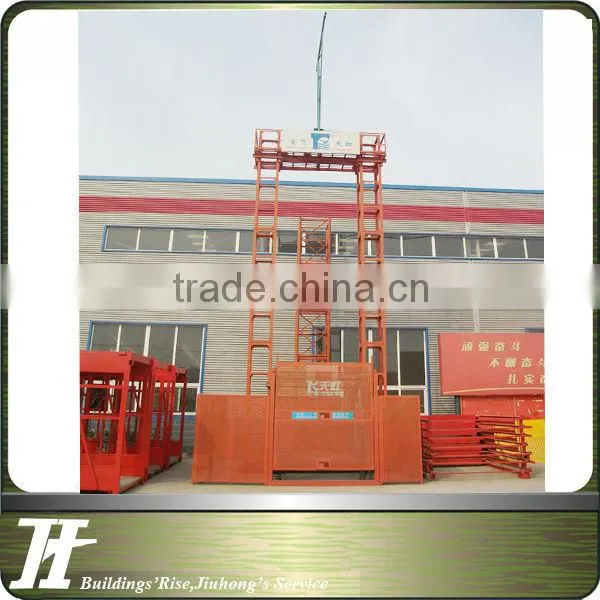

Help CenterSSE160 Self-Propelled Jack Gantry Lift for Building Construction
Related Products
-
Sse160 Self-propelled Jack Gantry Lift For Short BuildingUS$ 4,000 - 6,000MOQ: 1 Set -
SSE160 Construction ElevatorUS$ 4,000 - 6,000MOQ: 1 Set
-
SSE160 Construction Elevator/Self-propelled Jack Gantry Lift for Building CargoUS$ 4,000 - 6,000MOQ: 1 Set
-
SSE160 Self-propelled Jack Gantry Lift SupplierUS$ 4,000 - 6,000MOQ: 1 Set
-
Driven By Eelectric Hoist Sse160 Construction Equipment/jack Gantry LiftUS$ 4,000 - 6,000MOQ: 1 Set
Specifications
1. Equipped with self-lifting system;2. Adopting the attached rod instead of wind rope;
3. Stop device is available on reques
Designed Items |
Parameter |
||||||
Installation Height(m) |
81 |
63 |
54 |
45 |
36 |
27 |
24 |
Lifting Height(m) |
78 |
60 |
51 |
42 |
33 |
24 |
21 |
Max. Lifting Capacity(t) |
1.2 |
1.5 |
|||||
Bottom Dimension of Cage(m) |
3.3×1.75 |
||||||
Winch/Hoist Model |
JK1.5 |
||||||
Motor Power(KW) |
11 |
||||||
Lifting Speed(m/min) |
≈22 |
||||||
Working Temp.(°C) |
-20~40 |
||||||
Competitive Advantage:
1. Equipped with self-lifting system; Self-erection and removal; Height adjusts with the building; Labor-saving and economic.
2. Adopting the attached rod instead of wind rope; improved construction conditions.
3. Two vertical posts unite whenever mounting or dismounting; safe and reliable.
4. Labor saving with manual winch for lifting stage and derrick for mounting standard sections.
5. Adopting rope protection device; the jam boards on both sides of the cage would lock the cage and prevent it from crash once the rope breaks.
6. Stop device is available on request for floor parking.
7. Adopting separate lifting navigation to avoid direct friction between wheels and basket body, thus prolongs the service time.
8. Adopting Overload Limiter to avoid overload accidents.
9. Equipped with a bi-way travel limiter supporting the use of winch, which can efficiently prevent punch and crash accidents.
10. The hanging basket is completely closed with protection screen and floor to prevent material slide and guarantees the personn
el.
SSE160 Mast Section
