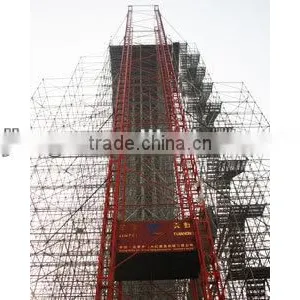

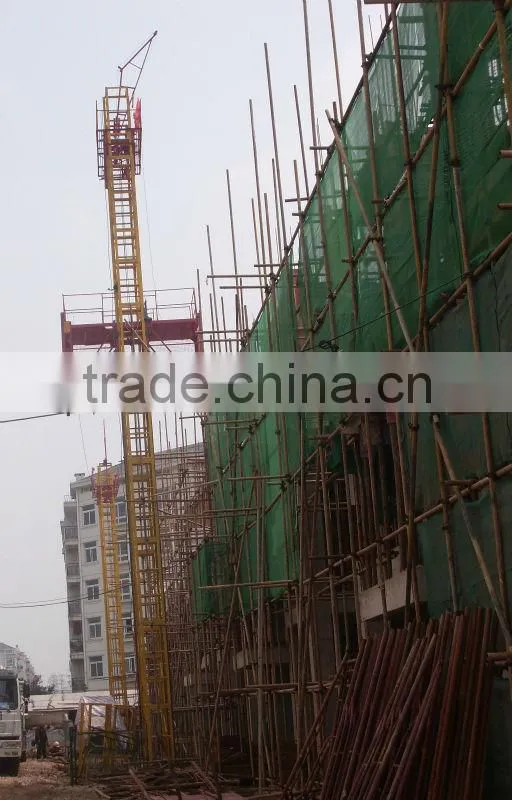

Help CenterSMZ150 Self-propelled Lifting Gantry Crane Self-propelled Man Lift
Related Products
-
Lifting Gantry Crane Man LiftUS$ 2,500 - 5,000MOQ: 1 Set -
SMZ150 Self-propelled Jack Gantry Lift/gantry Lift SystemsNegotiableMOQ: 1 Set
-
SMZ150 Self-propelled Jack Gantry LiftNegotiableMOQ: 2 Sets
-
China Manufacturer SMZ150 Self-propelled Jack Gantry LiftNegotiableMOQ: 1 Set
-
Self-propelled Jack Gantry Lift SMZ150NegotiableMOQ: 1 Unit
Specifications
lifting gantry craneputer aided design
2.Schneider electric controL
3.Multiple protections-Overload
SSE 160 Self-propelled Jack Gantry Lift

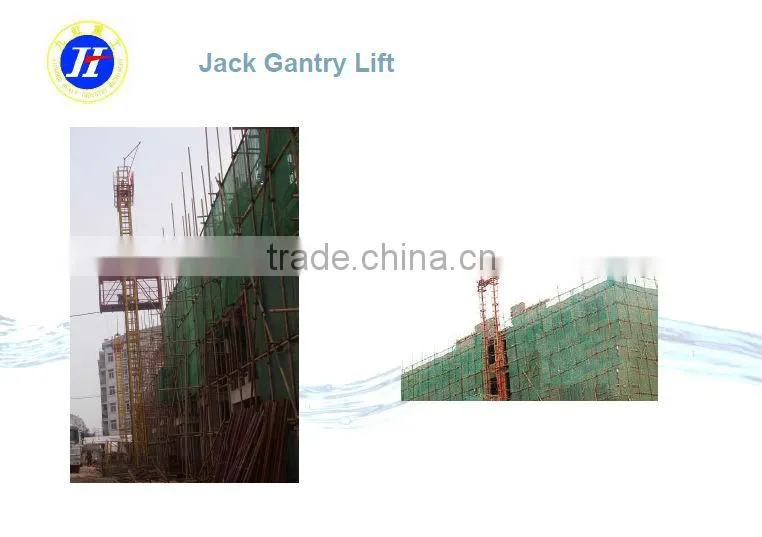

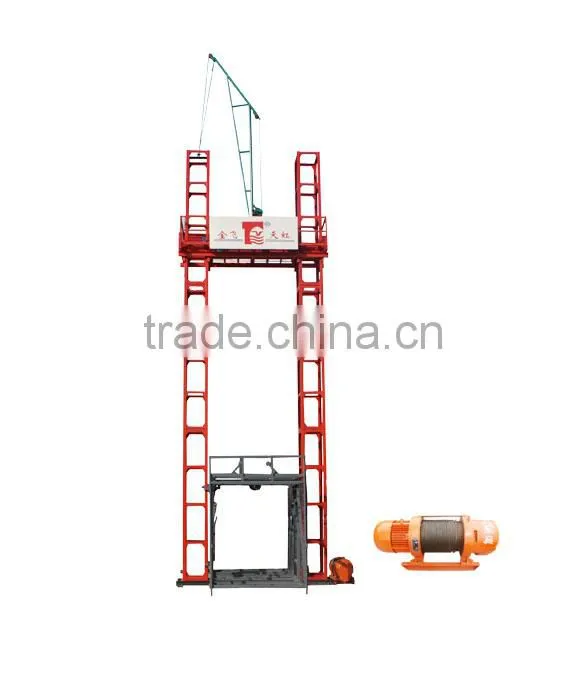

SMZ150-1 Self-propelled Jack Gantry Lift is a new type of vertical transportation machinery widely applied in building construction, overall decoration and housing maintenance, etc. It improved the security system of lift, effectively preventing recoil and overload, which would lead to material fall-off during the travel of basket, conforming to the requirements of Security Inspection Authorities. The typical height of this machine is 24m, which is adjustable as needed.
Parameter
Designed Items |
Parameter |
||||||
Installation Height(m) |
81 |
63 |
54 |
45 |
36 |
27 |
24 |
Lifting Height(m) |
78 |
60 |
51 |
42 |
33 |
24 |
21 |
Max. Lifting Capacity(t) |
1.2 |
1.5 |
|||||
Bottom Dimension of Cage(m) |
3.3×1.75 |
||||||
Winch/Hoist Model |
JK1.5 |
||||||
Motor Power(KW) |
11 |
||||||
Lifting Speed(m/min) |
≈22 |
||||||
Working Temp.(°C) |
-20~40 |
||||||
Competitive Advantage:
1. Equipped with self-lifting system; Self-erection and removal; Height adjusts with the building; Laborsaving and
economic.
2.Adopting the attached rod instead of wind rope; improved construction conditions.
3.Two vertical posts unite whenever mounting or dismounting; safe and reliable.
4.Labor saving with manual winch for lifting stage and derrick for mounting standard sections.
5.Adopting rope protection device; the jam boards on both sides of the cage would lock the cage and prevent it from
crash once the rope breaks.
6.Stop device is available on request for floor parking.
7.Adopting separate lifting navigation to avoid direct friction between wheels and basket body, thus prolongs the service
time.
8.Adopting Overload Limiter to avoid overload accidents.
9.Equipped with a bi-way travel limiter supporting the use of winch, which can efficiently prevent punch and crash
accidents.
10.The hanging basket is completely closed with protection screen and floor to prevent material slide and guarantees the
personnel.
