Description:

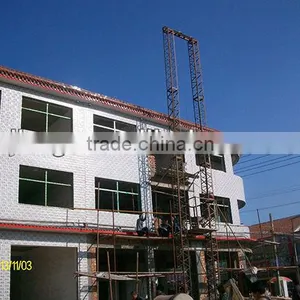

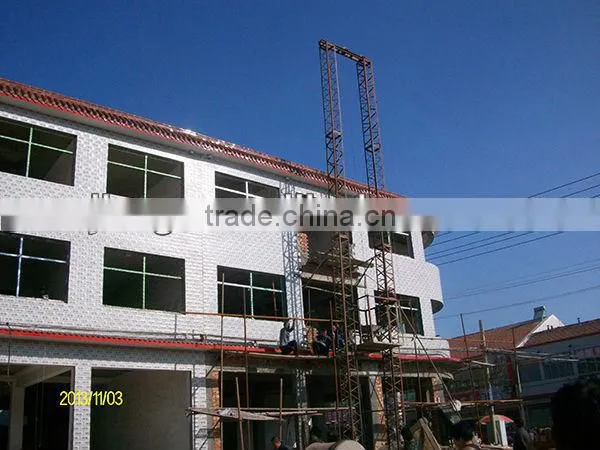

lifting gantry crane,self-propelled jack gantry lift
SMZ150 Selfpropelled Jack Gantry Lift is a new type of vertical transportation machinery widely applied in
building construction, overall decoration and housing maintenance, etc. It improved the security system of lift,
effectively preventing recoil and overload, which would lead to material falloff during the travel of basket, conforming
to the requirements of Security Inspection Authorities. The typical height of this machine is 24m, which is adjustable
as needed.
Applications:
lifting gantry crane,self-propelled jack gantry lift
SMZ150 Selfpropelled Jack Gantry Lift is a new type of vertical transportation machinery widely applied to building
construction, exterior/interior decoration, housing maintenance, and other fields. It is popular, convenient, secure,
and economic.
Specifications:
lifting gantry crane,self-propelled jack gantry lift
Designed Items |
Parameter |
||||||
Installation Height(m) |
81 |
63 |
54 |
45 |
36 |
27 |
24 |
Lifting Height(m) |
78 |
60 |
51 |
42 |
33 |
24 |
21 |
Max. Lifting Capacity(t) |
1.2 |
1.5 |
|||||
Bottom Dimension of Cage(m) |
3.3×1.75 |
||||||
Winch/Hoist Model |
JK1.5 |
||||||
Motor Power(KW) |
11 |
||||||
Lifting Speed(m/min) |
≈22 |
||||||
Working Temp.(°C) |
-20~40 |
||||||
Competitive Advantage:
lifting gantry crane,self-propelled jack gantry lift
1. Equipped with self-lifting system; Self-erection and removal; Height adjusts with the building; Labor-saving and economic.
2. Adopting the attached rod instead of wind rope; improved construction conditions.
3. Two vertical posts unite whenever mounting or dismounting; safe and reliable.
4. Labor saving with manual winch for lifting stage and derrick for mounting standard sections.
5. Adopting rope protection device; the jam boards on both sides of the cage would lock the cage and prevent it from
crash once the rope breaks.
6. Stop device is available on request for floor parking.
7. Adopting separate lifting navigation to avoid direct friction between wheels and basket body, thus prolongs the service
time.
8. Adopting Overload Limiter to avoid overload accidents.
9. Equipped with a bi-way travel limiter supporting the use of winch, which can efficiently prevent punch and crash accidents.
10. The hanging basket is completely closed with protection screen and floor to prevent material slide and guarantees t
he personnel.
