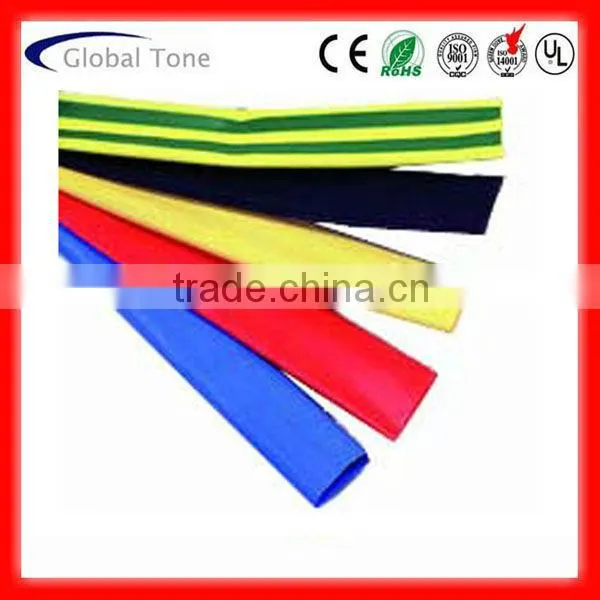

0.8-100mm Heat Shrink Tube

0.8-100mm Heat Shrink Tube thumbnail-1
0.8-100mm Heat Shrink Tube photo-1
Negotiable MOQ: 10 Rolls (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
GTE
Model Number:
GT1-9231
Contact Supplier Request Quote Chat Now
Changzhou Globaltone International Trade Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name GTE
Model Number GT1-9231
Type Heat Shrinkable
Material PE
Operating Temperature: -55 ~ 125
Shrinking Temperature: Start at 70, and shrunk totally at 110(CB) or 115.
Size range: 0.8-100mm special size are negotiable.
Shrink Ratio: 2:1
Available Color: Black, Red, Yellow, Green, Blue, White, Purple, and Grey. Can produce upon customers special requirement.

Function:  1. wire coat and  insulation.
                   2. make the joint of terminal  block and wire insulated.
                   3. divide the colors.
                   4. water-proof.
                   5. protection and insulation of insistors and electrical capacitors.
2:1 125 degree  Flame-retardant Heat Shrinkable Tube normal wall without adhesive
Size(mm) As Supplied(mm) After Recovery(mm) Application Range(mm) Standard Package(m/spool) Spools/carton
Internal diameter Wall thickness Max. Internal diameter Average Wall thickness
0.8 1.0±0.2 0.13±0.05 0.5 0.22±0.05 0.6~0.8 200 23
1.0 1.5±0.3 0.18±0.05 0.65 0.28±0.05 0.75~0.9 200 16
1.5 2.0±0.3 0.18±0.05 0.85 0.32±0.05 0.95~1.4 200 12
2.0 2.5±0.3 0.18±0.05 1 0.35±0.05 1.1~1.8 200 15
2.5 3.0±0.3 0.20±0.05 1.25 0.38±0.05 1.35~2.3 200 13
3.0 3.5±0.4 0.20±0.05 1.5 0.40±0.05 1.6~2.7 200 11
3.5 4.0±0.4 0.20±0.05 1.75 0.42±0.05 1.85~3.2 200 9
4.0 4.5±0.4 0.23±0.05 2 0.45±0.05 2.1~3.6 200 7
4.5 5.0±0.4 0.23±0.05 2.25 0.50±0.08 2.35~4.0 100 10
5.0 5.5±0.4 0.23±0.05 2.5 0.50±0.08 2.6~4.5 100 9
6.0 6.5±0.4 0.28±0.05 3 0.55±0.08 3.1~5.4 100 7
7.0 7.5±0.4 0.28±0.05 3.5 0.55±0.08 3.7~6.3 100 14
8.0 8.5±0.5 0.28±0.05 4 0.60±0.08 4.2~7.2 100 13
9.0 9.5±0.5 0.30±0.08 4.5 0.60±0.08 4.7~8.0 100 12
10 10.8±0.5 0.30±0.08 5 0.60±0.08 5.2~9.0 100 11
11 11.5±0.5 0.30±0.08 5.5 0.60±0.08 5.7~10 100 11
12 12.5±0.5 0.30±0.08 6 0.60±0.08 6.2~11 100 10
13 13.5±0.5 0.33±0.10 6.5 0.65±0.08 6.7~12 100 9
14 14.5±0.5 0.35±0.10 7 0.65±0.08 7.3~13 100 9
15 15.5±0.6 0.38±0.12 7.5 0.70±0.08 7.8~14 100 8
16 16.5±0.6 0.38±0.12 8 0.70±0.08 8.3~15 100 8
17 17.5±0.6 0.35±0.12 8.5 0.70±0.08 8.8~16 100 7
18 19.0±0.7 0.40±0.15 9 0.80±0.15 9.3~17 100 7
20 21.5±0.7 0.40±0.15 10 0.80±0.15 10.4~19 100 6
22 23.5±0.7 0.42±0.15 11 0.80±0.15 11.4~21 100 6
25 25.6±0.7 0.45±0.15 12.5 0.90±0.15 12.8~24 50 6
28 29.0±0.7 0.45±0.15 14 0.90±0.15 14.4~29 50 5
30 31.5±0.7 0.45±0.15 15 0.95±0.15 16~29 50 5
35 36.5±0.7 0.50±0.15 17.5 1.00±0.15 18~34 50 4
40 41.5±0.7 0.50±0.15 20 1.00±0.15 21~39 50 4
50 51.5±0.7 0.50±0.15 25 1.00±0.15 26~49 25 5
60 ≥60 0.60±0.15 30 1.55±0.20 35~55 25 4
70 ≥70 0.65±0.15 35 1.55±0.20 40~65 25 3
80 ≥80 0.65±0.15 40 1.55±0.20 45~75 25 3
90 ≥90 0.65±0.20 45 1.55±0.20 50~88.0 25 2
100 ≥100 0.65±0.20 50 1.55±0.20 55~95.0 25 2
