Factory direct supply price low Construction Hoist/Construction Elevator/Building Hoist/Lifter
- 1000 Set / Sets per Month
- Qingdao
- T/T
Product Details
Condition: | New | Place of Origin: | Shandong, China | Brand Name: | Jiuhong |
Model Number: | SC Rack and Pinion Construction hoist,elevator,lift,lifter | Rated Loading Capacity(kg): | 1000KG-4000KG | Hoisting Speed: | 36M/min |
Max Lifting Height: | 200m | Dimension(L*W*H): | 3*1.5*2.5m | Loder Weight: | 1T-4T |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Factory direct supply price low Construction Hoist/Construction Elevator/Building Hoist/Lifter

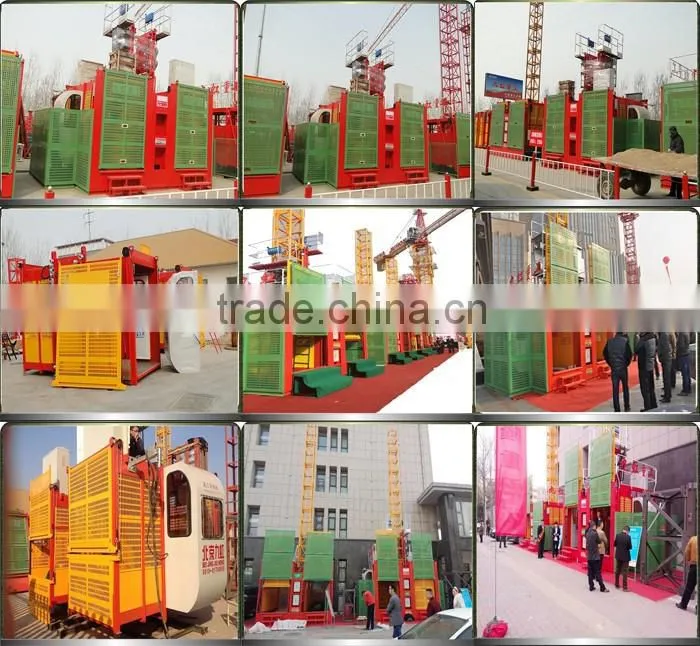

CONSTRUCTION ELEVATOR AT EXHIBITION
Clients Feedback:
Shandong Jiuhong Heavy Industries Co.,Ltd.Which is the largest Construction Machinery Manufacturer Company in the North of China for 15 years with CE ISO GOST approved .Main Products include,Suspended Platform,Construction Elevator,Tower Crane,Building Hoist,Material Hoist,Concrete Spreader and all Parts for the above machines.
Factory Image,Welcome to Visit Our factory.
SHANDONG JIUHONG HEAVY INDUSTRIES CO.,LTD
Construction Hoist Sample Machine
SC Construction Hoist Elevator ( single cage or two cages/ lifting capacity of 1t/ 2t/ 4t)
A. Introduction of SC100, SC100/100, SC200, SC200/200 Construction Elevator, Construction Hoist
Passenger Hoist is widely used in the field of industrial and civil residential construction, bridge construction, underground construction, large chimney construction, ship industry, etc. Being suitable for the vertical transport of materials and people, they can also be used as permanent / semi-permanent electric elevators in various environments like warehouses and high towers.
SC200/200 Passenger Hoist adopts computer aided design. Comparing with traditional construction elevator, it is more attractive, lighter, more secure and easier to handle. Depending on different customer' needs, the lifting cage capacity can reach up to 1-4 ton, and the running speed can reach 28~38m/min. Moreover, VVVF speed regulation and PLC can make 0~68 limitless speed, automatic layer selecting and leveling as required.
SC series of construction hoists, which are known for their stable performance, reliable safety, easy transportation and strong adaptability, can greatly enhance work efficiency and reduce workers’ labor intensity.
B. Selling points of SC SC100, SC100/100, SC200, SC200/200 Construction Elevator, Construction Hoist
1. Monitor control unit
2. Weight limit device
3. Fall protection device
4. Microcomputer speed device
5. GPS fixing system
6. Floor select system
7. Floor calling system
8. Floor pausing protection device
9. Safety hook
10. Limit switch
11. Upper limit
12. Lower limit
13. Door limit
14. Caution warning
15. Emergency stop
16. Buffering protection device
17. Electric hoist over-load protection device
18. Transformer short-circuit protection system
19. Phase sequence protection
cage and enclosure
C. Advantages of Jiuhong Construction Hoist Elevator
1.CE,ISO Approved
2.15 Years Manufacturer Experience
3.Export to more than 50 Countries.
4.1 Year Warranty and Quick Delivery
D. Technical Parameters of SC100, SC100/100, SC200, SC200/200 Construction Elevator, Construction Hoist
Name | Unit | SC100 | SC100/100 | SC200 | SC200/200 |
Rating loading capacity | Kg | 1000 | 2×1000 | 2000 | 2×2000 |
Passenger number | Person | 12 | 2×12 | 16 | 2×16 |
Rating rising rate | M/min | 36 | 36 | 36 | 36 |
Max. promoting height | m | 200 | 200 | 200 | 200 |
Motor power | KW | 2×11 | 2×2×11 | 3×11 | 2×3×11 |
Cage size | m | 3*1.5*2.5 | 3*1.5*2.5 | 3*1.5*2.5 | 3*1.5*2.5 |
650 mast section weight | Kg | 124 | 148 | 124 | 148 |
650 mast section length | mm | 650×650 ×1508 | 650×650 ×1508 | 650×650 ×1508 | 650×650 ×1508 |
Steeve rating rising weight | Kg | 200 | 200 | 200 | 200 |
Company Team and Strictly Quality Sense
How To Contact Us?
Contact Details:
I know your suspended platform and construction elevator also buying from China,we are professional manufacturer and exporter in the north of China for more than 15 years.Why not for contact us let talk the possibility to be work together?
Mob/Whatsapp/Wechat/ +86 13287547286
Warmly welcome your inquirys
Contact Details:
Thanks for your visiting!
