Building Hoist/ construction passenger hoist,construction lifter
Jiuhong Heavy Industy Group(Beijing and Shandong) manily engaged in:”QTZ series of
tower crane, SC series of construction hoist, SS series material hoist,ZLP series suspended platform,
concrete placing boom”as well as other construction machinery products,integrated R&D,production,
sales & after-sale service.

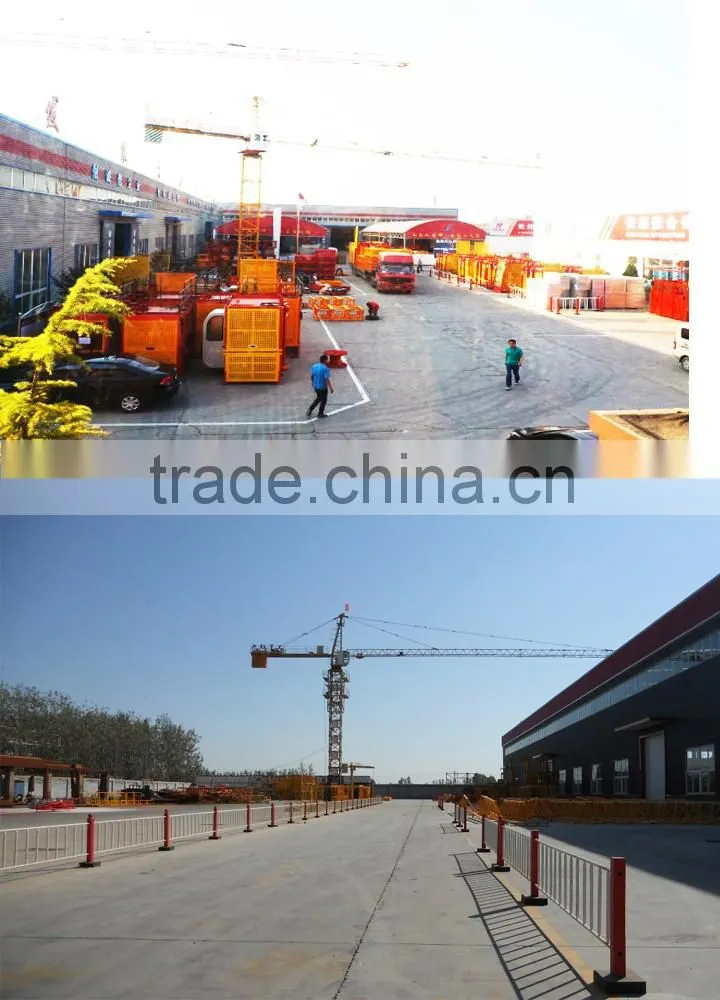

Jiuhong Group now has three major manufacturers:
I.Shandong Jiuhong
Location: Gaotang,Shandong Province
Area: 95,000 square meters
Main Products: tower crane,construction elevator,material hoist,suspended platform
Annual production capacity: 5,000sets
II.Beijing Jiuhong
III.Shandong Jiuyi Elevator(new projects and main investment in 2015)

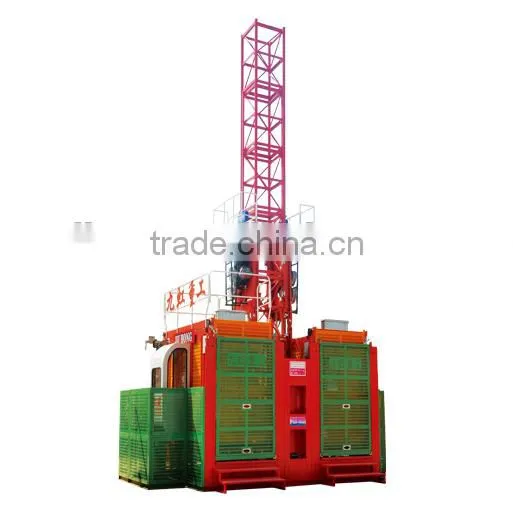

Construction elevator
construction elevator is widely used in the field of industrial and civil residential construction, bridge construction, underground construction, large chimney construction, ship industry, etc. Being suitable for the vertical transport of materials and people, they can also be used as permanent / semi-permanent electric elevators in various environments like warehouses and high towers.
Technical Parameter
| Name | Unit | SC100 | SC100/100 | SC200 | SC200/200 |
| Rating loading capacity | Kg | 1000 | 2×1000 | 2000 | 2×2000 |
| Passenger number | Person | 12 | 2×12 | 16 | 2×16 |
| Rating rising rate | M/min | 36 | 36 | 36 | 36 |
| Ma . promoting height |
m | 200 | 200 | 200 | 200 |
| Motor power | KW | 2×11 | 2×2×11 | 3×11 | 2×3×11 |
| Cage size | m | 3*1.5*2.5 | 3*1.5*2.5 | 3*1.5*2.5 | 3*1.5*2.5 |
| 650 mast section weight | Kg | 124 | 148 | 124 | 148 |
| 650 mast section length | mm | 650×650×1508 | 650×650×1508 | 650×650×1508 | 650×650×1508 |
| Steeve rating rising weight | Kg | 200 | 200 | 200 |
200 |
B. selling points of SC Construction Elevator
VFD Construction Elevator Feature
1.A smaller in dimension and with transparent wall installation , save a space clean and tidy.
2.Standard product failure rate lower, our after-sales service more timely.
3.Under heavy load starting current 76 a, running current 54 a, less impact on electrical and mechanical, and can prolong the service life of the elevator, and reduce the maintenance of elevator.
4. The frequency can be energy saving, small and our current energy saving effect is better.
5. Double speed control, more accurate positioning.
6. Smooth operation, no feeling under.
7.Simple installation, fault alarm, according to the Chinese connection is convenient, easy to maintain.
8. Remote control assistance,setting according different time.And have no effect with the man-made damage in card remove situation
9. Have remote location function, Added remote data query run equipment to check in real time,and have remote fault detecting function
10. The machine built-in 8 g black box, can record the data for years.
Safety devices:
1. Load lifting limiter
2. Safety hook
3. Limit switch upper limit / lower limit /Door limit
4. Escaping-window limit
5. Caution warning
6. Emergency stop
7. Buffering
8. Overload protection device for electric hoist
9. Transformer short-circuit protection
10. Phase sequence protection
C. Advantages of JIUHONG SC Construction Elevator
1. CE, ISO, GOST certificates
2. SC construction elevator have one year guarantee
3. Special made can be accepted
4. Good after sale service.

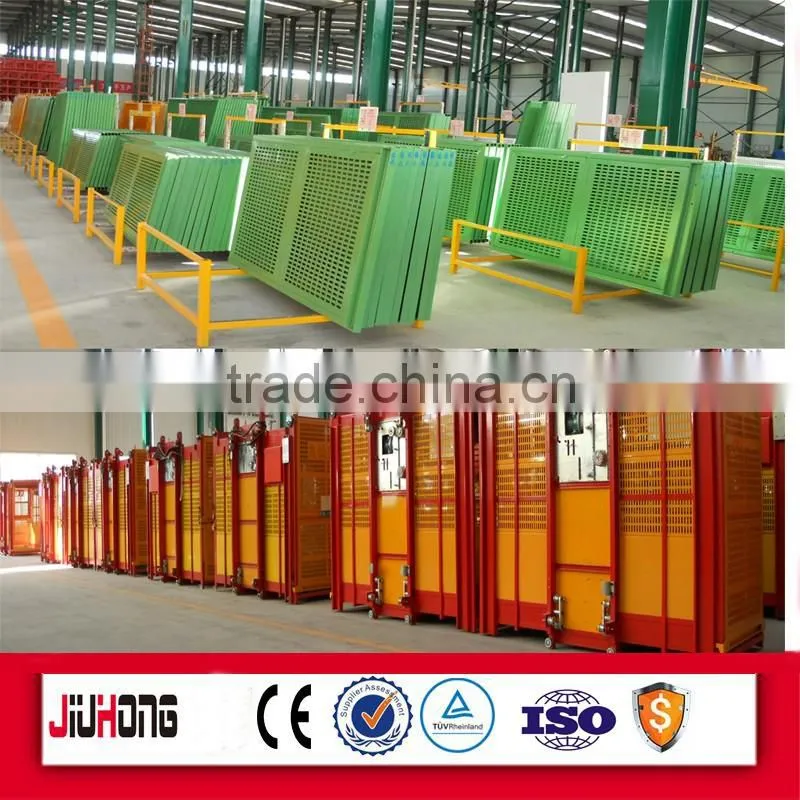

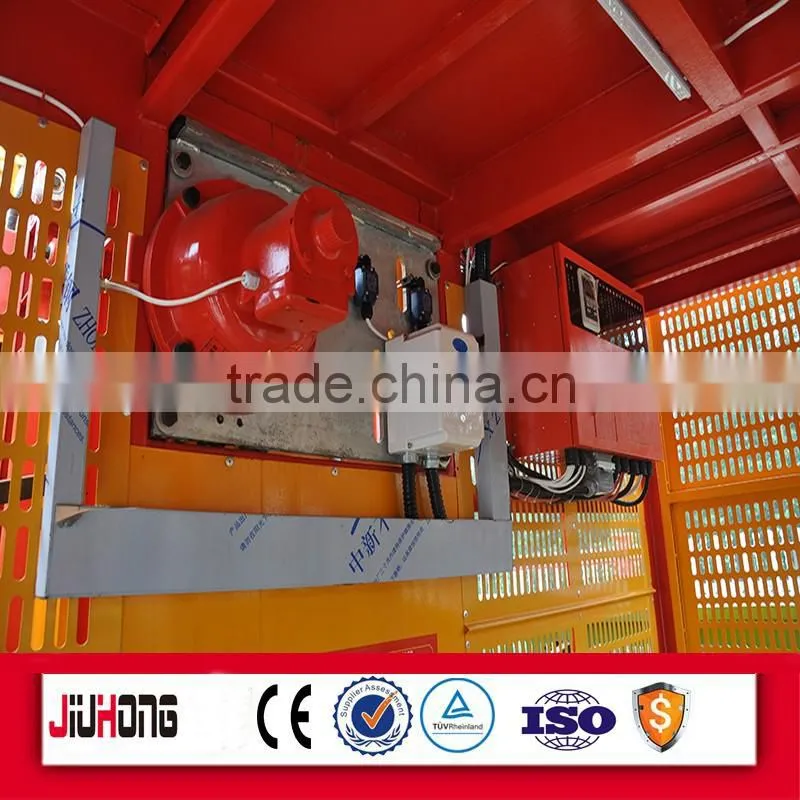

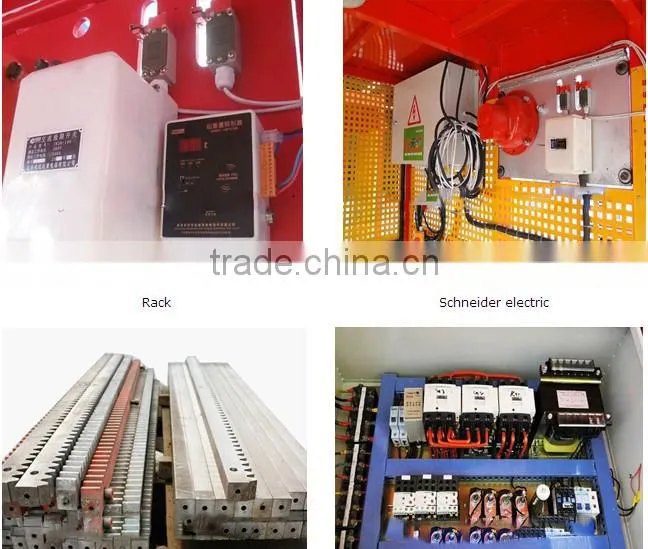

Construction Elevator Parts

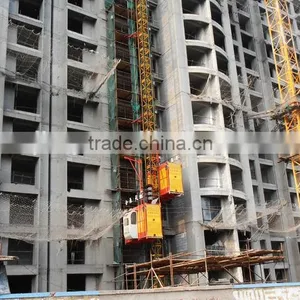

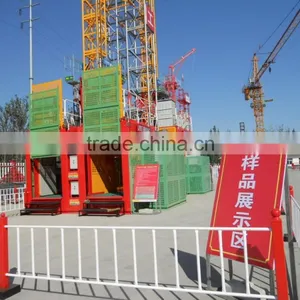

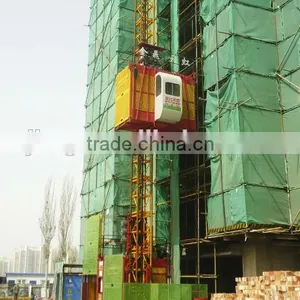

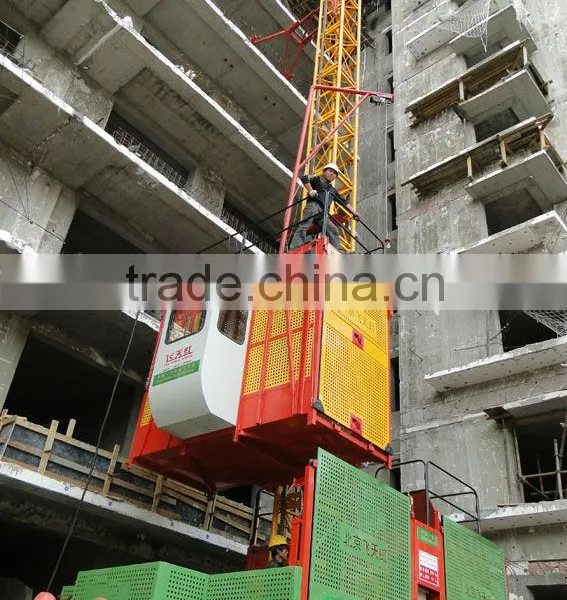

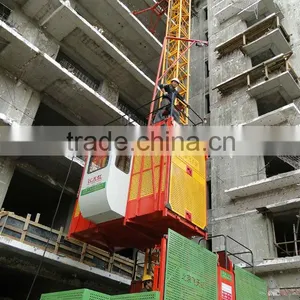

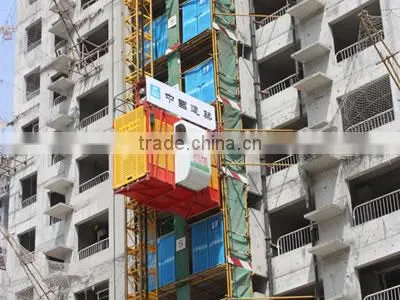

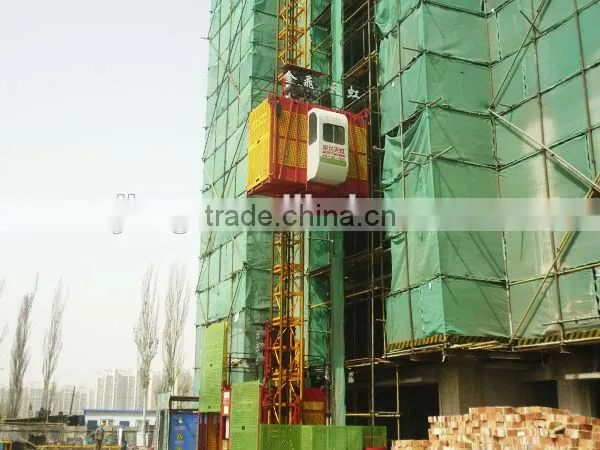

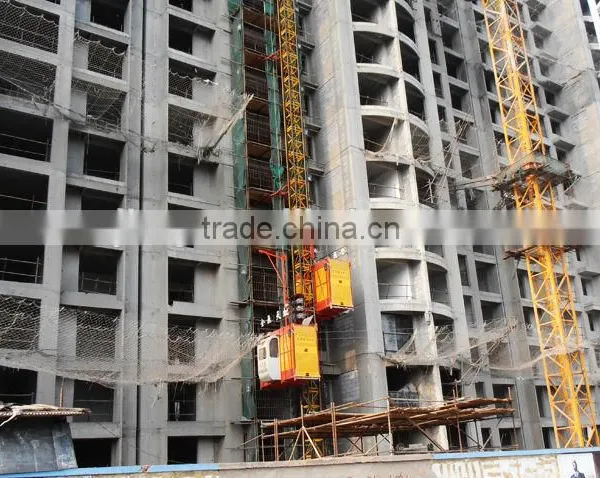

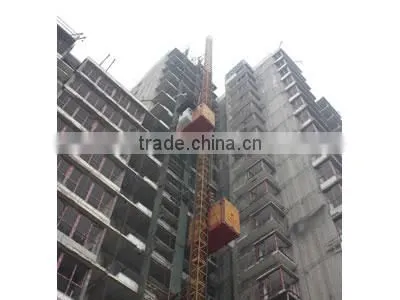

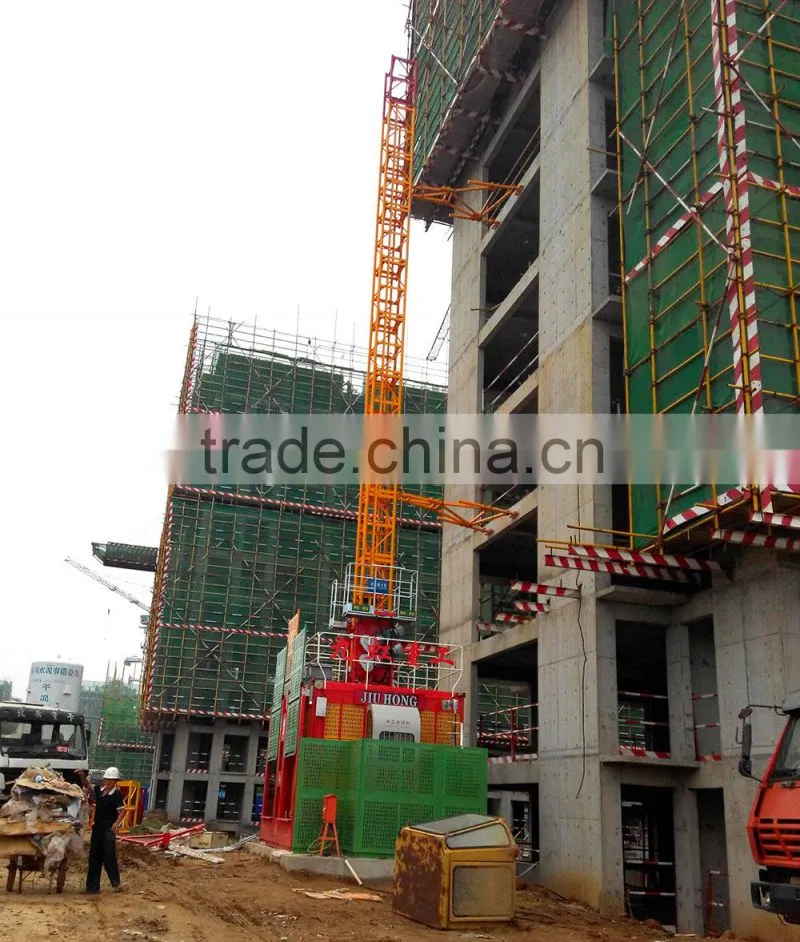

Construction elevator at working site

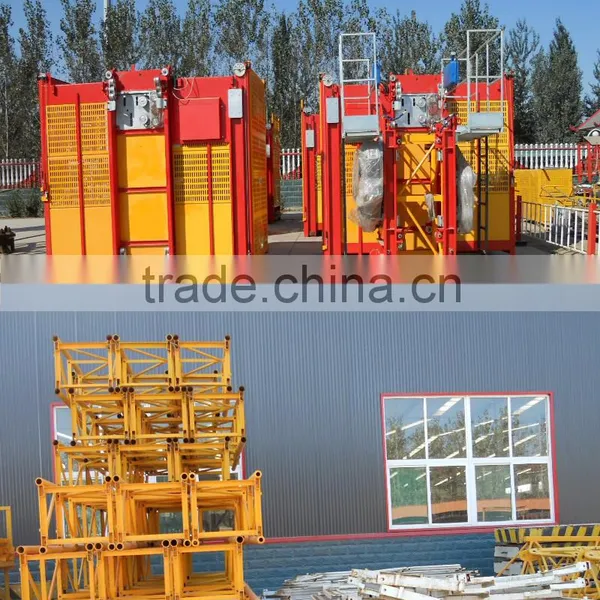

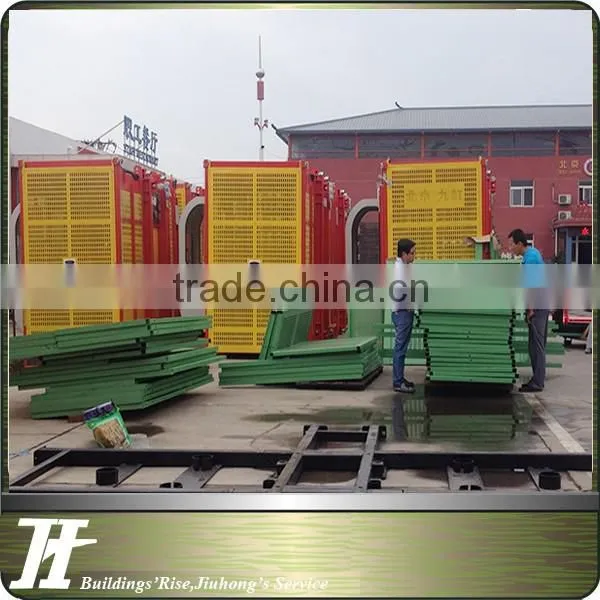

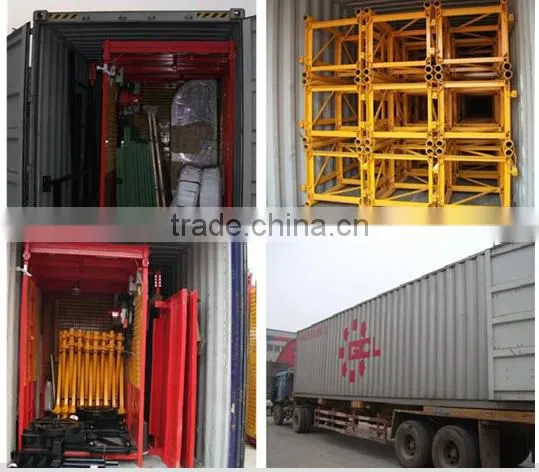

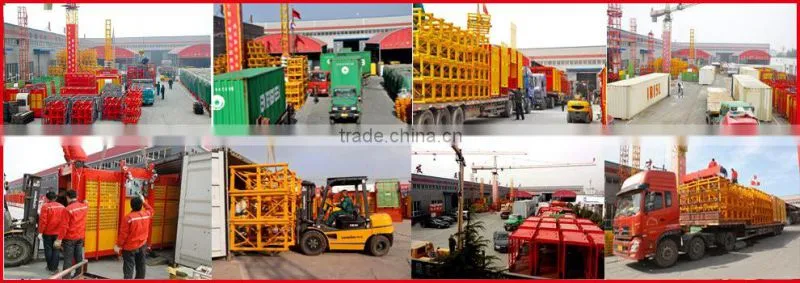

Waiting for delivery

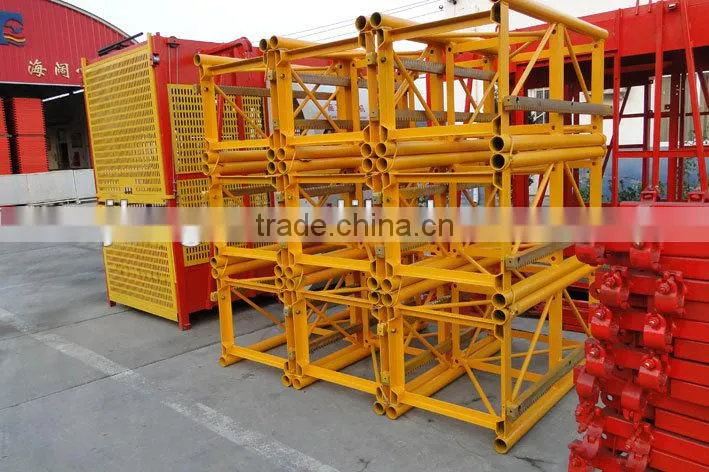

Construction Elevator Mast Section
Construction Elevator in the test
HOW CONTACT US
If you have any question please contact me
