Low price gaphite block
- 1000000 Ton / Tons per Month
- Tianjin Qingdao
- T/T Credit Card PayPal
- graphite scraps/graphite electrode scraps
- Graphite rotor,Graphite impeller,DGraphite screw
- Vacuum furnace graphite connecting plate
- Graphite rotor,Graphite impeller,DGraphite screw
- Natural High Carbon Spherical Graphite in Battery, Flake Graphite
- Natural Amorphous Graphite Powder -325mesh グラファイト どじょうこくえん
Product Details
Place of Origin: | Henan, China | Brand Name: | BFMC | Model Number: | block and round |
Application: | molds,chutes;sleeves;linings,etc. | Dimensions: | JS-B | Chemical Composition: | c |
Product Description

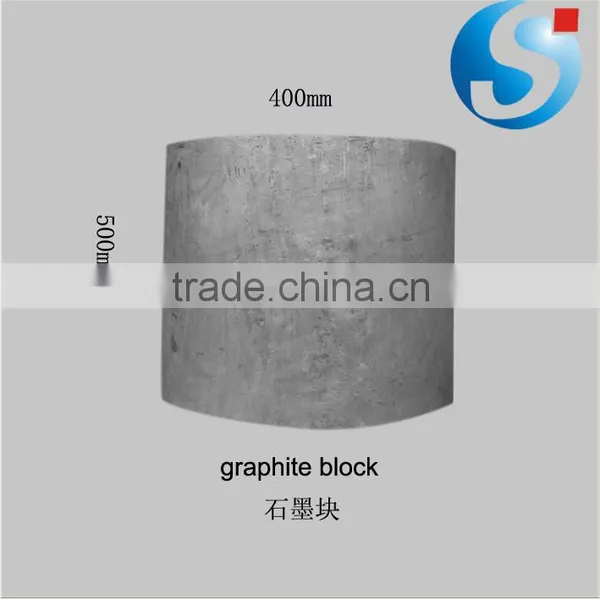

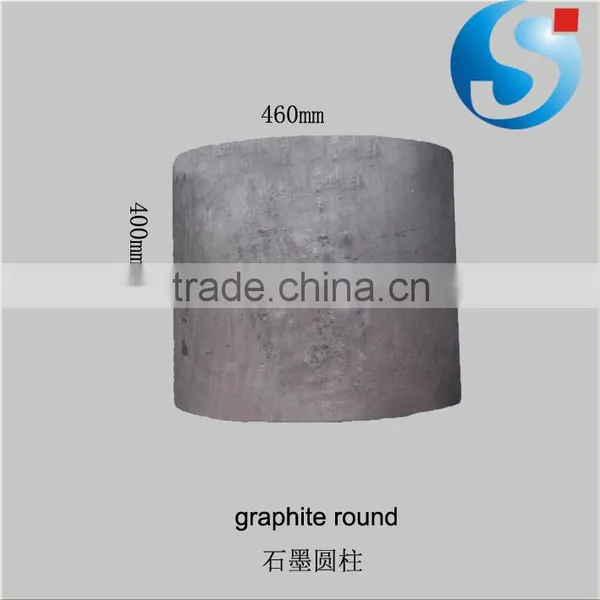

BFMC Graphite Block and Graphite Round
Applications:
- Molds, chutes, sleeves, sheathes, linings, etc. in continuous casting systems for making shaped steel, cast iron, copper, aluminum.
- Sintering molds for cemented carbides and diamond tools.
- Sintering molds for electronic components.
- Electrodes for EDM.
- Heaters, heat shields, crucibles, boats in some industrial furnaces (such as furnaces for pulling monocrystalline silicon or optical fibers).
- Bearings and seals in pumps, turbines and motors.and so on.
Properties:
- Fine grain
- Homogeneous structure
- High density
- Excellent thermal conductivity
- High mechanical strength
- Proper electrical conductivity
- Minimum wettability to molten metals
Typical size:
Blocks | Length x Width x Thickness (mm) 200x200x70, 250x130x100, 300x150x100, 280x140x110, 400x120x120, 300x200x120, 780x210x120, 330x260x120, 650x200x135, 650x210x135, 380x290x140, 500x150x150, 350x300x150, 670x300x150, 400x170x160, 550x260x160, 490x300x180, 600x400x200, 400x400x400 |
Rounds | Diameter (mm): 60, 100, 125, 135, 150, 200, 250, 300, 330, 400, 455 Thickness (mm): 100, 135, 180, 220, 250, 300, 450 |
* Other dimensions are available on request.
Specifications:
physical and chemical index of the graphite block
Specifications | Unit | Value |
Bulk Density | g/cc | 1.70 - 1.85 |
Compressive Strength | MPa | 25 - 70 |
Bending Strength | MPa | 15 - 40 |
Shore hardness |
| 30 - 50 |
Specific Resistance | micro ohm.m | 8.0 - 15.0 |
Ash (Normal Grade) | % | 0.05 - 0.2 |
Ash (purified) | ppm | 30 - 50 |
Maximum Grain Size | micron | 44 |
