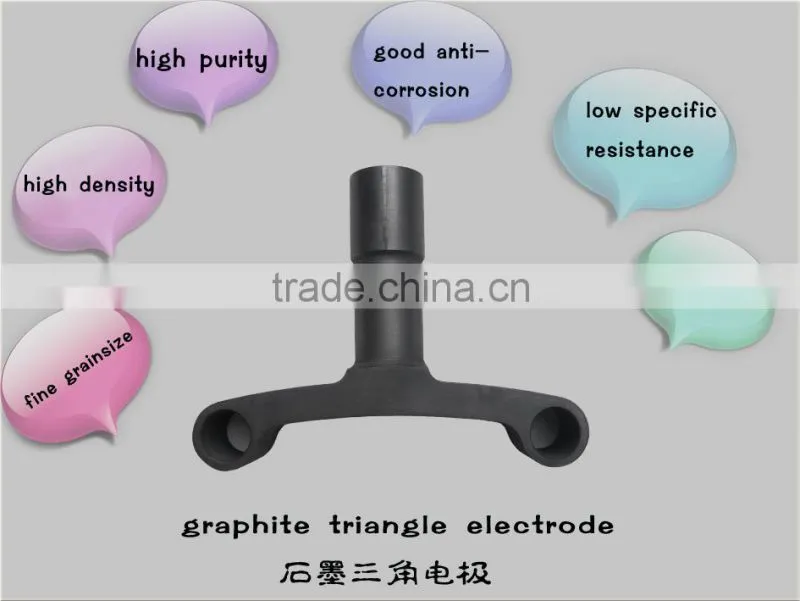

Help CenterVacuum Furnace Graphite Triangle Electrode
Related Products
-
Vacuum Furnace Various Size Graphite RodUS$ 5 - 2,000MOQ: 10 Units -
Vacuum Furnace Graphite TrayUS$ 5 - 2,000MOQ: 10 Units
-
Sintering Graphite FrameUS$ 5 - 2,000MOQ: 10 Units
-
High Strength Vacuum Furnacce Graphite BallUS$ 5 - 2,000MOQ: 10 Units
-
Graphite Ball for Vacuum FurnaceUS$ 5 - 2,000MOQ: 10 Units
graphite part are made from high quality graphite material, used for many area , such as chemical metallurgy, automotive, semiconductor and electronic industry and so on.
All the parts is manufactured into high purity graphite or fine structure graphite, good quality and best service welcome everyone to purchase from Baofeng Jinshi New Materials Co.,Ltd..
Properties:
1, uniformity of heating structure.
2, good electrical conductivity and high electrical load.
3, corrosion resistance.
4, inoxidizability.
5, high chemical purity.
6, high mechanical strength.
The advantage is energy efficient, high value and low maintenance.
We can produce anti-oxidation and long life-span graphite crucible, graphite mold and all parts of graphite heater.
Specifications:
|
specification |
type |
electrical resistivity |
volume density |
rupture strength
|
compressive strength |
Hard degree HSD |
ash content |
|
Die-pressed 0.043mm |
-4 |
8.5 |
1.80 |
38 |
65 |
42 |
700PPM |
Die-pressed |
-5 |
8.5 |
1.85 |
46 |
85 |
48 |
700PPM |
Isostatic graphite |
-7 |
11 |
1.85 |
56 |
118 |
65 |
500PPM |
Isostatic graphite |
-8 |
11 |
1.92 |
60 |
135 |
70 |
500PPM |
The usage of graphite
With the above excellent property ,the graphite is widely used in metallurgy, mechanical, electrical, chemical, textile, defense and other industries. Below is the classification.
Product Name |
Industry |
Application |
Crucible, boat, dish, etc. |
Metallurgy |
Melting, refining and analysis |
Dies, molds, ingot chassis, etc |
EDM graphite electrodes, semiconductor manufacturing, iron, steel and nonferrous metal making, continuous casting, metallurgy pressing machine |
|
Graphite roller, etc |
Heat treatment of steel plate in furnace |
|
Conduit, Skateboard, etc |
Aluminum molding |
|
Graphite Pipe |
Guard pipe for measuring temperature,blowpipe, etc |
|
Graphite Block |
Masonry furnace and other heat resistance material |
|
Chemical Equipment |
Chemistry |
Heat exchanger, reaction tower, distillation columns, absorption equipment, centrifugal pumps, etc |
Electrolytic Plate |
Salt solution and baking molten salt electrolyte |
|
Electrolytic Mercury |
NaCl electrolyte |
|
Grounded Anode |
Electrical anticorrosion |
|
Motor Brush |
Electricity |
Commutator, slipping ring |
Current Collector |
Skate, slide, trolley |
|
Contact |
Switches, relays |
|
Mercury ferry and electronic pipe |
Electronics |
Anode, grid pole, repeller pole, ignition pole of the Mercury rectifier and anode, grid electrode |
Graphite Bearing |
Machinery |
high temperature resistance sliding bearing, |
Sealing Element |
Sealing ring, stuffing box seal ,packing seal |
|
Product Element |
Braking in plane and vehicle |
|
Nuclear Graphite |
Nuclear Power |
Deceleration materials, reflective materials, shielding materials, nuclear fuel, support devices, etc |
