Home > Products > graphite mold > high purity exothermic Graphite mould

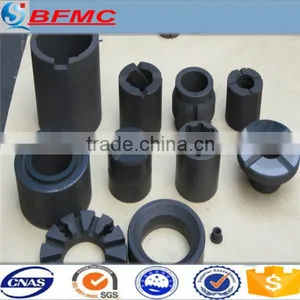

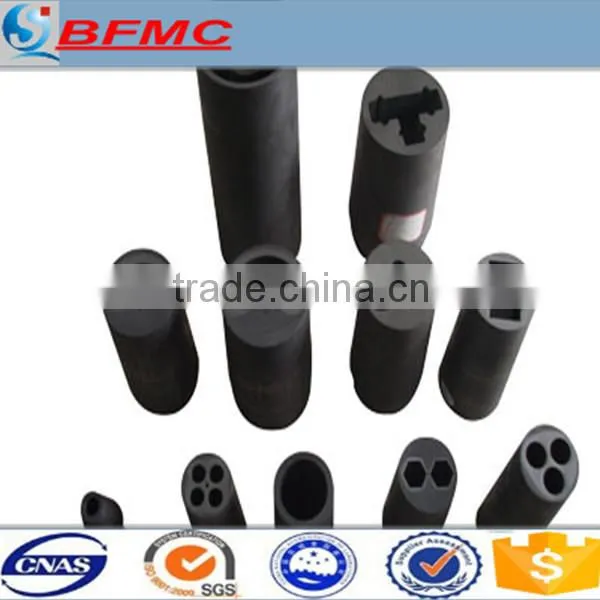

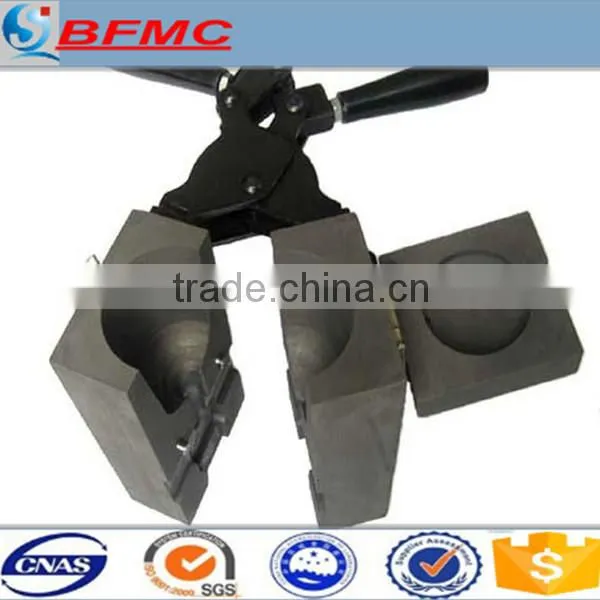

high purity exothermic Graphite mould
- 3000 Piece / Pieces per Month
- Any China main sea port
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Application: | Mold | Technique: | Sintering Mold | Dimensions: | accroding to the material |
Porosity (%): | accroding to the material | Compressive Strength: | accroding to the material | Place of Origin: | Henan, China |
Brand Name: | JS | Model Number: | BF |
Product Description
high purity exothermic Graphite mould
INTRODUCTION: |
high purity exothermic Graphite mould
1. Material: high purity graphite
2. Custom graphite mold ingot available
3. Applied in continuous casting, metallurgy, glass casting, types of industries.
Application of exothermic Graphite mould
non-ferrous metals smelting, including copper, brass, aluminum, gold, silver, precious metals, glass etc.
Advantage of exothermic Graphite mould
high strength (Flexural strength: 39Mpa Compressive strength: 78Mpa With rising of temperature, graphite strength increases)
high purity (Carbon: 99.5%)
high temperature resistance (graphite material melting point is 3850±50)
good heat shock resistance.
TECHNICAL SHEET:(COMMON MODELS) |
Technical Specification | JSMC-3 | JSMC-4 | JSMC-5 |
Bulk Density (g/cm3) | ≥1.72 | ≥1.78 | ≥1.85 |
Ash Content (PPM) | ≤1000 | ≤1000 | ≤1000 |
Shore Hardness | ≥40 | ≥40 | ≥45 |
Specific Resistance (μ.Ω.m) | ≤12 | ≤12 | ≤10 |
Flexural Strength (Mpa) | ≥30 | ≥35 | ≥40 |
Compressive Strength (Mpa) | ≥50 | ≥60 | ≥70 |
Max. Grain Size (μm) | ≤43 | ≤43 | ≤43 |
Coefficient of Thermal Expansion Mm/°C | ≤4.5*10-6 | ≤4.5*10-6 | ≤4.4*10-6 |
We can supply below related graphite parts:
various kinds of heating elements, heating chamber, hearth, heating tube, bracket, joint board, graphite adjusting plate, joint part, graphite tie-in of conducting rod, graphite heater, graphite insulated chamber, graphite tray, graphite box for sintering, graphite plate, heater tube, bridge frame, connection patrs, electrode joint, insulation barrel and heat shield for heating system etc.
PRODUCING TECHNOLOGY: |
1. Quality assurance,we use high grade raw material and do strict inspect during the whole procession. All products adopt GB,ISO,ASTM,BS,JIS and DIN standard as per requirement. ISO, BV, TUV, SGS certified.
2. Provide professional designing solution, field technical assitance and any other consulting.
3. Price advantage, provided by manufacturer directly,save much intermediate fees.
4. Professional team, specialized in refractory production since 2000,with advanced technology and vast experience.
5. High production capacity, fast delivery of goods.
6. 24*7 online service.
7. OEM service available.
CONTACT: |
David Li (International sale)
Email: david_li(at); Mobile(Whatsapp): 0086 158 3750 6496; Wechat: lifanya8888;
Skype: live:lushanyaxing_1
