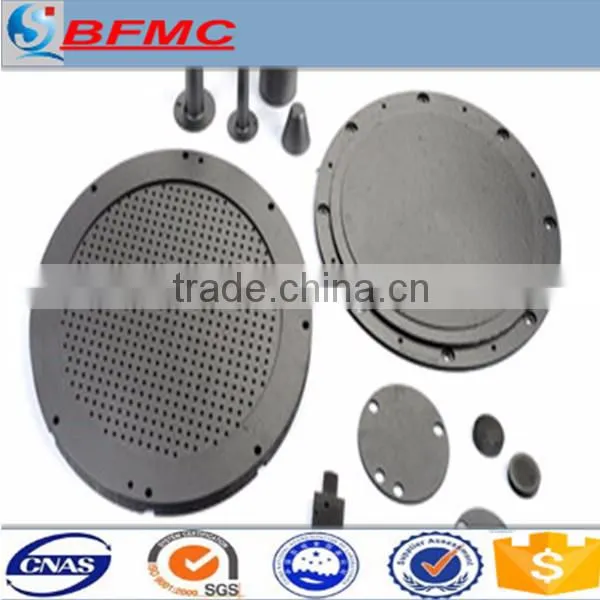

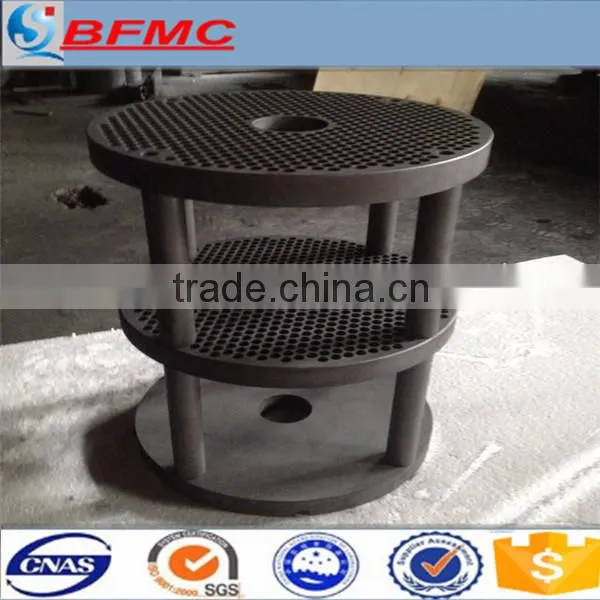

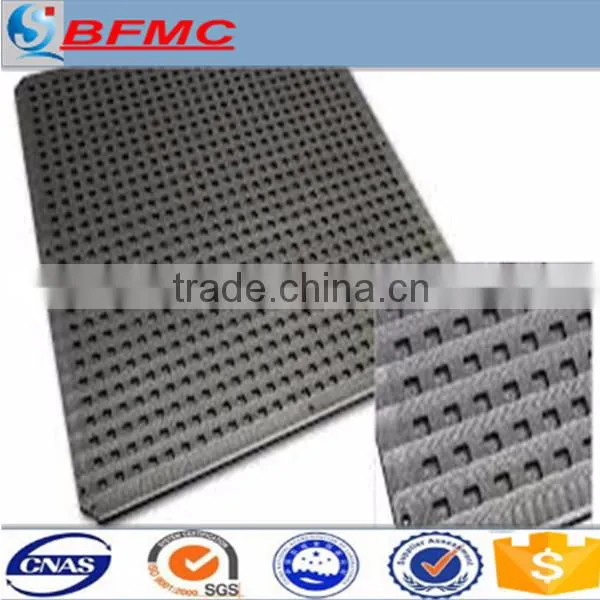

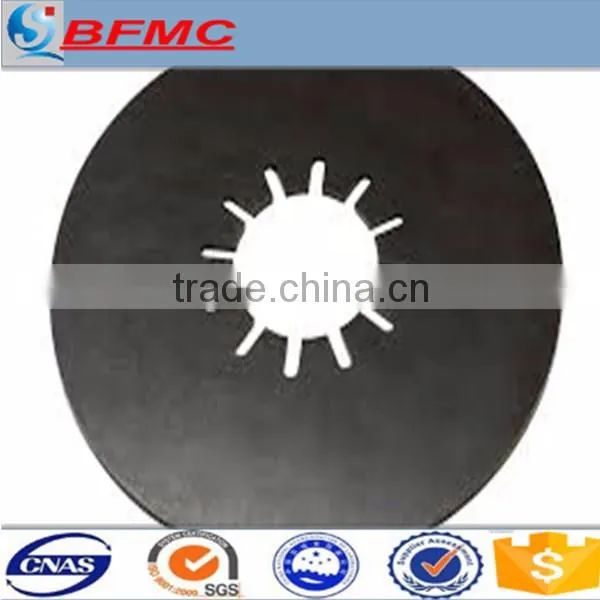

graphite sintered plates for metallurgy
| INTRODUCTION: |
graphite sintered plates for metallurgy
1. Material: high purity graphite
2. Custom graphite mold ingot available
3. Applied in continuous casting, metallurgy, glass casting, types of industries.
Application of graphite sintered plates for metallurgy
non-ferrous metals smelting, including copper, brass, aluminum, gold, silver, precious metals, glass etc.
Advantage
high strength (Flexural strength: 39Mpa Compressive strength: 78Mpa With rising of temperature, graphite strength increases)
high purity (Carbon: 99.5%)
high temperature resistance (graphite material melting point is 3850±50)
good heat shock resistance.
| TECHNICAL SHEET:(COMMON MODELS) |
Technical Specification |
JSMC-3 |
JSMC-4 |
JSMC-5 |
Bulk Density (g/cm3) |
≥1.72 |
≥1.78 |
≥1.85 |
Ash Content (PPM) |
≤1000 |
≤1000 |
≤1000 |
Shore Hardness |
≥40 |
≥40 |
≥45 |
Specific Resistance (μ.Ω.m) |
≤12 |
≤12 |
≤10 |
Flexural Strength (Mpa) |
≥30 |
≥35 |
≥40 |
Compressive Strength (Mpa) |
≥50 |
≥60 |
≥70 |
Max. Grain Size (μm) |
≤43 |
≤43 |
≤43 |
Coefficient of Thermal Expansion Mm/°C |
≤4.5*10-6 |
≤4.5*10-6 |
≤4.4*10-6 |
We can supply below related graphite parts:
various kinds of heating elements, heating chamber, hearth, heating tube, bracket, joint board, graphite adjusting plate, joint part, graphite tie-in of conducting rod, graphite heater, graphite insulated chamber, graphite tray, graphite box for sintering, graphite plate, heater tube, bridge frame, connection patrs, electrode joint, insulation barrel and heat shield for heating system etc.
| PRODUCING TECHNOLOGY: |
1. Quality assurance,we use high grade raw material and do strict inspect during the whole procession. All products adopt GB,ISO,ASTM,BS,JIS and DIN standard as per requirement. ISO, BV, TUV, SGS certified.
2. Provide professional designing solution, field technical assitance and any other consulting.
3. Price advantage, provided by manufacturer directly,save much intermediate fees.
4. Professional team, specialized in refractory production since 2000,with advanced technology and vast experience.
5. High production capacity, fast delivery of goods.
6. 24*7 online service.
7. OEM service available.
