Hot Sale high speed Low Price Spherical roller bearing 21312CC/W33
The Brief Description of Spherical Roller Bearings:
Spherical roller bearing (21312CCW33/21312 CAW33) has two rows of spherical rollers between the sphered raceway in the outer ring and two inner rings raceways inclined at an angle to the bearing axis. Due to the arc center of the raceways in the outer ring and the bearing center are in the same direction, as a result, shaft flexing and misalignment of the bearing seats are compensated. Spherical roller bearing can support axial forces in both directions and high radial forces. They are designed for very high load carrying capacity. Bearings with a tapered bore are also available with an adapter sleeve, locknut and tab washer or with a withdrawal sleeve. When shaft bends by force which causes the inclined between the center of inner ring and the center of outer ring, if the inclined degree not exceed 1-2.5,the bearing can work normally.
1.Internal Structure and Retainer Material Variation
C: Symmetrical roller, Stamped Steel retainer
CA: Symmetrical roller, one-pice brass cage
CTN1: Symmetrical roller, nylon cage
E: Third generation design. improved stress distribution; offer much longer service life than normal designs
Q: Bronze cage
MB: Symmetrical roller,Two-pice brass cage
EM: Symmetrical roller, Special alloy Integral cage.
2.External form chnage
K: Tapered bore bearing,taper is 1:12
K30: Tapered bore bearing,taper is 1:30
N: A snap ring groove on the outer ring
W33: There are three lubrication groove and three lubrication holes in the outer ring.
Details of Spherical Roller Bearing 21312CC/W33:
Specification of Spherical Roller Bearings | |
Bearings type |
Spherical Roller Bearings |
Model number |
21312CC/W33 |
Dimension |
60*130*31mm |
Structure |
Spherical Roller Bearings |
Brand |
SYBR |
Bore Size |
60mm |
Outside Diameter |
130mm |
Precision Rating |
P0P6P5P4 |
Seals Type |
OPEN |
Number of Row |
Double Row |
Place of Origin |
China |
Vibration |
Z1V1, Z2V2,Z3V3 |
Durability |
Last Long |
HS Code |
8482101000 |
Material |
Bearing Steel, Stainless Steel, Carbon Steel |
Standard |
ISO9001:2000 |
Main market abroad |
India, Thailand, Vietnam,Pakistan, Middle East, South Africa |
| Part Number | Bore Diameer | Outside Diameter | Width String | ||||
| 21304 | 20 | 52 | 15 | ||||
| 21305 | 25 | 62 | 17 | ||||
| 21306 | 30 | 72 | 19 | ||||
| 21307 | 35 | 80 | 21 | ||||
| 21308 | 40 | 90 | 23 | ||||
| 21309 | 45 | 100 | 25 | ||||
| 21310 | 50 | 100 | 27 | ||||
| 21311 | 55 | 120 | 29 | ||||
| 21312 | 60 | 130 | 31 | ||||
| 21313 | 65 | 140 | 33 | ||||
| 21314 | 70 | 150 | 35 | ||||
| 21315 | 75 | 160 | 37 | ||||
| 21316 | 80 | 170 | 39 | ||||
| 21317 | 85 | 180 | 41 | ||||
| 21318 | 90 | 190 | 43 | ||||
| 21319 | 95 | 200 | 45 | ||||
| 21320 | 100 | 215 | 49 | ||||
| 21322 | 110 | 240 | 50 | ||||
| 21304 | 20 | 52 | 15 | ||||
| 21305 | 25 | 62 | 17 | ||||
| 21306 | 30 | 72 | 19 | ||||
| 21307 | 35 | 80 | 21 | ||||
| 21308 | 40 | 90 | 23 | ||||
| 21309 | 45 | 100 | 25 | ||||
| 21310 | 50 | 100 | 27 | ||||
| 21311 | 55 | 120 | 29 | ||||
| 21312 | 60 | 130 | 31 | ||||
| 21313 | 65 | 140 | 33 | ||||
| 21314 | 70 | 150 | 35 | ||||
| 21315 | 75 | 160 | 37 | ||||
| 21316 | 80 | 170 | 39 | ||||
| 21317 | 85 | 180 | 41 | ||||
| 21318 | 90 | 190 | 43 | ||||
| 21319 | 95 | 200 | 45 | ||||
| 21320C | 100 | 215 | 47 | ||||
| 21322 | 110 | 240 | 50 | ||||
| 21321 | 105 | 225 | 49 |
Other Series Spherical Roller Bearings:
| 22206 | 22308 | 23020 | 23218 | 23120 | 24015 | 21304 | 24120 |
| 22207 | 22309 | 23022 | 23220 | 23122 | 24018 | 21305 | 24122 |
| 22208 | 22310 | 23024 | 23222 | 23124 | 24020 | 21306 | 24124 |
| 22209 | 22311 | 23026 | 23224 | 23126 | 24022 | 21307 | 24126 |
| 22210 | 22312 | 23028 | 23226 | 23128 | 24024 | 21308 | 24128 |
| 22211 | 22313 | 23030 | 23228 | 23130 | 24026 | 21309 | 24130 |
| 22212 | 22314 | 23032 | 23230 | 23132 | 24028 | 21310 | 24132 |
| 22213 | 22315 | 23034 | 23232 | 23134 | 24030 | 21311 | 24134 |
| 22214 | 22316 | 23036 | 23234 | 23136 | 24032 | 21312 | 24136 |
| 22215 | 22317 | 23038 | 23236 | 23138 | 24034 | 21313 | 24138 |
| 22216 | 22318 | 23040 | 23238 | 23140 | 24036 | 21314 | 24140 |
| 22217 | 22319 | 23044 | 23240 | 23144 | 24038 | 21315 | 24144 |
| 22218 | 22320 | 23048 | 23244 | 23148 | 24040 | 21316 | 24148 |
| 22219 | 22322 | 23052 | 23252 | 23152 | 24044 | 21317 | 24152 |
| 22220 | 22324 | 23056 | 23256 | 23156 | 24048 | 21318 | 24156 |
| 22222 | 22326 | 23064 | 23264 | 23176 | 24052 | 21319 | 23992 |
| 22224 | 22328 | 23068 | 23268 | 24056 | 21320 | ||
| 22226 | 22330 | 23088 | 24060 | 21322 | |||
| 22228 | 22332 | 24064 | 21324 | ||||
| 22230 | 22334 | 24068 | |||||
| 22232 | 22336 | ||||||
| 22234 | 22338 | ||||||
| 22236 | 22340 | ||||||
| 22238 | 22344 | ||||||
| 22240 | |||||||
| 22244 | |

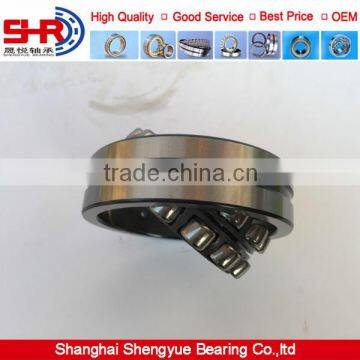

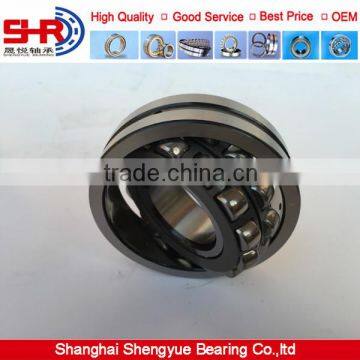

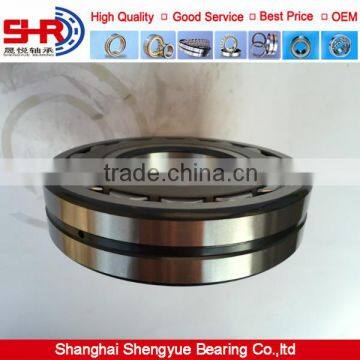

Spherical Roller Bearing Pictures:
Bearings Package:
Original Package:
1):Inner Plastic Bag+ Paper Box + Carton(+Pallet);
2):Small sizes:Plastic Tube + Carton
3):Big sizes:Wooden Case
Bearings Lead time:
We will prepare your order as soon as possible.
1)2-3 days for ex-stock
2)6-10 days for others
Shipping & Delivery time:
1)Less than 45 Kg:DHL TNT Fedex UPS express will be better,( 4-7 days delivered to your address);
2) Between 45 to 200 Kg:Air transiportation will be better,( 5-14 days delivered to your airport);
3) Over 200 Kg:Sea transportation will be better.( Cheapest,18-45 days to your port ).
Note:We will offer the best freight for you to save the shipping cost.Besides we provide all needed documents for your Customs clearance.Of course,your forwarder will be also welcome!
Payment terms:
We accept T/T, Western Union,Paypal,Visa.
1) T/T or WU (we undertake the bank fees):
A:100% payment.
B:30% deposit ,70% before transportation.
2)PayPal (we undertake the transaction fees) :
A:100% payment.
B:30% deposit ,70% before transportation.
3) L/C at sight.
Note :We will take some pictures of your bearings before transportation.
| Price terms | Door to door,FOB,CNF,CFR,CIF,EXW,C&F |
| Shipping Airport |
Shanghai Pudong International Airport Shanghai Hongqiao International Airport |
| Shipping Port | Shanghai,Guangzhou |
Shanghai Shengyue Bearing Co., Ltd. is a professional bearing manufacturer and dealer in China. We have been engaged in bearing industry for 15 years and worked on bearing import and export for more than 8 years. We attend international bearing fairs, put in many B2B websites and achieve many customers all over the world, building up a good reputation from our customers.
We are here:
Our company Information:
| Company name | Shanghai Shengyue Bearing Co.,Ltd |
| Business type | Bearings Supplier & Bearing manufacturer |
| Location | Shanghai City,China |
| Experience | 7 years |
| Supply | Famous brands & Chinese brands bearings |
| OEM service | Providing |
| Our advantages |
1.Most Competitive Price. 2.Help you to choose the best freight. 3.Provide all document for your Customs Clearance. 4.We will undertake the responsibility if there is any problems.
Trustworthiness is the basis of great bussiness.And we have the powerful ability to support your business! |
Our Factory Pictures:
If you are interested in our products,please feel free to send an inquiry or chat with us online.
We will warmly reply you immediately!---SHR Bearing
