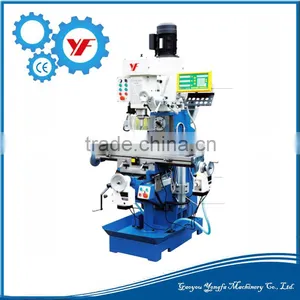

Vertical Horizontal Drilling Milling Machine ZX7550BW Universal Machine

Name: Vertical Horizontal Drilling Milling Machine ZX7550BW Universal Machine
Brand: Yong Fa
SKU: 108634847
Availability: InStock

Vertical Horizontal Drilling Milling Machine ZX7550BW Universal Machine thumbnail-1

Vertical Horizontal Drilling Milling Machine ZX7550BW Universal Machine photo-1

Negotiable MOQ: 10 Sets (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Place of Origin:

Jiangsu, China

Brand Name:

Yong Fa

Contact Supplier Request Quote Chat Now

Gaoyou Yongfa Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Place of Origin Jiangsu, China

Brand Name Yong Fa

Model Number ZX7550BW

Type Vertical

CNC or Not Normal

Voltage Customer Requirement

Power(W) 1.5kw

Dimension(L*W*H) 1290x1220x2300mm

Weight 930 kgs

Certification ISO9001:2008

Warranty 1 Year

After-sales Service Provided No overseas service provided

Product Description

This milling machine has a vertical and horizontal spindle that are designed to remove material from a metal workpiece secured to the work table or a mill vise. The cutting tool is fixed to the rotating spindle and the workpiece is moved into the cutting tool by loweing the spindle or moving the table.

Spindle downfeed options are rapid (coarse) control or slow(fine) control with adjustable auto-downfeed controls.

The wide range of cutting tools and optional avaiable equipment combined with the flexible features of this milling machine makes countless metalworking operations possible.

Technical Parameter

Model	ZX7550BW
Max.drilling dia.	30 mm(R8)
Max.end milling width	100 mm
Max.vertical milling dia.	25 mm
Work table size	800x240 mm
Table travel	400 x 230 mm
Spindle travel	120 mm
Spindle speed range	220-2400, 60-1350
Distance from spindle nose to table surface	70-380 mm
Motor	1.5kw
NW/GW	850/930 kgs
Packing size	1280x1220x2300 mm
