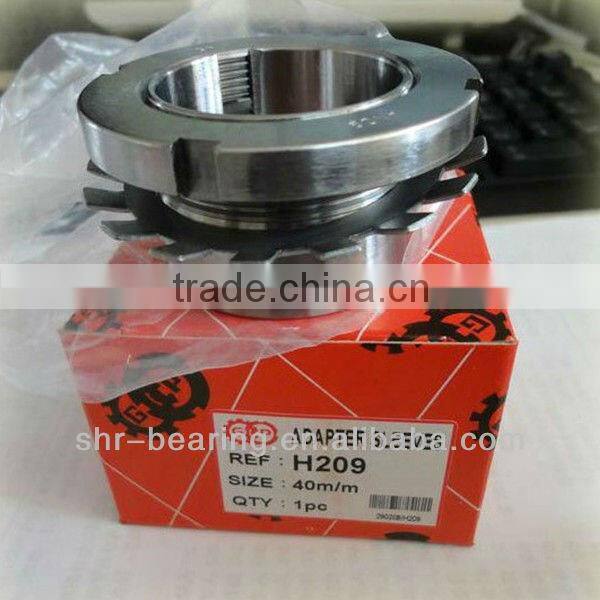

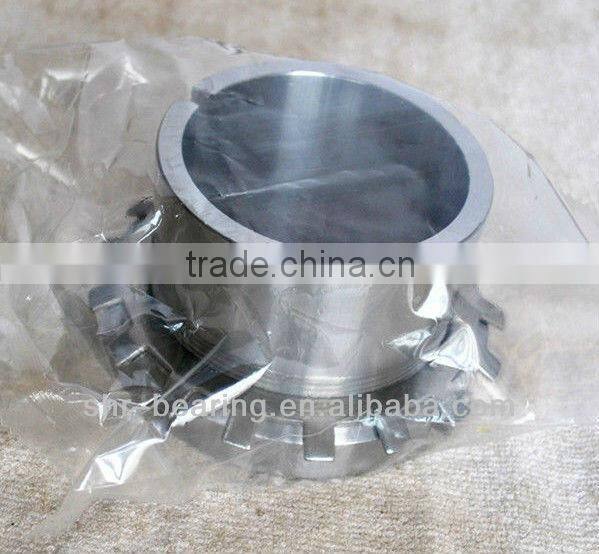

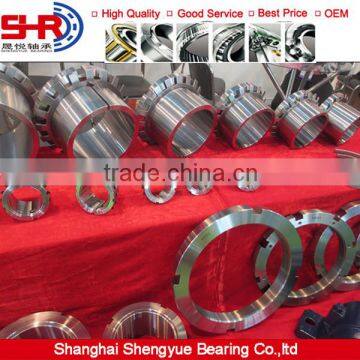

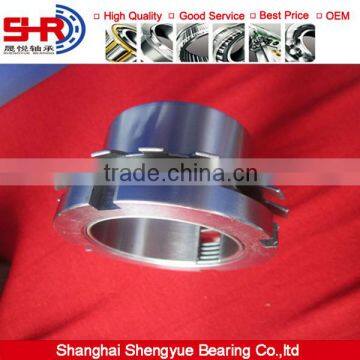

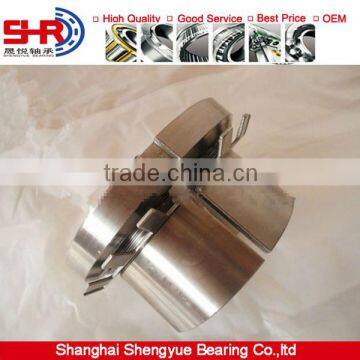

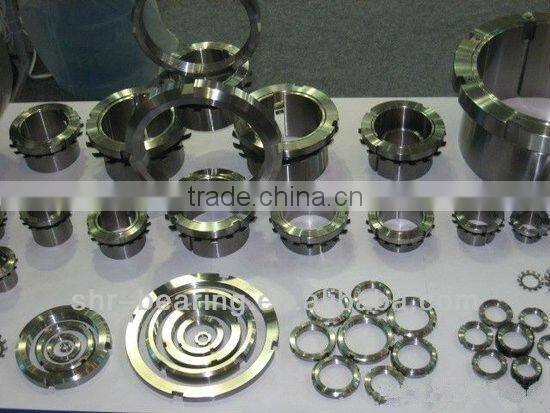

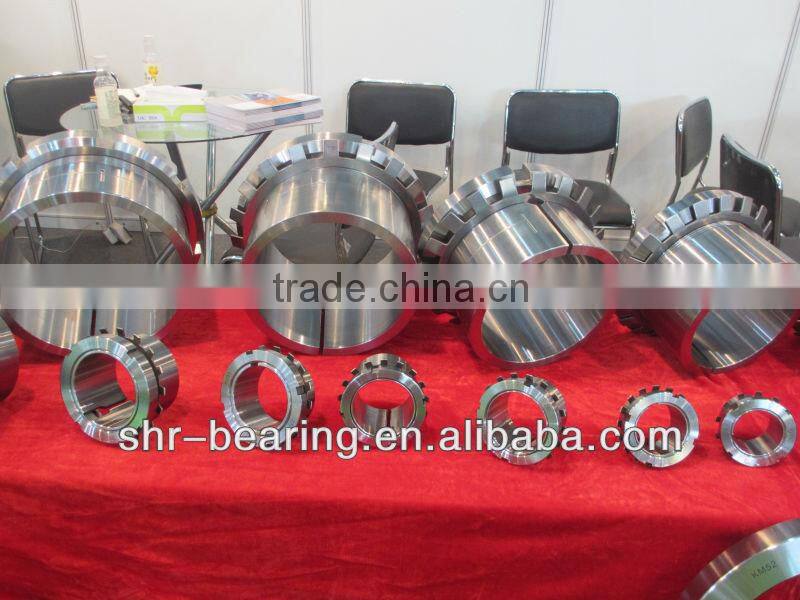

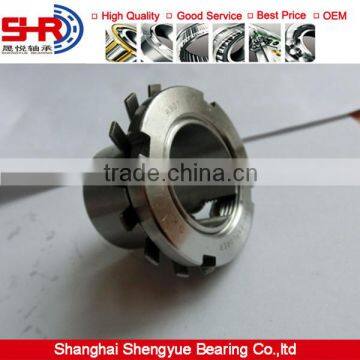

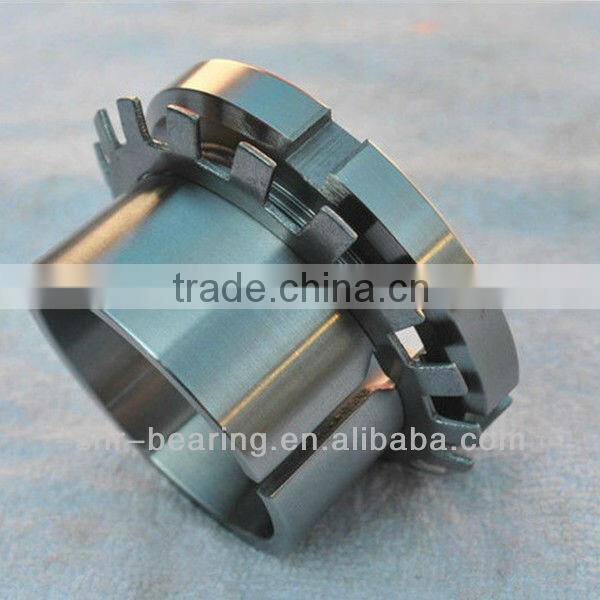

Famous brand china adapter sleeve H2308 bushing and bearing

Famous brand china adapter sleeve H2308 bushing and bearing

1,adapter sleeve H2308 bushing and bearing supply

2,Nut , locknut, lockwasher together used

3,ISO9001:2008 quality guarantee

4,OEM service offer

5,Free sample available

Adapter sleeve H2308 bushing and bearing series specifications

We can supply adapter sleeve: brand adapter sleeve china adapter sleeve

H200 Series: H204 - 222                 H300 Series: H304 - 322

H3100 Series: H3120 - 3196           H3000 Series: H3024 - 3096

H2300 Series: H2304 - 2356           H3200 Series: H3260 - 3296

Adapter Sleeve (H3100):
H3120, H3122, H3124, H3126, H3128, H3130, H3132,
H3134, H3136, H3138, H3140, H3144, H3148, H3152,
H3156, H3160, H3164, H3168, H3172, H3176, H3180,
H3184, H3188, H3192, H3196
Adapter Sleeve (H3000):
H3024, H3026, H3028, H3030, H3032, H3034, H3036,
H3038, H3040, H3044, H3048, H3052, H3056, H3060,
H3064, H3068, H3072, H3076, H3080, H3084, H3088,
H3092, H3096
Adapter Sleeve ( H2300 ):
H2304, H2305, H2306, H2307, H2308, H2309, H2310,
H2311, H2312, H2313, H2314, H2315, H2316, H2317,
H2318, H2319, H2320, H2321, H2322, H2324, H2326,
H2328, H2330, H2332, H2334, H2336, H2338, H2340,
H2344, H2348, H2352, H2356

Adapter sleeve (H) --

Adapter sleeves are the most commonly used components for locating bearings that has a tapered bore, onto cylindrical shaft seating’s as they can be employed both on smooth shafts and stepped shafts.

They are easy to mount and require no additional fixation on the shaft. Using adapter sleeves on smooth shafts, the bearing can be located at any position on the shaft . EESCO adapter sleeves are supplied complete with lock nut and locking device

Adapter sleeve for oil injection (OH) -

These sleeves have an oil supply duct (or ducts) at the threaded side of the sleeve and distributor grooves in the bore as well as the outside surface.

Sleeves up to and including size 40 have on supply duct, larger sleeves have two.

Withdrawal sleeve (AH) --

Withdrawal sleeves can be used to mount bearings with tapered bore on cylindrical seating’s of stepped shafts. The sleeve is pressed into the bore of the bearing that abuts a shaft shoulder or similar fixed component. The sleeve is located on the shaft by a nut or an end plate. The sleeves are slotted and have an external taper of 1:12 or 1:30.

Withdrawal sleeves for oil injection (AOH) --

These AOH sleeves have two oil supply ducts at the threaded side as well as oil distributor grooves in the circumferential and axial directions, both in the outside surface and the sleeve bore. If oil is injected through these ducts and grooves, an oil film is formed between the mating surfaces of the bearing and sleeve and between the shaft and sleeve, and the force required to mount the bearing is considerably reduced

Adapter Sleeve Applications

1. Adapter sleeve is used tofix the conic aperture self-aligning ball bearing (self-aligning ball bearing, self-aligning roller bearing) on the non-bearing shoulder bearing. It is simply structured and its working is reliable. Easy to replace the bearing.

2, Widely applied in the lines of textile, light industry, metallurgy, belt convey and transmission equipment, etc
