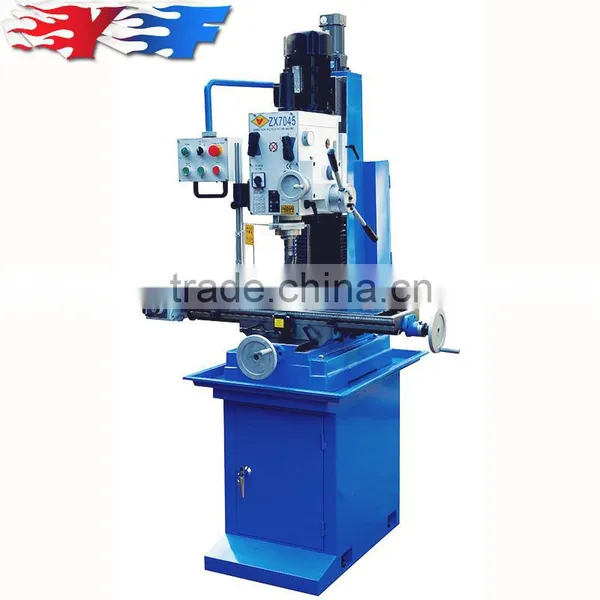

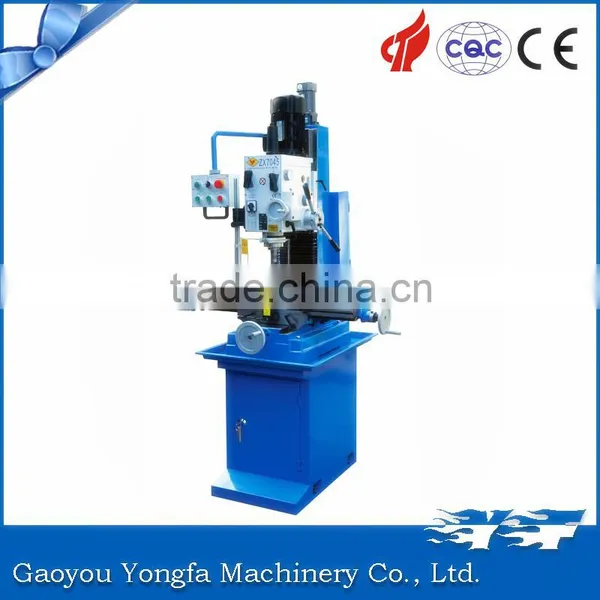

Vertical Drill Milling Machine ZX7045 power
- 100 Set / Sets per Month
- Shanghai port
- T/T Credit Card
- YORNEW Desktop CNC Lathe Machine, education cnc, vocation cnc, hobby cnc, diy cnc
- Industrial 4.0 intelligent manufacturing production line, FMS, CIM, training system
- Industrial 4.0 intelligent manufacturing production line, FMS, CIM, training system
- Industrial 4.0 intelligent manufacturing production line, FMS, CIM, training system
- Industrial 4.0 intelligent manufacturing production line, FMS, CIM, training system
- Industrial CNC Milling Machine, production, Machine Center for steel, stainless
Product Details
Condition: | New | Place of Origin: | Jiangsu, China | Brand Name: | Yong Fa |
Model Number: | ZX7045 | Type: | Vertical | CNC or Not: | Normal |
Voltage: | Customer Requirement | Power(W): | 1.5/1.1kw | Dimension(L*W*H): | 1240x930x2100mm |
Weight: | 480 kgs | Certification: | ISO9001:2008 | Warranty: | 1 Year |
After-sales Service Provided: | No overseas service provided |
Product Description
This machine is a free-standing mill/drill that strikes a great balance between being heavy-duty and high-precision.
The spindle is driven by a an oil-bath-lubricated and gear-driven headstock. The spindle is fully reversible and features both coarse and fine downfeed controls. The six spindle speeds range from 75-3200rpm and are controlled by convenient gear-change levers.
The headstock tilts 90° left/right and moves in the Z-axis along precision dovetailed ways-with both manual and powered elevation control. The table also features both manual and powered X-axis control, but with a manually-controlled Y-axis. All table movement is along scraped dovetail ways.
Milling, drilling, tapping, boring, reaming
Head swivels feed ±90° vertically
Largely dimensioned table
Spindle micro feed(Auto-feed optional)
Heavy-duty tapered roller bearing spindle
Spindle can be locked, headstock power down feed
Adjustable gibs on table
Adjustable stops on table
Gear drive headstock
Accurate position, good rigidity, big cutting power
