High Precision Milling Machinary ZX5015 China

High Precision Milling Machinary ZX5015 China thumbnail-1
High Precision Milling Machinary ZX5015 China photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
Yong Fa
Contact Supplier Request Quote Chat Now
Gaoyou Yongfa Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Jiangsu, China
Brand Name Yong Fa
Model Number ZX5015
Type Vertical
CNC or Not Normal
Voltage Customer Requirement
Power(W) 1.1kw
Dimension(L*W*H) 940x760x1260 mm
Weight 350kg
Certification ISO9001:2008
Warranty 1 Year
After-sales Service Provided No overseas service provided
Product Description

The mill/drill is used to shape metal workpieces by removing material with the use of a rotating cutting tool.

In milling operations, the location of the cutting tool is stationary while the workpiece is fed into the cutter by moving the table.

In drilling operations, the workpiece is held stationary on the table while the cutting tool is fed vertically into the workpiece with the movement of the spindle and head.

This machine is driven by belt.

Technical Parameter
Model
ZX5015
Max.drilling capacity(Iron/Steel)
30/25 mm
Max.milling capacity(Face milling)
76 mm
Max.milling capacity(End milling)
20 mm
Work table size
660x156 mm
Cross/longitudinal travel work table
150mm/360mm
Spindle taper
MT3 or R8
Spindle travel
80 mm
Spindle speed(9 steps)
50HZ:190-2100 rpm   60HZ:230-2520rpm
Max. distance spindle to table
280 mm
Head tilt left right
±45°
Spindle swivel
360°
Motor power
1.1kw
NW/GW
280/310 kgs
Packing size
950x760x1150 mm
Feature

Precision drilling and milling head

Precision ground worktable

Tilting and swiveling head

With Micro-feed hanwheel and quick feed lever

Product Photo
Company Profile

Gaoyou Yongfa Machinery Co., Ltd. is located in the ancient town of Gaoyou City Industrial Park, the plant is favorable geographical position. The company covers an area of over 30,000 square meters, construction area of over 20,000 square meters. More than 380 employees, including more than 50 senior engineers and technicians, with turning, milling, grinding and other metal cutting machinery, testing and other equipment more than 250 sets, and supporting a heat treatment equipment. The main products are bench lathe, milling machine series, machine parts and accessories, power tools and related parts. Products are exported to Europe and America over 50 countries and regions, favored by the users.

Certifications

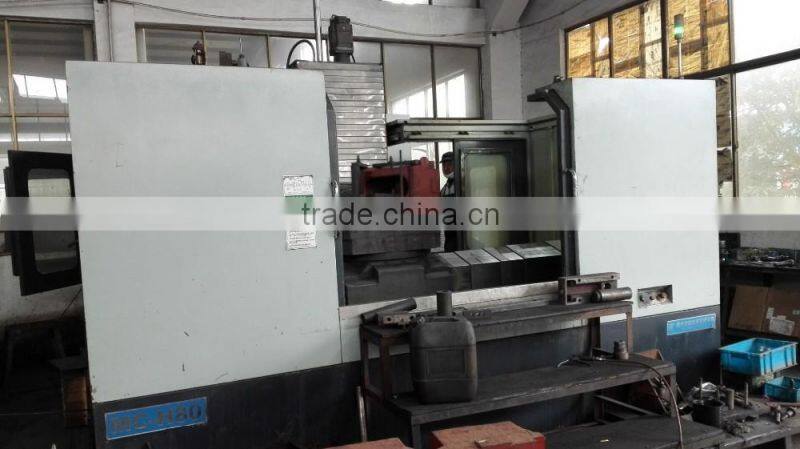

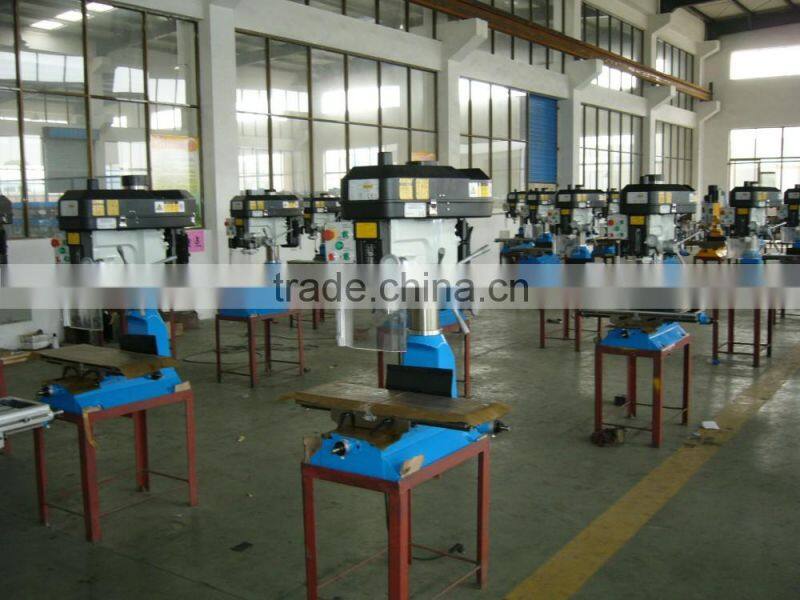

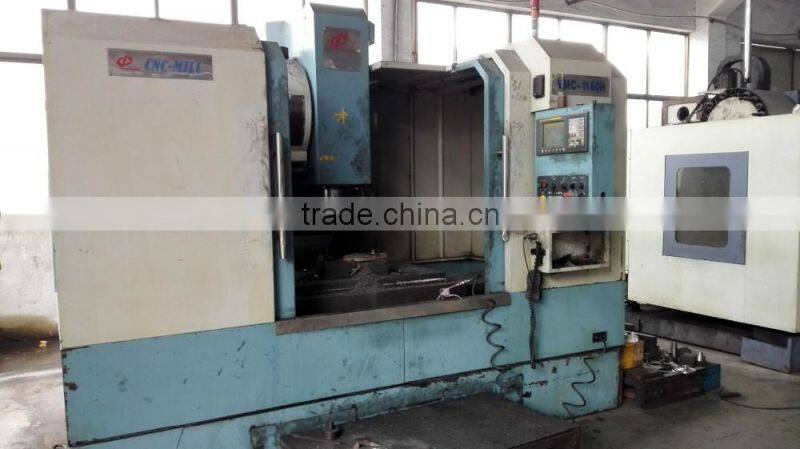

Workshop & Equipment
Contact Us

Together, we make it better

Mr. Elvis
Tel: +86 0514 8454 0912
Fax: +86 0514 8454 0988
Mob: +86 15751633657
QQ:2848376160
Web: http://gysyfjx.en.china.cn

Add: Industrial Park, Gaoyou Town, Gaoyou City, Jiangsu, P.R.China
