V Bearing Glider Bearing LV20/8 ZZ Roulement de Roue v Guide

V Bearing Glider Bearing LV20/8 ZZ Roulement de Roue v Guide thumbnail-1
V Bearing Glider Bearing LV20/8 ZZ Roulement de Roue v Guide thumbnail-2
V Bearing Glider Bearing LV20/8 ZZ Roulement de Roue v Guide thumbnail-3
V Bearing Glider Bearing LV20/8 ZZ Roulement de Roue v Guide photo-1
V Bearing Glider Bearing LV20/8 ZZ Roulement de Roue v Guide photo-2
V Bearing Glider Bearing LV20/8 ZZ Roulement de Roue v Guide photo-3
US$ 0.15 - 6.5 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Brand Name:
SHR
Bore Size:
0, 10
Outside Diameter:
0, 30
Contact Supplier Request Quote Chat Now
Shanghai Shengyue Bearing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai /Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name SHR
Bore Size 0, 10
Outside Diameter 0, 30
Model Number bearing LV20/8
Precision Rating P0 P6 P5 P4
Seals Type ZZ
Number of Row Double Row
Place of Origin Shanghai, China

V bearing glider bearing LV20/8 ZZ roulement de roue v guide









Wire straightening bearing LV20/8 ZZ roulement de roue v guide features:

1) automatic wire straightening bearing supplier
2) Factory price
3) ISO9001:2008 standard
4) LV(RV) SG W V U LFR series
5) OEM & sample available




BEARING DETAILS

V bearing glider bearing roulement de roue v guide concept :

V guide roller bearing is W type roller orientation system of the main parts in, widely used in industrial robot, cutting equipment, mobile guide rail, production lines, etc.



For the two outer wheel had 90 degrees of V W shaped outside surface. Can be used in the lateral side or with 90 degrees in V type or the V type guide rail, also can use side in fit with cylindrical guide adaptation.



The wheel had double row angular contact ball bearing internal structure design and thickness of the outer lane, make the bearing capacity of the roller higher.


V bearing glider bearing roulement de roue v guide LV 20/8 ZZ design draft :

 V bearing glider bearing LV20/8 ZZ roulement de roue v guide


roulement de roue v guide wire straightening bearing LV 20/8 ZZ v bearing series :

Wheels No .
Φdw
mm

Bore
mm

O.D.
mm

Width
mm

Width
mm
A
Angle

Weight


Φdw
D
D
B
C
A
α
G
LV 20/7 ZZ
10
7
22
11
11
14.5
120
17
LV 20/8 ZZ
10
8
30
14
14
18.1
120
49
LV20/10ZZ
10
10
30
14
14
18.1
120
48
LV 202-38 ZZ
10
15
38
17
17
22.25
120
87
LV 202-40 ZZ
10
15
40
18
18
22
120
110
LV 201 ZZ
20
12
41
20
20
28
120
130
LV 201-14.2RS
14
12
39.9
20.1
18
24
100
107
LV 202-41 ZZ
20
15
41
20
20
28
120
116
LV 203 ZZ

20
17
58
25
25
35
120
325
LV 204-57 ZZ

20
20
57
22
22
34.5
120
290
LV 204-58 ZZ

30
20
58
25
25
41
120
310
v



BEARING PICTURES

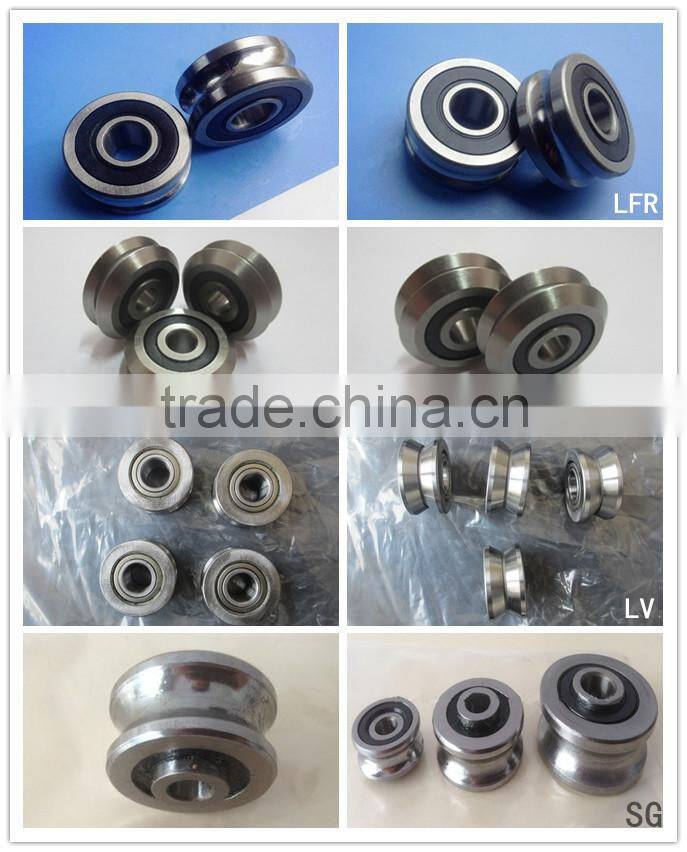

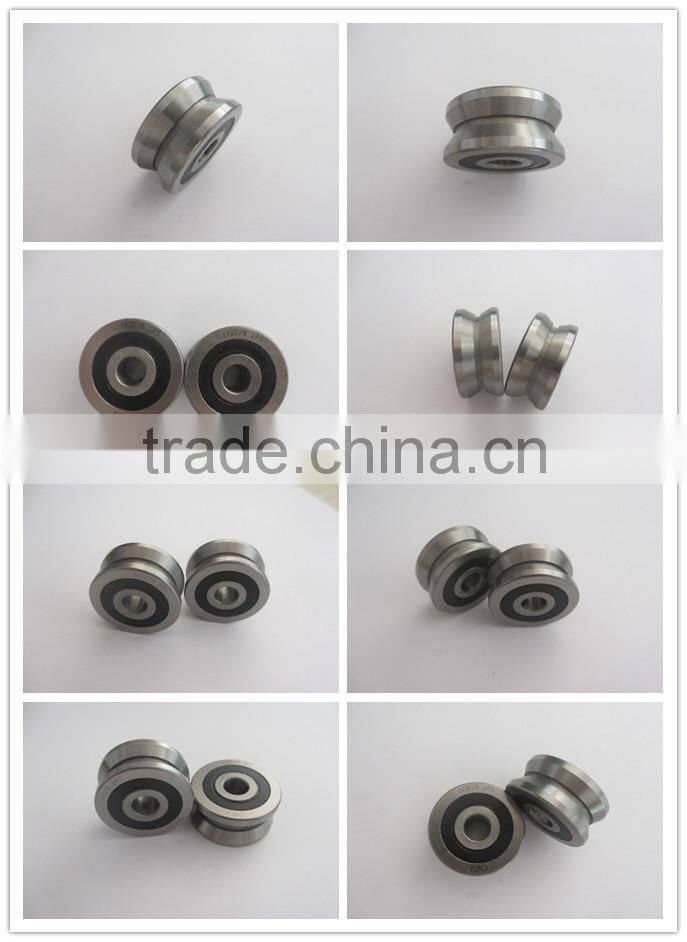

Pictures for roulement de roue v guide wire straightening bearing LV 20/8 ZZ :

V bearing glider bearing LV20/8 ZZ roulement de roue v guide

V bearing glider bearing LV20/8 ZZ roulement de roue v guide





W(RM,VM ) automatic wire straightening bearing series .



Wheels No .

Bore
mm

O.D.
mm
Width
mm
A1
A2
Chamfer r/min
mm

Weight


D1
D
B
A1
A2
R/min
g
W0
4
14.84
6.35
5.94
9.12
0.3
5
 W0X
4
14.84
6.35
5.94
9.12
0.3
5
 W1
4.763
19.56
7.87
7.9.
11.86
0.3
11
 W1X
4.763
19.56
7.87
7.93
11.86
0.3
11
W2
9.525
30.73
11.1
12.7
18.24
0.3
38
 W2X
9.525
30.73
11.1
12.7
18.24
0.3
38
 W3
12
45.72
15.88
19.05
26.98
0.6
130
 W3X
12
45.72
15.88
19.05
26.98
0.6
130
 W4
15
59.94
19.05
25.4
34.93
1
280
 W4X
15
59.94
19.05
25.4
34.93
1
280
 W4XL
22
75.39
25.4
31.75
44.45
1.1
580
 W4XXL
22
75.39
25.4
31.75
44.45
1.1
580
 W1SSX
4.763
19.56
7.87
7.93
11.86
0.3
11
 W2SSX
9.525
30.73
11.1
12.7
18.24
0.3
38
 W3SSX
12
45.72
15.88
19.05
26.98
0.6
130
W4SSX
15
59.94
19.05
25.4
34.93
1
280



V bearing glider bearing LV20/8 ZZ roulement de roue v guide



V bearing glider bearing LV20/8 ZZ roulement de roue v guide

BEARING APPLICATION

Widely used in metallurgy ,mining ,petroleum,chemical,coal,cement ,paper,windpower,heavy machinery ,enginnering machinery,port machinery and other industries.

V bearing glider bearing LV20/8 ZZ roulement de roue v guide

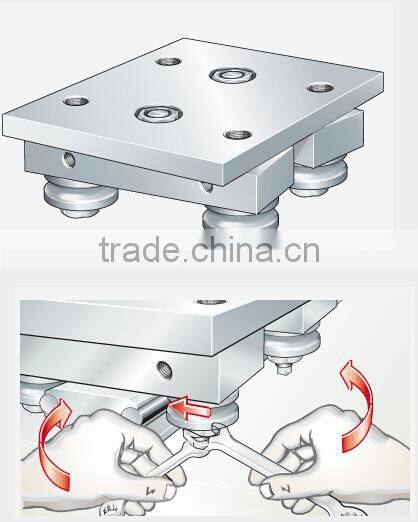

 Automatic wire straightening bearing installation :

  • Place the guideway on the adjacent construction and screw mount finger tight.
  • Align the guideway; if necessary, clamp the shaft against the locating edge and screw mount firmly, observing the tightening torques.
  • Clearance-free carriages: slide the carriage onto the guideway.
  • Carriages with adjustable clearance:
    if lateral load is present, ensure that the principal load is supported by the concentric bolts.
  • Position and screw mount the adjacent construction.

             V bearing glider bearing LV20/8 ZZ roulement de roue v guide





Company introduction

Our company information :

Company name                     shanghai shengyue bearing Co.,Ltd
Business type                                   manufacturer
Established year                                          2012
Business product                              all kinds of bearings
OWN Brand                                            SHR
Export range                                        81%-90%
OEM service                                            offer
     Our                                           advantages

1. More than ten years bearing products exporting experiences.

2. OEM order and non-standard bearing order can be accepted.

3. Many sizes of bearing are available. Large quantity bearing can be provided.

4. To respect customers, you can choose the loading port.

5. A certain number of free sample can be provide to support our customer's after-sale services and warranty.



Trading information :

Price terms

                             EXW FOB CNF CFR, CIF
Payment terms                               L/C ,T/T ,Western Union, Paypal
Express way                              DHL FEDEX TNT UPS
Shipping port                         shanghai ,qingdao ,nongbo, guangzhou
Packing

1.Industrial packaging: plastic bag + kraft paper + carton + plywood pallets;

   plastic tube + carton + plywood pallets;

2. Commercial packing: 1pc/plastic bag + color box + carton + plywood pallets

 Our Factory :

V bearing glider bearing LV20/8 ZZ roulement de roue v guide

 How a bearing be made out ? ---- Production procedures :

V bearing glider bearing LV20/8 ZZ roulement de roue v guide

How we test the bearings ?

V bearing glider bearing LV20/8 ZZ roulement de roue v guide

How we pack and ship the bearing orders ?

V bearing glider bearing LV20/8 ZZ roulement de roue v guide

Shipping express we cooperated :

V bearing glider bearing LV20/8 ZZ roulement de roue v guide

For any questions, please find us !

V bearing glider bearing LV20/8 ZZ roulement de roue v guide



Contact with us :

==================================================================================

Shanghai Shengyue Bearing Co.,Ltd
Contact : Ms. Alice Xiong

Skype : alice.bear01

Tel:+86 18701870126

Email :shr0374(at)

Web:http://shr-bearing.en.china.cn/

Address: Room701,Yizheng Building,No.681 Xincun Road,Putuo District. Shanghai,China.

==================================================================================
