High Voltage Epoxy Resin Embedded Poles Insulator
US$ 20 - 50
MOQ: 4 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Type:
Other, Vacuum, Vacuum
Payment & Shipping
Payment Methods:
Port of Shipment:
xiamen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
24kv Epoxy Resin Material Capacitive InsulatorUS$ 5 - 30MOQ: 5 Pieces -
Company Supply Epoxy Resin Transformer BushingUS$ 5 - 48MOQ: 10 Pieces
-
Epoxy Resin Bushing Screened/ PTG-40.5-1 Screened BushingUS$ 5 - 50MOQ: 10 Pieces
-
High Quality 33-40.5kv Screened Bushing/PTG-40.5-2 InsulatorUS$ 5 - 50MOQ: 10 Pieces
-
Manufacture High Quality 36-40.5kv Through Wall Bushing InsulatorUS$ 3 - 30MOQ: 10 Pieces
Place of Origin
Fujian, China
Type
Other, Vacuum, Vacuum

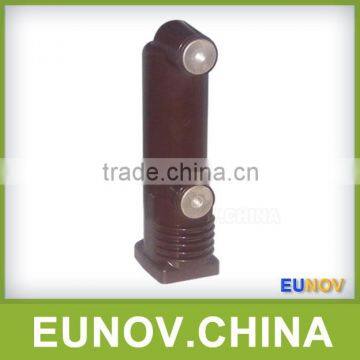

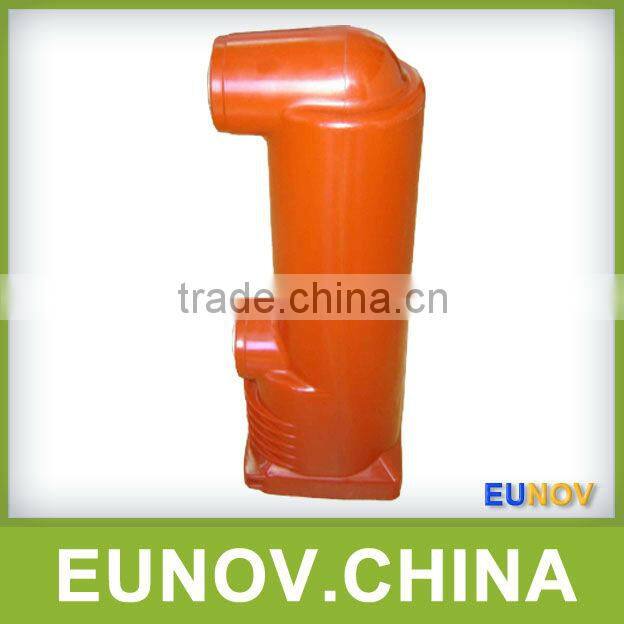

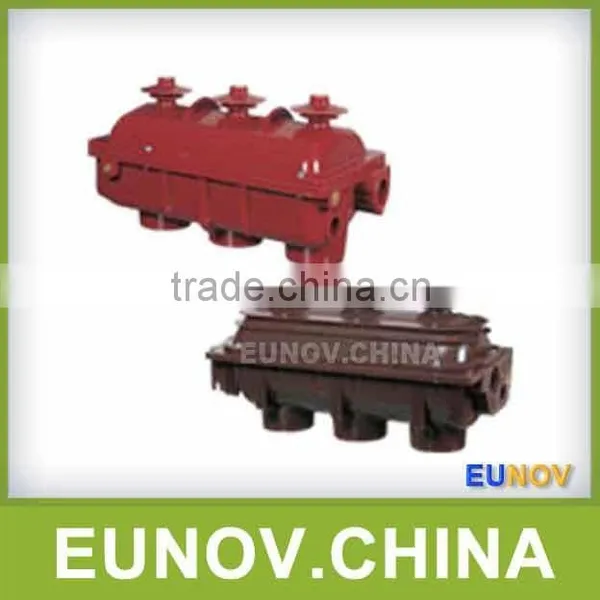

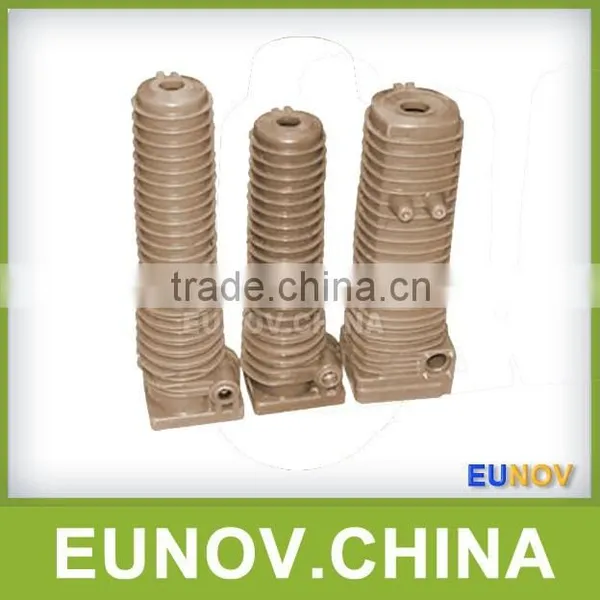

1.Pictures of Embedded Poles

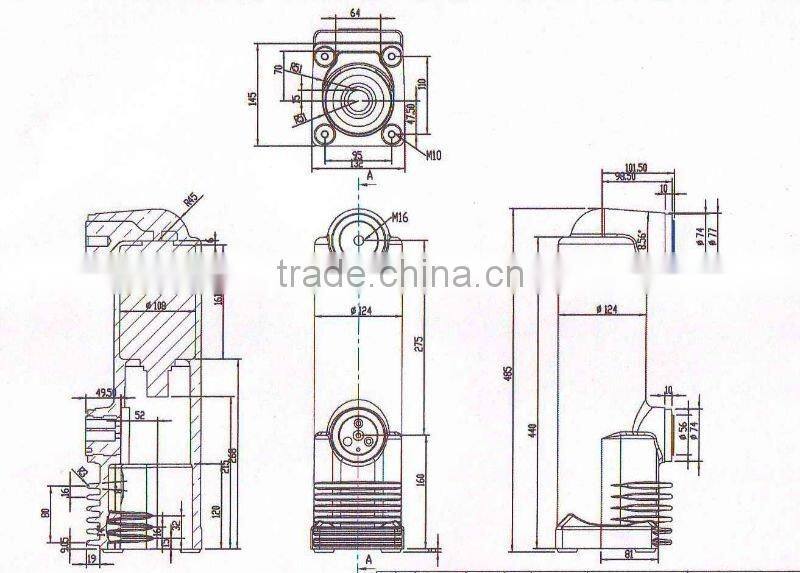

2.Pictures of Oringin Design
3.Advantages
4.Company Profile

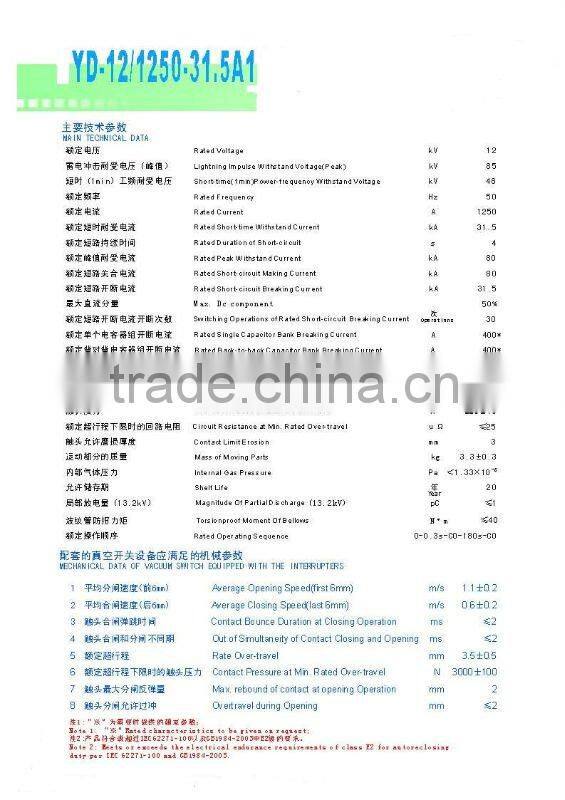

| 1.Rated Frequency | 50/60Hz |
| 2.Rated Maximum Line to Line Voltage | 12kV,r.m.s |
| 3.Rated Power Frequency Withstand Voltage:Air | 48kV,r.m.s |
| 4.Rated Impulse Withstand Voltage:Air | 95kV,Peak |
| 5.Rated Normal Current | 1250A |
| 6.Rated Short-Circuit Current(3Phase Symmetrical Basis) | 25kA,r.m.s |
| 7.Percentage D.C. Component of Rated S.C. Breaking Current | 50% |
| 8.Rated Short-Circuit Making Current | 63kA,Peak |
| 9.Rated Duration of Short Time Current | 3s |
| 10.Rated Short Time Withstand Current | 25kA,r.m.s |
| 11.Rated Peak Withstand Current | 63kA,r.m.s |
| 12.Maximum Contact Resistance at Minimum Closing Force | 20Micro ohms |
| 13.Capacitor Switching Capacity(Single Bank) | 400A,r.m.s |
| LIFE (ESTIMATED) | |
| 1.Electrical Life at Rated Normal Current | 30,000Operations |
| 2.Electrical Life at Rated Short Circuit Current | 50Operations |
| 3.Mechanical Life | 30,000Operations |
| 4.Contact Erosion Limit | 3mm |
| 5.Shelf Life | 30Years |
