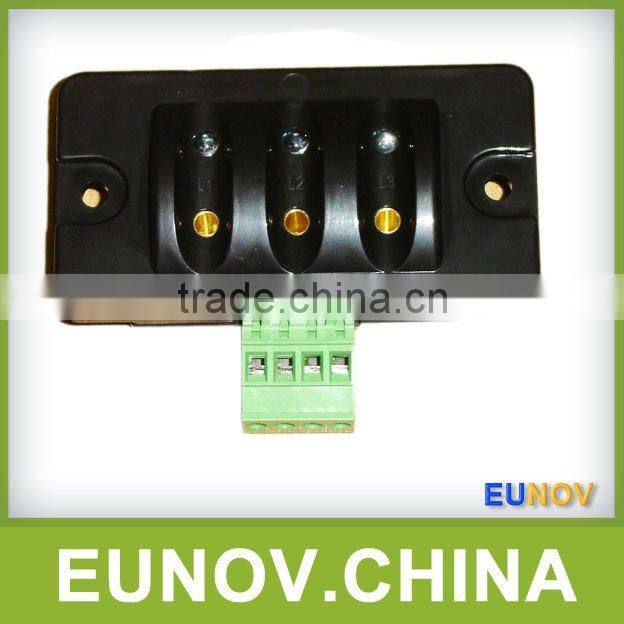

EVI(or DXN –T), integrated enduring voltage indicating system:three phase efficient LED indicates
the presence of voltage, no auxiliary voltage is needed.
Nominal frequency: 50, 69Hz
For indoor electric divices with rated voltage:> 1 kV
Signal situations:
Threshold voltage: 4-5 V
Uo<10% Un, no voltage signalling (alternative)
Uo>15% Un, voltage signalling
Uo>45% Un, normal voltage signalling
Connecting lead: 1—12 m
Ambient temperature range: -25--+55°C
Safe voltage for interface:< 30 V
Protective system: IP42 (IP54)
Dimensions (WxHxD):96 x 48 x 110 mm, cut dimensions
on panel: 91 x 44 mm
Adapted sensors:
Capacitive insulators with 10pF (40.5kV), 15pF (24kV),
20pF (12kV), 40pF(7.2kV), etc.
Caoacitive insulators or bushings with capacitive tap
with equivalent coupling capacity and voltage level as
mentioned above,Customized for individual solutions.
