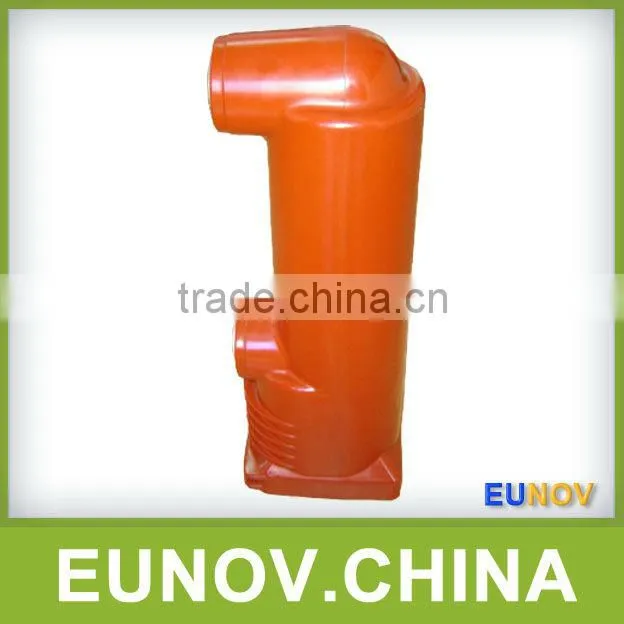

Electronic Component Vacuum Circuit Breaker

Name: Electronic Component Vacuum Circuit Breaker
Brand: EUNOV, EUNOV
SKU: 108630683
Availability: InStock

US$ 6 - 50 MOQ: 10 Pieces

Key Specifications

Place of Origin:

Fujian, China

Brand Name:

EUNOV, EUNOV

Model Number:

SIS

EUNOV (Xiamen) Electrical Engineering Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Xiamen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Fujian, China

Brand Name EUNOV, EUNOV

Model Number SIS

Type Other, Insulator, Electronic Component Vacuum Circuit Breaker

Material Other, Epoxy Resin, Epoxy Resin

Application High Voltage

Rated Voltage 12kv

Tensile Strength >10kn

						Cushiony silicone inside
electronic component vacuum circuit breaker ve1
No.	Art.			Unit	Technical parameter
1	Rated voltage			Kv	12
2	Rated current			A	630/1250/1600
3	Rated insulated level	1min Power frequency withstand voltage		Kv	42
		Lighting impulse withstand voltage(Peak value)		Kv	75
4	Rated frequency			Hz	50
5	Rated short circuit breaking current(virtual value)			kA	20/25/31.5
6	Rated peak value withstand current			kA	50/63/80
7	4 second short time withstand current			kA	20/25/31.5
8	Times of rated short circuit current breaking			times	100
9	Mechanism life			times	100000
10	Life-span of electricity(rated current)			times	50000
11	The abrasion thickness of dynamic and still contactor			mm	3
12	The distance of contactors			mm	8
13	Range of the contactor			mm	4
14	Test for temperatures rising				1.1×1r
15	Suitable environment		Running environment temperature		-25~+50
			Altitude of running evironment	m	≤2500
16	Relative humidity			Average value of daily relative humidity≤95% Average value of monthly relative humidity≤90%
