Tapered/spherical/Cylindrical/Thrust rodamientos patines all types of roller bearings
Tapered/spherical/Cylindrical/Thrust rodamientos patines all types of roller bearings :

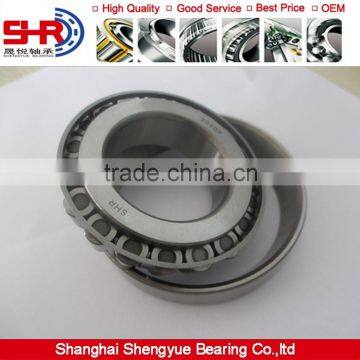

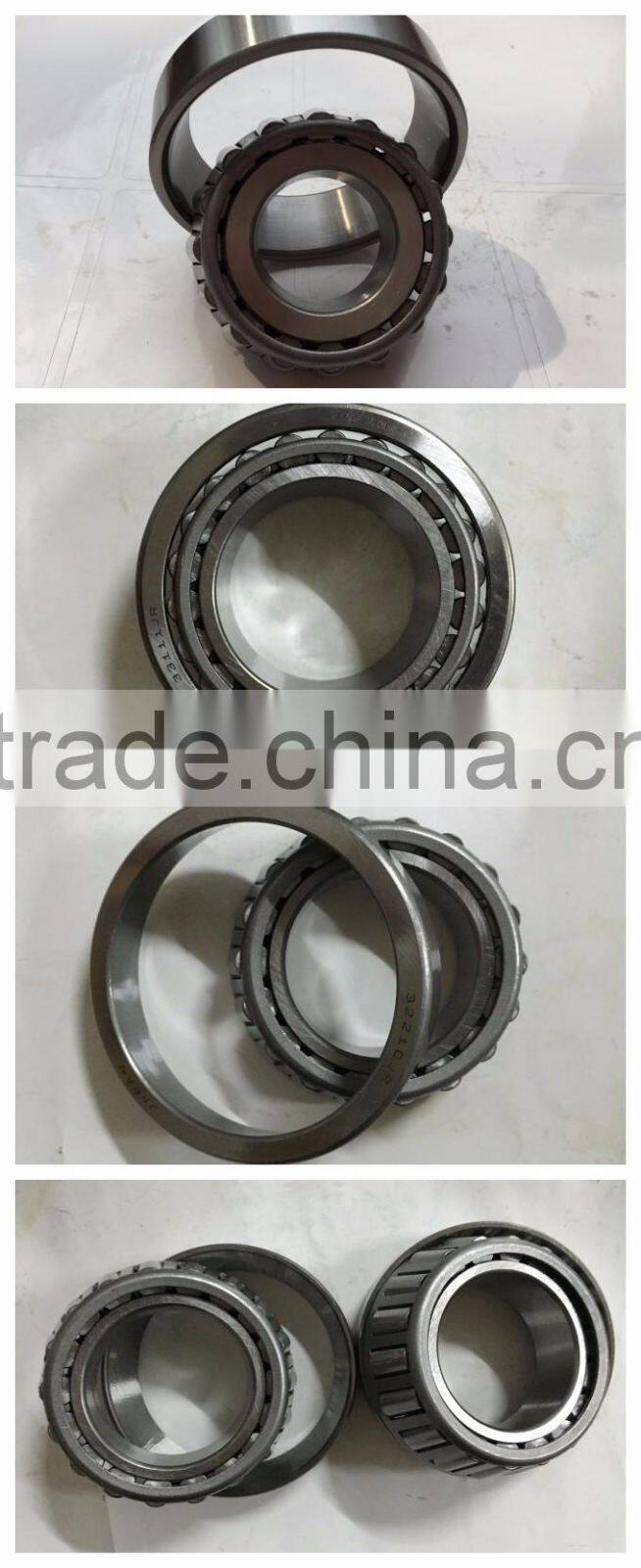

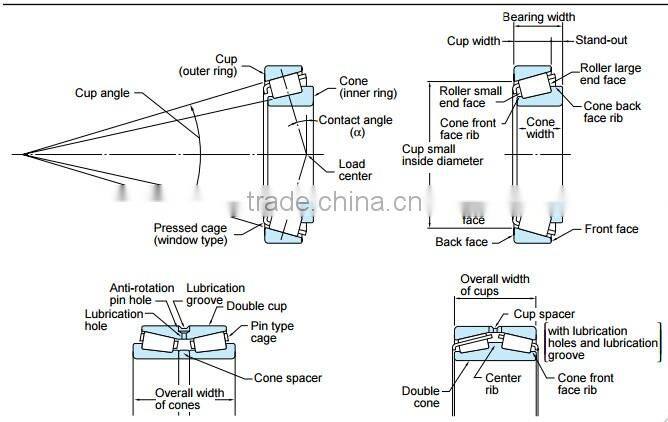

Tapered roller bearings are generally separable, i.e. the cone, consisting of the inner ring with roller and cage assembly, can be mounted separately from the cup . This type of bearings use conical rollers guided by a back-face rib on the cone. These bearings are capable of taking high radial loads and axial loads in one direction.
Tapered roller bearings series:
single row tapered roller bearings
paired single row tapered roller bearings
double row tapered roller bearings
four-row tapered roller bearings
Inch size type tapered roller bearings rodamientos patines series : ( Inch series ) LM,M,HM,L,JW,EE,NA,LL
Tapered Roller Bearing
SET50 02872/02820 SET51 15106/15245 SET52 25580/25520 SET53 25580/25523 SET54 25590/25520 SET55 25590/25523 SET56 LM29748/LM29710 SET57 31594/31520
SET58 LM48548A/LM48510 SET59 LM48548A/LM48511A SET60 LM48548/LM48511A SET61 11590/11520 SET62 17887/17831 SET63 M88048/M88010 SET64 HM903249/HM903210
SET65 M86647/M86610 SET66 368S/362 SET67 HM88649/HM88610 SET68 497/493
SET69 LM501349/LM501314 SET70 LM29749/LM29710 SET71 LM67049A/LM67010
Roller bearings series----Spherical roller bearings rodamientos patines we can supply :
Spherical roller bearing : CA / M type (CC E CA M / c3 w33 type we can offer )
Self aligning roller bearing series :, bearing made in china chian supplier
23024 CCW33 24024 CCW33 23124 CCW33 24124 CCW33 23224 CCW33
22324 CCW33 23026 CCW33 24026 CCW33 23126 CCW33 24126 CCW33
23226 CCW33 22326 CCW33 23028 CCW33 24028 CCW33 22330 CCW33
23128 CCW33 24128 CCW33 22228 CCW33 23228 CCW33 22328 CCW33
23030 CCW33 24030 CCW33 23130 CCW33 24130 CCW33 22230 CCW33
23230 CCW33 22224E 22226 E 23032 CCW33 24032 CCW33 23132 CCW33 22232 CCW33 23232 CCW332 23234 CCW33 22334 CCW33 23936 CCW33

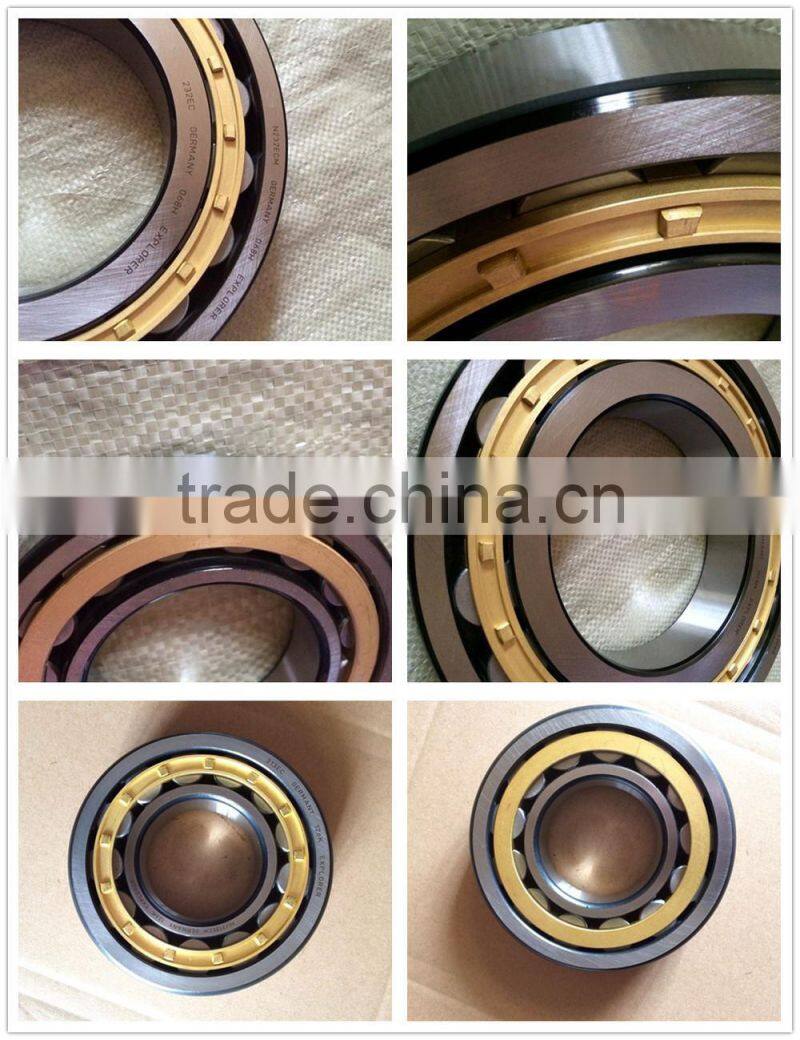

Roller bearings series ---- Cylindrical Roller Bearing rodamientos patines Series we can supply :
Cylindrical roller bearings series :
Tapered Roller Bearing
NU1996MA NU202ECP NU203ECP NU204ECP NU205ECP NU206ECP NU206ECJ NU207ECM NU207ECP NU208ECJ NU208ECP NU208ECM NU209ECJ NU209ECM NU208ECP NU209ECJ NU209ECM NU209ECM NU210ECJ NU210ECM NU210ECP NU211ECJ NU211ECM NU211ECP NU212ECJ NU212ECM NU212ECP NU213ECJ NU213ECM NU213ECP NU214ECJ NU214ECM NU214ECP NU215ECJ NU215ECM NU215ECP NU216ECJ NU216ECM NU216ECP NU217ECJ NU217ECM NU217ECP NU218ECJ NU218ECM NU218ECP NU219ECPJ NU219ECM NU219ECP NU220ECJ NU220ECM NU220ECP NU2203ECP NU2204ECP NU2205ECP NU2206ECP NU2207ECJ NU2207ECP NU2208ECP NU2209ECP NU221ECJ NU221ECP NU2210ECM NU2210ECP NU2211ECJ

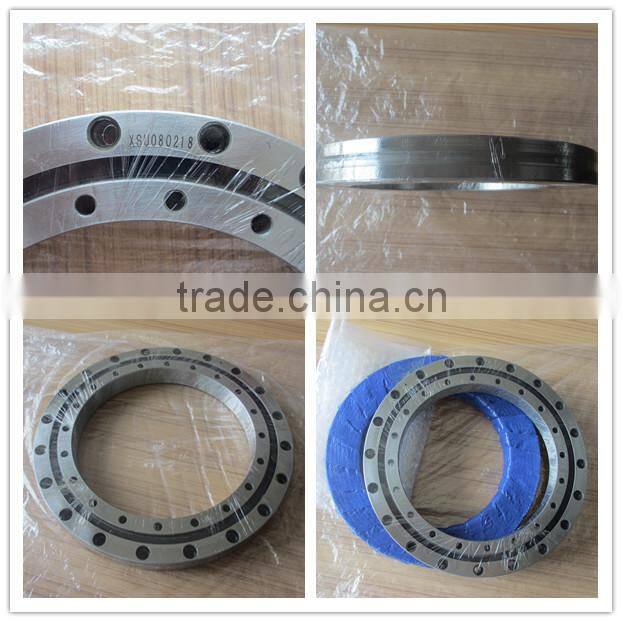

Roller bearings series ---- Cross roller bearings rodamientos patines we can supply :
Crossed roller bearing is based on cylindrical roller being arranged vertically to each other in a 900 V groove rolling surface through the isolation piece, so cross roller bearing can withstand load from multi-direction, like: Radial, axial and torque. Since the cross roller ring achieves high rigidity and the precision can reach up to P2, P4, despite the mininum possible dimensions of the inner and outer rings, it is optimal for applications such as industrial robot, rotation of the machining center, precision rotary worktable, medical machine, calculator, military industry, IC manufacturing devices and other equipments.
| XSU080168 | 130x205x25.4 mm |
| XSU080188 | 150x225x25.4 mm |
| XSU080218 | 180x255x25.4 mm |
| XSU080258 | 220x295x25.4 mm |
| XSU080318 | 280x355x25.4 mm |
| XSU080390 | 360x435x25.4 mm |
| XU050077 | 40x112x22 mm |
| XU060094 | 57x140x26 mm |
| XU080120 | 69x170x30 mm |
| XU080149 | 101.6x196.85x22.22 mm |
| XU120179 | 124.5x234x35 mm |
| XU120222 | 140x300x36 mm |
| XU160260 | 191x329x46 mm |
| XU080264 | 215.9x311x25.4 mm |
Crossed roller bearings RB series:
RB4010,RB4510,RB5013,RB6013,RB7013,RB8016,RB9016,RB10016,RB10020,RB11012,RB11015,RB11020,RB12016,RB12025,RB13015,RB13025,RB14016,RB14025,RB15013,RB15025,RB15030,RB16025,RB17020,RB18025,RB19025,RB20025,RB20030,RB20035,RB22025,RB24025,RB25025,RB25030,RB25040,RB30025,RB30035,RB30040,RB35020,RB40035,RB40040,RB45025,RB50025,RB50040,RB50050,RB60040,RB70045,RB80070,RB90070,RB1000110,RB1250110

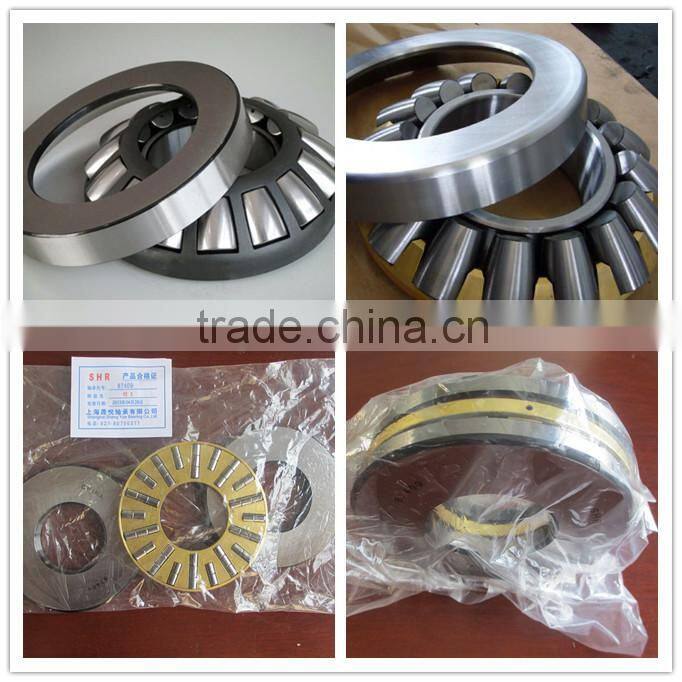

Roller bearings series ---- Thrust roller bearings
| Bearing No. | Size(mm) | |||
| New | d | D | T | E |
| 29413 | 65 | 140 | 45 | 42 |
| 29414 | 70 | 150 | 48 | 44 |
| 29415 | 75 | 160 | 51 | 47 |
| 29416 | 80 | 170 | 54 | 50 |
| 29317 | 85 | 150 | 39 | 50 |
| 29417 | 180 | 58 | 54 | |
| 29318 | 90 | 155 | 39 | 52 |
| 29418 | 190 | 60 | 56 | |
Roller bearings ----- Needle roller bearings series :
Needle roller bearing production range :
Drawn cup needle roller clruches |
HF / HF..KF/HF..R/HFL/RCB/FCB/NHF |
| Mertic and inch drawn cup caged needle roller bearings | BK/HK/BK..RS/HK..RS/HK..2RS |
| Thrust needle / cylindrical roller bearing and cage assemblies | AXK/AX/AXW/AS/K811 K812/LS/GS |
| Radial needle roller and cage assemblies | K/KK/KZK/KBK |
| Radial needle roller bearings | NKI/NKIS/NA/NK/NKS/NA49..RS/RNA49..RS |
| Drawn cup line ball bearings | KH..2RS/KH |
| Yoke type track rollers/stud type track rollers | NATV/NATR/KR/KRV |
| Clutch bearing EWC series / 1wc series | EWC/1WC |
| Needel roller -cylindrical roller thrust bearings | RAX700/RAXF700/RAX400/RAX500 |
| Combined radial thrust bearings | ZARN/ZARF/ZARF..L |
| Single-direction load capailitya | NKIA |
| Needle rollers | NR(A SERIES) NR(B SERIES) |
| Inner ring | IR LR |
Application for roller bearings rodamientos patines :
Widely used in metallurgy ,mining ,petroleum,chemical,coal,cement ,paper,windpower,heavy machinery ,enginnering machinery,port machinery and other industries.
Know more about our bearings :
1. Inspection of bearing and judgment :
In order to determine whether removing bearings can be used to check after the bearings clean, carefully check the roller surface, scroll, status of the mating surfaces, wear of the cage, the increase in bearing clearance and there's no falling damage, abnormal size precision. Non-separation of small ball bearings, supporting inner rings with one hand horizontally, rotate the outer ring to confirm in a smooth rotation State. Tapered roller bearings are separable bearings, rolling element and the Raceway in the outer ring can be respectively checked. Larger bearings cannot rotate, check rolling element and the Raceway, cage, sidewall surface appearance. the importance of as high as possible shall be carefully inspected.
2 .Bearing damage reasons analyse :
Our company information :
| Company name | shanghai shengyue bearing Co.,Ltd |
| Business type | manufacturer |
| Established year | 2012 |
| Business product | all kinds of bearings |
| OWN Brand | SHR |
| Export range | 81%-90% |
| OEM service | offer |
| Our advantages |
1. More than ten years bearing products exporting experiences. 2. OEM order and non-standard bearing order can be accepted. 3. Many sizes of bearing are available. Large quantity bearing can be provided. 4. To respect customers, you can choose the loading port. 5. A certain number of free sample can be provide to support our customer's after-sale services and warranty. |
Trading information :
| Price terms | EXW FOB CNF CFR, CIF |
| Payment terms | L/C ,T/T ,Western Union, Paypal |
| Express way | DHL FEDEX TNT UPS |
| Shipping port | shanghai ,qingdao ,nongbo, guangzhou |
| Packing |
1.Industrial packaging: plastic bag + kraft paper + carton + plywood pallets; plastic tube + carton + plywood pallets; 2. Commercial packing: 1pc/plastic bag + color box + carton + plywood pallets |
How a bearing be made out ? ---- Production procedures :
Shipping express we cooperated :
For any questions, please find us !
Hot sale roller bearings :
Contact with us :
==================================================================================
Shanghai Shengyue Bearing Co.,Ltd
Contact : Ms. Alice Xiong
Skype : alice.bear01
Tel:+86 18701870126
Email :shr0374(at)
Web:http://shr-bearing.en.china.cn/
Address: Room701,Yizheng Building,No.681 Xincun Road,Putuo District. Shanghai,China.
==================================================================================
For more needs, welcome to contact us .Thank you !
