Cast steel Plummer block bearing holder UCP205 chumaceras SNL UCF UCP conveyor roller bearing housing
Cast steel Plummer block bearing holder UCP205 chumaceras SNL UCF UCP conveyor roller bearing housing introduction :
Bearing housing Cast steel 1 inch pillow block bearing UCP205-16 cross reference is a type of bearing that is housed within a cast-iron mounting bracket that doubles as the outer housing for the bearing. Typically manufactured from a gray cast iron, the pillow block bearing housing has provisions to allow the housing to be bolted down snugly. The inner bearing component of the pillow block bearing is commonly a soft metalmaterial, such as white metal, while the outer housing can be a split or single housing. Primarily designed for low-torque, minimal-load situations, this bearing is also designed to be used in clean environments within an industrial setting.

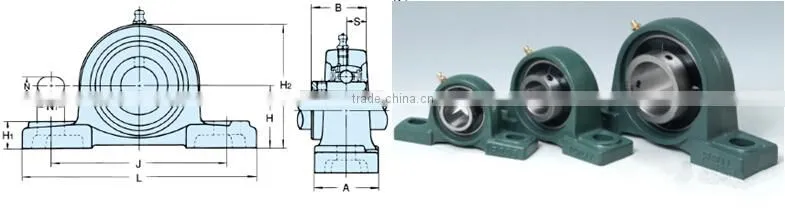

| Bearing Unit | Shaft Dia. | Dimensions(mm) | Bearing No. | Housing No. | Weight(kg) | ||||||||
| d(mm) | h | a | e | b | s | g | w | Bi | n | ||||
| UCP201 | 12 | 30.2 | 127 | 96 | 38 | 19 | 15 | 62 | 31.0 | 12.7 | UC201 | P201 | 0.63 |
| UCP202 | 15 | 30.2 | 127 | 96 | 38 | 19 | 15 | 62 | 31.0 | 12.7 | UC202 | P202 | 0.61 |
| UCP203 | 17 | 30.2 | 127 | 96 | 38 | 19 | 15 | 62 | 31.0 | 12.7 | UC203 | P203 | 0.59 |
| UCP204 | 20 | 33.3 | 127 | 96 | 38 | 19 | 15 | 65 | 31.0 | 12.7 | UC204 | P204 | 0.61 |
| UCP205 | 25 | 36.5 | 140 | 105 | 38 | 19 | 16 | 70 | 34 | 14.3 | UC205 | P205 | 0.74 |
| UCP206 | 30 | 42.9 | 165 | 121 | 48 | 21 | 18 | 83 | 38.1 | 15.9 | UC206 | P206 | 1.15 |
| UCP207 | 35 | 47.6 | 167 | 126 | 48 | 21 | 19 | 92 | 42.9 | 17.5 | UC207 | P207 | 1.40 |
| UCP208 | 40 | 49.2 | 184 | 136 | 54 | 21 | 19 | 98 | 49.2 | 19.0 | UC208 | P208 | 1.78 |
| UCP209 | 45 | 54.0 | 190 | 146 | 54 | 21 | 20 | 106 | 49.2 | 19.0 | UC209 | P209 | 2.00 |
| UCP210 | 50 | 57.2 | 206 | 159 | 60 | 25 | 22 | 112 | 51.6 | 19.0 | UC210 | P210 | 2.55 |
| UCP211 | 55 | 63.5 | 219 | 171 | 60 | 25 | 22 | 126 | 55.6 | 22.2 | UC211 | P211 | 3.2 |
| UCP212 | 60 | 69.8 | 241 | 184 | 70 | 25 | 25 | 137 | 65.1 | 25.4 | UC212 | P212 | 4.4 |
| UCP213 | 65 | 76.2 | 265 | 203 | 70 | 29 | 27 | 150 | 65.1 | 25.4 | UC213 | P213 | 5.1 |
| UCP214 | 70 | 79.4 | 266 | 210 | 72 | 31 | 27 | 156 | 74.6 | 30.2 | UC214 | P214 | 5.7 |
| UCP215 | 75 | 82.6 | 275 | 217 | 74 | 31 | 28 | 163 | 77.8 | 33.3 | UC215 | P215 | 6.3 |
| UCP216 | 80 | 88.9 | 292 | 232 | 78 | 31 | 30 | 175 | 82.6 | 33.3 | UC216 | P216 | 7.6 |
| UCP217 | 85 | 95.2 | 310 | 247 | 83 | 31 | 32 | 187 | 85.7 | 34.1 | UC217 | P217 | 9.2 |
| UCP218 | 90 | 101.6 | 327 | 262 | 88 | 33 | 34 | 200 | 96.0 | 39.7 | UC218 | P218 | 11.4 |

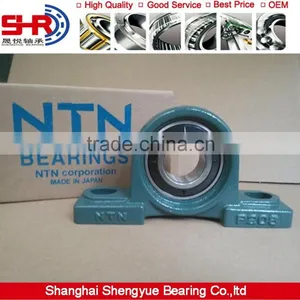

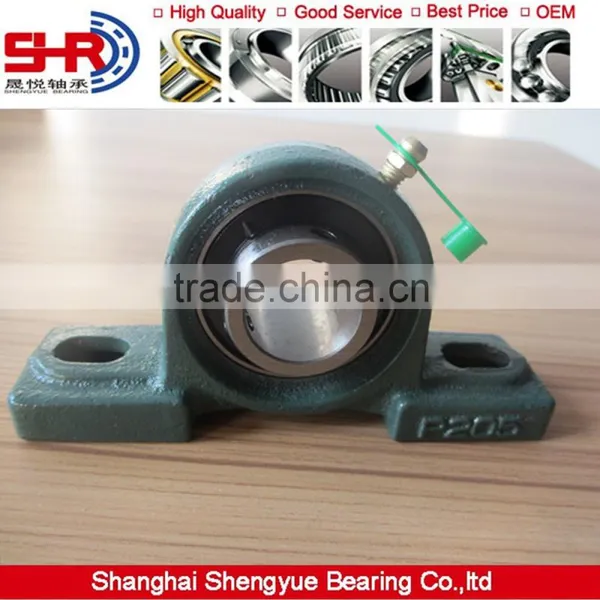

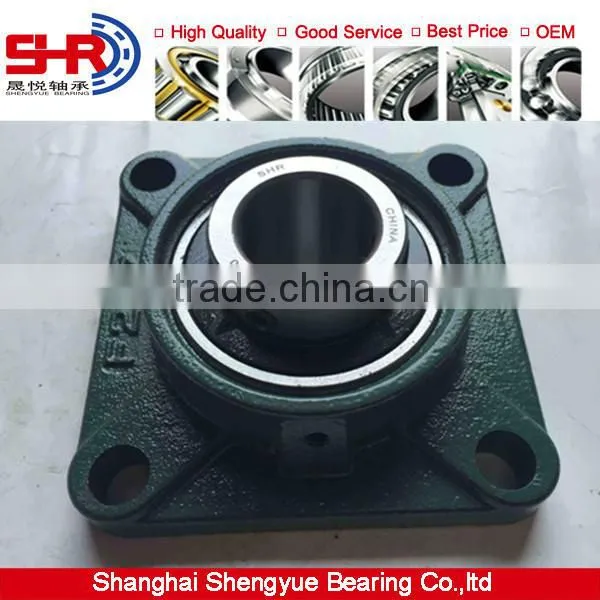

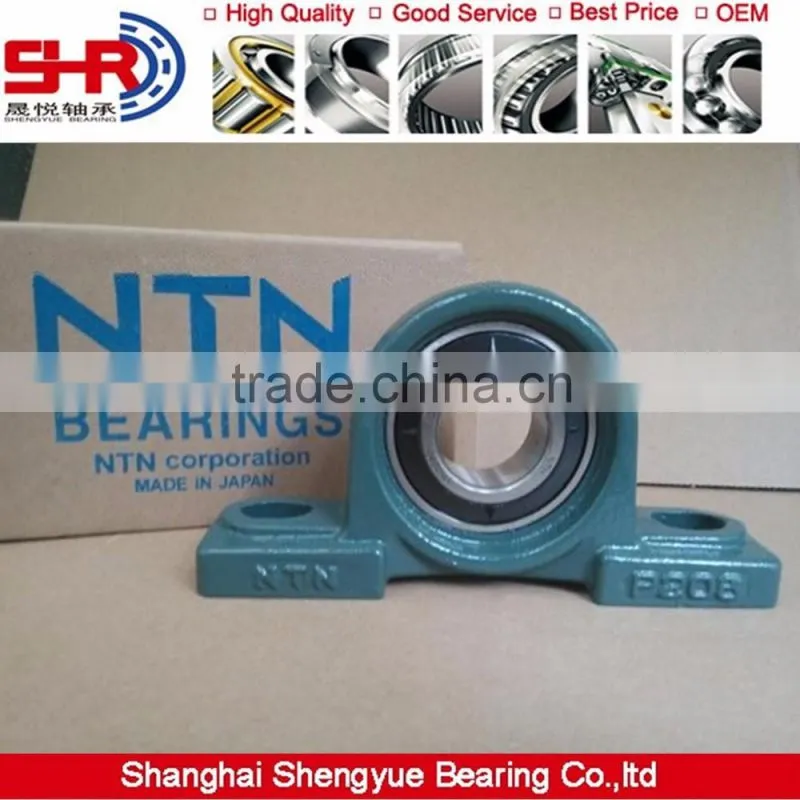

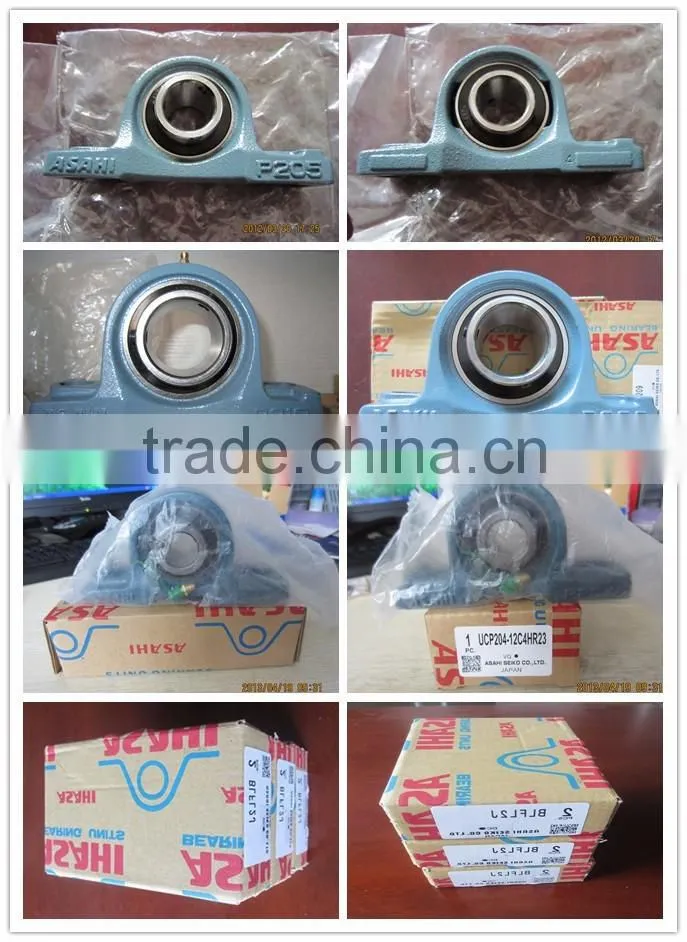

Cast steel Plummer block bearing holder UCP205 chumaceras SNL UCF UCP conveyor roller bearing housing pictures :

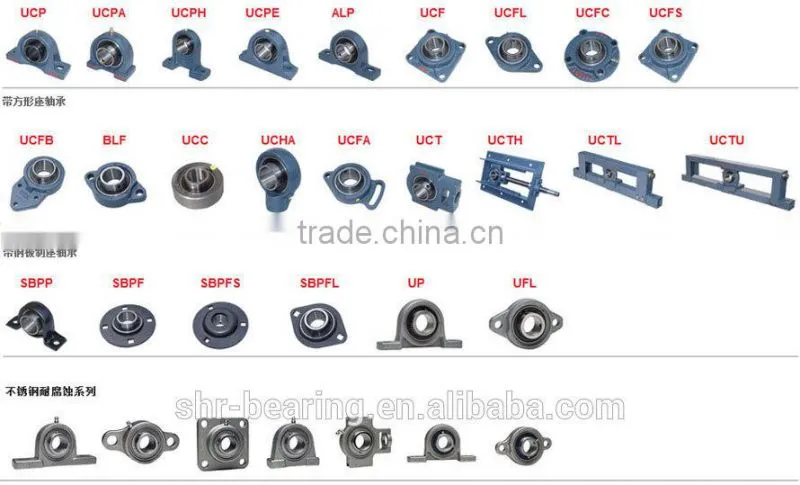

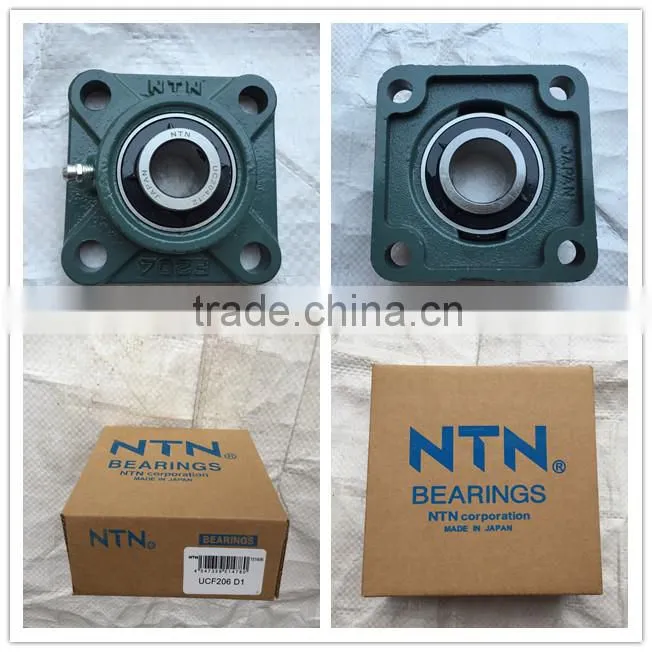

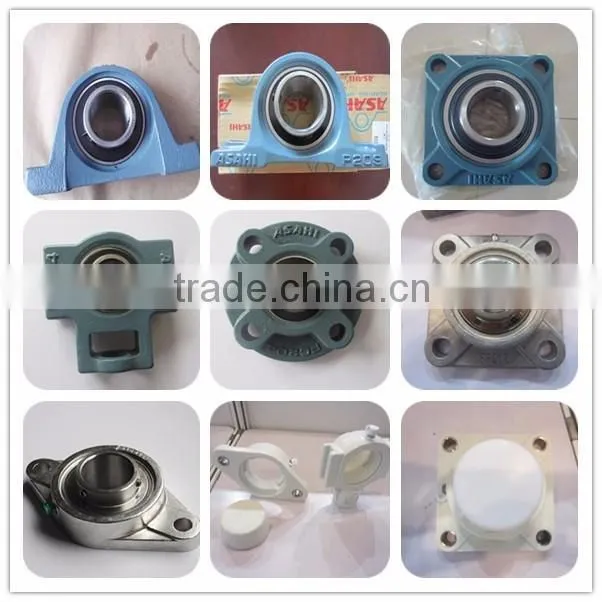

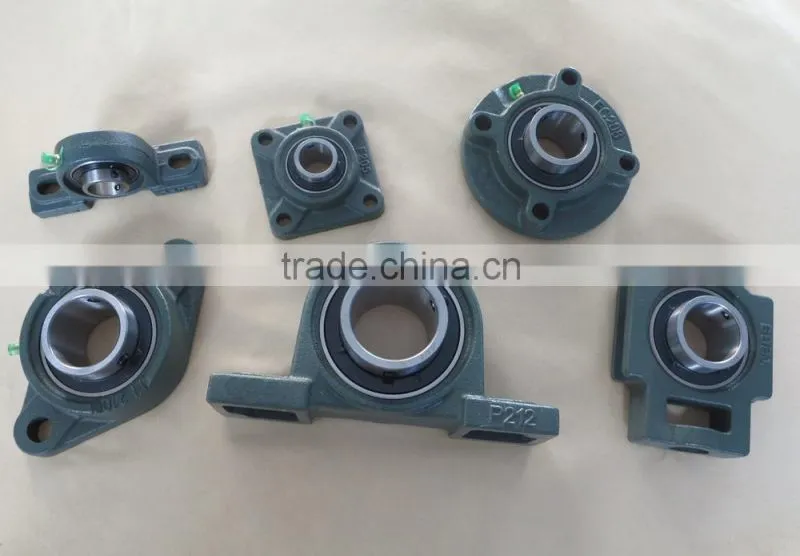

UCP UCF bearing housing types :

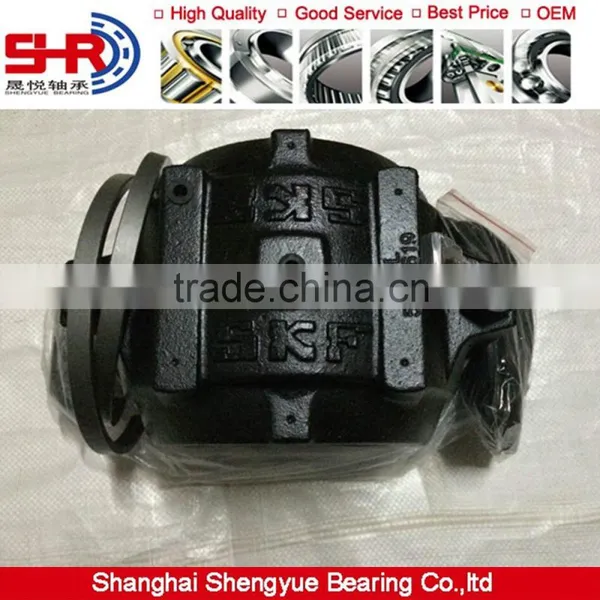

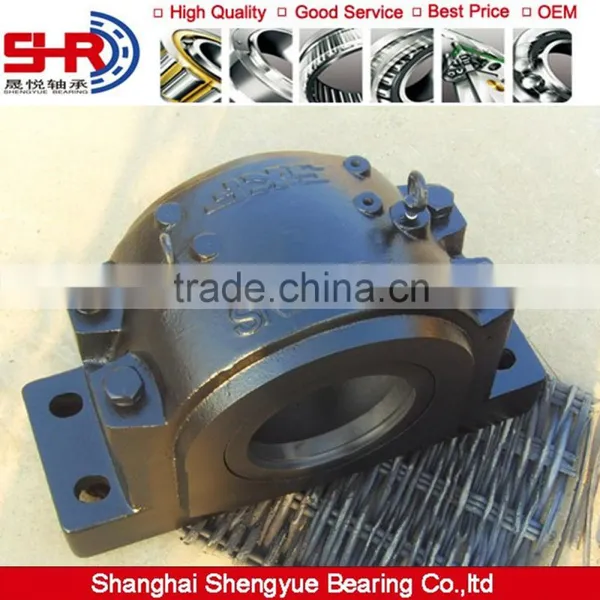

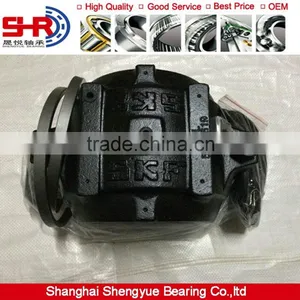

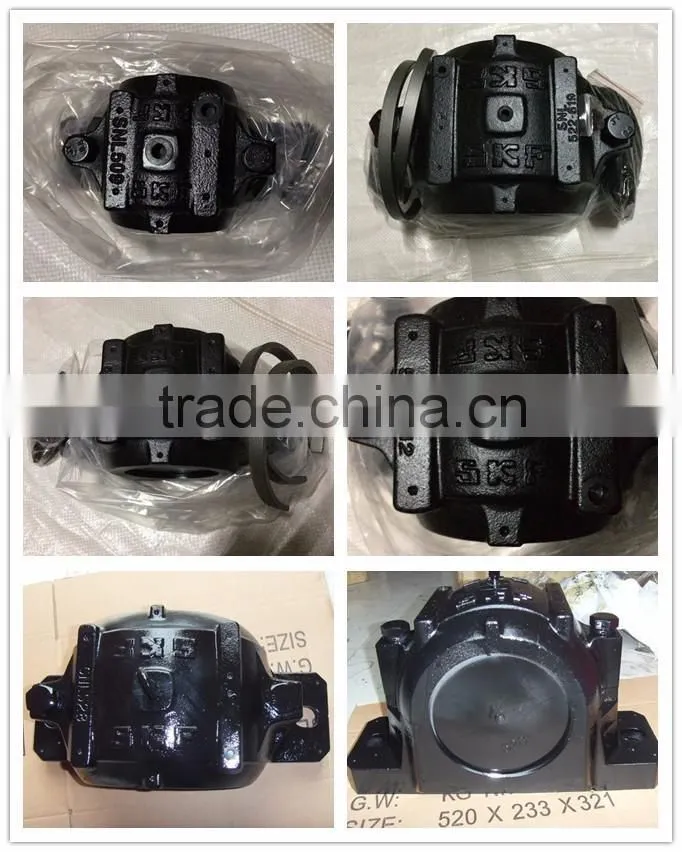

SNL PLUMMER BLOCK BEARING HOUSING TYPES:

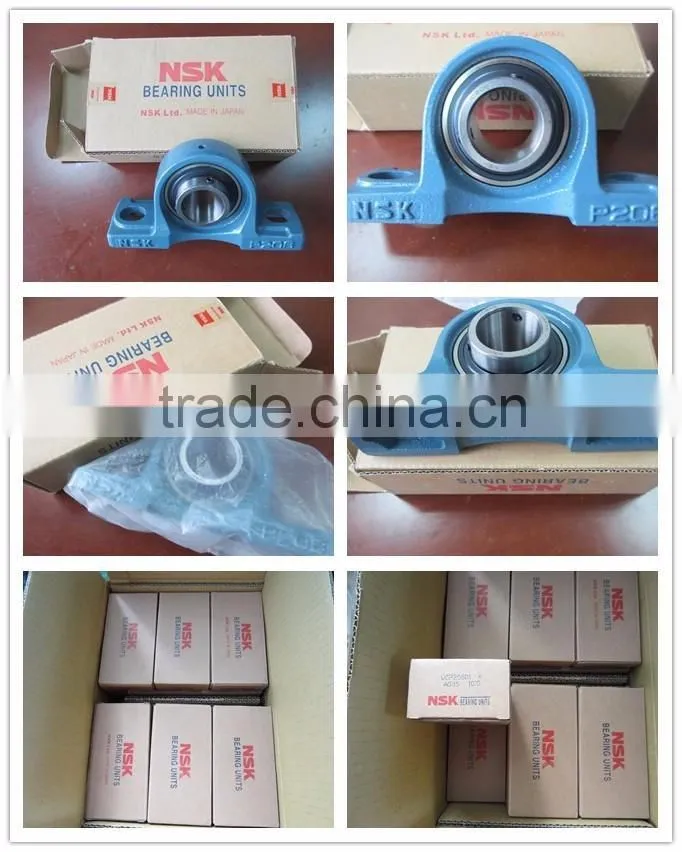

Brands bearing housing :

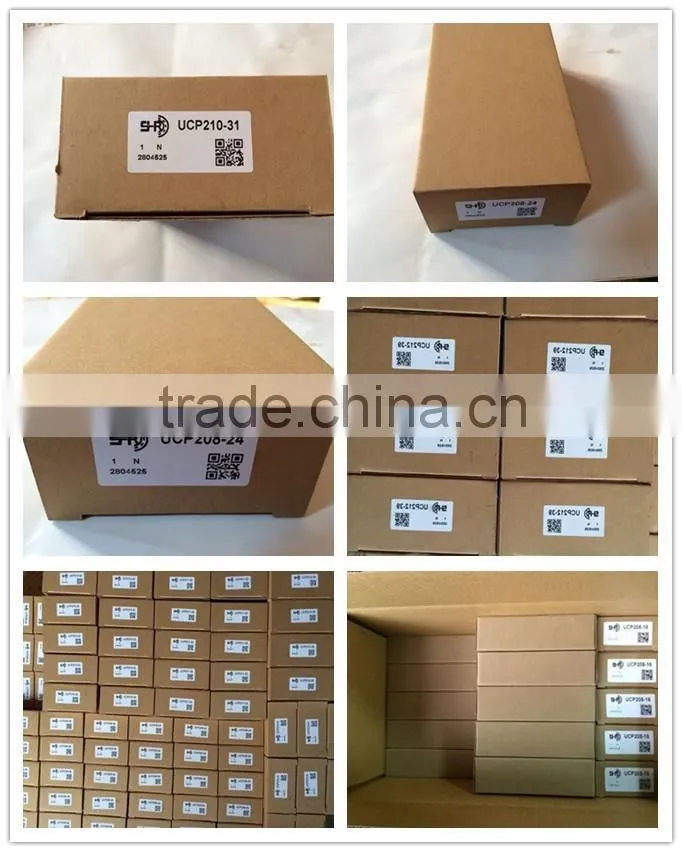

Packing of bearings :
1) Inner Plastic Bag+ Paper Box + Carton(+Pallet);
2) Small sizes:Plastic Tube + Carton
3) Big sizes:Wooden Case
Widely used in metallurgy ,mining ,petroleum,chemical,coal,cement ,paper,windpower,heavy machinery ,enginnering machinery,port machinery and other industries.
Know more about our bearings :
Pillow block bearings, flange bearing units, and take-up bearings units all consist of a housing with a bearing mounted in it. They are available in a variety of materials, mounting configurations and various bearing features. Each mounted unit acts as a system to position the bearing securely for reliable operation. Bearings that are mounted within a flanged housing are used when the bearing mounting surface is perpendicular to a shaft axis.They are commonly available in two, three, or four-hole configurations. Four-bolt flanged ball bearing units have a square shape with 4 holes for mounting to accomodate higher loads than two-bolt flanges. As with our2-Bolt Flanged Bearing Units, 3-Bolt Flanged Bearing Units and our Flangette Series, the 4-bolt flanged bearing units have bearings that can be moved and aligned to better accomodate long shafts.
Series introduction
Pillow block bearing Is divided into: split rolling bearing, sliding bearing, bearing, flanged bearing, outside spherical bearing, etc.
stand type
SNL vertical bearing
Common housings featured large SNL housings (20)
|
UCF305D1 |
UELF305D1 |
UC306D1 |
UCF306D1 |
UELF306D1 |
UC307D1 |
UCF307D1 |
UELF307D1 |
UC308D1 |
UCF308D1 |
UELF308D1 |
UC309D1 |
UCF309D1 |
UELF309D1 |
UC310D1 |
UCF310D1 |
UELF310D1 |
UC311D1 |
UCF311D1 |
UELF311D1 |
UC312D1 |
UCF312D1 |
UELF312D1 |
UC313D1 |
UCF313D1 |
UELF313D1 |
UC314D1 |
UCF314D1 |
UELF314D1 |
UC315D1 |
UCF315D1 |
UELF315D1 |
UC316D1 |
UCF316D1 |
UELF316D1 |
UC317D1 |
UCF317D1 |
UELF317D1 |
UC318D1 |
UCF318D1 |
UELF318D1 |
UC319D1 |
UCF319D1 |
UELF319D1 |
UC320D1 |
UCF320D1 |
UELF320D1 |
UC322D1 |
UCF322D1 |
UELF322D1 |
UC324D1 |
UCF324D1 |
UELF324D1 |
UC326D1 |
UCF326D1 |
UELF326D1 |
UC328D1 |
UCF328D1 |
UELF328D1 |
UCP305D1 |
UCF305D1 |
UKT305D1 |
UCP306D1 |
UCF306D1 |
UKT306D1 |
UCP307D1 |
UCF307D1 |
UKT307D1 |
UCP308D1 |
UCF308D1 |
UKT308D1 |
UCP309D1 |
UCF309D1 |
UKT309D1 |
UCP310D1 |
UCF310D1 |
UKT310D1 |
Our company information :
| Company name | shanghai shengyue bearing Co.,Ltd |
| Business type | manufacturer |
| Established year | 2012 |
| Business product | all kinds of bearings |
| OWN Brand | SHR |
| Export range | 81%-90% |
| OEM service | offer |
| Our advantages |
1. More than ten years bearing products exporting experiences. 2. OEM order and non-standard bearing order can be accepted. 3. Many sizes of bearing are available. Large quantity bearing can be provided. 4. A certain number of free sample can be provide to support our customer's after-sale services and warranty. |
Trading information :
| Price terms | EXW FOB CNF CFR, CIF |
| Payment terms | L/C ,T/T ,Western Union, Paypal |
| Express way | DHL FEDEX TNT UPS |
| Shipping port | shanghai ,qingdao ,nongbo, guangzhou |
| Packing |
1.Industrial packaging: plastic bag + kraft paper + carton + plywood pallets; plastic tube + carton + plywood pallets; 2. Commercial packing: 1pc/plastic bag + color box + carton + plywood pallets |
