CF-9/16 Stud Type Cam Followers 9/16" Track Roller Bearing CF-9/16-S
Specifications
cam follower bearing
*OEM service
*favorable price
*high quality and quick delivery
*high precision&low vibration
The Brief Description of Bearings:
A cam follower roller bearing (also called “track follower”) is a specialty roller bearing designed to follow tracks or cams and in a wide range of linear motion systems. Cam followers are often used on conveyors, process transfer lines, such as those used int industries such as food and beverage, plastics, glass and among others. KR cam followers are also popular for defense and aircraft applications, where maintainability and system reliability are important design considerations. To smoothly and evenly distribute the loads, cam followers usually are designed with a full complement of rolling elements. However, there is more than one type of configuration for cam followers, but the most distinctive characteristic is how the cam follower is mounted to its counterpart.
| P/N | CF-9/16 Bearings | ||
| Brand | OEM | ||
| Diameter | 0.5625" | ||
| Precision | ABEC-1 | ||
| Type | Cam Followers | ||
| Lubrication | Grease | ||
| Material | Chrome Steel | ||
| Package | Plastic Bag and Box | ||
Application: CF-9/16 bearing, also known as CF-9/16-S cam followers, are widely used in cars, compressors, construction, electric motors, food industry, home appliances etc. As a rolling element, it turns the world.

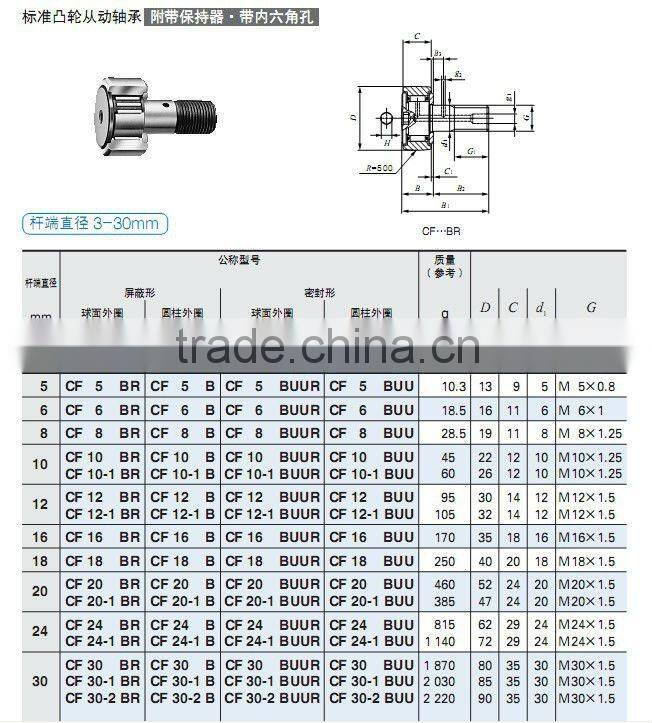

Stock list of cam follower Bearing :
| Bearing No. | Old Bearing No. | I.D (mm) | O.D (mm) | Width(mm) |
| KR35 | NAKD35 | 16 | 35 | 18 |
| KR32 | NAKD32 | 12 | 32 | 14 |
| KR30 | NAKD30 | 12 | 30 | 14 |
| KR26 | NAKD26 | 10 | 26 | 12 |
| KR22 | NAKD22 | 10 | 22 | 12 |
| KR19 | NAKD19 | 8 | 19 | 11 |
| KR16X | NAKD16P | 6 | 16 | 11 |
| KR16 | NAKD16 | 6 | 16 | 11 |
| KR13 | NAKD13 | 5 | 13 | 9 |
| KRV90 | NAKD90V | 30 | 90 | 35 |
| KRV85 | NAKD85V | 30 | 85 | 35 |
| KRV80 | MAKD80V | 30 | 80 | 35 |
| KRV72 | NAKD72V | 24 | 72 | 29 |
| KRV62 | NAKD62V | 24 | 62 | 29 |
| KRV52 | NAKD52V | 20 | 52 | 24 |
| KRV47 | NAKD47V | 20 | 47 | 24 |
| KRV40 | NAKD40V | 18 | 40 | 20 |
| KRV35X | NAKD35VP | 16 | 35 | 18 |
| KRV35 | NAKD35V | 16 | 35 | 18 |
| KRV32X | NAKD32VP | 12 | 32 | 14 |
| KRV32 | NAKD32V | 12 | 32 | 14 |
| KRV30X | NAKD30VP | 12 | 30 | 14 |
| KRV30 | NAKD30V | 12 | 30 | 14 |
| KRV26 | NAKD26V | 10 | 26 | 12 |
| KRV22 | NAKD22V | 10 | 22 | 12 |
| KRV19 | NAKD19V | 8 | 19 | 11 |
| KRV16X | NAKD16VP | 6 | 16 | 11 |
| KRV16 | NAKD16V | 6 | 16 | 11 |
| KRV13 | NAKD13V | 5 | 13 | 9 |
| KR90 | NAKD90 | 30 | 90 | 35 |
| KR85 | NAKD85 | 30 | 85 | 35 |
| KR80 | NAKD80 | 30 | 80 | 35 |
| KR72 | NAKD72 | 24 | 72 | 29 |
| KR62 | NAKD62 | 24 | 62 | 29 |
| KR52 | NAKD52 | 20 | 52 | 24 |
| KR47 | NAKD47 | 20 | 47 | 24 |
| KR40 | NAKD40 | 18 | 40 | 20 |

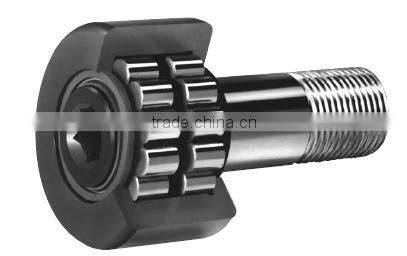

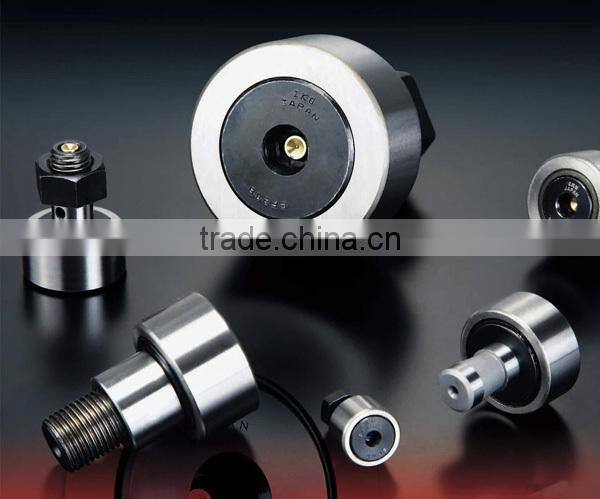

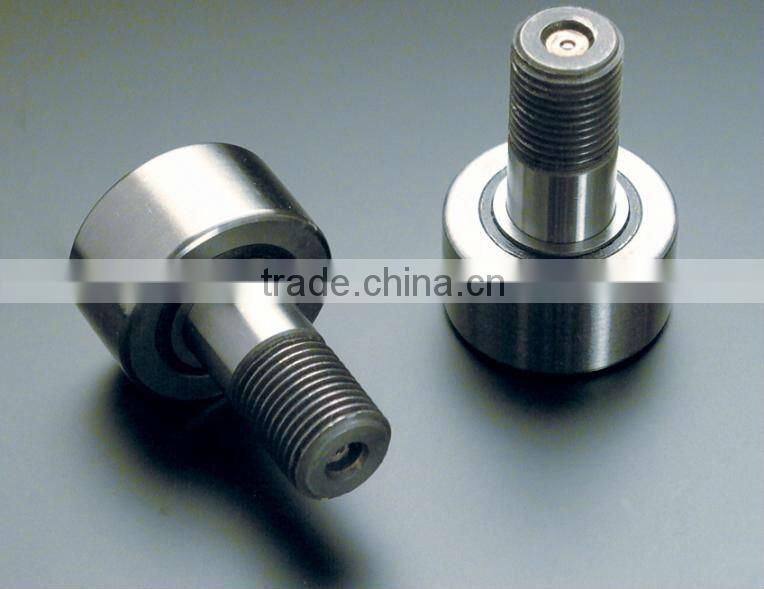

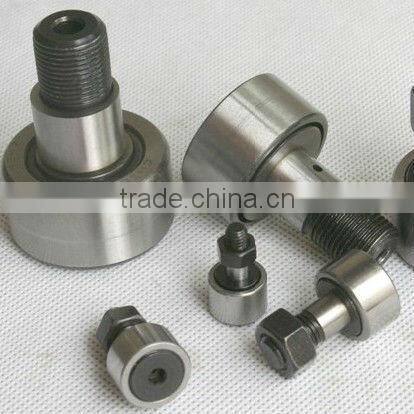

Cam follower Bearing pictures:
Bearings Package:
Original Package:
1):Inner Plastic Bag+ Paper Box + Carton(+Pallet);
2):Small sizes:Plastic Tube + Carton
3):Big sizes:Wooden Case
Bearings Lead time of cam follower Bearing :
We will prepare your order as soon as possible.
1)2-3 days for ex-stock
2)6-10 days for others
Shipping & Delivery time of cam follower Bearing :
1)Less than 45 Kg:DHL TNT Fedex UPS express will be better,( 4-7 days delivered to your address);
2) Between 45 to 200 Kg:Air transiportation will be better,( 5-14 days delivered to your airport);
3) Over 200 Kg:Sea transportation will be better.( Cheapest,18-45 days to your port ).
Payment terms of cam follower Bearing :
We accept T/T, Western Union,Paypal,Visa.
1) T/T or WU (we undertake the bank fees):
A:100% payment.
B:30% deposit ,70% before transportation.
2)PayPal (we undertake the transaction fees) :
A:100% payment.
B:30% deposit ,70% before transportation
3) L/C at sight.
Note :We will take some pictures of your cam follower Bearing before transportation.
| Price terms | Door to door,FOB,CNF,CFR,CIF,EXW,C&F |
| Shipping Airport | Shanghai Pudong International Airport |
| Shipping Port | Shanghai,Guangzhou |
Shanghai Shengyue Bearing Co., Ltd. is a professional bearing manufacturer and dealer in China. We have been engaged in bearing industry for 15 years and worked on bearing import and export for more than 8 years. We attend international bearing fairs, put in many B2B websites and achieve many customers all over the world, building up a good reputation from our customers.
cam follower Bearing factory:
We are here:
Welcome to visit us in Shanghai,China!
Shanghai Shengyue Bearing Co.,Ltd
Address:Rm701,681# Xincun road,Shanghai City,200333,China
Tel:86-21-60700372 Fax:86-21-60700373
Contact: Elan Yan Skype:shr-bearing
Website: http://
If you are interested in our products of cam follower Bearing ,please feel free to send an inquiry or chat with us online.
We will warmly reply you immediately!---SHR Bearing
