Good Quality RC Needle Roller Bearings RC121610 Micro Needle Bearings

Good Quality RC Needle Roller Bearings RC121610 Micro Needle Bearings thumbnail-1
Good Quality RC Needle Roller Bearings RC121610 Micro Needle Bearings thumbnail-2
Good Quality RC Needle Roller Bearings RC121610 Micro Needle Bearings thumbnail-3
Good Quality RC Needle Roller Bearings RC121610 Micro Needle Bearings thumbnail-4
Good Quality RC Needle Roller Bearings RC121610 Micro Needle Bearings thumbnail-5
Good Quality RC Needle Roller Bearings RC121610 Micro Needle Bearings photo-1
Good Quality RC Needle Roller Bearings RC121610 Micro Needle Bearings photo-2
Good Quality RC Needle Roller Bearings RC121610 Micro Needle Bearings photo-3
Good Quality RC Needle Roller Bearings RC121610 Micro Needle Bearings photo-4
Good Quality RC Needle Roller Bearings RC121610 Micro Needle Bearings photo-5
US$ 0.25 - 3.5 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
SHR
Bore Size:
0, 19.05
Outside Diameter:
0, 25.4
Contact Supplier Request Quote Chat Now
Shanghai Shengyue Bearing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai / Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name SHR
Bore Size 0, 19.05
Outside Diameter 0, 25.4
Model Number bearings RC121610
Precision Rating P0,P6,P5
Seals Type OPEN
Number of Row Single Row
Place of Origin Shanghai, China

Good quality RC needle roller bearings RC121610 micro needle bearings







Bearing Details

About Good quality RC needle roller bearings RC121610 micro needle bearings  :

One Way needle roller clutch Bearings are designed to transmit torque between the shaft and housing in one direction and allow free motion in the opposite direction. Proper mounting is easily accomplished with a simple press fit in the housing. Clutches and clutch and bearing assemblies are offered both in inch and metric series. One Way Bearings without bearing assemblies are indicated by suffix: HF/FC/RC. One Way Bearings with bearing assemblies are indicated by suffix: HFL/FCB/RCB.



Good quality RC needle roller bearings RC121610 micro needle bearings

Good quality RC needle roller bearings RC121610 micro needle bearings models series :

Needle roller and cage type bearings use a roller style rolling element however, they do not include inside and outside races to maximize allotted space. Needle roller and cage type bearings have a larger surface area that is in contact with the bearing outer surface compared to traditional ball bearings. Typically, the needle roller bearings consist of needle cage, which orients and contains the needle rollers, and the needle rollers themselves. Needle roller and cage type bearings are predominantly used in engine components.



Good quality RC needle roller bearings RC121610 micro needle bearings



Model Weight /g Size /mm
Fw D C Driving torque
RC02 2 3.175 7.15 6.35 1.9
RC040708 3.5 6.35 11.112 12.7 1.9
RC040708-FS 3.5 6.35 11.112 12.7 1.9
RC061008 4.7 9.525 15.875 12.7 4.83
RC061008-FC 4.7 9.525 15.875 12.7 4.83
RC081208 9.2 12.7 19.05 12.7 7.9
RC081208-FS 9.2 12.7 19.05 12.7 7.9
RC101410 14.5 15.875 22.225 15.88 15.4
RC101410-FC 14.5 15.875 22.225 15.88 15.4
RC121610 17 19.05 25.4 15.88 20.9
RC121610-FS 17 19.05 25.4 15.88 20.9
RC162110 16.2 25.4 33.338 15.88 45
RC162110-FC 16.2 25.4 33.338 15.88 45
RCB061014 12 9.525 15.875 22.22 4.83
RCB061014-FS 12 9.525 15.875 22.22 4.83
RCB081214 16 12.7 19.05 22.22 7.9
RCB081214-FC 16 12.7 19.05 22.22 7.9
RCB101416 21.3 15.875 22.225 25.4 15.4
RCB101416-FS 21.3 15.875 22.225 25.4 15.4
RCB121616 26.5 19.05 25.4 25.4 20.9
RCB121616-FC 26.5 19.05 25.4 25.4 20.9
RCB162117 44.8 25.4 33.338 26.99 45
RCB162117-FS 44.8 25.4 33.338 26.99 45





ONE WAY BEARING DESIGN FEATURES :

• Torque can be transmitted by either the housing or the shaft.
• Torque is positively transmitted by rollers that wedge against interior ramps.
• Transition from free motion to lock occurs with minimal backlash or lost motion.
• Available as clutch-only or as a clutch and bearing assembly.
• Clutch-only units should be used with external radial support to hold the shaft and housing.

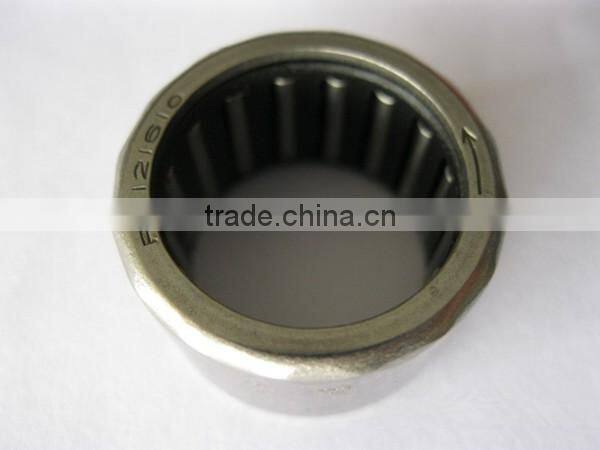

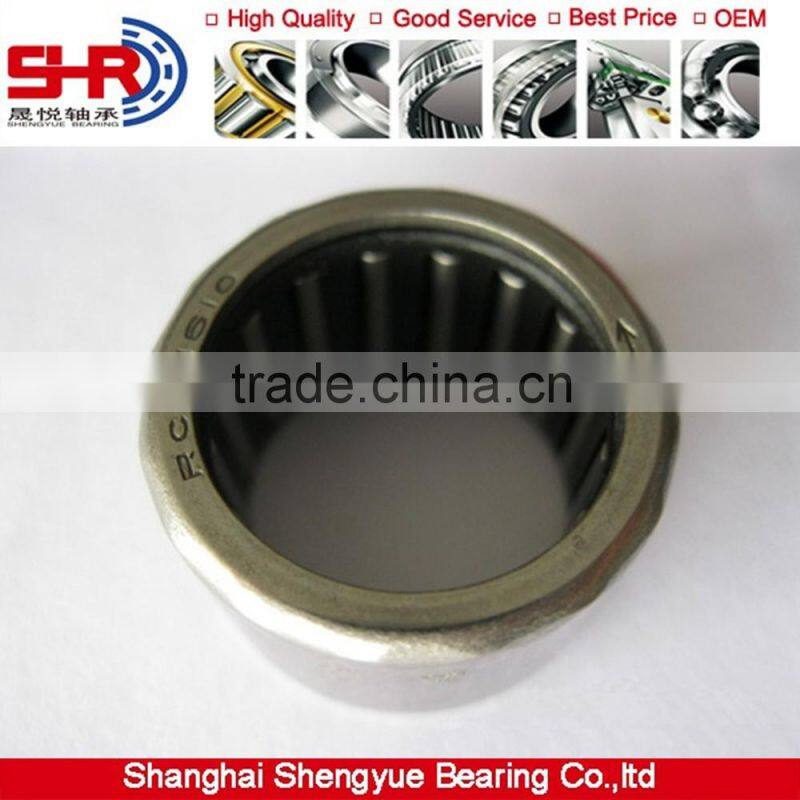

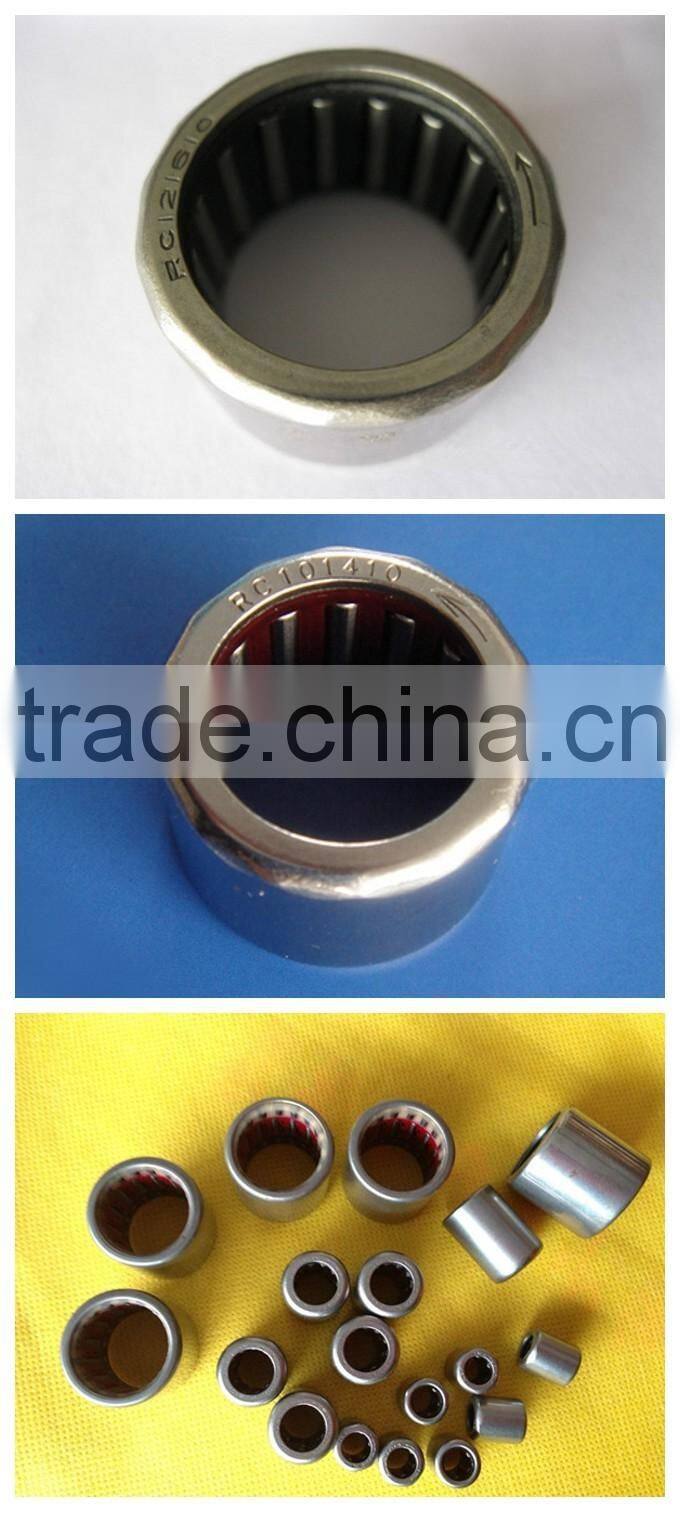

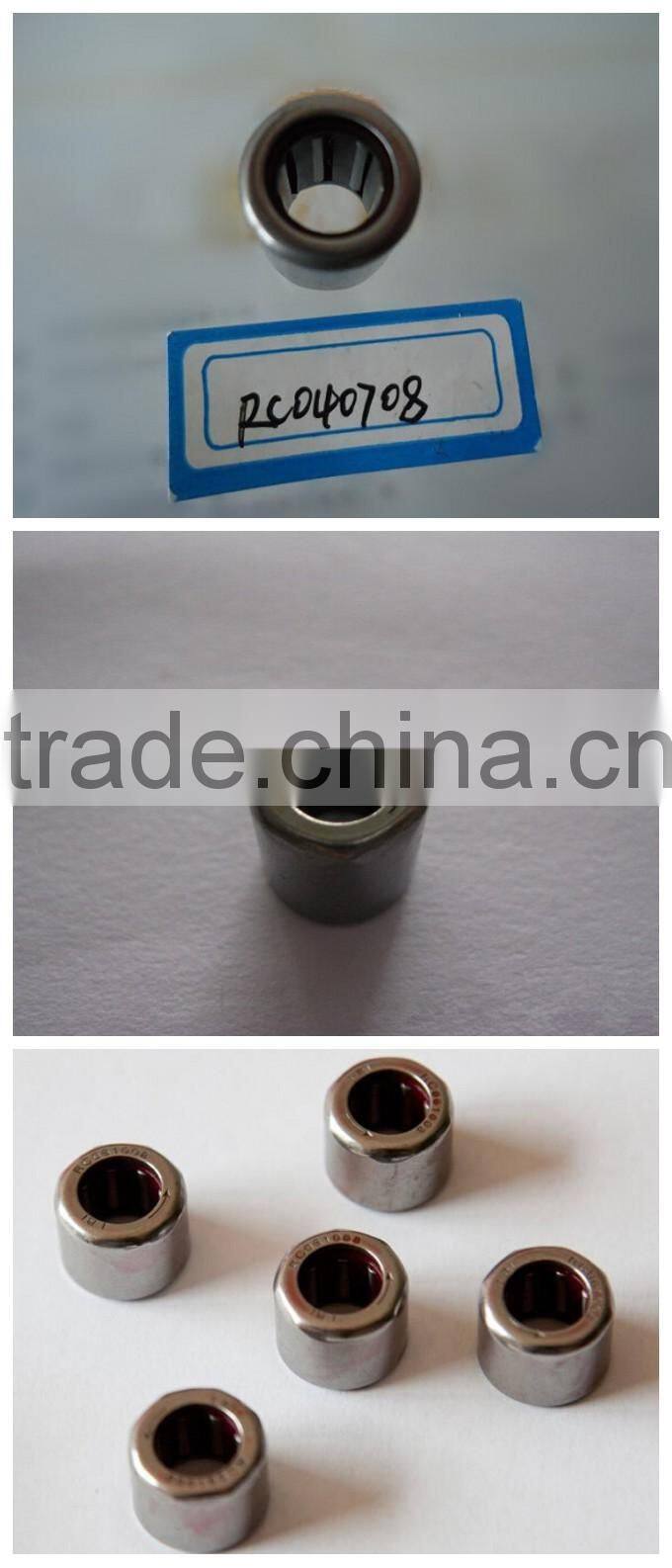

Bearing Pictures



Good quality RC needle roller bearings RC121610 micro needle bearings pictures :

Good quality RC needle roller bearings RC121610 micro needle bearings

Good quality RC needle roller bearings RC121610 micro needle bearings

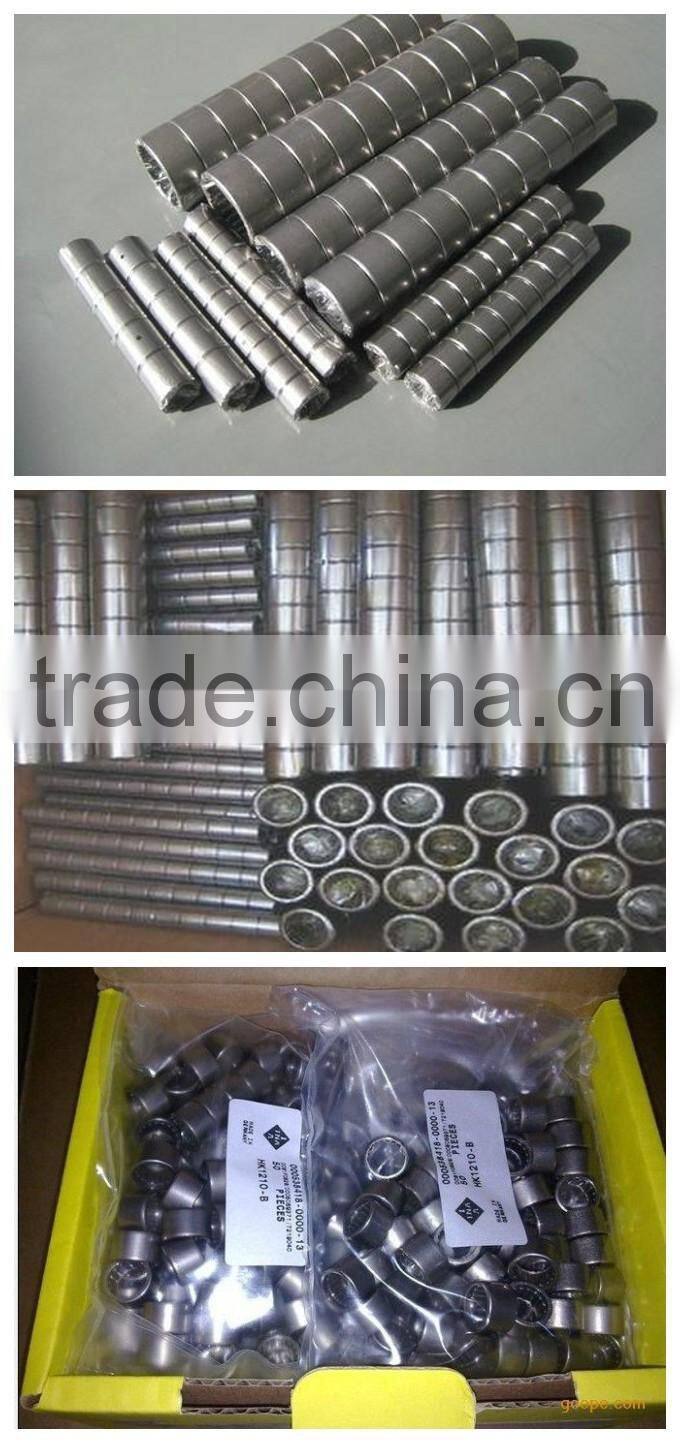

BEARING PACKING

 Packing of bearings :

1) Inner Plastic Bag+ Paper Box + Carton(+Pallet);

2) Small sizes:Plastic Tube + Carton

3) Big sizes:Wooden Case

Good quality RC needle roller bearings RC121610 micro needle bearings





Bearing Application



Application for needle roller bearing RC bearings :

- Needle roller bearings are largely suitable for automotive transmissions

- air-conditioner compressors

- bulldozer blades

- overhead traveling cranes

- gearboxes

- machine tool spindles

- copying machines and many more



• Paper moving for copiers, fax machines, paper towel dispensers, etc.
• Exercise equipment
• Appliances
• Two-speed gearboxes
• Rack indexing drives
• Converters, non-return devices and transcendental clutches.
• Fishing Reels, RC Cars, RC Helis, RC Engines



Good quality RC needle roller bearings RC121610 micro needle bearings





BEARING KNOWLEDGE

 Know more about our bearings :



1. Inspection of bearing and judgment :

Although the outer cup of the clutch is accurately drawn from strip steel, it can go slightly out of round during heat treat. When the assembly is pressed into a ring gage or properly prepared housing of correct size and wall thickness, it becomes round and properly sized. Direct measurement of the outside diameter of a drawn cup assembly is an incorrect procedure. The proper inspection procedure is as follows:

1. Press the assembly into a ring gage of the proper size as given in the tabular data.
2. Gage the bore with the specified plug gages of the proper size, as given in the tables of dimensions.

- The locking plug is rotated to insure lockup when the clutch is operated at low limit shaft and is mounted in a high limit housing strong enough to properly size the clutch.
- The overrun plug is rotated to ensure free over-running when the clutch is operated on a high limit shaft and is mounted in a low limit housing.
- The go plug and no go plug insure proper size of the bearings in the clutch and bearing assemblies.



2 .Bearing damage reasons analyse :

Good quality RC needle roller bearings RC121610 micro needle bearings



3. Needle roller bearing production range :

Drawn cup needle roller clruches

 HF  / HF..KF/HF..R/HFL/RCB/FCB/NHF
Mertic and inch drawn cup caged needle roller bearings BK/HK/BK..RS/HK..RS/HK..2RS
Thrust needle / cylindrical roller bearing and cage assemblies  AXK/AX/AXW/AS/K811 K812/LS/GS
Radial needle roller and cage assemblies K/KK/KZK/KBK
Radial needle roller bearings NKI/NKIS/NA/NK/NKS/NA49..RS/RNA49..RS
Drawn cup line ball bearings KH..2RS/KH
Yoke type track rollers/stud type track rollers NATV/NATR/KR/KRV
Clutch bearing EWC series / 1wc series EWC/1WC
Needel roller -cylindrical roller thrust bearings RAX700/RAXF700/RAX400/RAX500
Combined radial thrust bearings ZARN/ZARF/ZARF..L
Single-direction load capailitya NKIA
Needle rollers NR(A  SERIES)  NR(B SERIES)
Inner ring IR LR

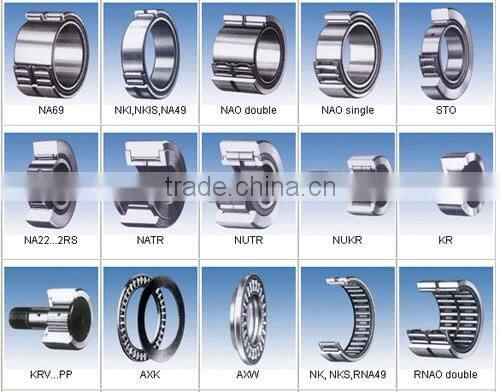

4. Other types needle roller bearings we can supply :
Good quality RC needle roller bearings RC121610 micro needle bearings
