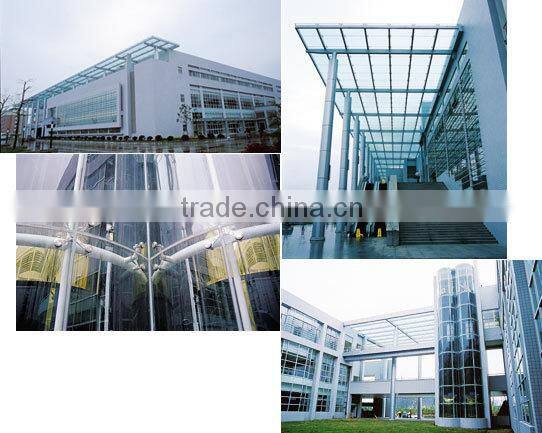

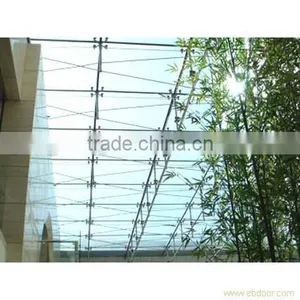

Tension cable spider laminated glass skylight
1 . Specifications
| Point fixing glass curtain wall consists of decorative surface glass, connection component and supporting structure. |
|
According to supporting structure, it can be divided into 1. Art steel structure supported point fixing glass curtain wall system 2. Space tensile cable supported point fixing glass curtain wall system 3. Self-balancing tensile cable supported point fixing glass curtain wall system 4. Single cable supported point fixing glass curtain wall system Decorative surface glass must be handled by toughening treatment, and can adopt with single-glass, insulation glass or laminated glass. |
|

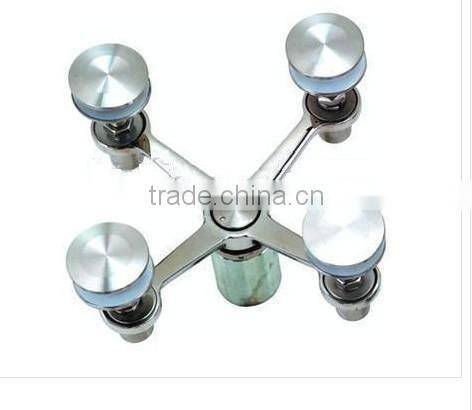

Special features of products Transparent effect makes natural and harmonious scene between indoor space and outdoor environment. Exquisite structural member and aesthetic structure realize delicate combination of metal structure and glass decoration art. All kinds of supporting structure satisfy the requirements of building structure and decorative effect. Glass and connection claw adopt ball pivot linkage , with comparatively strong capacity in absorbing deformation. |
| Main Materails | |
| Profile | |
| Aluminium Alloy | 6063-T5 |
| Thickness | 2.0, 2.5, 3.0mm |
| Finishing | Anodized /Powder Coated/Electrophoresis /PVDF, color as customers requirement |
| Glass | |
| Thickness | Single glass: 3mm - 12mm |
| Double glass: 5mm+6A+5mm/5mm+9A+5mm/6mm+9A+6mm/or the others | |
| Three Layer Glass:5mm+6A+5mm+6A+5mm/or the others. | |
| Laminated Glass:4mm+0.38pvb+4mm/6mm+0.76pvb+6mm/or the others | |
| Colors | Tinted(Grey/Green/Blue/Tea/or the others) or clear |
| Special | Low-E Glass/Reflected Glass/Tempered Glass/Float Glass/Art Glass |
| Hardware | High Quality-Made in China/Made in Germay Latch Lock or The Handle Lock |
| Accessroy | Zinc Alloy And Stainless Steel accessory |
| Silicone/Glazing Rubber imported from USA |
2. More details of glass curtain wall:
Glass curtain wall types |
tempered insulated glass curtain wall, low-e insulated glass curtain wall, hollow glass curtain wall, insulating glass curtain wall, double glazing glass curtain wall, low-e insulating glass curtain wall, tempered laminated glass curtain wall, reflective insulated glass curtain wall |
Specification |
Size:1500x2000mm, 1650x 2100, 1830x 1220 , 2134x3050, 2134x3300, 2250x 3300mm,2240x3300,etc.Or customized Thickness range 8mm-60mm.(Double Glazing or Triple Glazing) Sealant: butyl rubber sealant with polysulfide sealant or structural silicone based sealant Glass color:Clear,light green,green,blue,gray,tea,etc. Corner of glass:natural corner, grind corner, round corner with fine polished Edge of glass:Flat edge, grind edge, fine polished edge, bevelled edge and others Products can be randomly combined by transparent glass , tinted glass, tempered glass ,Bent tempered glass, coated glass , low-e glass, sandwich glass, glazed glass etc. |
Features |
1,Thermal performance |
International Market |
U.S.A, Germany,Australia,Singapore,Japan,Thailand,Vietnam,Italy, India, Egypt, Pakistan, Iran, Kuwait, United Kingdom, Russia, Indonesia, Belgium, Turkey, South Africa, Poland, Iraq. Czech, Korea,Canada, Portugal, Holland |
3. Related photos of Hwarrior and Factory
A. Introduce of Hwarrior
Hwarrior Curtain Wall Engineering(Guangzhou) Co., Ltd is a professional curtain wall contractor who has many years' experience of facade designing, calculation and installation. Lots of projects have been being awarded to us both in China and overseas in the past years. Our business scope is
Alu windows and doors systems
Spider facade system
Stick facade system
Unitized facade system
Metal facade system
Stone facade system.
B. Photos of Hwarrior factory
4. Packing details
A. Each product with plastic film mulching, then to be packed in board or carton according to different specifications.
B. If samples are shipped by express, we will offer track No. for you so that you can find it.
Our advantage:
1. Excellent customer service ( including before sales and after sales service)
2.Competitive price&quality
3.Advanced technology
4.Top-grade main raw materials
Pls contact us if you have any enquiry and warm welcome to visit our factory !
Robert
Skype:lau.robert2
Mob/Whatsapp : +86 13922196963
Wechat:247581671
