Rubber seal ball bearing 6215 2RS C3 cojinete de motor mos bearing
jinete de motor mos bearing 6215 2RS C3 supplier
2. In Shanghai, convenient transportation and timely delivery .
3.Large stock Model is complete
4.more years of export experience
5. Establish a good working relationship with a number of areas
Rubber seal ball bearing 6215 2RS C3 cojinete de motor mos bearing introduction :
- Textured Buna N Nitrile double lip seals
- Wide temperature range Mobil Polyrex EM2 (-40 to +350 degrees) lubrication
- Noise tested before and after lubrication
- Passes V2 noise vibration standards for smaller bearings and V3 standards for larger bore
- Meets or exceeds electric motor requirements
- Matched ABMA grade 10 precision balls for roundness
- Finely honed superfinished raceways for long life and low noise
- Meet or exceed ABEC 3 tolerances for high quality level
- Packaged in premium boxes with bar codes

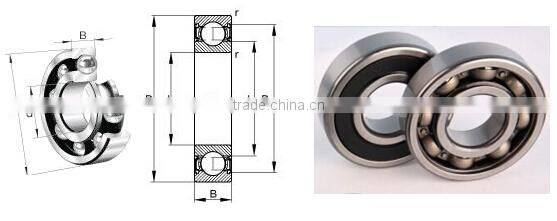

Rubber seal ball bearing 6215 2RS C3 cojinete de motor mos bearing design & specifications :
Rubber seal ball bearing 6215 2RS C3 cojinete de motor mos bearing SIZE :
ABEC Grades 1, 3, 5, 7, and 9 are available.
Two rubber seals = (2RS), also available with a single rubber seal = (RS).
| Attributes | Values |
| Units | mm |
| Bearing Type | Sealed |
| Bore Dia (d) | 75.0000 |
| Outer Dia (D) | 130.0000 |
| Width (B) | 25.0000 |
| Radius (min) (rs) | 1.500 |
| Dynamic Load Rating (Cr) | 67,400 |
| Static Load Rating (Cor) | 48,300 |
| Max Speed (Grease) | 3 |
| Max Speed (Oil) | 6 |
| Max. Shaft Shoulder Dia. Inner (Ui) | 90.5 |
| Min. Housing Shoulder Dia., Outer (Uo) | 122.000 |
| Ball Qty | 11 |
| Ball Dia (Dw) | 17.4630 |
| Weight (g) | 1,170.00 |
| Precision | A1 |
| Standard Clearance | C0 |
| Material | 52100 Chrome steel (or equivalent) |

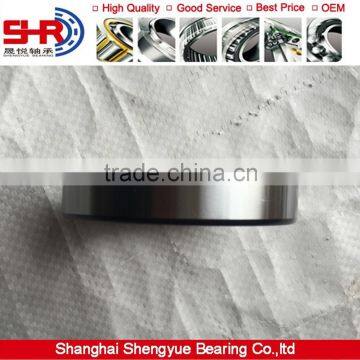

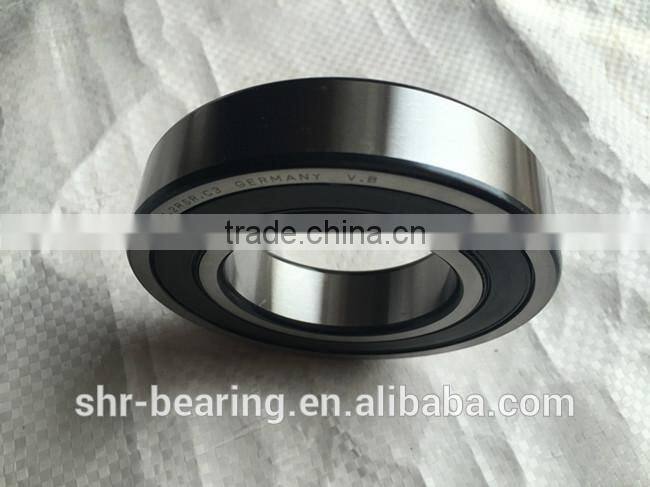

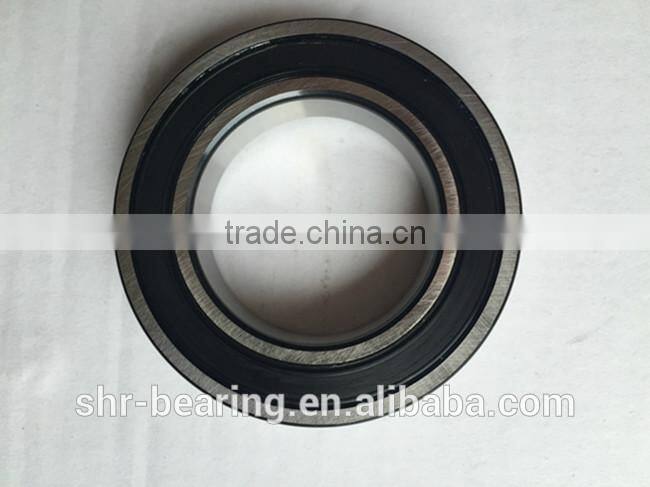

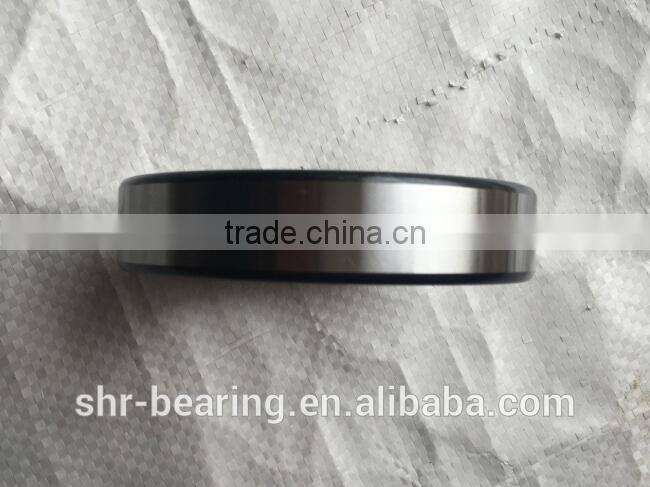

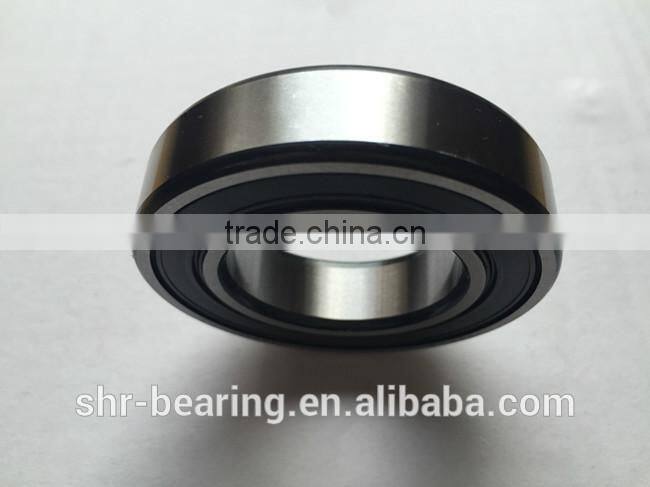

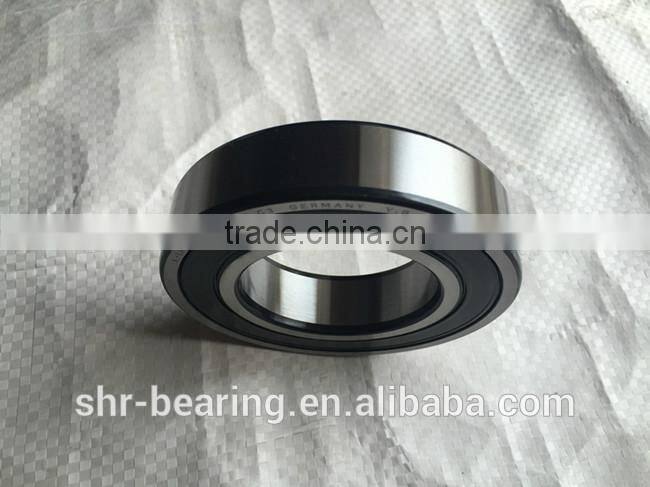

Rubber seal ball bearing 6215 2RS C3 cojinete de motor mos bearing pictures series :

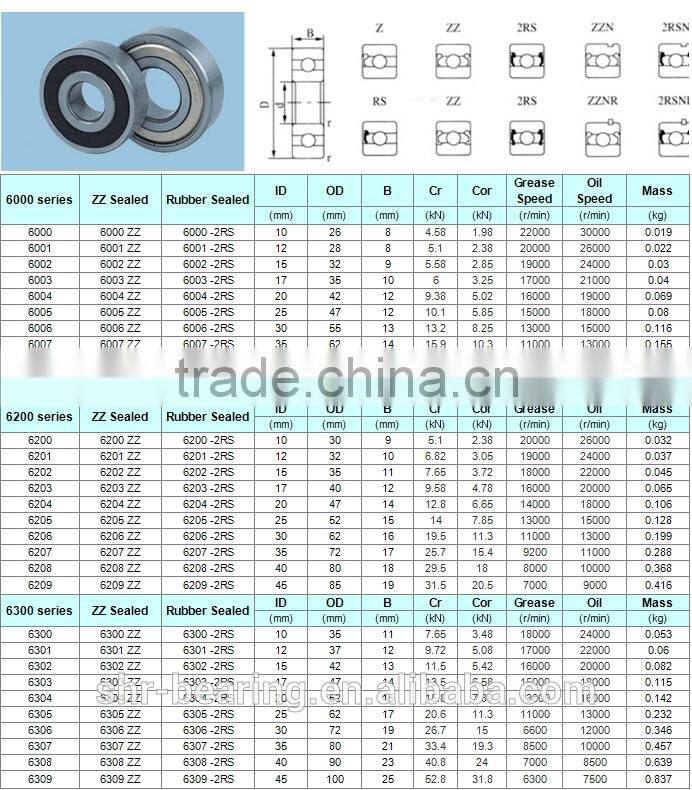

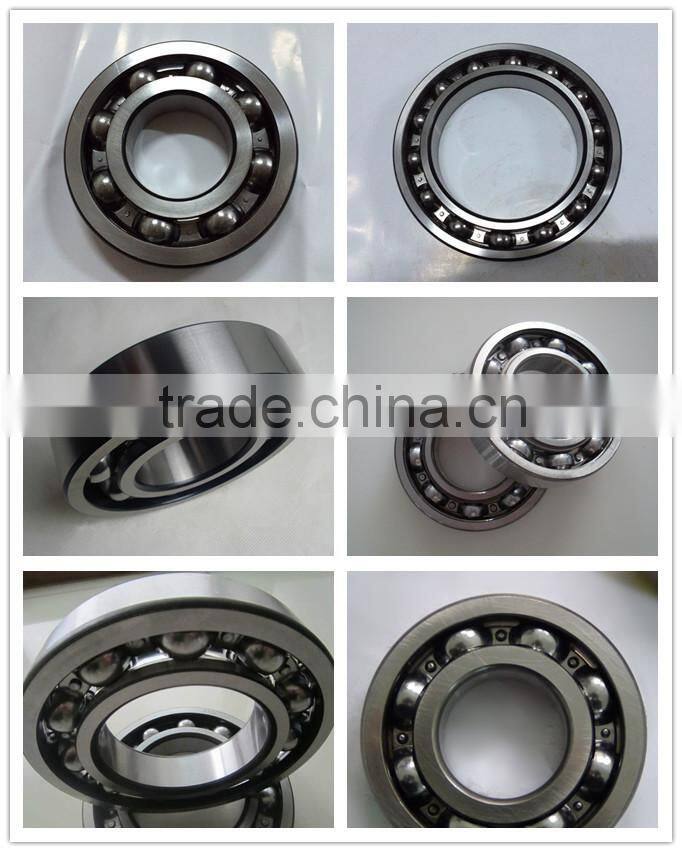

China ball bearing 6215 2RS C3 open type :
6200 6201 6202 6203 6204 6205 6206 6207 6208 6209 6210 6211 6212 6213 6214 6215 6216 6217
6218 6219 6220 6222 6224 6226 6228 6230 6232 6234 6238 6240 6244 6248 6252 6256
6000 6001 6002 6003 6004 6005 6006 6007 6008 6009 6010 6011 6012 6013 6014 6015 6016 6017
6018 6019 6020 6022 6024 6026 6028 6030 6032 6034 6036 6038 6040
6303 6304 6305 6306 6307 6308 6309 6310 6311 6312 6313 6314 6315
Application for ball bearings :
For transmission, instrumentation, electrical, household appliances, internal combustion engines, transport vehicles, agricultural machinery, construction machinery, engineering machinery, roller-skating shoes, yo-yo,
Vehicle front wheels ,Differential and pinion configurations ,Conveyor rolls ,Machine tool spindles ,Trailer wheels .
Types:
Single Row
Double Row
Open type
ZZ/2RS type
These bearings are designed for high radial and low axial load applications. Deep Groove Ball Bearings offer:
High radial load carrying capacity
Very high speed rotation
Very good running accuracy
Low noise and low friction torque
Good protection from contaminated environment with special seal/shield design.
can offer the following variants:
Single Row – 60xx, 62xx, 63xx, 64xx series
Thin Type – 67xx, 68xx, 69xx Series
Double Row – 42xx, 43xx Series
Open basic design
Sealed/shield types
With snap ring groove
With snap ring groove and snap ring
With extended inner ring
K type with spherical outer ring
With Flange design
Pressed steel, riveted and nylon cage
With C2, CN, C3, C4 and C5 radial clearance
Standard precision grade (ISO Grade P0 – ABEC1) and higher precision grade (ISO Grade P6 – ABEC3)
2) Radial ball bearings are able to accommodate low to heavy radial loads and low to moderate thrust loads in either direction. They are available with metal shields (ZZ) or rubber seals (2RS). Several tolerance grades (Abec 1-9), internal clearance (C2 to C4) and cage designs are available to best suit the running precision and speed of the application.
Common Options:
- ZZ-- Two Metal Shields
- 2RS-- Two Rubber Seals
- NR-- Snap Ring
- M-- Brass Cage
- C0-- Normal Internal Clearance
- C3-- Greater than normal
Our company information :
| Company name | shanghai shengyue bearing Co.,Ltd |
| Business type | manufacturer |
| Established year | 2012 |
| Business product | all kinds of bearings |
| OWN Brand | SHR |
| Export range | 81%-90% |
| OEM service | offer |
| Our advantages |
1. More than ten years bearing products exporting experiences. 2. OEM order and non-standard bearing order can be accepted. 3. Many sizes of bearing are available. Large quantity bearing can be provided. 4. A certain number of free sample can be provide to support our customer's after-sale services and warranty. |
Trading information :
| Price terms | EXW FOB CNF CFR, CIF |
| Payment terms | L/C ,T/T ,Western Union, Paypal |
| Express way | DHL FEDEX TNT UPS |
| Shipping port | shanghai ,qingdao ,nongbo, guangzhou |
| Packing |
1.Industrial packaging: plastic bag + kraft paper + carton + plywood pallets; plastic tube + carton + plywood pallets; 2. Commercial packing: 1pc/plastic bag + color box + carton + plywood pallets |
