Home > Products > Point Fixing Curtain Wall > Low-E glass double glazed for point curtain wall
Low-E glass double glazed for point curtain wall
- 25000 Square Meter / Square Meters per Month
- HUANGPU GUANGZHOU
- T/T
Product Details
Place of Origin: | Guangdong, China | Brand Name: | Hwarrior | Model Number: | CW003 |
Material: | Glass |
Packaging Details
Cartons Plus Wooden Crate/Timber Frames
Product Description
Point Supporting Glass Curtain Wall Supplier
Basic Info
- Model NO.: CW
- Open: Closed
- Glass Curtain Wall Kind: Point Supporting
- Supporting Construction: Point Fixing
- Shape: Standard Plane
- Special Function: Photovoltaics Curtain Wall
- Splice Pieces: Mild Steel Q235
- Surface Coating: Fluorine Carbon
- Glass Color: Clear,Tinted
- Hardware: Hardware Are Galvanized
- Sealing Gasket and Strip: United States ASTM Standard
- Specification: ISO9001, ISO14001, SGS, AAA
- HS Code: 76101000
- Type: Elevation
- Material: Glass
- Frame Curtain Wall Kind: Hidden Frame
- Number of Layers: Double
- Usage: Exterior Wall
- Supporting Structure: Steel
- Angle Steel: Q235 Seamless Steel Tube
- Glass: Double and Tripe Glazing
- Glass Standard: National Standard GB9963,3c,CE
- Sealant: Dow Corning Silicone Sealant DC791 –N or other famous brands
- Trademark: Hwarrior
- Origin: China
Product Description

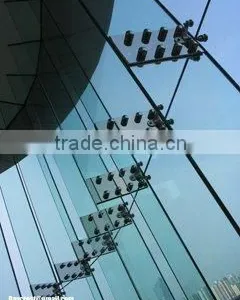

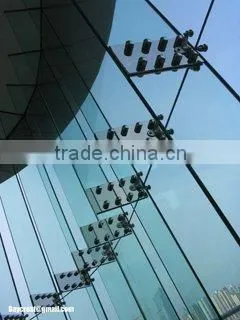

Point supporting glass curtain wall cladding
Curtain wall systems are non-structural cladding systems for the external walls of buildings. They are generally associated with large, multi-storey buildings.
Hwarrior curtain wall systems comprise a lightweight aluminum frame onto which glazed or opaque infill panels can be fixed. These infill panels are often described as 'glazing' whether or not they are made of glass.
Features of Hwarrior point supporting glass curtain wall system :
Transferring loads back to the primary structure of the building.
Providing thermal insulation and avoiding cold bridging and condensation.
Providing fire, smoke and acoustic separation. This is particularly difficult at joints between the curtain wall system and interior walls and floors.
Creating a barrier to water penetration.
Accommodating differential movement and deflection.
Preventing panels from falling out of the frame.
Allowing for opening windows.
Preventing the accumulation of dirt.
Material Description:
Steel(Fittings, splice pieces, built-in accessories, Angle steel, etc ) | ·Adopt Mild steel Q235 Accord with national standard GB699-88 |
Hardware(galvanized bolt, wear plate bolt, etc) | ·All hardware are galvanized. |
Glass | ·Double glazed tempered glass in accordance with national standard GB9963,approved by CE,3C |
Sealant | Dow Corning silicone sealant DC791 –N or other famous brands |
Sealing gasket and strip | ·In standards GB10711-89 regulations |
Main performance:
The air permeability | National standard level III |
Water leakage | National standard level III |
deformation performance under Wind pressure | National standard level IV |
Heat preservation | National standard level IV |
Impact resistance | National standard level II |
Sound insulation | National standard level IV |
fireproofing | 1HR |
anti-thunder | With anti thunder system |
3. Order process
Please provide drawing of the building and section in CAD, We will prepare the drawing for your confirmation before production.
After production finished, a sample will be test by 3rd party ,the test report will be submitted to buyer before shipment.
4. Fabrication and installation
Measuring and unreeling → rectify embedded parts→material processing →vertical installation → beam installation → fire resisting treatment →welding and anticorrosion treatment → glass installation and cleaning→completion inspection and acceptance.
Installation drawings will be provided for guiding
Engineers on-site installation or installation guide are available
5. Warranty:
Qualifications of our company in design, fabrication and installation of curtain wall
Company Profile
Hwarrior Company focused on all types of building curtain wall, aluminum door and windows, steel structure project. Our main products have: dot point fixing glass curtain wall, steel frame curtain wall, unitized curtain wall, metal curtain wall, shading & daylight system, European & US -style vertical sliding windows.
Hwarrior Curtain Wall Engineering (Guangzhou) Co.,Ltd. is one of leading State-Level II enterprise in Guangzhou of China. We specialize in the design, manufacture, installation, export & advisory services of construction curtain walls, doors &windows system, steel structure building products, and adopts the comprehensive ISO9001 quality management system. Hwarrior company located in Xinghua Industrial Park of Baiyun District, Guangzhou city, have more than 10,000 square meters of R&D processing workshops, CNC machining center, CNC machine tools, have a good senior designer team and experienced technical personnel. Hwarrior have cooperated with the Swiss Jansen company, and earlier introduced & absorbed the mature and frontier technologies of Europe.
Our market have expand to Southeast Asia, the Middle East, Oceania and Africa, now we have completed the Asian Games venues-Zhongshan University Sports Centre's building and finished Shenzhen Baoan commercial zone's reconstruction project, in addition, we also completed some curtain wall construction in CMT, Mauritius. With the global warming and energy saving environmental protection's market trends, by cooperated with the Northern Electric Power University and other academic colleges, Hwarrior take the growing of photovoltaic curtain wall and the intelligent double- curtain wall breathing as our new growth pole.
As the widely development and application, HWARRIOR series of safety products have truly realized the perfect unity in glass curtain walls & windows' transparent and security, such as Fire-proofing, anti-violence & theft, bullet-proofing. With the undeniably value, this system is becoming market trends for the high-grade household and top noble construction safety door window curtain wall, it would be the symbol of achievements, strength and special.
Integrity first, focus on technology, serve in heart!
Under the wisdom of innovation and follow the future philosophy closely, Hwarrior people always trying their best to help clients and architects to achieve their ambition in architecture. Hwarrior will make every effort to gain the trust of customers and society!
