Car Radio 100km Long Range 50W Output TYT TH-9800 Quad Band Vehicle Radio Mobile Transceiver Quality Choice

US$ 180 - 200 MOQ: 1 Piece

Key Specifications

Place of Origin:

China

Brand Name:

TYT

Model Number:

TYT TH-9800

Quanzhou Tucson Age Security Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

XIAMEN

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin China

Brand Name TYT

Model Number TYT TH-9800

Type Vehicle Mouted

Dimensions 140*42*168 mm

Frequency Range RX/TX 26-33/47-54/136-174/400-470MHz

Storage Channel 809 Channels

Talk Range 50-100km

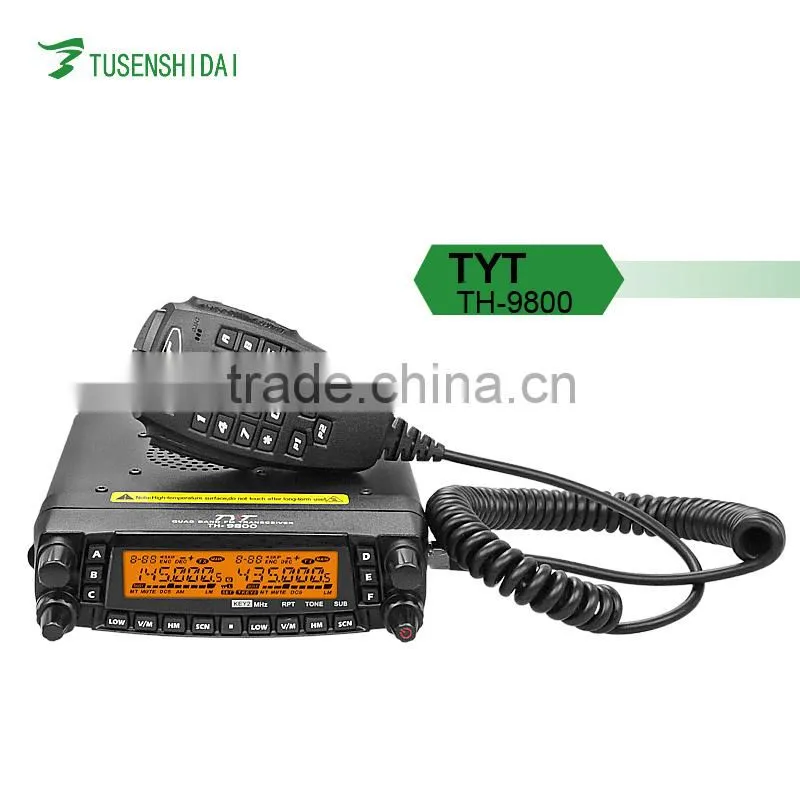

Car Radio 100km Long Range 50W Output TYT TH-9800 Quad Band Vehicle Radio Mobile Transceiver

Model:	TYT TH-9800 HF/VHF/UHF transceiver
Frequency range:	TX: 26 - 33MHz / 47 - 54MHz / 136 - 174MHz / 400 - 470MHz
Frequency range:	RX: 26 - 33MHz / 47 - 54MHz / 108 - 135MHz / 136 - 180MHz / 320 - 512MHz / 700 - 950MHz (wireless not include)
Mode:	TX: FM/NFM
Mode:	RX: AM/FM/NFM
RF Power output:	Hi: 50/50/50/35 W
	Mid1: 20/20/20/20 W
	Mid2: 10/10/10/10 W
	Lo: 5/5/5/5 W
Receiver system:	Double conversion superheterodyne
	1st IF: 46.05 MHz (Left band), 47.25 MHz (Right band)
	2nd IF: 450 KHz
Sensitivity:	<0.2 uV (12 dB SINAD)
Selectivity:	FM: 12 KHz (-6 dB), 30 KHz (-60 dB)
Image rejection:	N/A
Voltage:	13.8 VDC
Current drain:	RX: 500 mA (Squelched)
Current drain:	TX: Max 8.5 A
Impedance:	50 ohms, SO-239
Dimensions (WHD):	14042168 mm
Weight:	about 1.2 Kg
Manufactured:	China, 2012-201x
Other:	809 memories. CTCSS/PL and DCS. DTMF-ANI
	5-tone/2-tone. Built-in scrambler.
	Compare this one with FT-8900R!

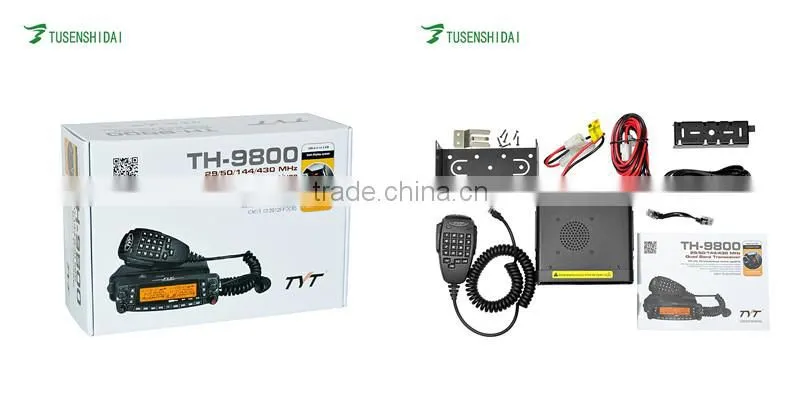

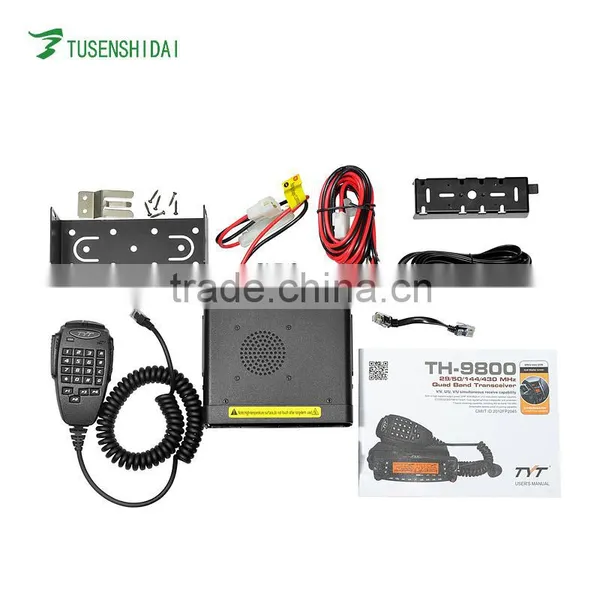

Packing	1×Transceiver

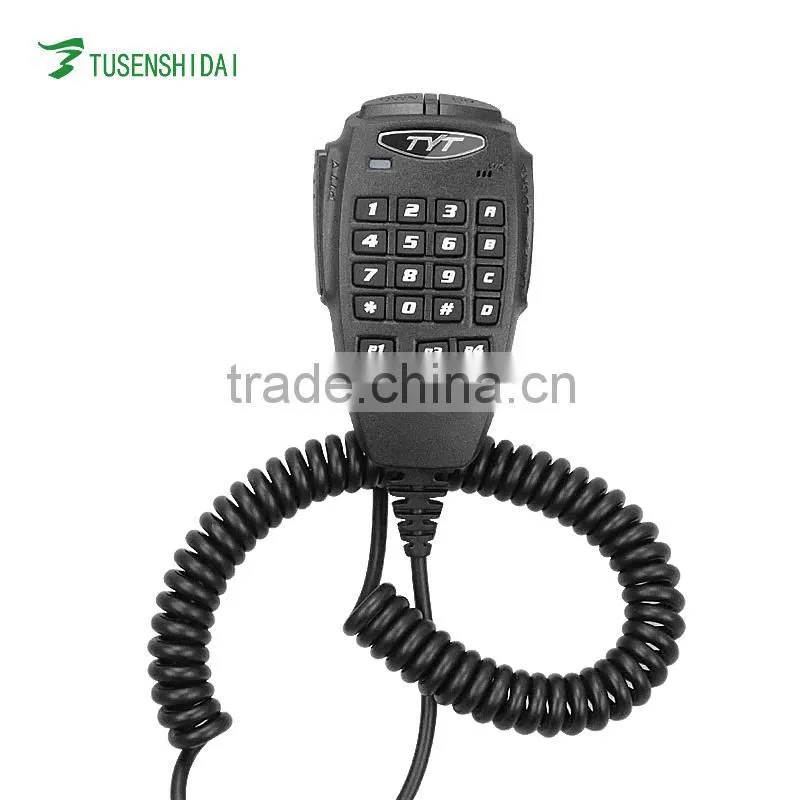

	1×Microphone(with DTMF keypad)
	1×Mobile Mounting bracket
	1×DC power cable with fuse holder
	1×Hardware kits
	Remark: 1pc color box, 10pcs per carton carton size:455237cm

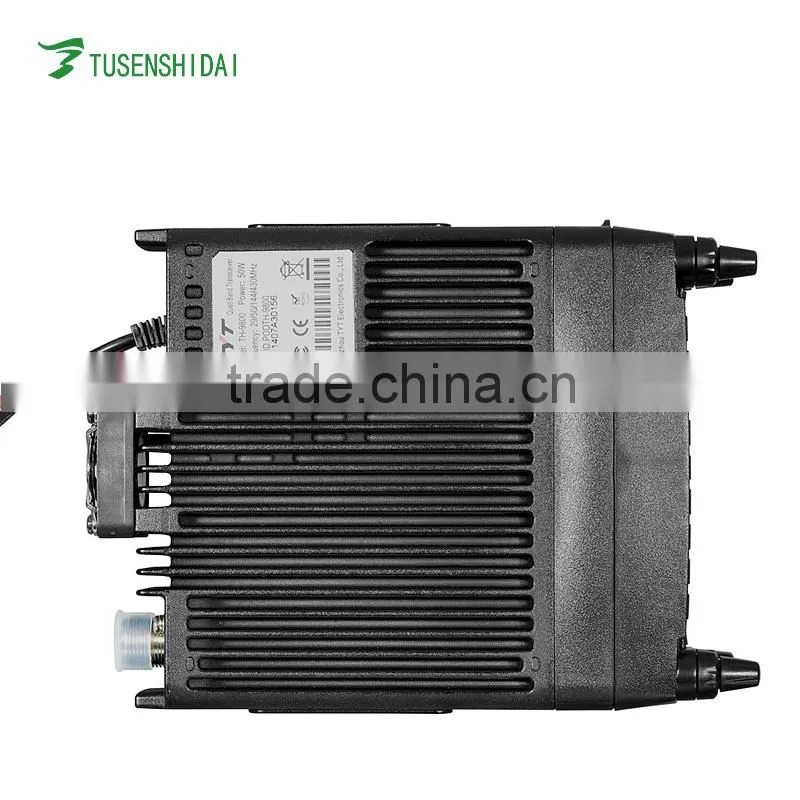

More Product Pictures:

Packaging & Shipping

Car Radio 100km Long Range 50W Output TYT TH-9800 Quad Band Vehicle Radio

Mobile Transceiver

Packing	1×Transceiver
	1×Microphone(with DTMF keypad)
	1×Mobile Mounting bracket
	1×DC power cable with fuse holder
	1×Hardware kits
	Remark: 1pc color box, 10pcs per carton carton size:455237cm
