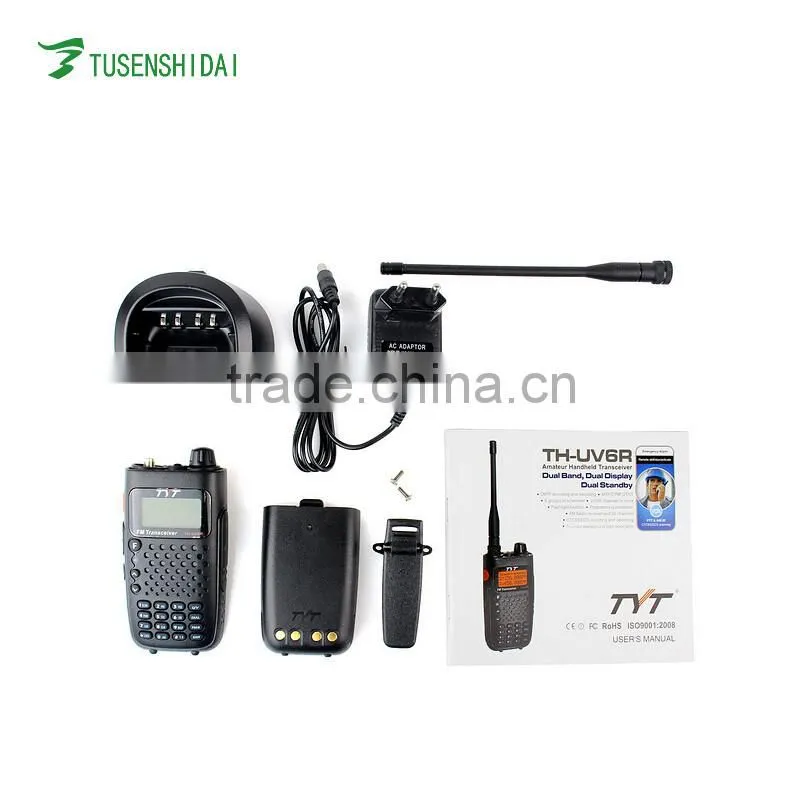

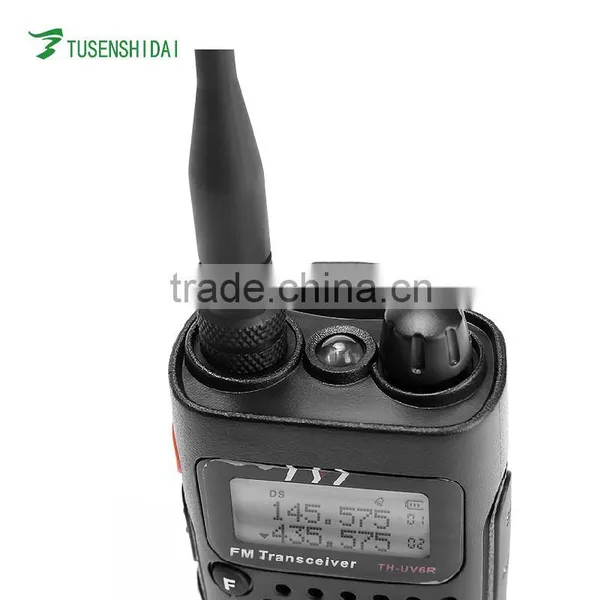

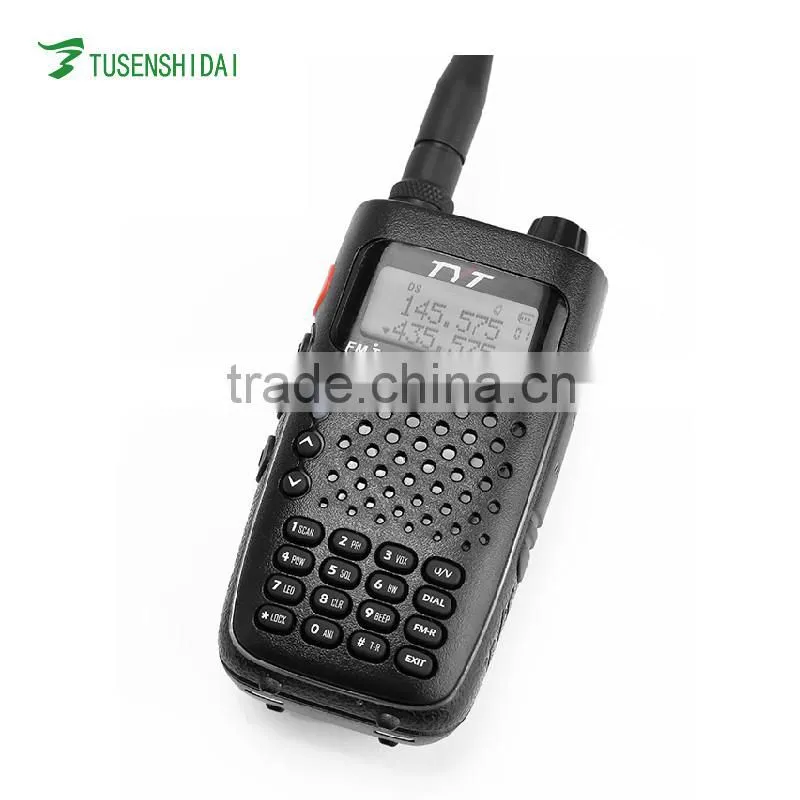

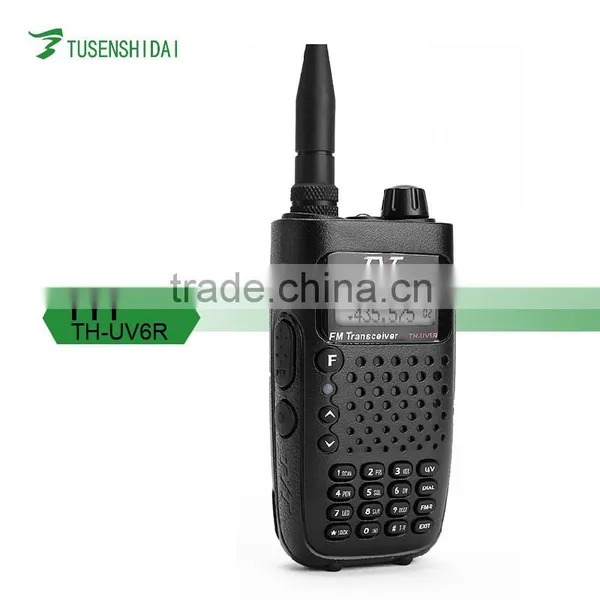

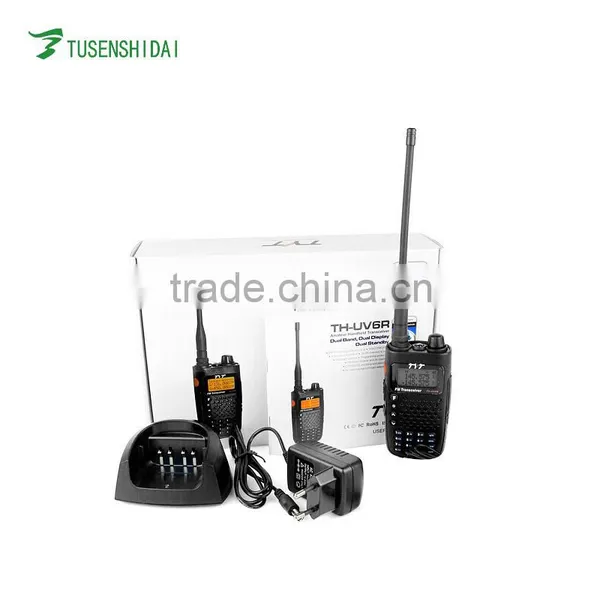

Two Way Radio For TYT TH-UV6R Dual Band 5W Walkie Talkie Ham Mini Transceiver

Name: Two Way Radio For TYT TH-UV6R Dual Band 5W Walkie Talkie Ham Mini Transceiver
Brand: TYT Two Way Radio
SKU: 108615437

US$ 1 - 32 MOQ: 1 Piece

Key Specifications

Place of Origin:

Fujian, China

Brand Name:

TYT Two Way Radio

Model Number:

TH-UV6R Two Way Radio

Quanzhou Tucson Age Security Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

xiamen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Fujian, China

Brand Name TYT Two Way Radio

Model Number TH-UV6R Two Way Radio

Type Handheld

Dimensions 110*58*32mm(without antenna)

Frequency Range VHF:136-174MHz UHF:400-480MHz

Storage Channel 256 Channels Two Way Radio

Talk Range 5-8km Two Way Radio

Two Way Radio For TYT TH-UV6R Dual Band 5W Walkie Talkie Ham Mini Transceiver

Product Description

Two Way Radio For TYT TH-UV6R Dual Band 5W Walkie Talkie Ham Mini Transceiver

General
Frequency Range(dual band)	136-174MHz / 400-480MHz
Channel No.	256
Channel Spacing	2.5/5/6.25/12.5/20/25KHz
Voltage	DC7.4V
Battery	1400mAh(Li-Ion)
Frequency Stabilization	±2.5ppm
Operating Temperature Range	‘-20°C~+55°C
Antenna Impedance	50Ω
Working Mode	Simplex for same/different channel
Dimension(without antenna)	110 * 58 * 32mm
Transmitter
RF Power Output	5W
Modulation Type(Wide/Narrow)	16KØF3E / 11KØF3E
Spurious power	≤7.5uW
Maximum Frequency Deviation	≤5KHz/≤2.5KHz
Adjacent channel power	≤-65dB/≤-60dB
Pre-emphasis characteristics	6db
CTCSS/DCS Deviation	0.5± 0.1KHz/ 0.4 ± 0.1KHz
Modulation sensitivity	8-12mV
TX Current	≤1.6A
Receiver
Sensitivity	-122dBm(12dB SINAD)
Audio Power	1W
Audio distortion	<10%
Intermodulation(Wide/Marrow)	≥60dB/≥55dB
Adjacent channel selectivity(Wide/Narrow)	≥65dB/≥60dB
Clutter rejection	≥65dB
Blocking	≥85dB
