Home > Consumer Electronics > Two Way Radio > Handheld Two Way Radio > TYT MD-280 5W Two Way Radio 32 Channels Transceiver 400-480MHz Walkie Talkie
TYT MD-280 5W Two Way Radio 32 Channels Transceiver 400-480MHz Walkie Talkie
US$ 93 - 100
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
TYT
Model Number:
MD-280
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Cheap Uhf Handheld Military Two Way Radio Tyt a8US$ 1 - 16MOQ: 1 Piece -
10W Long Range TYT UV-8000D UHF VHF Dual Band Walkle Talkie Ham Radio Interphone Quality ChoiceUS$ 45 - 50MOQ: 1 Piece
-
7W Two Way Radio Waterproof UHF 400-520MHZ TYT A8 Walkie Talkie Wireless Handheld FM TransceiverUS$ 14 - 16MOQ: 1 Piece
-
5W Dual Band Walkie Talkie for TYT TH-UVF9 Digital Professional InterphoneUS$ 40 - 45MOQ: 1 Piece
-
5Watts Two Way Radio Dual Band Ham Transceiver for TYT TH-UV8R Digital Display Mode Walkie TalkieUS$ 30 - 35MOQ: 1 Piece
Place of Origin
Fujian, China
Brand Name
TYT
Model Number
MD-280
Type
Handheld
Dimensions
128*61*38mm
Frequency Range
400-480MHz
Storage Channel
32 Channels
Talk Range
3-5KM
TYT MD-280 5W Two Way Radio 32 Channels Transceiver 400-480MHz Walkie Talkie
Product Description
TYT MD-280 5W Two Way Radio 32 Channels Transceiver 400-480MHz Walkie Talkie
| Frequency Range | UHF: 400-480MHz |
| Channel capacity | 32 channel |
| Output power | 5W |
| Operating Voltage | 7.2V |
| Battery capacity | 2000mAh Li-ion battery |
| Antenna Impedance | 50Ω |
| Working Temperature | -30°C—+60°C |
| Store temperature | -40°C—+85°C |
| Frequency stability | ± 1.0 PPM |
| Frequency Spacing | 12.5kHz |
| Dimension(Exclude antenna) | 128x61x38mm(LxWxH) |
| Weight(Include Battery) | 235g |
| Receiver | |
| Analog sensibility | 0.35µV/-166dBm(20dB SINDA) |
| 0.22µV/-110dBm (BER 1%) | |
| Digital sensibility | 0.3µV/-177.4dBm (BER5%) |
| 0.22µV/-110dBm (BER 1%) | |
| Co-channel rejection | >=-12dB |
| Adjacent channel selectivity | TIA603C: 65dBETSI:60dB |
| Spurious response | TIA603C:75dB ETSI:70dB |
| Rated audio power | 1W |
| Audio response | =1dB—-3dB |
| Rated audio distortion | 3%(Type) |
| Spurious radiation | Antenna:9kHz-1GHz<=-36dBm |
| Antenna:1GHz-12.75GHz<=-20dBm | |
| Transmitt | |
| Adjacent channel power | <=-60dB |
| Free time slot power | TDMA:<=57dBm |
| Spurious radiation | Antenna:9kHz-1GHz<=-36dBm |
| Antenna:1GHz-12.75GHz<=-20dBm | |
| FM Modulation mode | 12.5kHz:11k0F3E |
| 4FSK digital mode | 12.5kHz(data only):7K60FXD |
| 12.5kHz)data + voice):7K60FXE | |
| Nonactive slot power | -57dBm |
| Digital protocol | ETSITS 102 361-1 2-3 |
| Vocoder type | AMBE + 2TM |
| Audio response | +1dB—-3dB |
| Modulation BER(Bit Error rate) | <=5% |
Packaging & Shipping
TYT MD-280 5W Two Way Radio 32 Channels Transceiver 400-480MHz Walkie Talkie

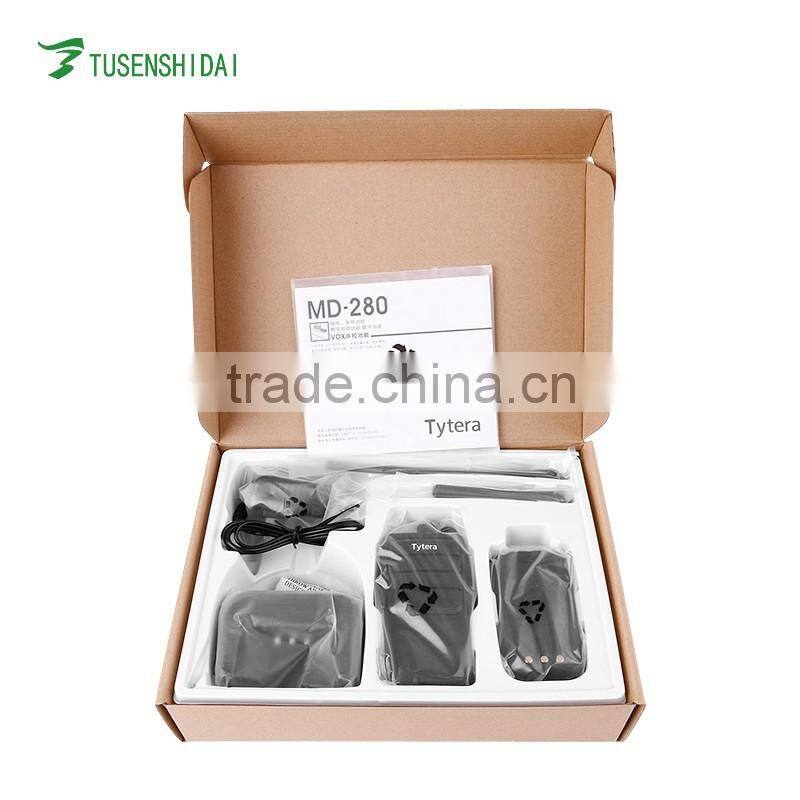

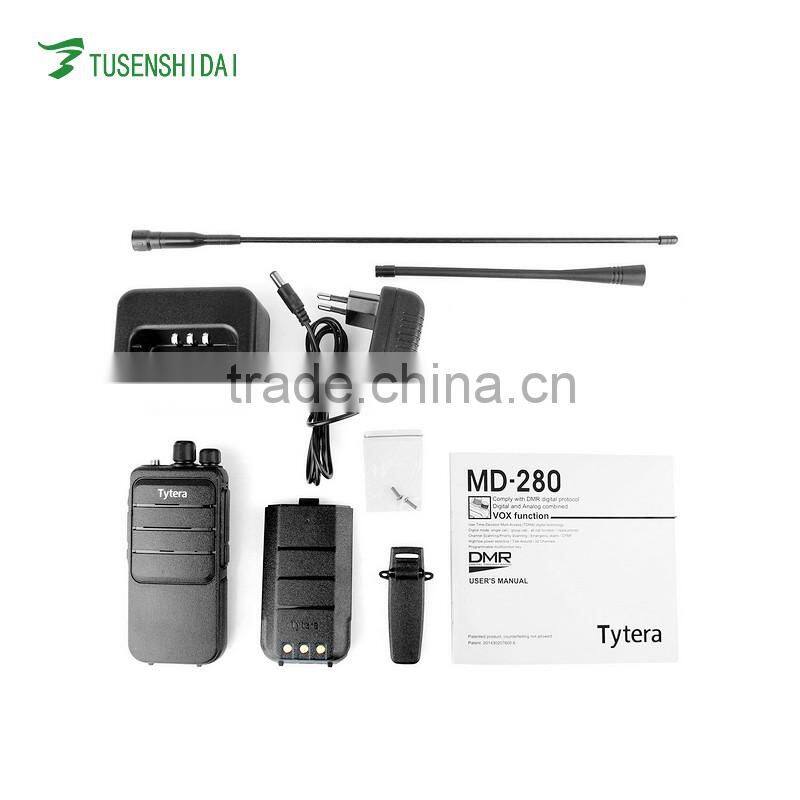

Packing Items:
1*Host
2*Antenna(S/L)
1*7.2V DC 2000mAh Li-ion Battery
1*Belt Clip
1*EN User's Manual
1*Charger

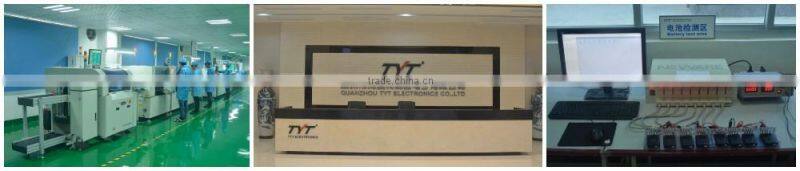

Factory&Cetification
We are authorized by TYT factory.
We can provide you superior quality and favorable price!
Our Services
Shipping time
1-2days for sample order,3-5days for bulk order
Customer Service
1.OEM&ODM service offered
2.Sample's fee can be refund after order reached 1000sets.
3.Delivery can be express: DHL,UPS,FedEx,EMS,TNT.
Warranty
Before delivery, we will check the item's quality strictly one by one. Life-warranty for radio body & accessories, please contact us immediately when you get defective,thanks.
Payment terms
Payment:T/T,Western Union,escrow below US$1000 accept Paypal payment term(please do Not believe anybody by Email say our band changed,thank you)
