Long Distance Dual Band vhf uhf Baofeng Radio BF-UV5RE 5w Two Way Radio
FUNCTIONS:
| Dual band, dual display | A/B band independent operation |
| 128 groups channels storage | Shortcut menu operation mode |
| VFO & Memory channels scan | Emergency Alarm |
| Tri-color background light selectable | 0~9 grades VOX selectable |
| PTT & ANI ID | FM radio and 25 stations storage |
| 1750Hz Brust Tone | Time-out Timer |
| Channel Monitor | Battery Saver |
| Keypad Lock | Channel Step: 12.5/25KHz |
| Low Battery Alert | ROGER SET |
| Emergency Alert | 25KHz/12.5KHz Switchable |
| FM Radio (65.0MHz-108.0MHz) | Large LCD Display |
| LED Flashlight | Hight /Low RF Power Switchable |
| Voice companding | 50 CTCSS/ 104DCS coder & tone searching |
| dual standby | PC programmable |
| Wide/Narrow Band(25kHz/12.5kHz) | Transmitter time-out timer(TOT) |
| High/Low TX power selectable | Busy channel lock-out(BCLO) |
Long Distance Dual Band vhf uhf Baofeng Radio BF-UV5RE 5w Two Way Radio
| Specifications | |
| General | |
| Frequency Range | 65-108MHz(FM Receive only) |
| 136-174MHZ and 400-520HZ (TX/RX) | |
| Channel No. | 128 |
| Frequency Stability | ±2.5ppm |
| Antenna | High gain DualBand antenna |
| Antenna Impedance | 50Ω |
| Operating Voltage | DC 7.4V |
| Battery Capacity | 1800mAh Li-ion Battery |
| Channel Spacing | 25KHz/12.5KHz |
| Mode of operation | Simple or semi-duplex |
| Dimension(W x H x D) | 112 x 52 x 32 mm(exclude antenna and battery) |
| Weight | 220g(including battery, antenna) |
| Antenna : | SMA -Female,High gain dual band antenna |
| Earpiece / mic type : | Plug type |
| Transmitter | |
| Output power | 5W / 1W (Max 5W) |
| Modulation Mode | 16kΦF3E / 11kΦF3E |
| Maximum deviation | 5kHz(Wide) / 2.5kHz(Narrow) |
| Spurious Radiation | 7μW |
| Adjacent Ch. power | ≤-65dB(Wide) / ≤-60dB(Narrow) |
| Pre-emphasis characteristics | 6dB |
| Current | ≤1.6A(5W) |
| CTCSS/DCS deviation | 0.5±0.1kHz(Wide) / 0.3±0.1kHz(Narrow) |
| Intermediation sensitivity | 8-12mv |
| Intermediation distortion | ≤10% |
| Receiver | |
| Sensitivity(12dB SINAD) | -122dBm |
| Selectivity | Wide:60 DB;Narrow:55dB |
| Intermodulation | ≥65dB |
| Adjacent channel sleectvity | ≥65dB |
| Spurious response | <10% |
| Receive current | <380mA |
Long Distance Dual Band vhf uhf Baofeng Radio BF-UV5RE 5w Two Way Radio

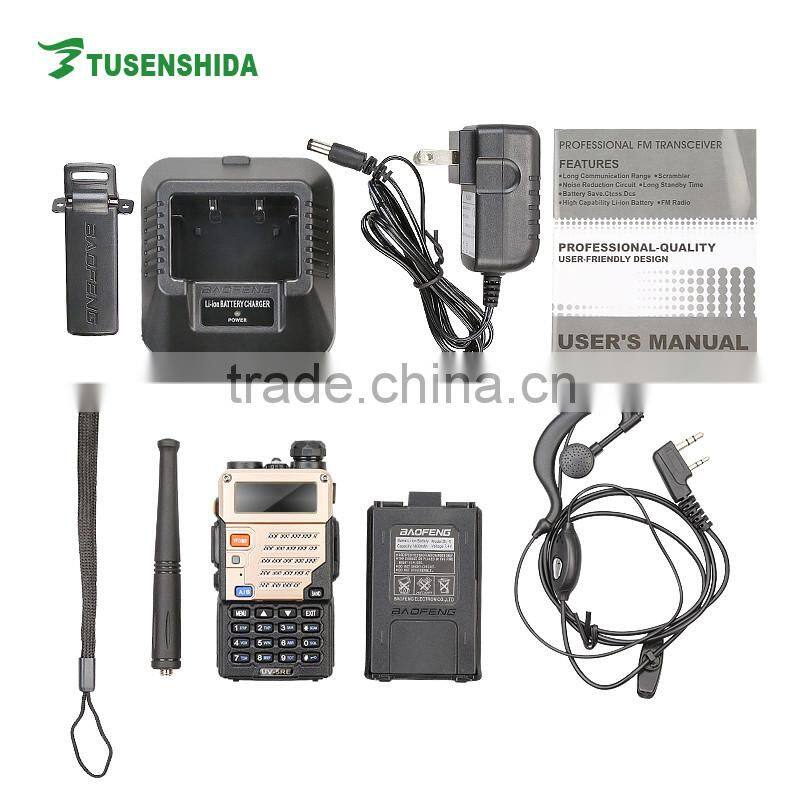

PACKING DETAILS:
1 X Hoster
1 X Antenna
1 X DC 7.4V 1800Mah Li-ion Battery
1 X Belt Clip
1 X Hang Strap
1 X Charger
1 X User's Manual
1 X Two Way Radio Earpiece
Long Distance Dual Band vhf uhf Baofeng Radio BF-UV5RE 5w Two Way Radio
Shipping terms
1-2days for sample order,3-5days for bulk order
Customer Service
1.OEM&ODM service offered
2.Sample's fee can be refund after order reached 1000sets.
3.Delivery can be express: DHL,UPS,FedEx,EMS,TNT.
Warranty
Before delivery, we will check the item's quality strictly one by one. Life-warranty for radio body & accessories, please contact us immediately when you get defective,thanks.
Payment terms
Payment:T/T,Western Union,escrow below US$1000 accept Paypal payment term(please do Not believe anybody by Email say our band changed,thank you)
Q1:What is your payment terms?
A: We accept the T/T,Western Union,Paypal and so on.
Q2:When can you arrange the shipment after I have placed and order?
A:3-5days for sample order,7-10days for bulk order.
Q3:Could you supply the sample for me to test first?
A:Yes,we are very willing to send the sample first,however,the customer should pay the cost.
Q4:What is the MOQ of your products.
A:Usually,for radio is 1pc usually.
Q5:Can you accept customized?
A:OEM&ODM are welcomed.
