Agricultural Bearing SBX1135C4 Bearing Square Bore
- Shanghai /Qingdao
- T/T Credit Card PayPal
You May Like
-
Square Bore Bearing GCR-15 Agricultural Bearing SBX1135 C4 Bearing
-
SYBR China Bearing Corporation for Roller Ball Bearings 6305 ZZ 2RS
-
SHR One Way Clutch Bearings for Food Machinery,CSK30P-2RS One Way Bearing
-
ZrO2 High Quality Full Ceramic Deep Groove Ball Bearing 6209CE
-
ZrO2 Ceramic Spherical / Insert Bearing UC214CE
-
Chinese Agricultural Machinery Bearing GW210PPB5
Product Details
| Brand Name | SHR | Bore Size | 41, | |
| Outside Diameter | 100, | Model Number | bearing SBX1135C4 | |
| Precision Rating | P6 | Seals Type | seal | |
| Place of Origin | Shanghai, China |
Product Description

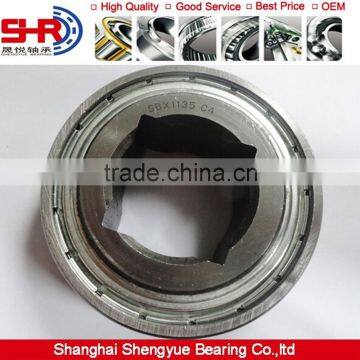

Agricultural bearing SBX1135C4 bearing square bore
Agricultural bearing SBX1135C4 supply
1,ISO:9001:2008 standard
2.EXW price OEM service
3.One year guarantee
4,3% discount for order now
About Agricultural bearing SBX1135C4 square bore bearing :
Agricultural machinery requires better seals for contaminated conditions, provisions for misalignment, and economical mountings for shafts and housings. Lily Bearings offers bearings for disc harrows, planters, mowers, rakes, all types of balers, tillage, seeding and forage harvester equipment, combines, cotton pickers/stripers, and other agricultural equipment like silo unloaders and grain elevators.
Agricultural bearing SBX1135C4 square bore bearing design draft :
| Bearingstypes | bearing SBX1135C4 |
| categories | AG bearing / Agrucultural bearing |
brands | SHR /OEM |
| Metric size : | 41*100*33.5 mm |
| Weight | 1.35 KG |
Agricultural bearing SBX1135C4 bearing Features and Benefits:
1. High grade through hardened bearing steel for improved fatigue resistance and load carrying capacity.
2. High grade balls have improved roundness and finish to extend bearing fatigue life.
3. Raceway formation and finishes to provide long life and load carrying capacity.
4. Seal designs for all operating conditions, loads and speeds.
5. Premium grease types and fill amounts for optimal bearing life
Applications for agricultural bearing :
Agriculture - Combines, Tillage equipment, Hay Balers, Mower Conditioners, Cotton Strippers, Augers, Planters/Grain Drills, wheel bearings, disc bearings.
Lawn & Garden - Lawn Mowers wheels and spindles.
Conveyors - Grain, Aggregate
AG bearing range :
Round bore Non-relubricable
Square bore Non-relubricable
Round & Square bore Non-relubricable
Round bore Relubricable
Square bore Relubricable
200 series
87000 series
88000 series
Agricultural bearing SBX1135C4 square bore bearing other model series : ( INCH SIZES )
| Boundary dimensions(in) | Mass(Kg) | Bearing Number | |||
| d | D | B | C | (Approx.) | SHR |
| 1.7850 | 3.5433 | 1.189 | 1.189 | 0.79 | W210PPB5 |
| 2.1880 | 3.9370 | 1.311 | 1.311 | 0.97 | W211PPB2 |
| 1.7717 | 3.3464 | 1.189 | 1.189 | 0.65 | W209PPB2 |
| 1.5350 | 3.3464 | 1.189 | 1.189 | 0.75 | W209PPB4 |
| 1.9380 | 3.5433 | 1.189 | 1.189 | 0.71 | W210PPB2 |
| 1 | 3.1496 | 1.189 | 0.708 | 0.64 | W208PPB7 |
| 1.7811 | 3.3464 | 1.437 | 0.866 | 0.64 | W209PPB11 |
| 1.9380 | 3.9370 | 1.311 | 1.311 | 1.02 | GW211PPB10 |
| 2.1880 | 3.9370 | 1.311 | 1.311 | 0.97 | GW211PPB2 |
| 2.1940 | 3.9370 | 1.311 | 0.984 | 0.92 | GW211PPB9 |
| 1.5350 | 3.3464 | 1.189 | 1.189 | 0.75 | GW209PPB4 |
| 1.9380 | 3.5433 | 1.189 | 1.189 | 0.71 | GW210PPB2 |
| 1.7850 | 3.5433 | 1.189 | 1.189 | 0.79 | GW210PPB5 |
| 1.1880 | 3.1496 | 1.437 | 0.708 | 0.72 | GW208PPB6 |
| 1.7811 | 3.3464 | 1.437 | 0.866 | 0.64 | GW209PPB11 |
| 1.7717 | 3.3464 | 1.189 | 1.189 | 0.65 | GW209PPB2 |
Agricultural bearing SBX1135C4 bearing square bore pictures series :
Bearings Package :
Original Package:
1):Inner Plastic Bag+ Paper Box + Carton(+Pallet);
2):Small sizes:Plastic Tube + Carton
3):Big sizes:Wooden Case
Bearings delivery time :
We will prepare your order as soon as possible.
1)2-3 days for ex-stock
2)6-10 days for others
SHR our own brand packing:
Neutral packing: ( paper / tubes / white boxes )
Widely used in metallurgy ,mining ,petroleum,chemical,coal,cement ,paper,windpower,heavy machinery ,enginnering machinery,port machinery and other industries.
Our company information :
| Company name | shanghai shengyue bearing Co.,Ltd |
| Business type | manufacturer |
| Established year | 2012 |
| Business product | all kinds of bearings |
| OWN Brand | SHR |
| Export range | 81%-90% |
| OEM service | offer |
| Our advantages | 1. More than ten years bearing products exporting experiences. 2. OEM order and non-standard bearing order can be accepted. 3. Many sizes of bearing are available. Large quantity bearing can be provided. 4. To respect customers, you can choose the loading port. 5. A certain number of free sample can be provide to support our customer's after-sale services and warranty. |
Trading information :
| Price terms | EXW FOB CNF CFR, CIF |
| Payment terms | L/C ,T/T ,Western Union, Paypal |
| Express way | DHL FEDEX TNT UPS |
| Shipping port | shanghai ,qingdao ,nongbo, guangzhou |
| Packing | 1.Industrial packaging: plastic bag + kraft paper + carton + plywood pallets; plastic tube + carton + plywood pallets; 2. Commercial packing: 1pc/plastic bag + color box + carton + plywood pallets |
Our Factory :
Bearing other series product range :
1. Deep Groove Ball Bearings (Single) 1600, 623, 607, 6000
2. Deep Groove Ball Bearings (Single) 6200 Series
3. Deep Groove Ball Bearings (Single) 6300, 6400 Series
4. Angular Contact Ball Bearings (Duplex) 3200, 3300, 5200, 5300 Series
5. Deep Groove Ball Bearings (Double) 4200, 4300
6. Angular Contact Ball Bearings (Single) 7200, 7300 Series
7. Self Aligning Ball Bearings 1200, 1300, 2200, 2300 Series
8. Spherical Roller Bearings 21300, 22200 Series
9. Spherical Roller Bearings 22300, 23200 Series
10. Trust Ball Bearings 5110, 51200 Series
11. Taper Roller Bearings 302 Series
12. Taper Roller Bearings 303 Series
13. Taper Roller Bearings 313 Series
14. Taper Roller Bearings 320 Series
15. Taper Roller Bearings 322 Series
16. Taper Roller Bearings 323 Series
17. Taper Roller Bearings (Imperial Sizes Supplied Separately)
18. Pillow Blocks (Normal Duty) UCP 200 Series
19. Pillow Blocks (Medium Duty) UCP X00 Series
20. Flange Units (Normal Duty) UCF 200 Series
21. Flange Units (Medium Duty) UCF X00 Series
22. Flange Units (Normal Duty) UCFL 200 Series
23. Pillow Blocks (Light Duty Pressed Steel Housing) SBP - SAP Series
24. Flange Units (Light Duty Pressed Steel Housing) SBFL, SAFL Series
25. Flange Units (Light Duty Pressed Steel Housing) SBF - SAF Series
26. Ball Bearings UC200, CUC 200 Series
27. Ball Bearings (With Eccentric Locking Collar) SA200, CSA200 Series
28. Ball Bearings SB200, CSB200 Series
29. Disc Harrow Bearings W 200 Series
30. Ball Bearings Units (Load Rating Data)
31. Take-up Units (Normal Duty) UCT 200, UCST 200 Series
32. Plumber Blocks SN/SSN500, SN/SSN600 Series
33. Plumber Blocks (Sealing Arrangements)
34. Plumber Blocks (Application References)
35. Plumber Blocks SNU 500 - 600 Series
36. Plumber Blocks SD3100 Series
37. Plumber Blocks (Application References)
38. Adaptor Sleeves H2 & H3 Series
39. Adaptor Sleeves H23 Series
40. Adaptor Sleeves H31 & H32 Series
