Baofeng Radios BF-UV5R Handheld Transceiver Vhf Uhf Li-ion Battery Radio

Baofeng Radios BF-UV5R Handheld Transceiver Vhf Uhf Li-ion Battery Radio photo-1
Baofeng Radios BF-UV5R Handheld Transceiver Vhf Uhf Li-ion Battery Radio photo-2
Baofeng Radios BF-UV5R Handheld Transceiver Vhf Uhf Li-ion Battery Radio photo-3
Baofeng Radios BF-UV5R Handheld Transceiver Vhf Uhf Li-ion Battery Radio photo-4
Baofeng Radios BF-UV5R Handheld Transceiver Vhf Uhf Li-ion Battery Radio photo-5
Baofeng Radios BF-UV5R Handheld Transceiver Vhf Uhf Li-ion Battery Radio photo-6
US$ 1 - 25 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
Baofeng
Model Number:
BF:UV-5R
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Fujian, China
Brand Name Baofeng
Model Number BF:UV-5R
Type Handheld
Dimensions 130x58x32mm(Exclude antenna)
Frequency Range 136-174MHz 400-520MHz
Storage Channel 128 Channels
Talk Range 3-5KM

Baofeng Radios BF-UV5R Handheld Transceiver vhf uhf Li-ion Battery Radio

FEATURES:

- DTMF encoded

- Bult-in key lock

- Tone end of transmission

- VOX function

- Noise Reduction Circuit

- Long Communication Range

- Battery Save.CTCSS/DCS

- FM Radio

- Dual Watch/dual reception

- Bult-in LED flashlight

Baofeng Radios BF-UV5R Handheld Transceiver vhf uhf Li-ion Battery Radio



Product Description

Baofeng Radios BF-UV5R Handheld Transceiver vhf uhf Li-ion Battery Radio

 General
Frequency Range65MHz-108MHz(Only commercial FM radio reception)
VHF:136MHz-174MHz(Rx/Tx)
UHF:400MHz-520MHz(Rx/Tx)
Memory ChannelUp to 128 Channels
Frequency Step2.5KHz/5KHz/6.25KHz/10KHz/12.5KHz/25KHz
Operated VoltageDC 7.4V
Battery capacity1800MAh Li-ion
Duty cycle03/03/54min.(Rx/Tx/Standby)
Frequency Stability±2.5ppm
Operated Temperature-20°C to +60°C
Antenna Impedance50Ω
Dimensions (L×W×H)55×32×108mm (not including antenna)
Weight110g (not including battery & antenna)
Consumption in standby≤75mA
Communication Rangeabout 5-8km
ReceiverWide bandNarrow band
Sensitivity (12dB SINAD)≤0.20 uV≤0.20 uV
Intermodulation≥60dB≥60dB
Adjacent channel selectivity≥65dB≥60dB
Maximum deviation≤±5kHz≤±2.5kHz
Audio Power Output1W1W
TransmitterWide bandNarrow band
RF Power Output5W
Type of modulationFM
Maximum deviation≤±5KHz≤±2.5KHz
Emission class16kΦF3E11kΦF3E
Spurious Emission<-60dB<-60dB



Detailed Images

Baofeng Radios BF-UV5R Handheld Transceiver vhf uhf Li-ion Battery Radio



Baofeng Radios BF-UV5R Handheld Transceiver vhf uhf Li-ion Battery RadioBaofeng Radios BF-UV5R Handheld Transceiver vhf uhf Li-ion Battery RadioBaofeng Radios BF-UV5R Handheld Transceiver vhf uhf Li-ion Battery RadioBaofeng Radios BF-UV5R Handheld Transceiver vhf uhf Li-ion Battery Radio

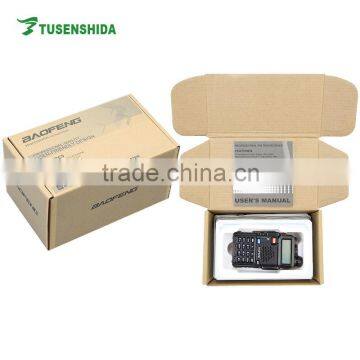

Packaging & Shipping

 Baofeng Radios BF-UV5R Handheld Transceiver vhf uhf Li-ion Battery Radio



Baofeng Radios BF-UV5R Handheld Transceiver vhf uhf Li-ion Battery Radio

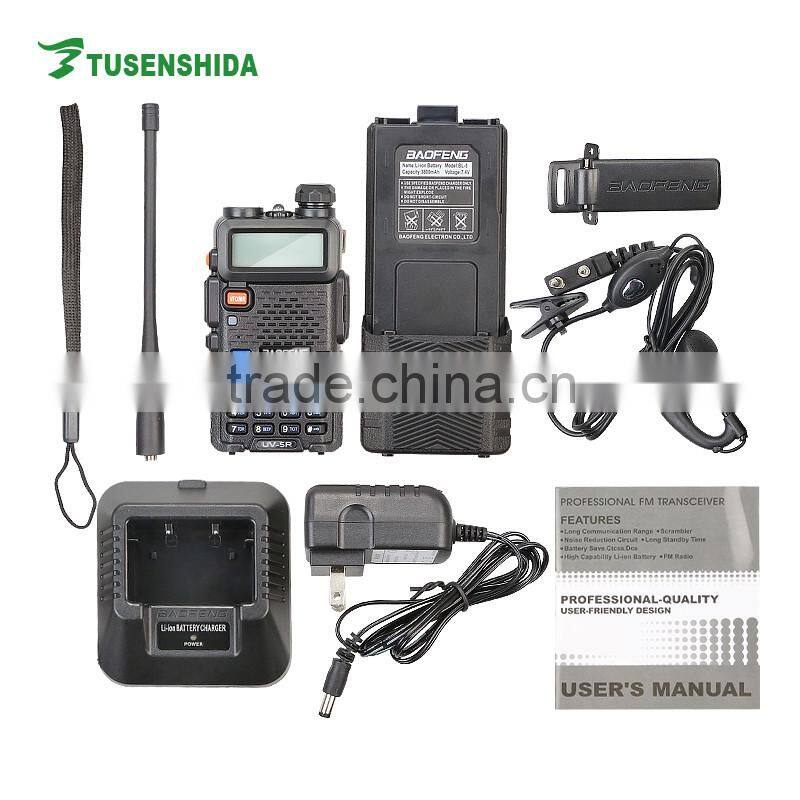

PACKING DETAILS

1 x Hoster

1 x Antenna

1 x DC 7.4V 3800Mah Li-ion Battery

1 x Belt Clip

1 x Hang Strap

1 x Charger

1 x User's Manual

1 x Two Way Radio Earpiece



Certifications

 Baofeng Radios BF-UV5R Handheld Transceiver vhf uhf Li-ion Battery Radio

Our Services

 Baofeng Radios BF-UV5R Handheld Transceiver vhf uhf Li-ion Battery Radio



Baofeng Radios BF-UV5R Handheld Transceiver vhf uhf Li-ion Battery Radio



Shipping terms

1-2days for sample order,3-5days for bulk order



Customer Service

1.OEM&ODM service offered

2.Sample's fee can be refund after order reached 1000sets.

3.Delivery can be express: DHL,UPS,FedEx,EMS,TNT.



Warranty

Before delivery, we will check the item's quality strictly one by one. Life-warranty for radio body & accessories, please contact us immediately when you get defective,thanks.



Payment terms

Payment:T/T,Western Union,escrow below US$1000 accept Paypal payment term(please do Not believe anybody by Email say our band changed,thank you)





Contact Me






FAQ

Q1:What is your payment terms?

A: We accept the T/T,Western Union,Paypal and so on.



Q2:When can you arrange the shipment after I have placed and order?

A:3-5days for sample order,7-10days for bulk order.



Q3:Could you supply the sample for me to test first?

A:Yes,we are very willing to send the sample first,however,the customer should pay the cost.



Q4:What is the MOQ of your products.

A:Usually,for radio is 1pc usually.



Q5:Can you accept customized?

A:OEM&ODM are welcomed.
