panel machine sanding machine
| model | SR3A13 | SR2A13 | BSR13 |
| working width | 40-1300mm | 40-1300mm | 40-1300mm |
| working thickness | 2.5-110mm | 2.5-110mm | 2.5-110mm |
| working length | ≥750mm | ≥750mm | ≥750mm |
| No.1 abrasive belt speed | 20m/s | 20m/s | 20m/s |
| No.2 abrasive belt speed | 20m/s | 17m/s | |
| No.3 abrasive belt speed | 14m/s | ||
| feed speed | 13-100m/min | 13-100m/min | 13-100m/min |
| size of abrasive belt(w*p) | 1330*2615mm | 1330*2615mm | 1330*2615mm |
| total motor power | 106kw | 76kw | 46.35kw |
| main motor | 37kw,30kw,30kw | 37kw,30kw | 37kw |
| working air pressure | 0.55Mpa | 0.55Mpa | 0.55Mpa |
| consumption of compressed air | 0.1m3/min | 0.1m3/min | 0.1m3/min |
| volume of sucked air | 12000m3/h | 10000m3/h | 8000m3/h |
| speed of sucked air | 25-30m/s | 25-30m/s | 25-30m/s |
| overall dimension(L*W*H) | 3140*2770*2440mm | 2630*2780*2530mm | 2780*1900*2450mm |
| weight | 11000kg | 9000kg | 5500kg |

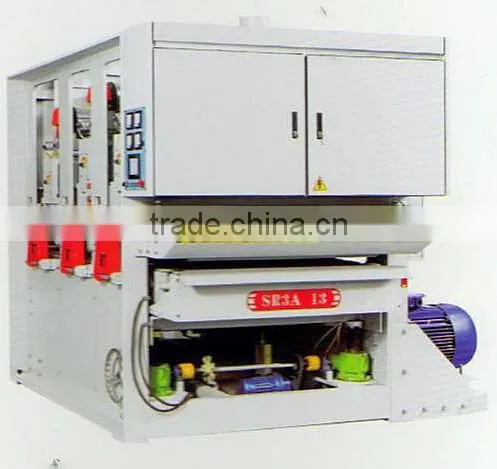

Detailed image:
Features:
*The sander is mainly used for burnishing and confirming the thickness of multiply plywood,shaving board,MDF board and solid wooden board.
*Body with integrated mineral pouring structure,sufficient rigidity and extended service span.
*Sand roller with a bigger diameter,extend sand belt service span, precise dynamic balance,operation with stability.
*There also have a big sanding power(0.6kw/cm)and a big force when it is used for the maximum width material.
Related sanders:
******************************************************************************************************************************
HuaShunPeng Machinery Manufacturing Co.,Ltd located in Lunjiao district, Shunde ,Guangdong Province which is famous as “Home town of Woodworking Machinery”, it is a professional woodworking factory with R&D, production and marketing together , and there is a professional team with long experience and skills of design, assembly and production work for HSP.
Market and sales team:
Since founded, we keeps optimizing product structures, form the product series represented by plywood machining ,and offer the market the complete sets equipment for the whole procedure ranging from dying machine, veneer jointing machine ,to sander and technical support.
*********************************************************************************
We are spoke highly by the clients from countries: Malaysia,Indonesia,India,Russia,Italy,
Germany,Vietnam and others.
A harmonious sales team is the important point to set up good long term relation with clients from markets,
just as our office shows.
*****************************************************************************************************************************
Product line:
Currently , we are in line of veneer joint production line, veneer cutting machine, press machine, drying machine, sander, dryer, glue spreading, water curtain machine, router, planner, moulder etc.
Spacious and clean workshop creates a comfortable work environment for workers to work smoothly. At the same time, finished products are set in the warehouse neatly.
Workshop:
Warehouse:
Veneer treatment system:
Seaworthy packing:
The loading team are responsible serious to load every container to prevent the goods be damaged.
The goods are loaded as the figure shows:
-We are pleased to dispatch our engineer under your indications to your factory for installing, debugging and maintaining, you only need to afford the cost of the flights, visa, engineer's accommodation and the labor fee.
-if you are experienced in installing jobs, we will provide online technical support for you.
Thanks for paying attention to your local voltage to ensure we can match the motor with right voltage for you.
