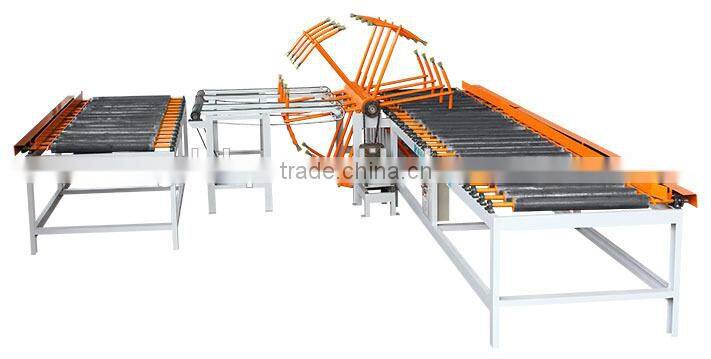

Help CenterHSP-MB01 Signle Panle Turn-over Machine/plywood Overturner
Related Products
-
HSP-1325-15L 15 Layers Veneer Dryer Machine With Trust QualityUS$ 8,800 - 8,800MOQ: 1 Set -
HSP-F2600B Semi-auto Panel Loader/plywood Production Line/hot Press Loader Quality ChoiceUS$ 10,800 - 10,800MOQ: 1 Set
-
HSP-F2600A Automatic Panel Loader for Hot Press/plywood Production LineUS$ 21,500 - 21,500MOQ: 1 Set
-
Automatic Vacuum Laminating MachineUS$ 3,650 - 7,300MOQ: 1 Set
-
Wood Door Frame Assembly MachineUS$ 1,400 - 1,700MOQ: 1 Set
1.Function Description
During production the machine is used for turn-overing the plywood,veneer and the other panel.Doesn't required to turn-over the panels by manual,so that it can reduce the cost of labor and damage,increase the production efficiency.
When single panle turn-over machine is used with sanding machine,it can become a automatic turn-over machine of double side sanding production line.
This sanding production line is designed for thickness calibration,surface sanding and surface polishing of MDF,multi-plywood,etc.
This is a full automatic sanding line.Only needs a worker to operate,improves the production efficiency and it can save the cost of labor.
2.Technical Parameter
HSP-single panel turn-over machine
| Model | HSP-MB01 |
| Max. turnover length | 2600mm |
| Max.turnover width | 1300mm |
| Max. turnover thickness | 30mm |
| Feeding speed | stepless speed regulation |
| Motor power | 0.75kw*3 |
| Overall dimension(L*W*H) | 3550*2200*2000mm |

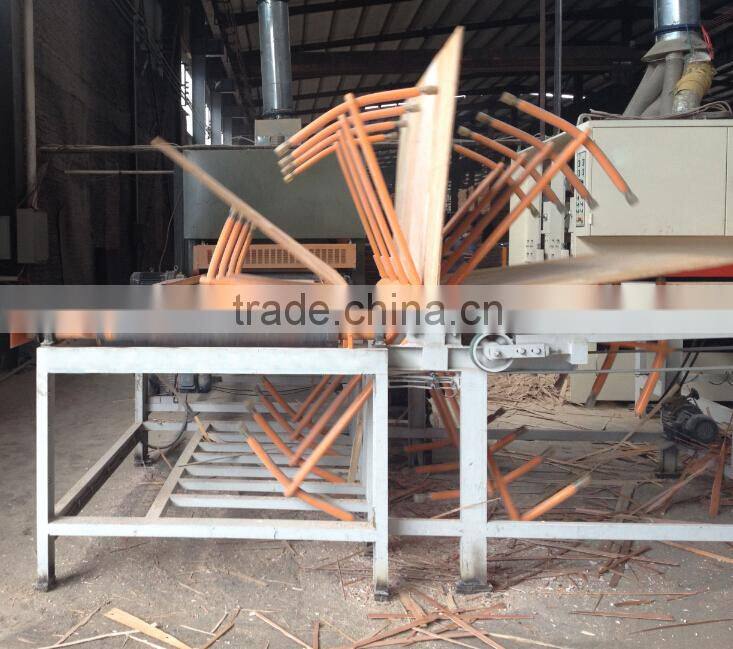

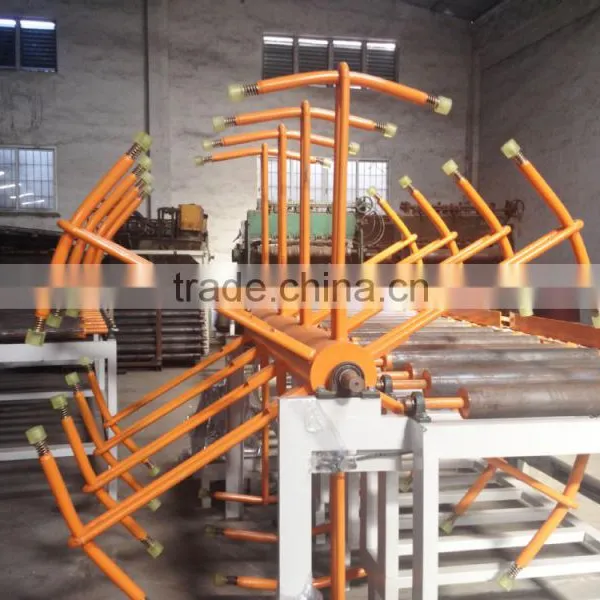

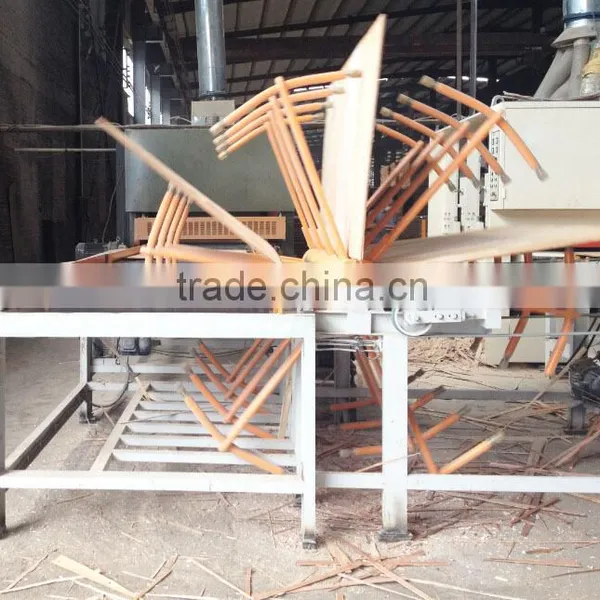

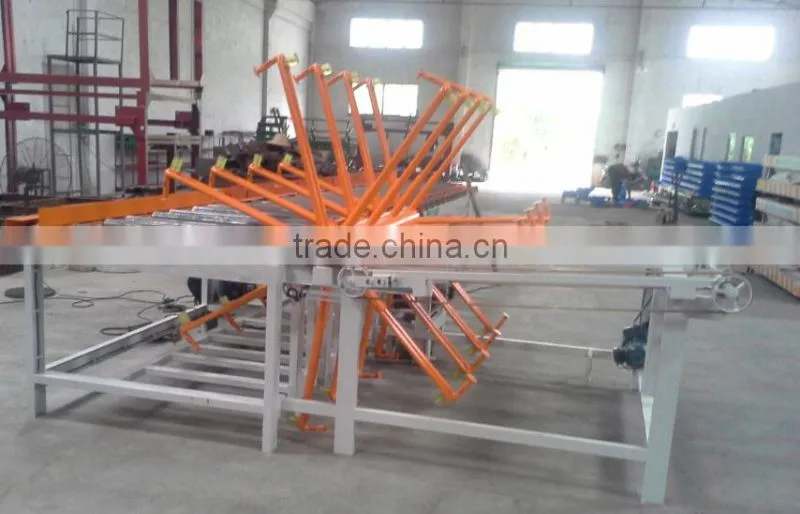

3.Detailed Images
Currently , we are in line of veneer joint production line, veneer cutting machine, press machine, drying machine, sander, dryer, glue spreading, water curtain machine, router, planner, moulder etc.
Spacious and clean workshop creates a comfortable work environment for workers to work smoothly. At the same time, finished products are set in the warehouse neatly.
Workshop:
Warehouse:
We set up a special use warehouse to hold various of accessories, they are classfied carefully by our professional warehouse contrller.
The loading team are responsible serious to load every container to prevent the goods be damaged.
The goods are loaded as the figure shows:
Foshan Shunde Huashunpeng Machinery Co., Ltd., a professional manufacturer of plywood machinery production line, located in famous woodworking machinery town, Lunjiao, Shunde. With a group ot professional engineers, technicians. we offer complete plan for your plant/factory, responsible for design, development, manufacturing of standard or customized machines.
We aim at supplying machines for composite boards or plywood manufacturing, including drying, jointing, pressing, sanding etc. Main products are drying machines, veneer jointers, glue spreaders, hot press machines, cold press machines, veneer composers, vertical&horizontal edge cutting saws, sanding machines etc.
Since 2015, we have exported machines to the Middle East, India, Malaysia, Vietnam, Indonesia and more. Products are spoken highly of from our clients.
Contact us
You deserve more from us:
1. Pre-sales service for your inquiry - suggestion(make draft&offer required machines), quotation, negotiation;
2. After-sales service - offer technical support from factory engineers/technicians;
3. User-friendly manuals and guidance book, video support for you;
4. Fast production lead time after order placed on us;
5. Spare parts, accessory are available from us.
Q: What kind of machines I need for my plant/factory?
A: 1. Get your inquiry, we need to know:
a). finished products: core boards or plywood boards?
b). boards dimension: length, width, thickness?
c). production capability per day?
d). plant/factory size?
e). budget for the entire production line?
2. Offer suggestions as per your reply;
3. Quotation(technical parameters, trade terms, payment terms, lead time, warranty etc.);
Q: How can I order from you?
1. When both sides agree to the quotation and make a deal, we send you Proforma Invoice, Packing List and other required documents for custom clearance. Buyers transfer us deposit, when we receive into bank account, we start production and keep you update for the process(shoot photos, videos).
2. Before delivery, machines should be tested to ensure its normal operation. Also send some photos of the packing and details to make sure they are in good condition.
3. All the documents will be delivered to you by DHL/FedEx/UPS/TNT etc. for your custom clearance purpose.
