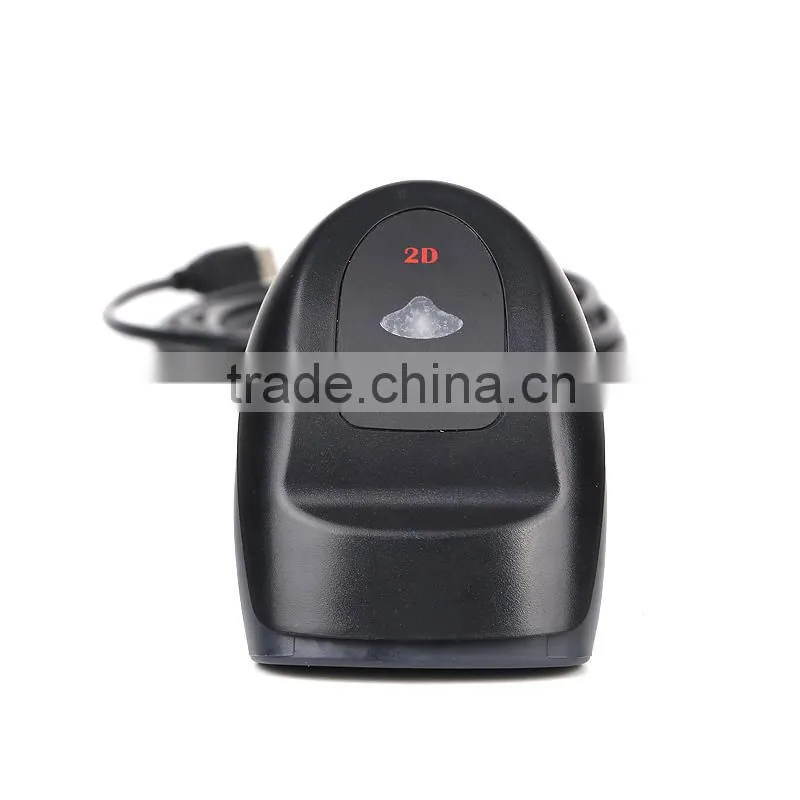

Cheap USB Handheld 2D Barcode Scanner QR code reader DataMatrix PDF417

Cost-effective 2D Barcode Scanner

Handheld Area Imager, USB interface

Product Specifications

Physical Parameters

Scanner Size                  Length/Width/Height 155*65*95 mm

Material                          ABS+TPU

Scanner Weight             180 g

LED Indicator                  Red

Performance Parameters

Working Current                     340 mA

Power Supply                         Class 2; 5.2V DC @1A

Power Consumption               2W; 400mA@5V

Support Barcode                    Standard 1D, 2D bar codes(PDF417, Data Matrix, QR codes, etc..)

Motion Tolerance                   100 mm/sec, 13mil UPC

Interface                                 USB (RS232 is optional)

Data Cable Length                 2 meters

Enviromental Parameters

Operating Temperature                      0℃- 40℃

Storage Temperature                         -40℃- 60℃

Operating Humidity                             5% - 95%Relative humidity

Electrostatic Protection                       ±15kVDC Air discharge,±8kVDC Direct / indirect discharge

Drop Test                                            50 drops from 150cm high

Ambient Light immunity                       0 - 100.000LUX

IP Class                                               IP41

LED Safety Certification                       IEC6247CB, IEC60950

Integrated Authentication                    GOST-R(Russia), CE

EMI                                                      Accord en50081,par1 specifications

EMC Electromagnetic Compatibility     EN55022,EN55024 class B

Dust                                                     Seal to resist invasion of dust particles in the air

Classical Performance

Bar code Density                          Depth of Field

5 mil Code39                                 33-95mm (1.3-3.7 inch)

13 mil UPC                                    32-255mm (1.3-10 inch)

20 mil Code39                               35-355mm (1.4-14 inch)

6.7 mil PDF417                             30-95mm (1.2-3.7 inch)

10 mil Data Matrix                         30-100mm (1.2-3.9 inch)

15 mil Data Matrix                         21-162mm (0.8-6.4 inch)

20 mil QR code                             23-200mm (0.9-7.9 inch)

2D Barcode Scanner Display

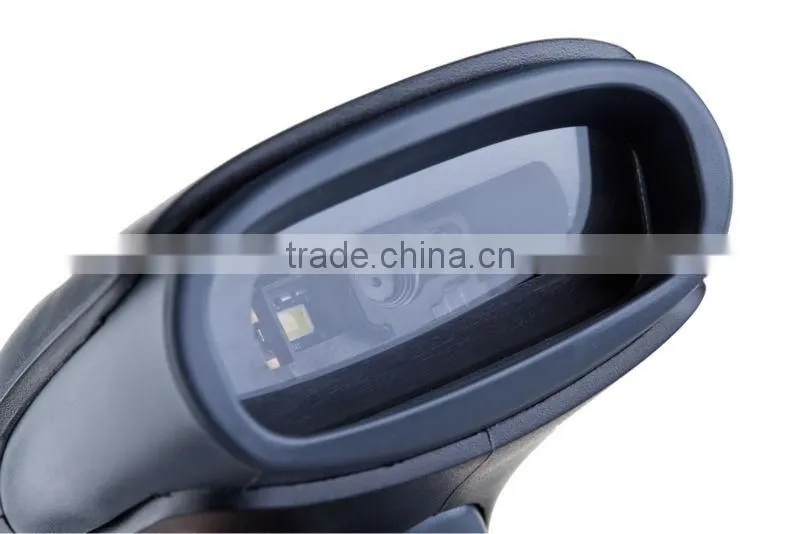

Ebedded with good 2D area imager

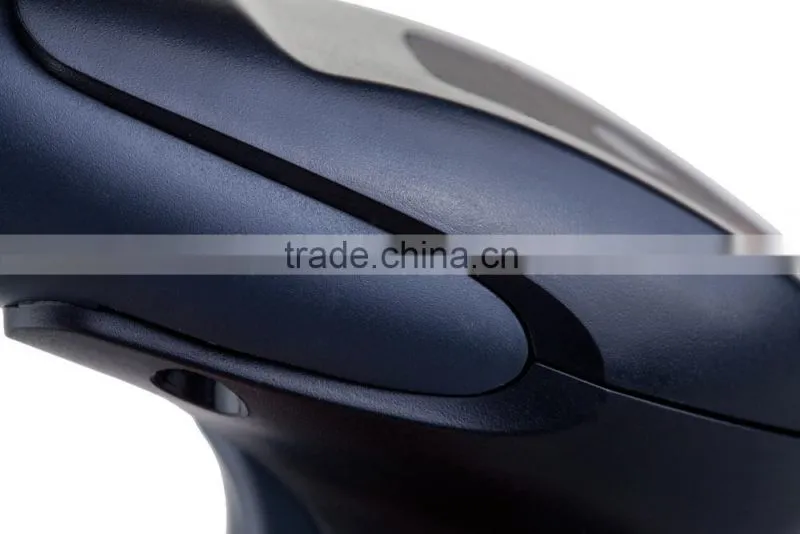

Handheld Design

Good quality ABS casing

USB Cable

Packing
