Help CenterFlat Conveyor Belt
Related Products
Specifications
flat conveyor belt1.Light weight, high strength
2.Good through ability
3.High load capacity
4.High quality
flat conveyor belt is one of the strongest types of conveyor belts. It has the advance of thin body. Good flexibility and trough ability, high tensile and adhesive strength, anti-shock and long service life, they are suitable for transportation of middle and long distance heavier load under a high speed and are extensively used in mines metallurgy industry. building industry, railway engineering, port and so on |
|

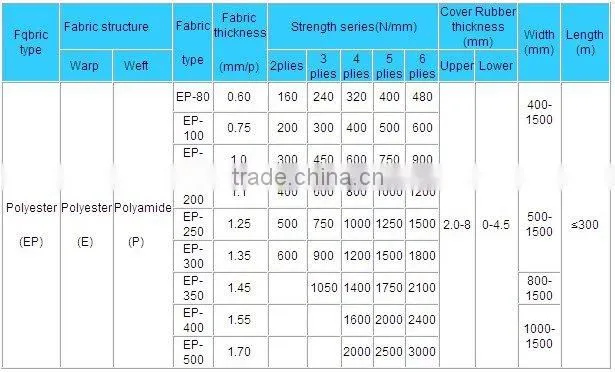

Product characteristics and structure: | |
| |
Fdbric type |
Fabric structure |
Fabric type |
Fabric Thickness |
Strength series |
Cover Rubber Thickness |
Width Mm |
Length m |
|||||||||
Warp |
Wei |
1ply |
2ply |
4ply |
5ply |
6ply |
Upper |
Lower |
||||||||
Nylon |
Nylon |
Nylon |
NN-100 |
0.75 |
200 |
300 |
400 |
500 |
600 |
1.5-8 |
0-4.5 |
|
≤300 |
|||
NN-150 |
0.80 |
300 |
450 |
600 |
750 |
900 |
||||||||||
NN-200 |
0.90 |
400 |
600 |
800 |
1000 |
1200 |
||||||||||
NN-250 |
1.15 |
500 |
750 |
1000 |
1250 |
1500 |
||||||||||
NN-300 |
1.25 |
|
900 |
1200 |
1500 |
1800 |
||||||||||
NN-400 |
1.45 |
|
|
1600 |
2000 |
2400 |
||||||||||
NN-500 |
1.55 |
|
|
2000 |
2500 |
3000 |
||||||||||
The Adhesion and Elongation of the Belt |
Belt carcass |
Adhesion strength |
Elongation |
|||
Between plles N/mm |
Between rubber and carcass |
Longtudinal elongation break |
Longtuainal elongation rate at reference load |
||
Rubber thickness |
Rubber thickness |
||||
Nylon canvas |
≥4.5 |
≥3.15 |
≥3.5 |
10 |
2.0 |

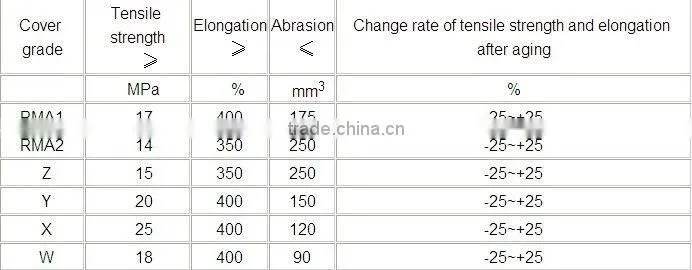

The Common Grade of the Cover Rubber |
Cover grade |
Tensile strength |
Elongation at break |
Abrasion |
Mpa |
% |
mm3 |
|
H |
24 |
450 |
120 |
D |
18 |
400 |
100 |
L |
15 |
350 |
200 |
