Specifications
reinforced PA6 with 40% GFGood Heat Resistance
High Rigidity
Good Stability
reinforced PA6 GF 20% natural color
Description: 1. Good heat resistance
2. High rigidity
3. Good stability
Dry and injection molding process:
Drying time: 80-90 °C / 2 hours
Injection temperature: 250-270 °C
Moulding temperature: 80-100 °C
Ningbo Eagle New Material Co., Ltd
Model NO. – HG3020 Color – Natural
Properties |
ASTM |
Units |
Test Data |
|
Mechanical Properties | ||||
Tensile Strength |
D638 |
MPa |
132 |
|
Tensile Modulus |
MPa |
/ |
||
Elongation at Break |
% |
4 |
||
Bending Strength |
D790 |
MPa |
163 |
|
Bending Modulus |
MPa |
5320 |
||
IZOD Impact Strength |
1/4 |
D256 |
KJ/m2 |
9.2 |
1/8 |
10 |
|||
Thermal properties | ||||
Melting Point |
D |
°C |
/ |
|
Heat Deflection Temperature(1.82Mpa) |
D648 |
°C |
185 |
|
Melting Index |
D1238 |
g/10min |
55 |
|
Flame Retardant Property |
UL94 |
HB |
HB |
|
Physical Properties | ||||
Density |
D792 |
g/cm3 |
1.3 |
|
Ash Content |
ISO3451 |
% |
20±2 |
|
Water Absorption (24H/23°C) |
D570 |
% |
/ |
|
Molding Reduction |
D955 |
10-3mm/mm |
3.2-4.2 |
|
Electrical Properties | ||||
Dielectric Strength |
IEC 60243-1 |
KV/mm |
/ |
|
Volume Resistivity |
IEC 60093 |
Ω·m |
/ |
|
Surface Resistivity |
IEC 60093 |
Ω |
/ |
|
|
Remark
|
Experimental Condition: ¹ Temperature:23°C ² Relative Humidity (RH): 60% |
|||

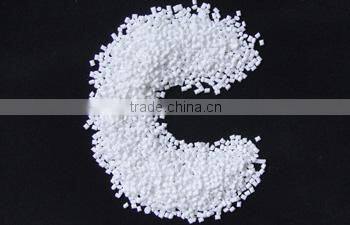

Product picture:

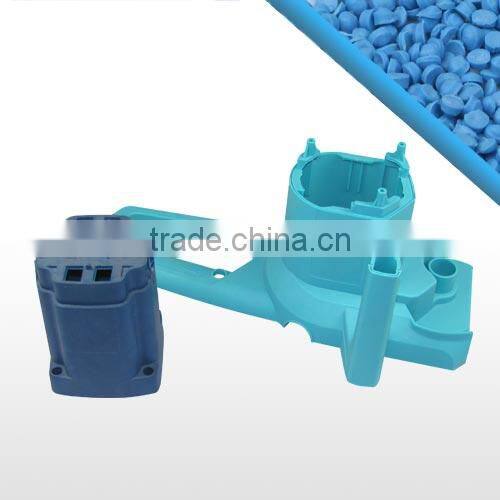

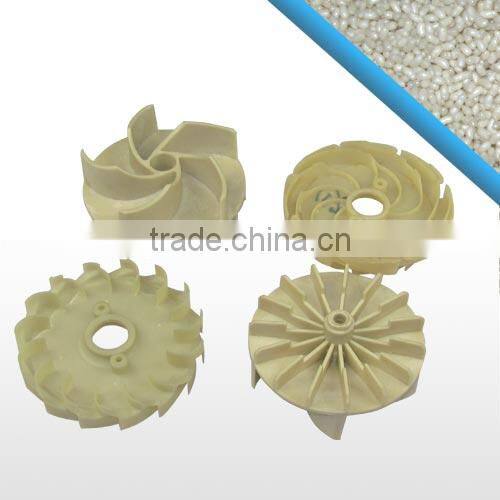

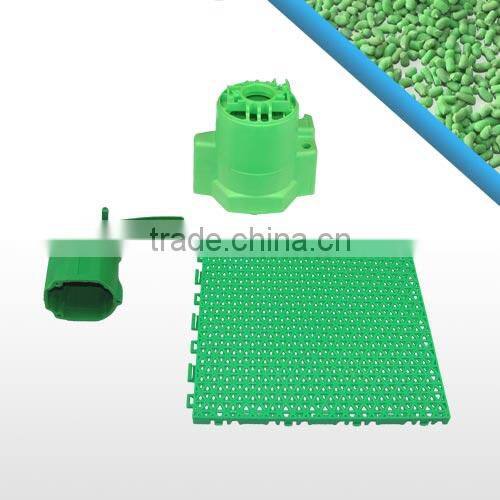

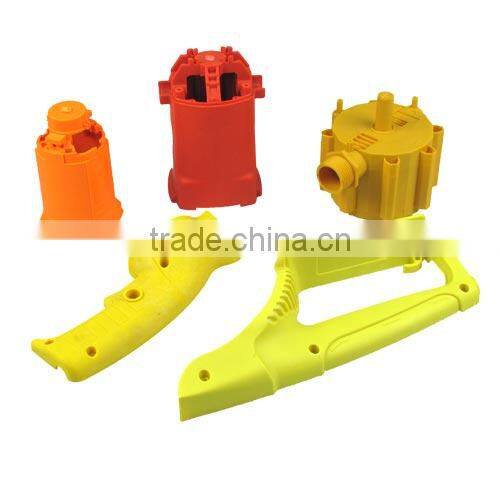

Application:
Package:
25kg/bag, in complex paper bag or poly woven bag,customized match to price.
Remark:
To the best of our knowledge, the information contained herein is accurate. However, all materials may present
unknown hazards and should be used with caution. Final determination of the suitability of any material is the
sole responsibility of the user.
QC Flow Chart:(production percent of pass:>99%)
Detection Devices:
Enterprise Certification:
We have passed ISO9001:2008 quality management system certification,ISO14001:2004 Environmental Management System certification,the EU RoHS certification,the United States AQA certification and American Yellow Carl UL certification and the world through standard SGS testing and certification.
Enterprise Honors:
Factory Photos:
Office Building
Workshop and Warehouse
Inspection and Samples Room
Why Choose Us:
1,Since 1933,more than 20 years of experience in the field of plastic modification
2.Registered Capital: US$10.8 Million
3.Employee: 300
4.Covered Area: over 60 000 m²
5.Annual Capacity: over 20 000 Tons
6.Pass:ISO9001:2008 ISO14001:2004,UL,SGS
7.Products comply with RoHS,REACH,PAHs,etc
8.100% qualified products with reasonable price.
