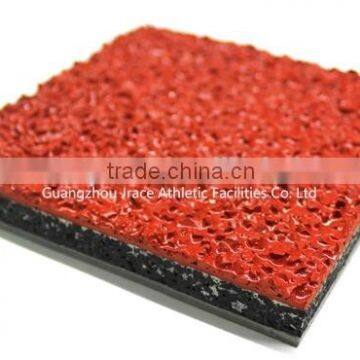

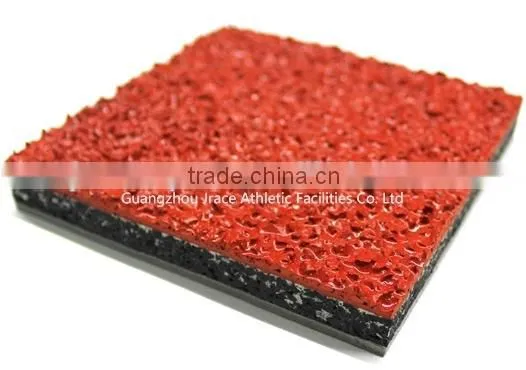

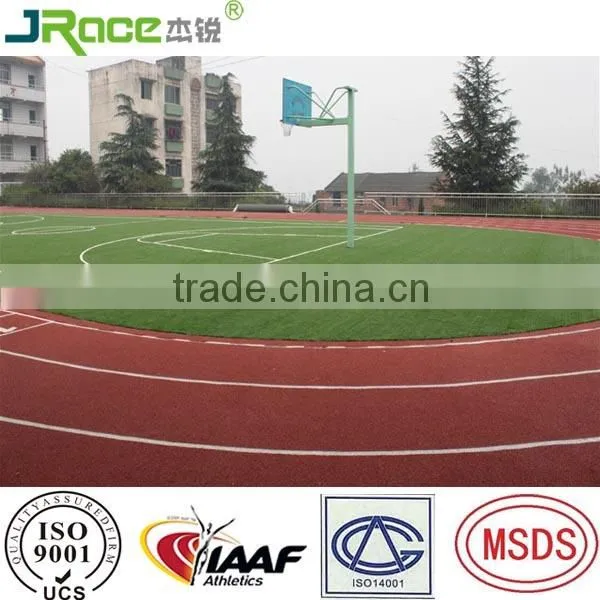

sandwich running tracks system synthetic rubber running track material
1.good quality sandwich running tracks
2.Thickness: 13-15mm
3.green product
4.IAAF Certification
JRace sandwich running tracks is one of the best running tracks system all over the world.
With new innovation technology and materials, make it a better eco-friendly track system.
Product description
JRace produces the highest-performance athletic running rubber track
materials since 2007.
The main products include:PU running tracks,SPU and Acrylic sports field materials.
JRace has two factories, 8000 square meters in Guangzhou and 40000 square meters in Qingyuan.
Equipped with advanced production line, the annual production capacity reach 43800 Tons.

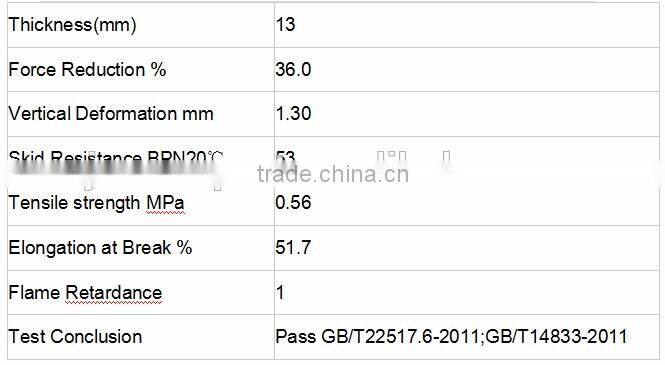

| Technical Specification Of Permeable Running tracks in 13mm | ||||
| Item | Characteristic | Unit | Test | Limit of acceptable |
| Aging Properties | Tensile Strength | Mpa | Before UV Irradiation | 0.56 |
| Elongation at Break | % | 51.7 | ||
| Tensile Strength | Mpa | After UV Irradiation | 0.54 | |
| Elongation at Break | % | 48.8 | ||
| physical property | Force Reduction | % | GB/T 22517.6-2011, GB/T 14833-2011 | 36 |
| Vertical Deformation | mm | 1.3 | ||
| Skip Resistance | BPN20℃ | 53 | ||
| Tensile Strength | Mpa | 0.56 | ||
| Elongation at Break | % | 51.7 | ||
| Burning Diameter | mm | ≤37 | ||
| Rebound Data | % | GB/T14833-1993 | 24 | |
| Compression recovery rate | % | 98 | ||
| Tensile Strength | Mpa | 0.9 | ||
| Elongation at Break | % | 61 | ||
| Flame Retardance | level | 1 | ||
| Limit of Harmful Substances | Benzene | mg/kg | GB/T 22517.6-2011,GB/T14833-2011 | Negative |
| Toluene and Xylene | mg/kg | Negative | ||
| TDI | mg/kg | Negative | ||
| Pb | mg/kg | 25 | ||
| Cd | mg/kg | 3.6 | ||
| Cr | mg/kg | 9.8 | ||
| Hg | mg/kg | 1 | ||

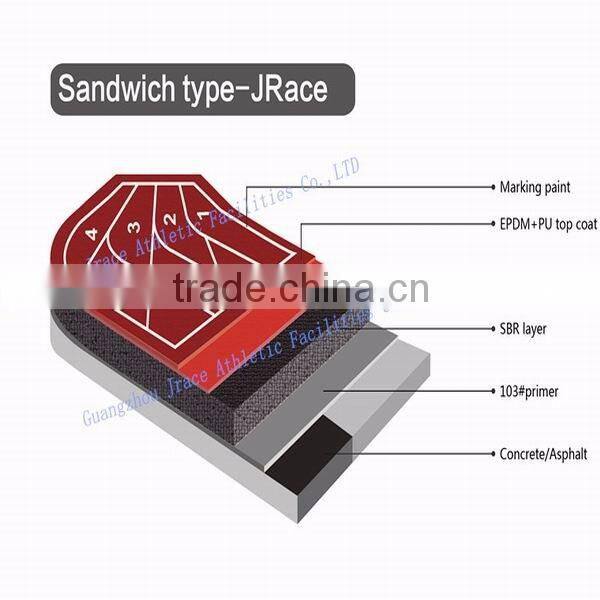

Product structure
1. Suitable for all weathers, and with good elasticity and resilience, so it can reduce the consumption of physical force and improve game results.
2. Not faded, dusted or softened by ultraviolet ray, ozone or acid rain but keep its bright color for quite a long period.
3. Easy to install
4. Maintain high quality in any season or under any temperature.
Can be used immediately even after rain, provide a longer service time and higher field utilization rate.
5. Strong wear resistance and pressure resistance, and meet the need of various schools or stadium for long-time frequent use.
6. The elastic layer and buffer layer can absorb strong impacts without any surface damage.
7. Absorb the impact forces of feet, reduce sports injury, and suit to both long-term exercises and games.
