High Quality 500W Industrial Flood Light
- Ningbo/Shanghai
- T/T Credit Card
You May Like
-
High Efficiency IP65 Led Garage Lighting 500W Led Flood Light
-
2016 Best China Supplier 150w Led Super Bright Garage Lighting
-
500W Led Lights Supermarket Warehouse Lighting Flood Light
-
Industrial Lighting Microwave Motion Sensor 500W Flood Light
-
High Quality Led Super Bright Garage Lighting 500W Flood Light
-
500W Led Flood Lamp for Warehouse/factory Lighting
Product Details
| LED Light Source | Nichia | Input Voltage(V) | 90-260VAC/277VAC | |
| Lamp Power(W) | 200 | Lamp Luminous Flux(lm) | 22779 | |
| Lamp Luminous Efficiency(lm/w) | 115 | Color Temperature(CCT) | Pure White | |
| Working Temperature(℃) | -30, 50 | Working Lifetime(Hour) | 129000 | |
| Lamp Body Material | Aluminum Alloy | IP Rating | IP66 | |
| Certification | BV, CE, EMC, LVD, SASO, UL, VDE | Place of Origin | Zhejiang, China | |
| Brand Name | Singbee | Model Number | SP2026-6B-200W LED flood light |
Product Description
5 year warranty UL, CE, Rohs approved 200W outdoor lighting LED flood light
- Exterior led flood light with UL, CE, Rohs, DLC, ErP approval.
- IP66 waterproof high quality led outdoor lighting.
- Long life span LED lighting outdoor lighting.
- Energy saving industrial outdoor lighting products.
- 12V DC outdoor solar lighting
The 360-SP-2026 series Singbee outdoor lighting is designed for exterior led lighting and area lighting. It is is approved With North-American UL&CUL standard and European CE, Rohs standard, labeled as Energy-related Product(ErP label). It is best choice for public facility lighting and large area outdoor lighting and sport ground project.
The Key certificates and approval SP2026 has including:
- UL&CUL, DLC target for North American market,
- CE, Rohs, ErP(Energy related Product)
- Able to have ENEC, CB(IECEE) certificate

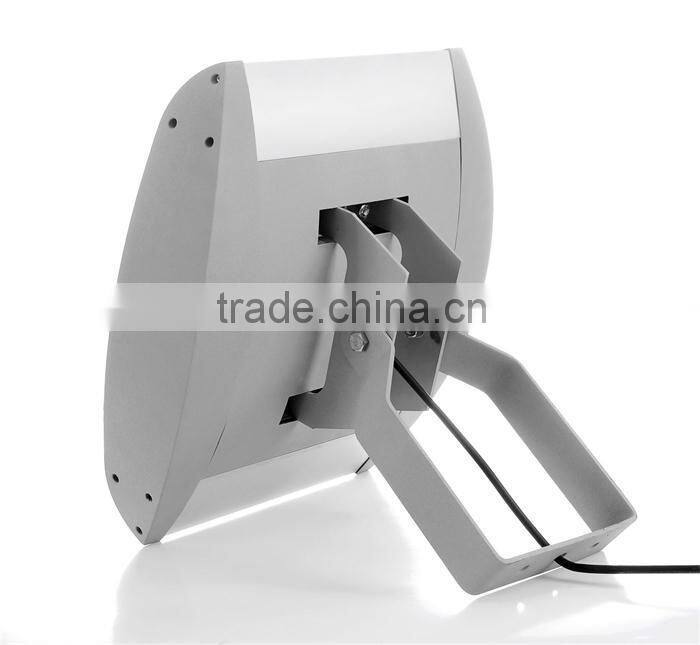

| 1 | Take view on product |

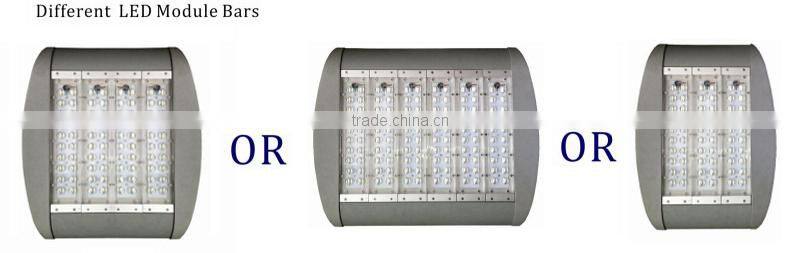

- Led module light head: led modules design, number from 1-7 modules optional.
- Mounting system: adjustable mounting bracket for different pointing angle.
| |
| 2 | Model information 360-SP2026-6B-200W outdoor lighting specifications |
Power consumption 200W
Led module numbers 6
Led chip brand Nichia
CRI 75
Lumens output 22779lm
Lumen efficiency 115lm/w
L70 tested time 129000 hours
Power supply MeanWell(HLG series)
Power factor >0.9
Voltage input 90-260VAC, 277VAC, (347V-480V, 12-24VDC, as required)
Color temperature 6000K(Cool White), (3000K-Warm White, 4500K-Neutral White optional)
Housing die-cast aluminum
IP rate IP66
Applications wall mount, roof mount, pole mount
Working temp. range -40 C---50 C
Light distribution Bat shape (Bat 360, Bat I optional, and symmetrical)
Protection Over voltage, Over current, shor circuit, light industry leve(surge 4KV)
Applications Outdoor lighting for industrial, high mast lighting, sport ground lighting
| 3 | Photometric information |
Specifications |
led fixture type: SP-2026-6B-200W LED flood light |
light distribution: Bat shape |
Lumens output(fixture): 22779 lumens |
Lumen efficiency: 115 lm/w |
Watt: 200W |
| 4 | Series information |
Series | Mounting | System power | Color temperature | Distribution | Voltage | Optional |
360 | SP-2026 flood light mount system | 40W | Cool white(6000K) Neutral white(4500K) Warm white(3000K) | Bat 360 Bat Shape 170D 80D 40D Rack B | MVolt(90-260V/AC) 277V/AC 347V/AC 480V/AC 12/24V DC | Dimming Photocell Motion sensor |
60W | ||||||
| ||||||
100W | ||||||
120W | ||||||
150W | ||||||
200W | ||||||
250W |
| 5 | Features of the series |
l The SP-2026 series LED flood light is designed for industrial lighting, outdoor area lighting, sport lighting. It is IP66 rated led flood light.
l Top grade bridgelux led chip, with more than 100000 hours life span. LM80 report tested.
l Whole fixture approved by UL(file No. E354219), CE, Rohs, ErP(Energy-related Product)
UL 1598
UL 8750
EN 60598-2-3:2003;A1
EN 60598-1:2008;A11
l High performance and energy efficient outdoor lighting products in qualified DLC list(Premium classification), ErP labeled.
l Available to install on high mast top and point down as traffic flood light.
l LED high lumens output up to 140 lumens per watt.
l No UV, no lead, Rohs approved environment friendly lighting products, photobiological safety.
l The flood light is powered with Meanwell led driver, efficiency up to 94%, pfc>0.9.
l Light housing is processed with high heat conductive alloy and powder coated painting, lasting for 10 years.
l Green and energy efficient led flood light, available to use solar power, solar outdoor lighting.
l SP-2026 flood light is available to add some extra function like dimming, photocell control, motion sensor switch, and wireless controlling system.
| European approvals | N-American approvals | |
| |

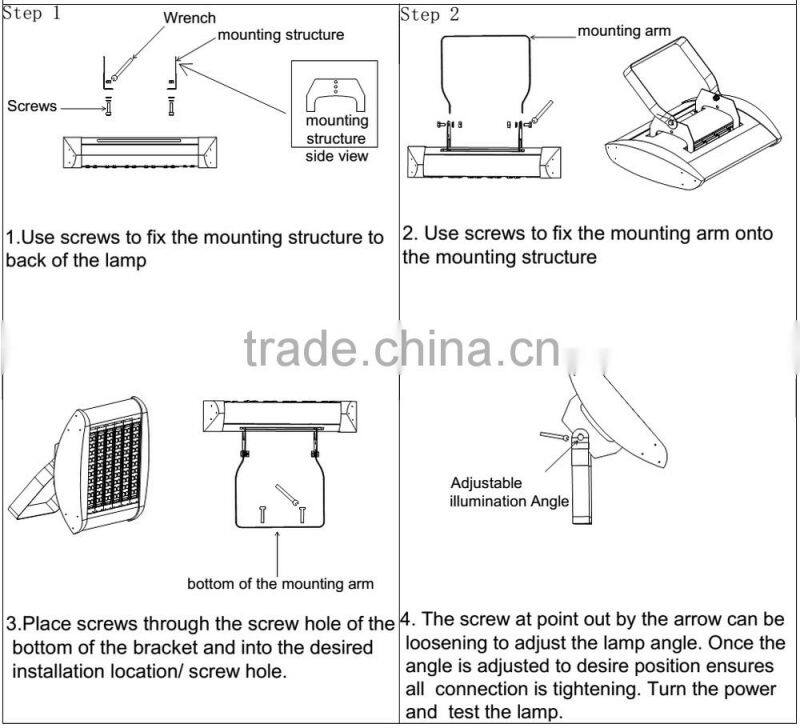

| 6 | Installation manual of outdoor lighting, Model: SP2026 |
| LED street light 120W (click picture below to know maore) | LED canopy light (click picture below to know maore) | |
| |

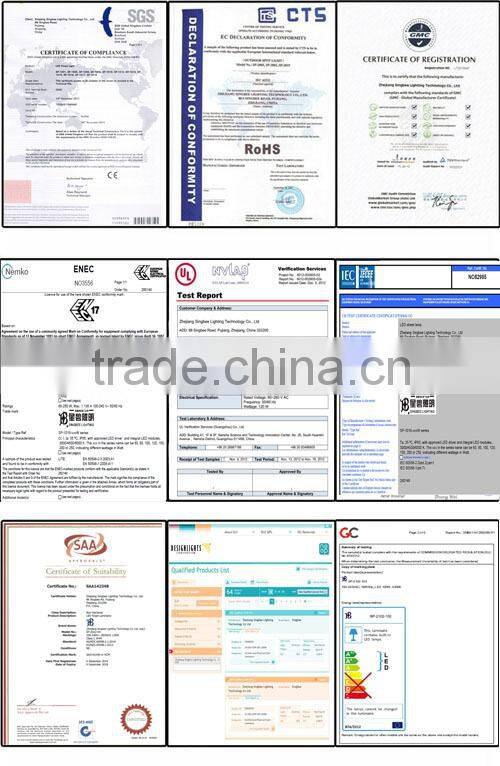

| 7 | Certifications, standards and approvals |
| Certificates | Standard and approvals |
| ANSI/UL 1598-2008 IES TM21-11 IES LM-79-08 NVLAP LAB CODE 500067-0 EN60529 1991+A1: 2000(IP66 test) EN 61547 EN55015 EN 61000 EN 60598(IEC 60598) EN 62262&EN 50102(IK10) ISO/IEC 17025 FCC 971995 IEC 61000 CTSEMC-1.0 GMC 16022521 BV 6947970_P+T ISO 9001, TUV, SGS, BV CE, Rohs ENEC EN 60598 (EU) 874/2012 CB(IECEE) ErP lable(Energy-related product) UL&CUL UL 1598, UL 8750 DLC(Designlights Consortium) LM-79, LM-80 SAA AS/NZS 60598.2.1:2014 AS/NZS 60598.1:2013 |

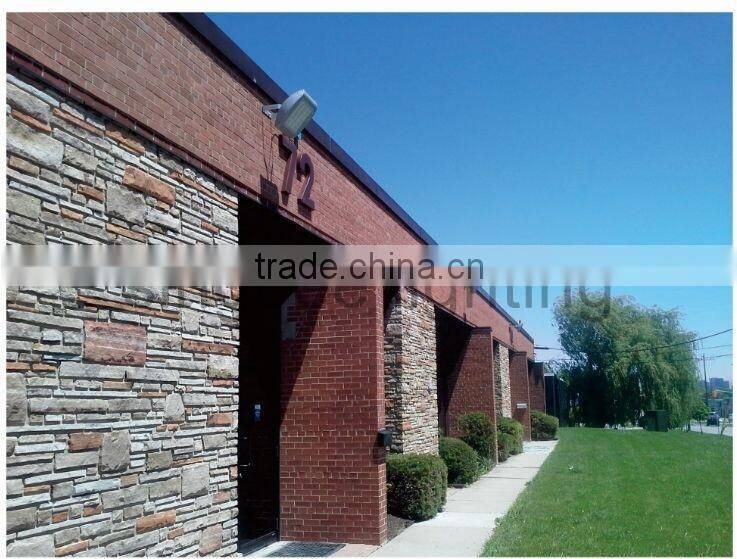

| 8 | Project show |
- 360-SP2026 series outdoor lighting is best for outdoor lighting projects, such like entrance lighting, billboard lighting. It is also available to work in solar outdoor lighting applications.
| 9 | Contact and conpany information |
| Harry Zhang Singbee Lighting
|
SINGBEE LIGHTING, founded in 2005, now is China first class company in LED lighting industry. As the professional manufacturer, our production starts from leds packaging to complete fixture production.
What makes SINGBEE product is the strong and strict quality systems we built in both product design and manufacturing. Every year, there are several unique designs and featured products will come in line from prototype. The products are made under high requirements of European and American standard and certified with CE, RoHs, UL.
As running on the way to an international influential company, we are setting up our service station throughout the world. We believe the future is bright, and would like to invite you work with us.
Contact Us
- Zhejiang Singbee Lighting Technology Co., Ltd.
- Contact nameLina Wang Chat Now
- Phone86-579-84193166
- Address88 Singbee Road, Pujiang Economic Developing Area, Zhejiang Province. China, Jinhua, Zhejiang
