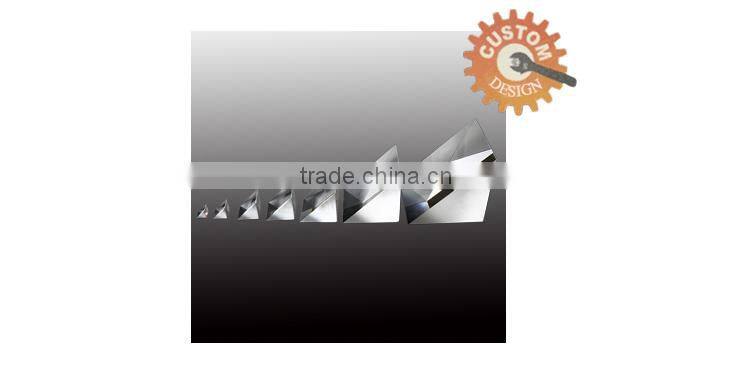

Help CenterTriangular Prism/Right Angle Prism
Related Products
-
Precision Spherical MirrorsUS$ 95.00 - 105.00MOQ: 1 Piece -
N-BK7 Precision WindowsUS$ 30.00 - 40.00MOQ: 1 Cubic Inch
-
Silicon(Si) Windows for Weight Sensitive ApplicationsUS$ 85.00 - 100.00MOQ: 1 Piece
-
Ultra-Thin N-BK7 WindowUS$ 40.00 - 50.00MOQ: 1 Piece
-
UV Fused Silica WindowUS$ 50.00 - 65.00MOQ: 1 Piece
SPECIFICATIONS
| Material: | N-BK7 |
|
| Dimensional Tolerance : | ±0.10mm |
|
| Surface Flatness : | λ/8 |
|
| Surface quality : | 40/20 | |
| Angle Tolerance : | ±5 arcsec | |
| Ray Deviation: | 90° |
|
| Max Bevel : | 0.3mmx45° | |
| Clear Aperture : | 90% of central circular dimension |
APPLICATIONS

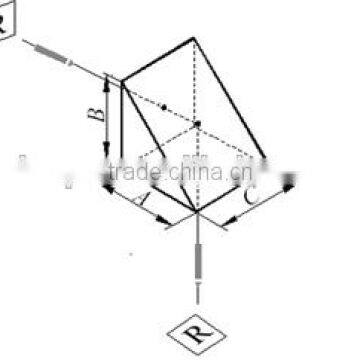

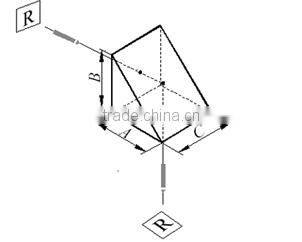

Right angle prisms are generally used to bend image paths or redirect light at 90°.This produces a left handed image and depending on the orientation of the prism, the image may be inverted or reverted. Right angle prisms also can be used in combination for image/beam displacement.
Besides standard optics , customized optics is also available. We focus on optical design, optics processing, coatings, electronics& mechanics and the whole optical system integration. Our powerful and professional R&D team guarantees our products a reputation of innovation, quality and high performance.
1)Brilliant Technology is dedicated to being the leading provider of optical components and integrated optical inspection devices with high standard quality control. This goal will be achieved through our focus on the raw material selection, manufacturing process inspection, sampling,finalization and transportation monitoring.
2) During the manufacturing and sampling procedures, precious optical devices shall be used on the optical parameter detection such as surface irregularity, surface scratch,refractive index, coating and etc.
3) Not only optical components were strictly selected, but also the integrated devices. Every module will be under a series of spec run before releasing itself. Evaluation report comes along with the in-house test for the insurance of each devices’ regular working.
Send Inquiry to This Supplier
