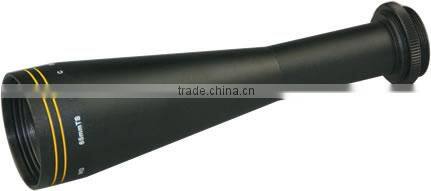

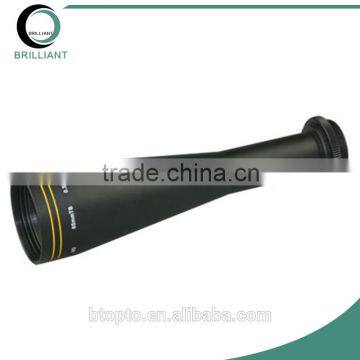

Help Center2/3" Format C-mount 0.3x Magnifying WD 65mm Telecentric Lens
Related Products
-
2/3" Format C-mount 0.5x Magnifying WD 65mm Telecentric LensUS$ 2500.00 - 3300.00MOQ: 1 Piece -
2/3" Format C-mount 0.5x Magnifying WD 110mm Coaxial Telecentric LensUS$ 1600.00 - 1800.00MOQ: 1 Piece
-
2/3" Format C-mount 0.8x Magnifying WD 110mm Coaxial Telecentric LensUS$ 1600.00 - 1800.00MOQ: 1 Piece
-
2/3" Format C-mount 1.0x Magnifying WD 110mm Coaxial Telecentric LensUS$ 1600.00 - 1800.00MOQ: 1 Piece
-
2MP 2/3" Format C-mount Manual Iris Fixed Focus 25mm UV LensUS$ 1500.00 - 1500.00MOQ: 1 Piece
SPECIFICATIONS
| Working Distance : | 65mm |
| Magnification : | 1.5x |
| Resolution: | 6.06μm |
| Format : | 2/3" |
| Mount: | C |
| NA: | 0.048 |
| Effective Fno: | 15.5 |
| Field Range: | 4.3×3.2mm |
| Depth of Field : | 0.56mm |
| TV Distortion : | 0.0015% |
| Dimension : | 20x 89.4mm |
| Weight: |

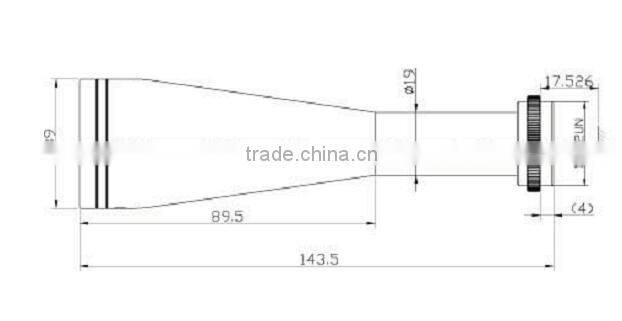

DIMENSIONS

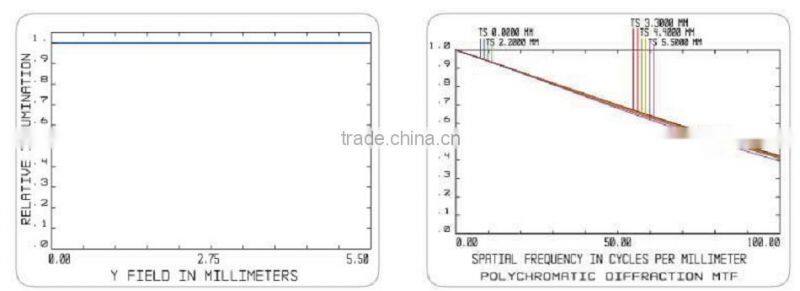

MTF CURVES
1)Brilliant Technology is dedicated to being the leading provider of optical components and integrated optical inspection devices with high standard quality control. This goal will be achieved through our focus on the raw material selection, manufacturing process inspection, sampling,finalization and transportation monitoring.
2) During the manufacturing and sampling procedures, precious optical devices shall be used on the optical parameter detection such as surface irregularity, surface scratch,refractive index, coating and etc.
3) Not only optical components were strictly selected, but also the integrated devices. Every module will be under a series of spec run before releasing itself. Evaluation report comes along with the in-house test for the insurance of each devices’ regular working.
